32 Inch Interactive 10 Points Infrared IR Touch Screen Overlay Frame Free Driver

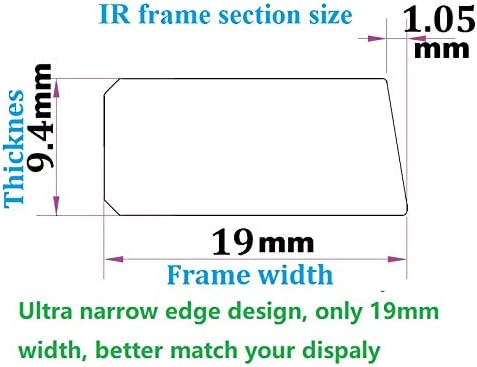

- 10 POINTS TOUCH: This item is 32 inch 10 points interactive infrared touch screen frame, not including glass, Design for for 32 inch LCD display. We have full size of infrared touch frame for sale, which size be from 24 inch to 98 inch, pleasae you visti the DEYOWO store to know more. - EASY INSTALLATION: Ultra narrow edge design and only 19 mm width for better matching your display; Our IR touch frames is Plug in design, the installation job is very simple and easy. You can read Installation Guide Manual or watch installation video online, you will do it well. If the touch positioning is not accurate after installation, we can provide the calibration software. After installation, if it can't work or function is abnormal, please contact us, we will provide technology support. - FREE DRIVER: This Item support 10 points touch with free driver on Windows and Android; This item just support one point touch on Mac iOS and Linux; About Android TV box, please inquiry TV box supplier whether if the box be with touch function before you order this item! - LONG LIFE: The out frame material is full aluminum, the infraed light and PCBA is reliable quality and stable performance. Warranty is 3 years. - APPLICATION: Design for Touch Screen Monitor, Touch All in one, Touch Kiosks,Touch Digital Signage, Touch Whiteboard. Application sector be including Game,Education, Meeting, Exhibition, Advertding and so on other interactive applications.

Product description

32 inch IR touch frame

Product description

Product advantage

Product drawing

Produtc datasheet

Product appearance

Detail touch specification

1-This item is Deyowo 32 inch 10 points interactive infrared touch screen frame overlay, design and use for interactive board, touch LCD monitor, touch display TV. Touch Kiosks, Touch Digital Signage, Whiteboard, Exhibition and etc.

2-The out frame of Infrared Touch using alluminum material, product is strong and durabel.

3-The infrared touch screen is anti-sunshine, there are no light interference, no drift even if it be uesed under the sunshine directly.

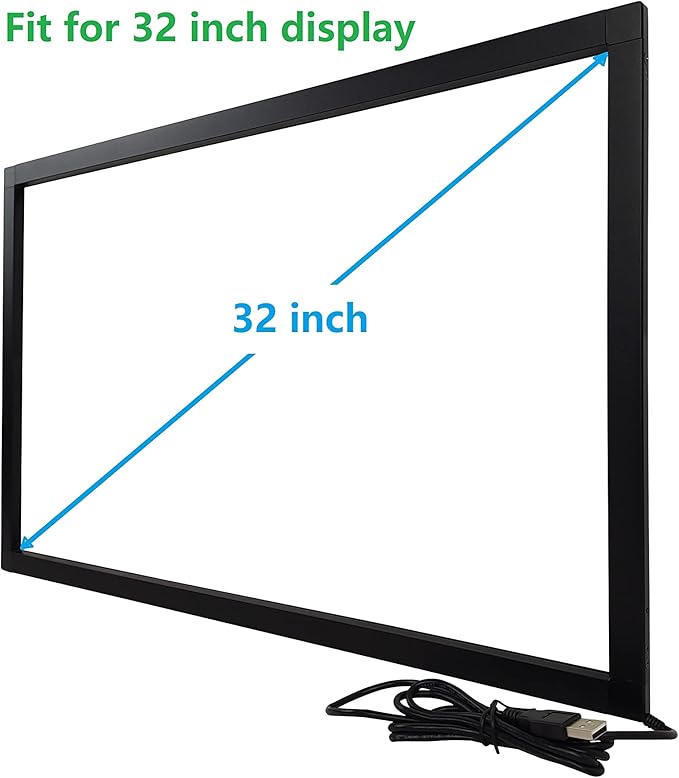

4-This item just only matching 32 inch display, we showed the detail dimension drawing on webpage, you can check if your display can match this item.

5-This item is only touch frame for sale which be without glass, the installation is very simple and very easy, we will provide Installation Manual.

6-The infrared touch screen is Free driver for Windows, Android and Linux. Support Mac iOS with HID driver, you can sent message to us on Amazon and get it.

7-Many Android TV Box model be without touch function, please inquiry TV box supplier if the box be with touch function before you order this item.

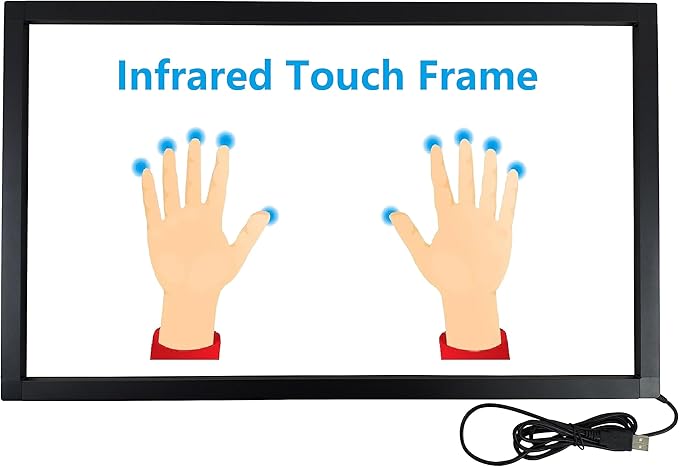

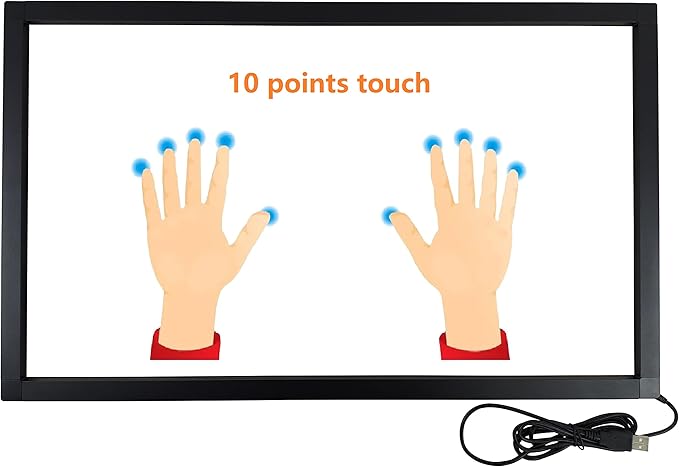

Support 10 points interactive touch, design and use for interactive board, touch LCD monitor, touch display TV. Touch Kiosks, Touch Digital Signage, Whiteboard, Exhibition and etc.

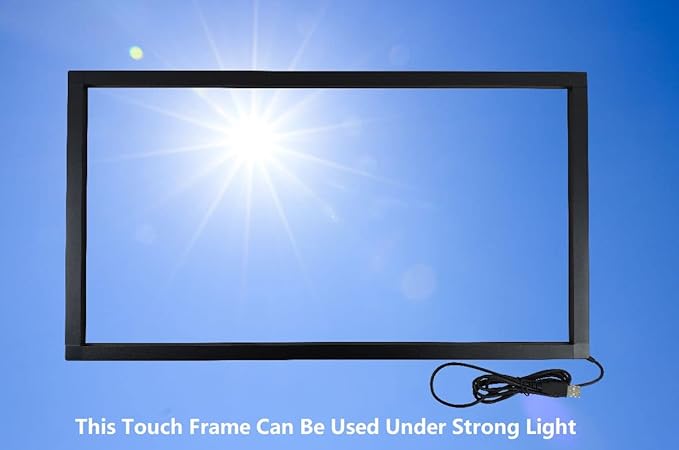

Anti light interference function, it can run well even if it is under sunshine.

1-Driver free for Windows7, Windows8, Windows10, Native Linux and Android OS.

2-Need to install the HID driver on Mac OS

3-Does not support Smart TV Android system, Raspberry Pi

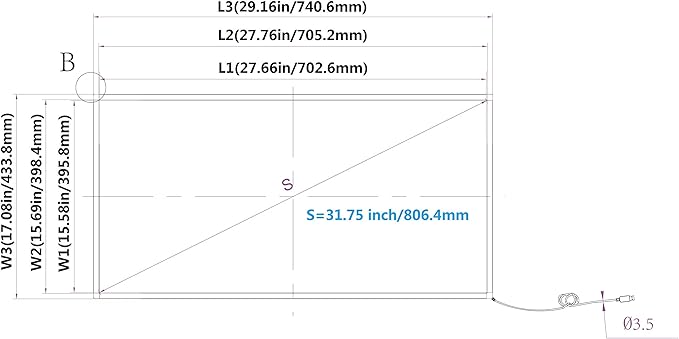

DIMENSION

●Display area: L1=702.6mm, W1=395.8mm

●Outside area: L2=740.6mm,W2=433.8mm

S= 31.75inch (806.4mm), match 32 inch display

●Ratio: 16:9

ElECTRICAL

●Operating Voltage: DC 4.5V ~ DC 5.5V

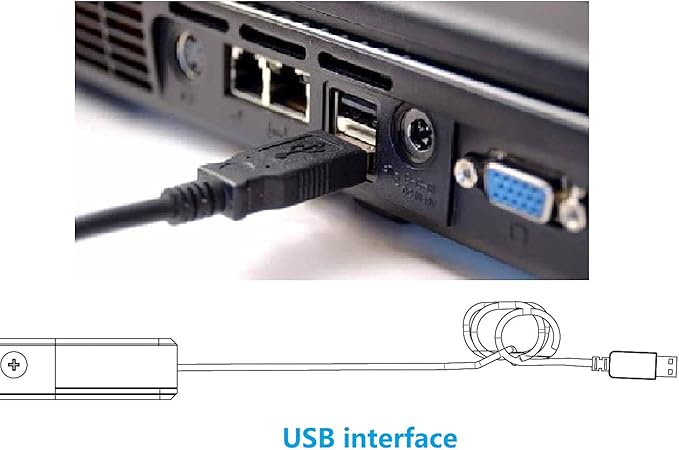

●Power Supply: Single USB Connection

●Power Consumption: 1.0W (200mA at DC 5V)

ENVIRONMENT

●Operating Temperature: -20°C~70°C

●Storage Temperature: -30°C~80°C

●Operating Humidity: 10%~90%RH(Non-condensing)

●Storage Humidity: 0~95%RH

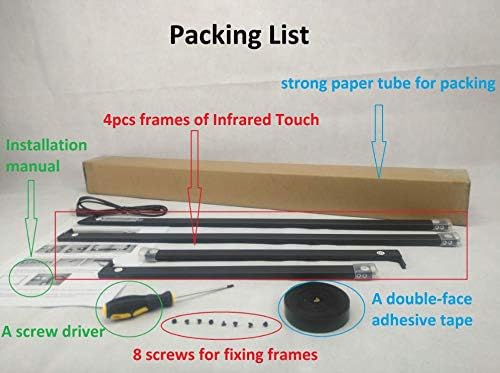

Package using strong paper tube, the inside packing list:

4 pcs touch frames;

8 screws

A installation manual

A screwdriver (gift)

A duable-face adhesive tape (gift)

Before you fixing the touch frames, layout the four frames like the picture. Easy and simple.

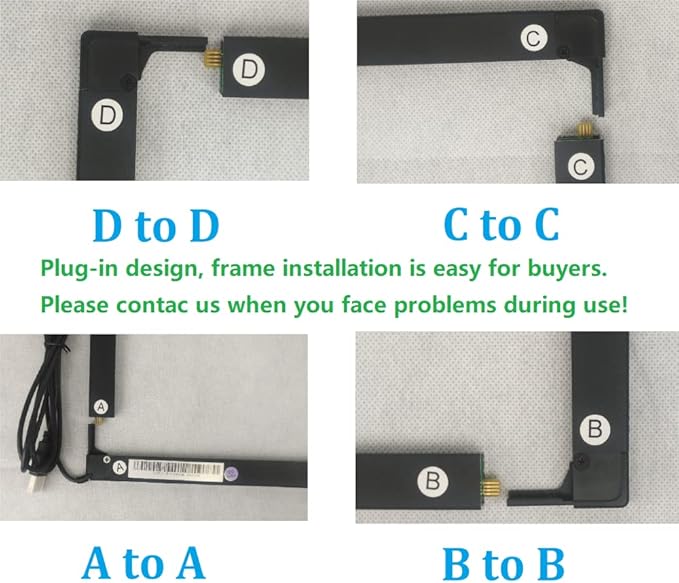

Slot design for four corner interface ports connecting, A to A, B to B, C to C and D to D. Easy and simple. When you face problems during use, you can sent messages to us on Amazon.
