3D Stereo USB Camera 120fps Global Shutter Printer USB Camera Module with 120 Degree No Distortion Synchronization Dual Lens PC Computer Camera Plug and Play for Raspberry Pi Mac Linux Windows

- 120 Degree No Distortion Synchronization Dual Lens: 4Megapixels 3200(H)X1200(V) 3D stereo synchronous camera module with 120 degree no distortion M12 mount synchronous dual lens, HFOV 120 degree, Small outline, mini size 80X16.5mm for embedded application. - 240P@120fps High Speed Camera: Global shutter usb camera 120fps high speed USB 2.0 interface to type C in camera, camera with USB , plug and play ,no need any driver to run. Fast Frame rate for high speed video recording. MJPEG:3200X1200@60fps/2560X720@60fps/1600X600@120fps /1280X480@120fps /640X240@120fps. - Global Shutter Camera : This camera capture 1200@60fps high-speed moving objects with crisp sharpness using the 1200P global shutter printer 3d camera module. Unlike rolling shutter cameras, the global shutter technology exposes the entire sensor at once, eliminating rolling artifacts and providing a more accurate and complete picture. - USB2.0 Plug and Play: Thus camera with dual lens with fast frame 600@120fps to capture the quick moving object, works like the human eye, and shots the imaging you want. Ultra HD resolution meets your request for higher quality video still pictures resolution. support UVC compliance for use in OS Windows, Linux, Android, Mac, Support OTG function, can connect Android mobile, pad directly . - Wide Application: 3D video camera wide application for robot vision, online teaching, live streaming, online meeting, 3D measurement, Intelligent transportation system, People Counting & Tracking, Astrophotography, Virtual reality, Augmented Reality, biometric Retina analyze or embedded industrial project, etc.

Product description

IFWATE USB Camera 120fps Global Shutter USB Camera Module with 120 Degree No Distortion Synchronization Dual Lens PC Computer Scan Camera

IFWATER 4MP USB Camera 1200P 120fps Global Shutter Synchronized Dual Lens USB Camera High Speed 3200x1200@60fps Stereo USB Camera

1200P@60fps USB Camera 4MP Synchronization Dual Lens Stereo 3D Camera PC Computer Camera High Speed WebCamera for Laptop Embedded USB Security Camera

IFWATER 3D USB Camera 4MP Global Shutter USB Camera Synchronization Dual Lens For Computer And Raspberry Pi Mac OS Linux Windows

IFWATER Stereo Camera Global Shutter 120 Degree No Distortion Dual Lens 3D Video Camera Synchronization 120fps PC Camera For Computer Windows Laptop

3D Stereo USB Camera Max. 3200x1200P USB Camera Plug and Play For PC, Rasp Pi, Android Develop Board, Jetson Nano

120fps Global Shutter 3D Stereo USB Camera Max. 3200x1200P Camera Module Plug and Play For PC Raspberry Pi Android Develop Board Jetson Nano Windows

Global Shutter USB Camera Module 120fps High Speed Camera with 120 Degree No Distortion Dual Lens Camera 3200x1200@60fps High Speed 3D Stereo Camera

Why global shutter :

A global shutter (total shutter) camera can captures an image by exposing the entire sensor at once, rather than scanning the sensor line-by-line as in a rolling shutter camera. This means that all pixels in the image are exposed simultaneously, resulting in an image that is free of distortion caused by motion during exposure.It can avoid smearing when when capturing high-speed motion.

Product features:

* Item: 1200P 60FPS Global Shutter synchronized dual lens USB Camera

* Sensor: 1/2.9” OG02B10 CMOS Sensor

* Max Resolution: up to1200P, 3200(H)*1200(V)

* High Speed/High FPS: 3200x1200 Mjpeg 60FPS, 1600x600 Mjpeg 120FPS

* Compression Format: MJPEG / YUV2 (YUYV)

* Shutter: Global Shutter

* Adjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, Exposure

* Lens Parameters: HD no distortion lens, FOV about 80 degree (Many other lens optional)

* Dimension：80mm×16.5mm

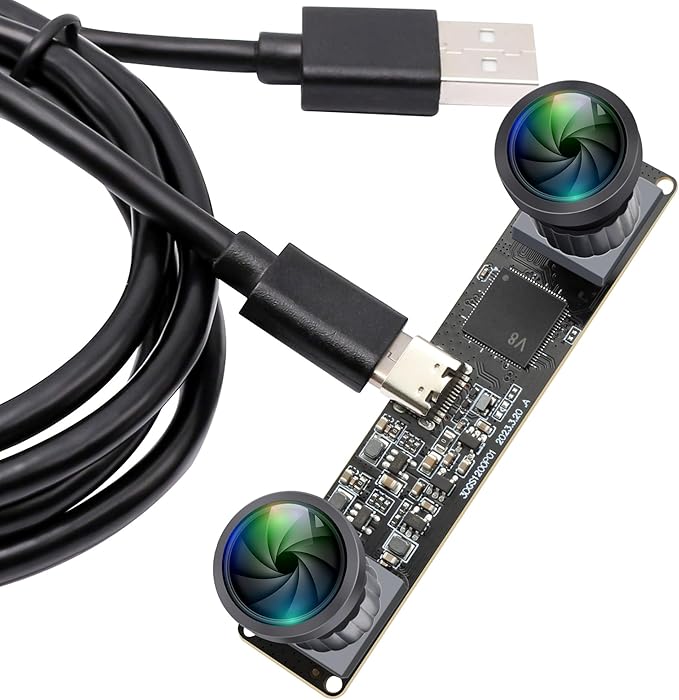

* USB Cable : with 1.2m cable

* Operating Systems:Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI.

* Software:Compatible with different software (Amcap, iSpy, OpenCV, VLC, V4L2, Fswebcam, CameraFI, Webcam viewer, Yawcam, Photo Booth, Face time, Quick Time...)

Product Features:

Max. Resolution: 3200(H)X1200(V)

Sensor 1/2.9 inch OG02B10

Pixel Size 4857μm x3955 μm

Resolution & frame: MJPEG：

MJPEG: 3200X1200@60fps/2560X720@60fps/1600X600@120fps /1280X480@120fps /640X240@120fps

Sensitivity: 3.7V/lux-sec@550nm

Min illumination 0.1lux, Shutter Type:Global Shutter

Connecting Port type USB2.0 High Speed, Free Drive Protocol USB Video Class（UVC）

Support OTG Protocol USB2.0 OTG, AEC Support, AWB Support

Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure

Lens Parameter: M9 Lens, M12 Lens optional, USB Interface USB Type C

Operating Voltage DC5V/Operating Cuttent 180mA~230mA, Working temperature -10～70℃/ Storage temperature -20～85℃

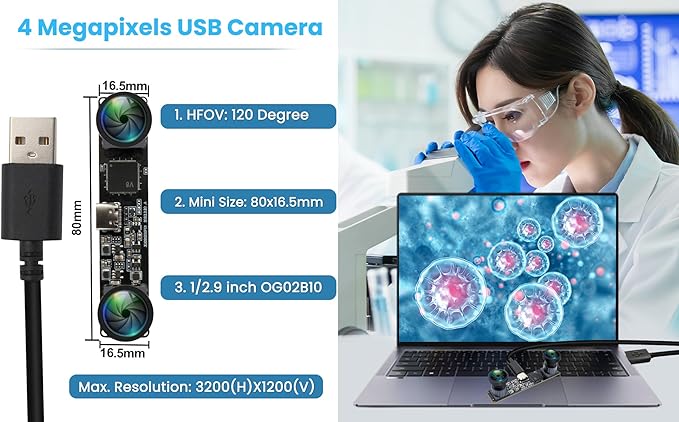

Board size /Weight 80X16.5mm, about 45g, Cable Standard 1.2M

Operating system request:Win XP/Vista/Win7/Win8/Win9/Win10/Win11 etc./Linux with UVC (above linux-2.6.2)/MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC

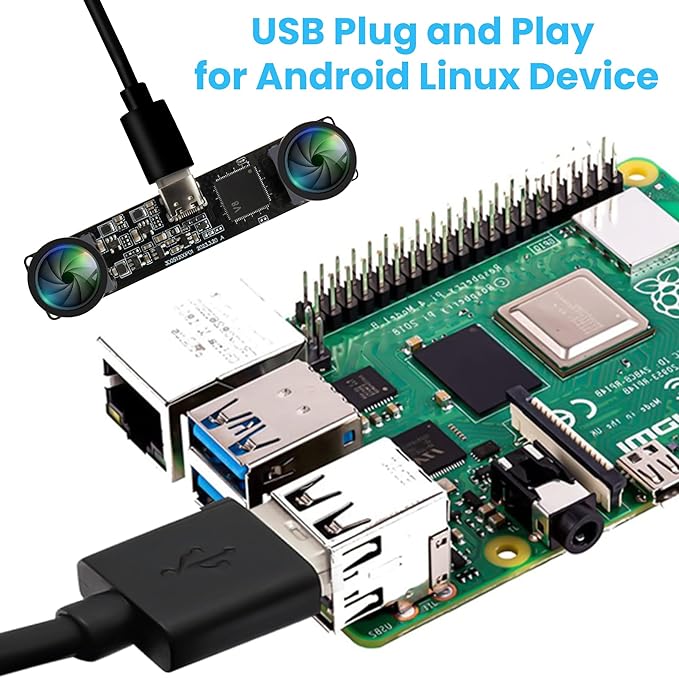

FOR RASPBERRY PI:

* It can work with already preinstalled camera software instead of builtin camera.

* Support Android development board,Raspberry Pi development board Jetson Nano,etc.

FOR PC:

* Support windows, Linux, mac,Android,raspberry Pi

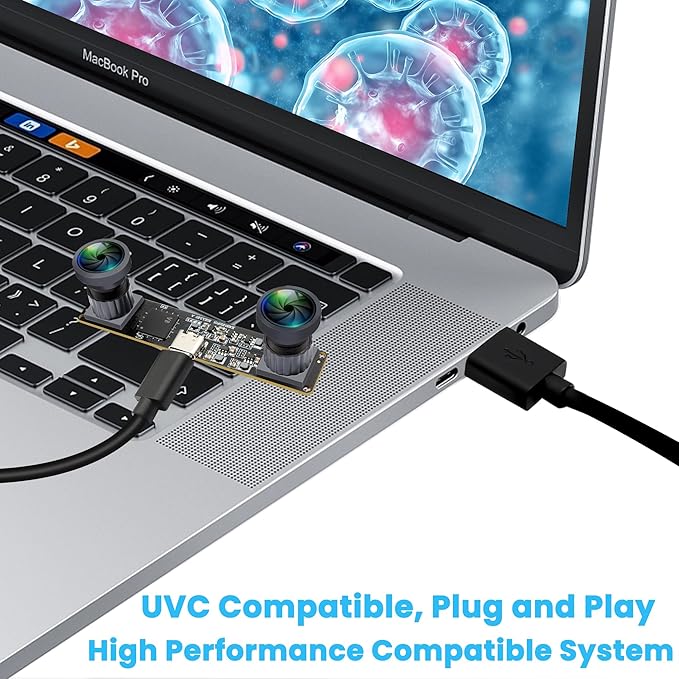

* Very easy to use,UVC compliant,free driver,just plug in and go.

IFWATE USB Camera 120fps Global Shutter USB Camera Module with 120 Degree No Distortion Synchronization Dual Lens PC Computer Scan Camera Plug and Play for Document Scanning Industrial inspection Face Recognition

Wide Application: Robot vision, Virtual reality, Augmented Reality, biometric Retina analyze, 3D measurement, Intelligent transportation system, People Counting & Tracking, Astrophotography, online teaching, live streaming, online meeting or embedded industrial project, etc.
