8.4 inch G084SN05 V9 450nit 800x600 4:3 TFT LCD Screen and VGA Controller Board 20 pins RT2270C-806
$196.00

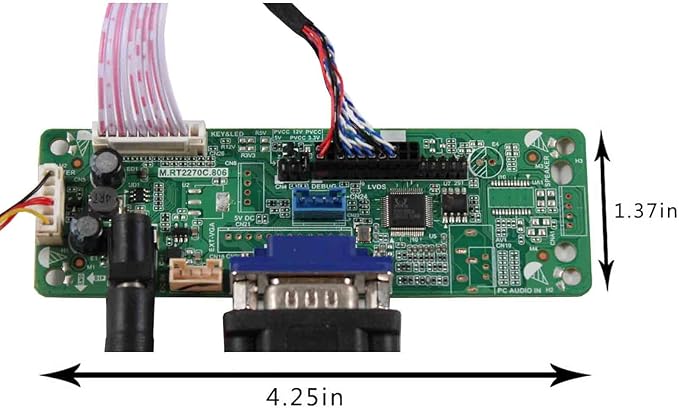

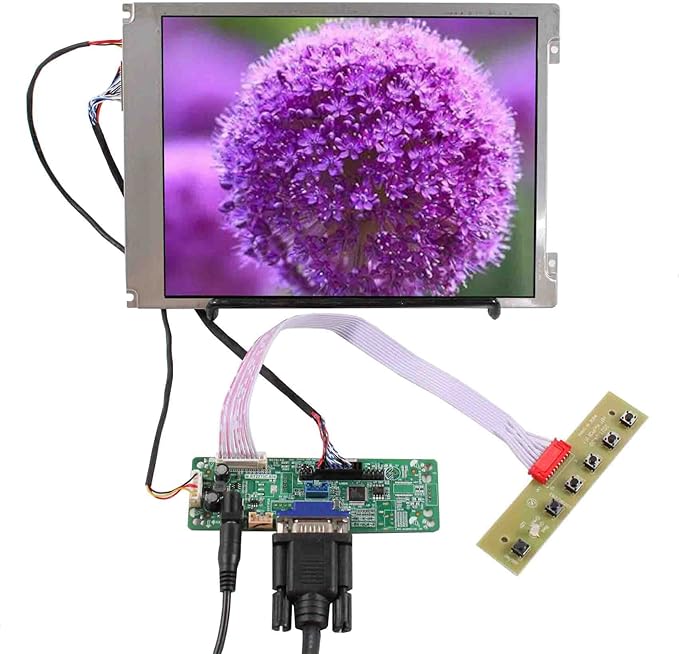

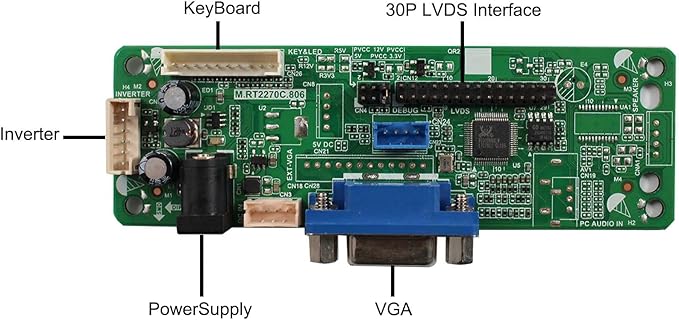

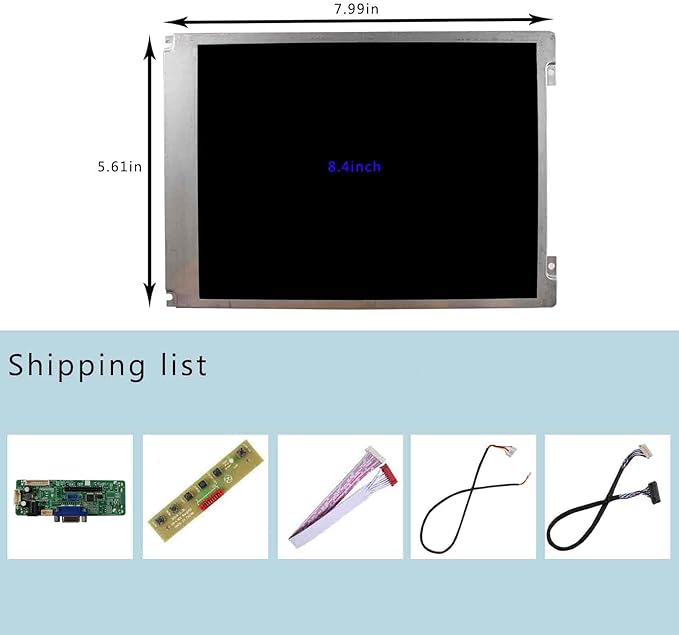

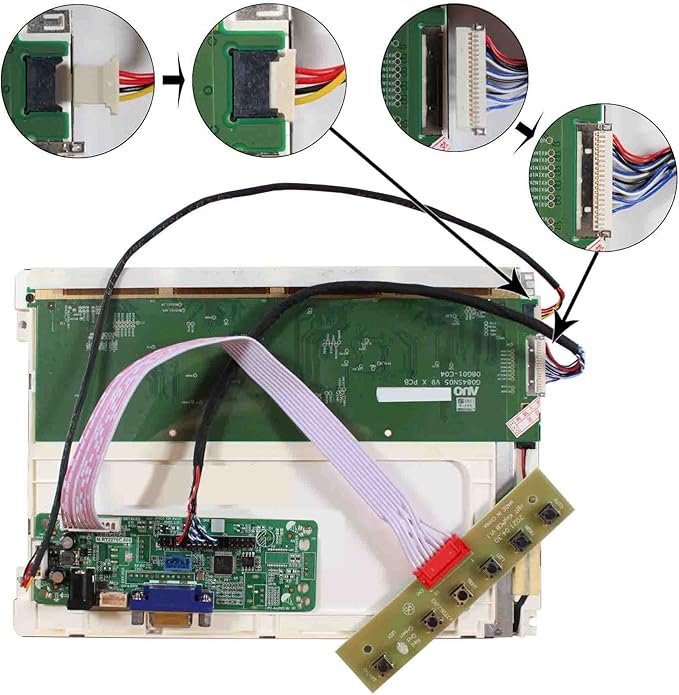

- 【450nit LVDs TFT display】8.4" 800x600 4:3 wall-mounted screen,Outline Size 203× 142.5×8 (H×V×D)mm ,Display Area 170.4×127.8 (H×V)mm .Signal Interface LVDS(1ch 6bit) 20Pin,Backlight WLED,Input Voltage 3.3V. - 【LCD Driver Board】 Video input: VGA ,Please use in insulated environment. - 【Input Power Supply】12V DC 2A, port size :5.5x2.1mm, (Pls prepare the power adapter seperately). - 【Plug and play】 Connecting cables and ports as picture ,power on ,LED light become green ,then connect signal cable ,the screen will be lit up . - 【Packing lists】VGA LCD Controller Board RT2270C-806,1×8.4" G084SN05 800x600 LCD Screen,1× LVDS Cable,1× Keyboard With Cable
