ABIWAZY USB C Docking Station Dual Monitor for HP Dell Lenovo Thinkpad Surface 8 in 1 Computer Multiple Monitor Hub Adapter to Dual 4K HDMIDisplayPortVGA 00W PD3 USB for Windows Laptops(Black)

- USB C Docking Station Dual Monitor: NOTE!!!Before you purchase, please ensure the USB-C port of your laptop support video output or DP Alt Mode, which decides the HDMI/DP/VGA port work or not. The laptop docking stations expands your work opportunities, convert your usb c port into 2 4K HDMI,1 Displayport,1 VGA,3 USB 2.0 ports and 1 USB C PD charging port. No need any drivers or software, just plug and play. For Windows Laptops, the dual HDMI computer hub adapter support both SST and MST mode - Quad Display Multiple Monitor Adapter: The thinkpad docking station with 4 video output ports: 2 HDMI+DP+VGA, can easily to achieve dual monitor/triple monitor/quad monitor displays for Windows laptop. Mirror or extend your screen with the USB C dongle's HDMI port and directly stream 4K UHD video to HDTV, monitors, or projectors for a cinema-like visual feast, using different monitors to do different projects will make your work/life more efficient, perfect for office meetings and work at home - Dual 4k Resolution Output: HDMI1/DP max up to 4K@60Hz, HDMI2 up to 4K@30Hz(work separately while source is DP1.4). When dual displays, HDMI1 or DP will be 4K@60Hz and HDMI2 up to 4K@59Hz(DP1.4). When using 2 hdmi+DP, HDMI1 up to 4K@59Hz, DP up to 4K@29Hz, HDMI2 up to 2K@60Hz(DP1.4).Display output will be 1080P when multiple monitor with VGA. Note!!! When using daul hdmi+DP, must follow the sequence or it will fail: Plug in HDMI1→Plug in DP(wait for the screen to display successfully)→Plug in HDMI2 - USB C 3.0 Charging Port: Computer Docking Station for Dell Hp laptop equipped with a type-c 3.0 charging port for connecting extra power supply which allowing you to charge your device quickly(powered up to 87W). Please Note!!! please ensure your laptop's USB C port supports charging and please use at least 65W power adapter(not included) when charging with this usb c hub,using a lower wattage power charger may cause a system warning. Note: The power cord is not included - Extensive Compatibility: Abiwazy usb c to dual hdmi adapter specially designed for USB Type C laptops(thunderbolt 3/4 or supports video output or DP Alt Mode laptops), such as HP elitebook 840,HP envy thunderbolt 3/4,Lenovo Thinkpad t14/t480,Lenovo Yoga,Dell latitude 5420/7420,Dell XPS 13/15/17,Surface pro 7 8 and more USB C devices. ABIWAZY can provide thees products and service. Please let us know about your concerns,we will provide you with 24-hour customer service

Product description

Quad Display USB C Docking Station Dual Monitor Computer Hub Multiple Adapter to Dual 4K HDMI Displayport VGA for Dell HP Lenovo Thinkpad Laptop

ABIWAZY 8-IN-1 USB C Docking Station Compatible list (Not a full list)

UHD Dual 4K USB C Docking Station Dual Monitor Connector for laptop With 2 HDMI & DP & VGA

Triple Display USB C Hub Multiport Adapter for Dell/HP/Lenovo Thinkpad/Surface/USB-C(DP Alt) Laptops

Quadruple Display 8 in 1 USB C Hub Multiple Adapter USB C Dongle for Windows & Mac OS laptop

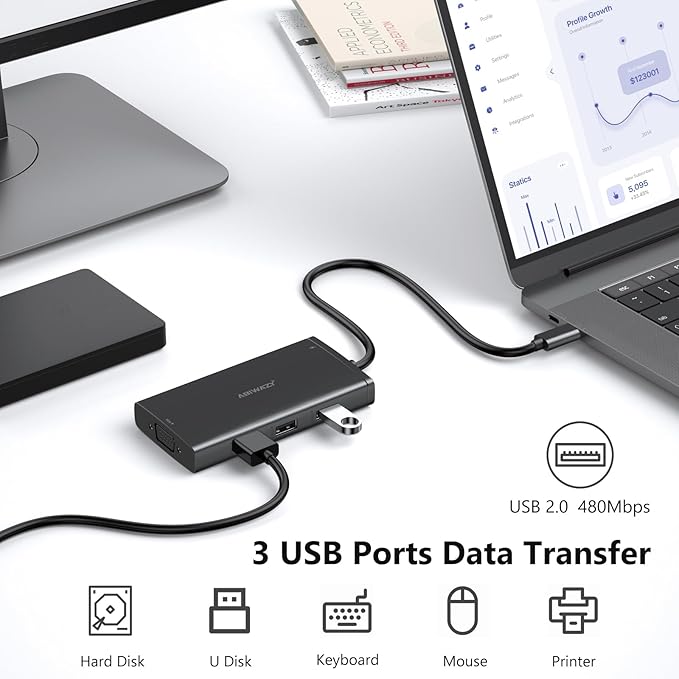

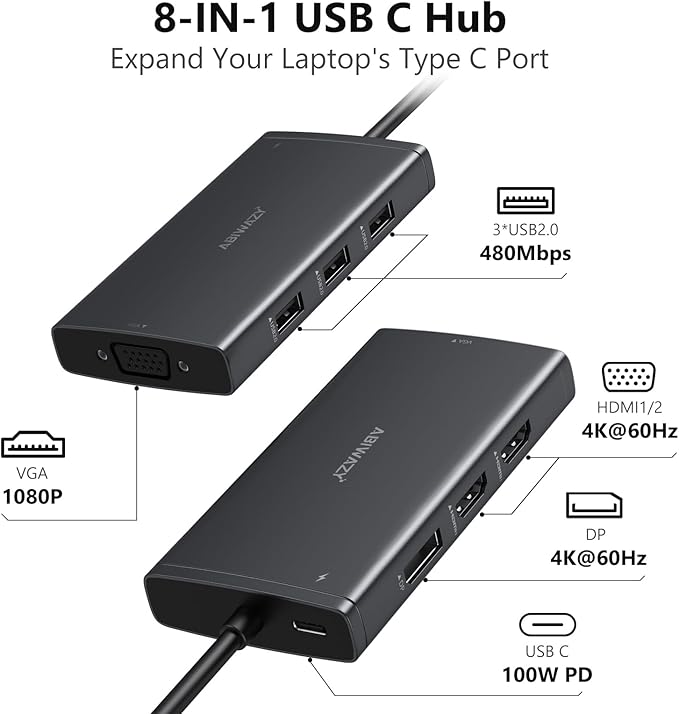

This ABIWAZY 8 IN 1 USB C Docking Station Dual Monitor is universally compatible with laptops whose built-in Typce C port that supports video output, data output and charging. The USBC to USB accessory can easily extend your laptop from 1 port to 8 ports:3 USB 2.0, 100w PD, dual UHD 4K HDMI, DP displayport and VGA. With this USB Type C Hub multi monitor adapter, you can watch large-screen images/videos on high-definition TVs, monitors, and projectors through the HDMI port. Connecting 2 HDMI, 1 DP and VGA at the same time can mirror or extend dual/triple/quadruple or even quintuple display.

Read Before Purchase -

1.Please ensure that your device has a thunderbolt 3/4 / USB-C 3.1 Gen 2 or above ports that support "Power Delivery&DisplayPort Alt Mode" to support video output. HDMI function needs to confirm if the usb c port of your device supports DisplayPort Alternate Mode.

You can check with ABIWAZY if you are not sure.

2. ONLY when your devices support 4K resolution, the video output will be 4K, please make sure to use HDMI 2.0 or higher cable.

(When it works with single display, If you want to output 4K@60Hz resolution, your laptop needs to support DP1.4 output).

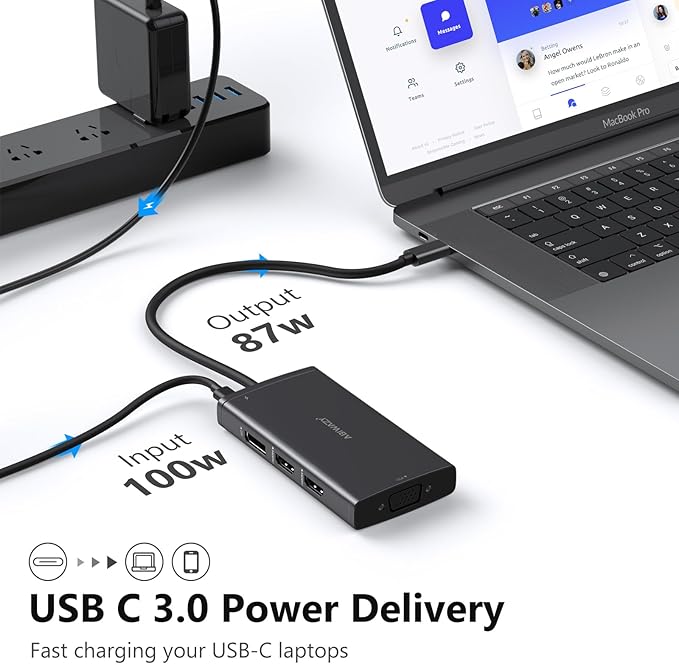

3. Please plug in the laptop's power adapter to the USB-C Power Delivery port before connecting an external hard drive or multiple display purpose, to ensure enough power to work.

(Please use a PD charger with more than 65W and the usb c port of the source laptop is support PD protocol. )

4. As long as you use HDMI, VGA, and DP port, the built-in chip will work at full capacity by default, and the chip temperature will naturally rise at this time, which is normal. When the Docking is working, the heating temperature is acceptable within 150 °F.

What you will get?

?1* 8-in-1 Laptop docking stations and 1*user guide in the box.

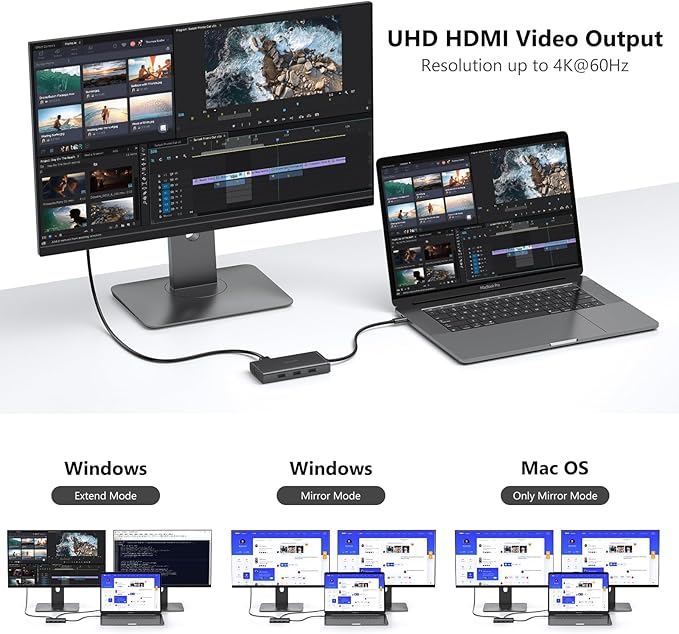

This dual monitor connector for laptop allows you to mirror or extend the display of your laptop to TV, dual monitors or projectors with resolution of up to 4K@60Hz.

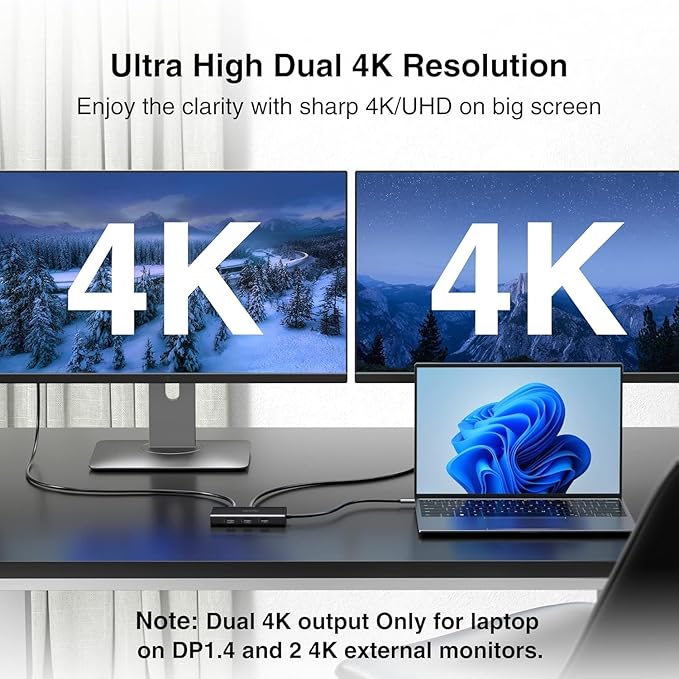

Max resolution when Dual Display:

Mirror Mode(The Screen of 2 monitors and Laptop are same): A (Laptop) to A (monitor 1) + A (monitor 2)

For laptop on DP1.4 Extend Mode(The Screen of 2 4K monitors and Laptop are different): A (Laptop) to B (4K monitor 1) + C (4K monitor 2)

For laptop on DP1.4 Extend Mode(The Screen of 2 monitors and Laptop are different): A (Laptop) to B (4K monitor 1) + C (2K/1080P monitor 2)

Tips:

1. The HDIM1/DP video output resolution can reach up to 4K@60Hz while work separately while source is DP1.4.

2. The final resolution is set by the laptop bandwidth, cable and external monitor related to the resolution in the description if you meet all the above conditions.

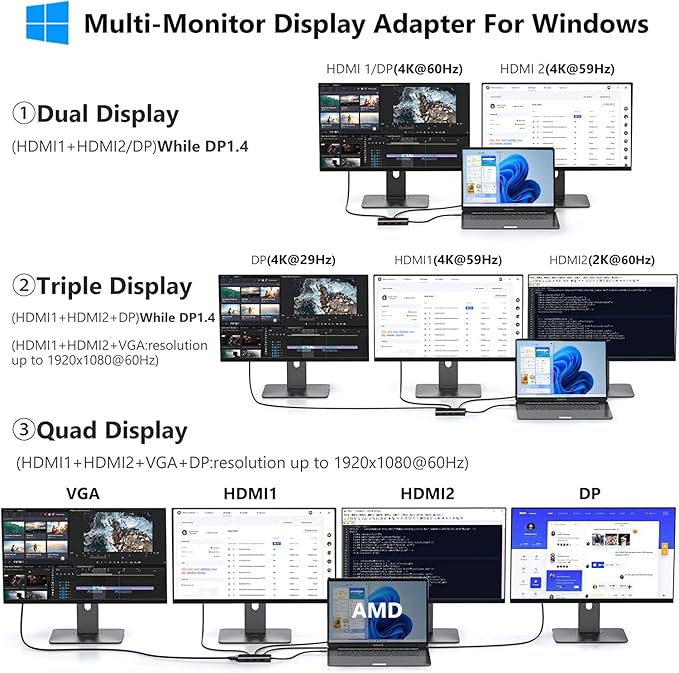

Max resolution when Triple Display:

For laptop on DP1.4 Mirror Mode(The Screen of 3 monitors and Laptop are same): A (Laptop) to A (monitor 1) + A (monitor 2) + A (monitor 3)

For laptop on DP1.4 Extend Mode(The Screen of 3 monitors and Laptop are different): A (Laptop) to B (monitor 1) + C (monitor 2) + D (monitor 3)

Note:For Intel Graphics Laptop,only provides Three Display data stream outputs at the same time.That is to say:One screen goes black when connecting three or four monitors.

Max resolution when Quadruple Display for Wondows laptop:

For laptop on DP1.4 Mirror Mode(The Screen of 4 monitors and Laptop are same)

For laptop on DP1.4 Mirror Mode(Four Monitors Screen are different from Laptop)

For laptop on DP1.4 Extend Mode(The Screen of 4monitors and Laptop are different)

Whether in mirror or extended mode, the max resolution of the 5 screens can be up to 1920x1080 @ 60Hz. (For DP1.2, the resolution of 5 screens would be lower than 1920x1080p.)

Mirror & Non-Mirror Mode for Mac OS:

×All MacBook only support Mirror Mode: AA,AAA,AAAA and Extend Mode : AB,ABB,ABBB. Not support A-B+C or A-B+C+D(which only support for windows laptop).

Notice:
