Arducam 100fps Global Shutter Color USB Camera Board 1MP OV9782 UVC Webcam Module with Low Distortion M12 Lens Without Microphones

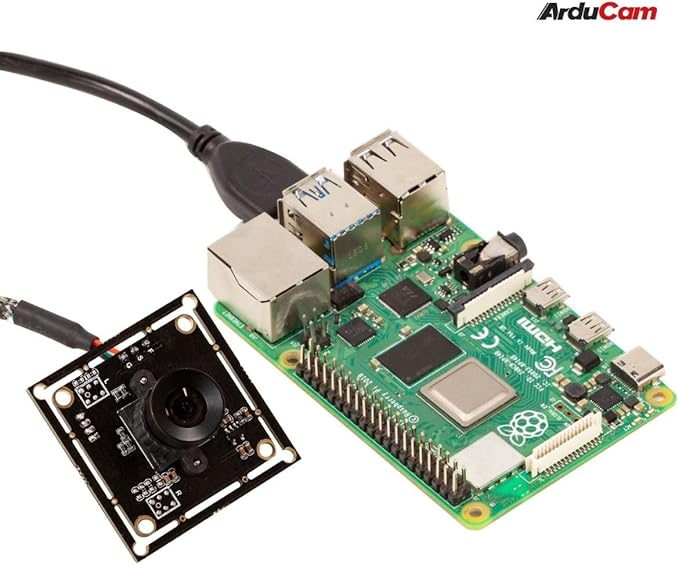

- Based on 1MP color global shutter sensor OV9782, assembled with a 70°(H) low distortion M12 lens with 650nm IR filter, sensitive to Visible Light. - Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras. Reserved external trigger ports, and support trigger via external signal. - Resolution: 1MP 1280H x 800V; Frame Rates: MJPG 100fps@1280 x 800/720P/800 x 600/640 x 480/320 x 240; YUY2 10fps@1280 x 800/1280 x 720. - Plug&Play: UVC-compliant, just connect the camera to a PC computer, laptop, Android device, or Raspberry Pi with the USB cable without extra drivers to be installed. - Applications: The sensor's excellent low-light sensitivity and the low distortion lens allow it to perform better in any application that needs gesture and eye tracking, iris and physiognomy recognition, depth, and motion detection.

Product description

Highlights

Specs

Applications

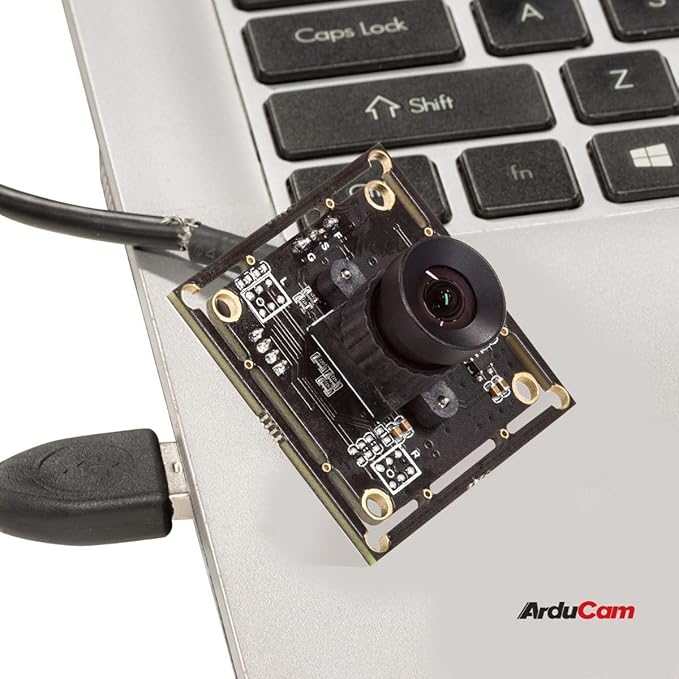

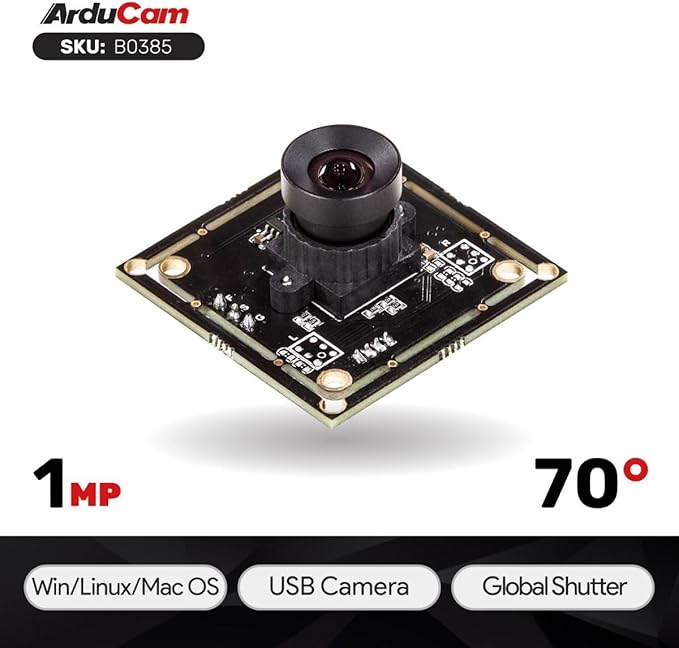

Arducam B0385 is a new member of Arducam's USB camera family. It's a 1MP, based on the 1/4" color global shutter OV9782 image sensor, UVC compliant, low distortion USB 2.0 camera. No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed. The global shutter sensor's excellent low-light sensitivity makes it shoot crisp sharp and accurate complete color images even for high-speed moving objects.

MJPG 100fps@1280 x 800/720p/800 x 600/640 x 480/320 x 240; YUY2 10fps@1280 x 800/1280 x 720.

- Sensor: 1/4” OV9782

- Resolution: 1MP 1280 x 800

- Lens Mount: 70°(H) Low Distortion M12 Lens

- Max Frame Rate: MJPG 100fps@1280 x 800

NOTE:

This camera module support trigger via an external signal, please refer to the Arducam Doc page to get the instruction.

S4B-ZR(LF)(SN)

Global Shutter

70°( H) Low Distortion

Astrophotography

Gesture and eye-tracking

Depth and motion detection

Home video surveillance system

......
