Arducam 16MP Wide Angle USB Camera with Metal Case 1/2.8 CMOS IMX298 Mini UVC USB2.0 4K Video Webcam with Microphone with 3.3ft/1m Cable for Laptop

- Ultra HD: This small camera module adopts a 16MP IMX298 sensor for sharp image and accurate color reproduction, still picture resolution: 4656 x 3496 Max. - Wide Angle: Mounted a High quality 105-degree wide view angle (horizontal) M12 lens with IR filter, provides a wilder Field of View. - Plug&Play: Assemble with a mini metal case and rotatable bracket, you can easily put on the desk or any flat surface, or mount on the wall or tripod mount. UVC-compliant, just connect the camera to a PC computer, laptop, Android device, or Raspberry Pi with the USB cable without extra drivers to be installed. For Mac OS, please please open the native software facetime and select the video camera “Arducam IMX298 Camera”. - High Frame Rates: MJPG 10fps@4656x3496/3264x2448/ 2592x1944, 30fps@1080P/720P/1024x768;YUY2 10fps@1024x768/640x768 - Applications: This tiny camera can be installed in the most narrow position, highly recommended for a home video surveillance system, dashcam, and other vision applications demand high resolution.

Product description

Arducam High-Resolution Camera Module B0268 is based on1/2.8” 16MP IMX298 image sensor, mounted a high quality 105 degree (H) M12 Lens, UVC compliant USB 2.0 cameras.

No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.

SPECIFICATIONS

- Sensor: 1/2.8” IMX298

- Resolution: 16MP 4656H x 3496V

- Frame Rate:

MJPG: 10fps@4656x3490/3840x2160/2592x1944/2320x1744; 30fps@1920x1080/1600x1200/1280x720/800x600/640x480/320x240

YUV: 5fps@1600x1200; 10fps@1280x720; 15fps@800x600; 20fps@640x480/320x240

- Field of View (FOV)： H= 105°

- Lens Mount: M12

- Focusing Range: 3.3ft (1M) to infinity

- IR Sensitivity: Integral IR filter, visible light only

- Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.

- System Compatibility: Windows, Linux, and Mac with UVC

- Power Supply: DC 5V

- Working Current: MAX 200mA

- Operating Temp.: -4°F~167°F (-20°C~+75°C)

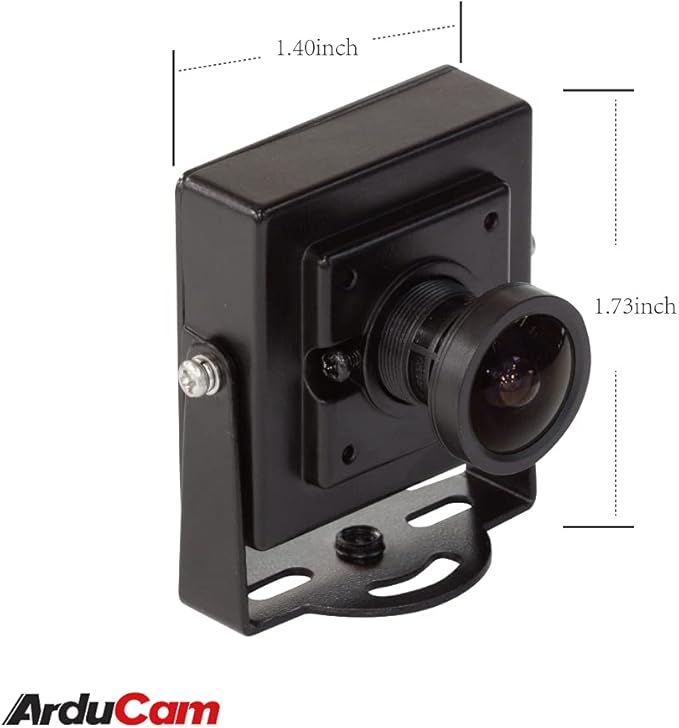

- Dimension: 38mmx38mm

- Cable Length: 3.3ft (1M)
