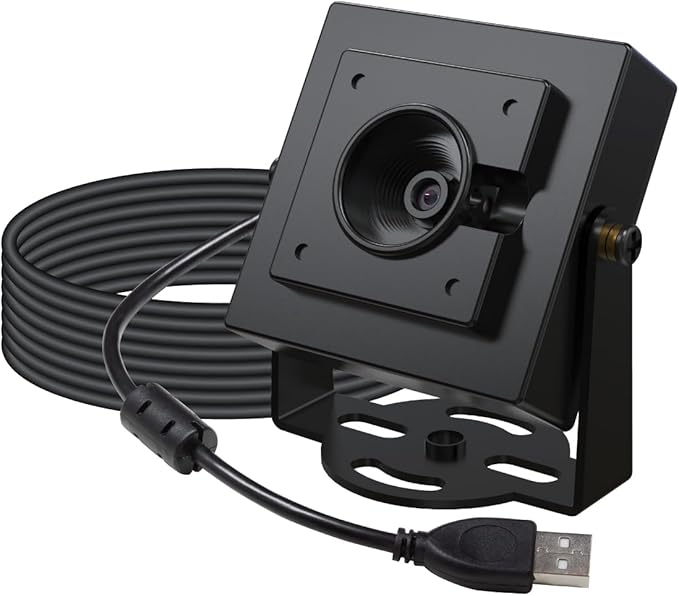

Arducam 4K USB Camera Module AutoFocus HDR Lightburn Camera for Windows Linux

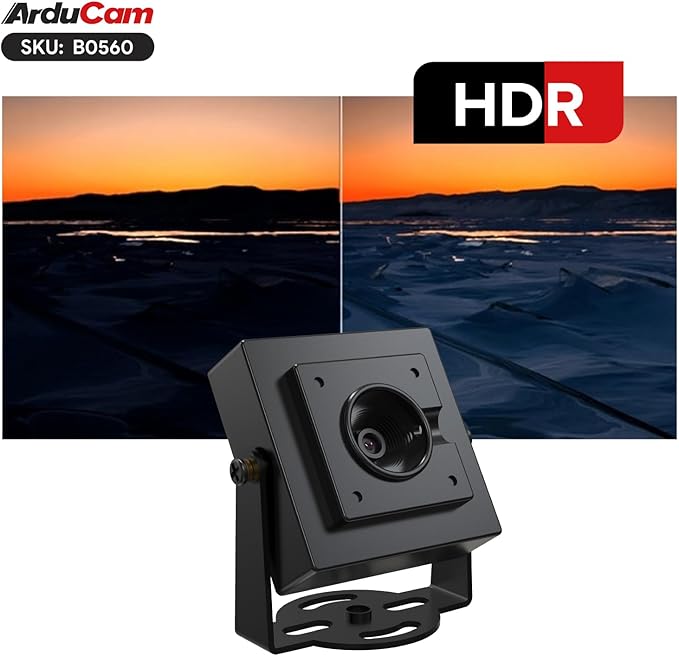

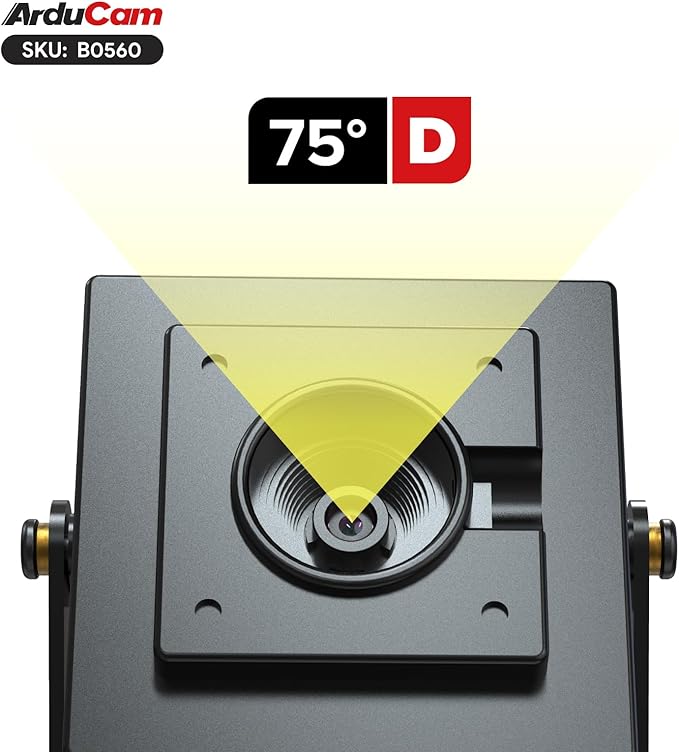

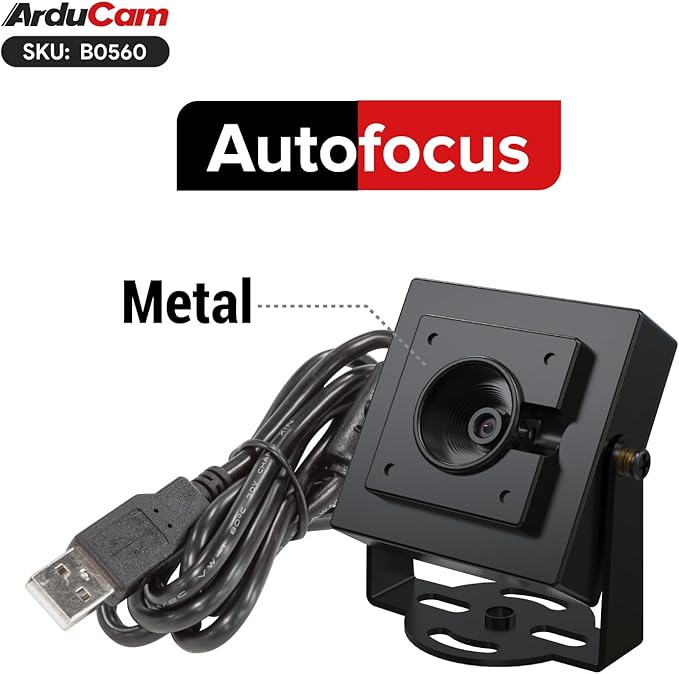

- 4K HDR Sensor for Superior Imaging: The USB camea is powered by a 4K HDR sensor, delivering 8.3MP resolution and exceptional dynamic range. Its ability to capture details in both bright and dark areas makes it perfect for industrial imaging, surveillance, and applications requiring high contrast - HDR Across All Resolutions: Unlike many cameras, the UVC camera maintains its high dynamic range performance across all resolutions, ensuring consistent image quality in diverse lighting conditions. This feature is particularly valuable for scenarios with challenging lighting, such as outdoor environments or high-contrast industrial settings - Maximized Active Sensor Area: The USB webcam utilizes its sensor’s full active area, ensuring no pixel is wasted. This optimization results in sharper, more detailed images, making it a reliable choice for applications where precision and clarity are paramount - Autofocus Lens: This 4K webcam is equipped with 75°(D) autofocus lens, which ensures sharp focus for every shot - Easy to Set Up: This camera is USB 2.0 UVC compliant. Just Plug-and-play, it supports working with Windows, Linux, Android, and Mac OS without extra driver installed. No specific software required - Wide Application: This 8MP autofocus USB camera can be widely used in various applications, such as home security camera, PC camera, lightburn camera, Laser printer monitoring camera and etc

Product description

Overview

Specifications-Image Sensor

Specifications-Lens

Other Specifications

Applications

ezBOX-HDR excels in delivering exceptional dynamic range with its 4K HDR sensor, featuring 8.3MP resolution. It maximizes the entire active sensor area, ensuring no pixel is wasted and delivering optimal image quality. The HDR functionality is supported across all resolution and frame rate combinations, providing consistent performance in diverse imaging scenarios.

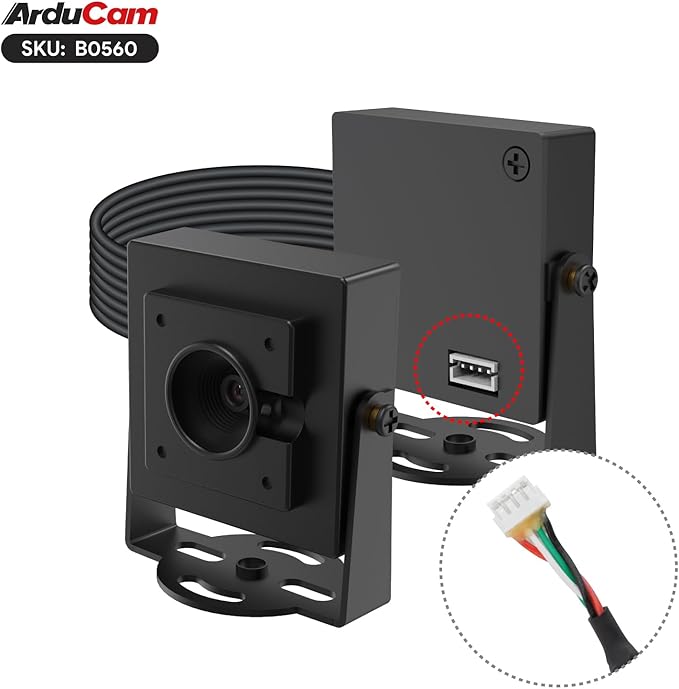

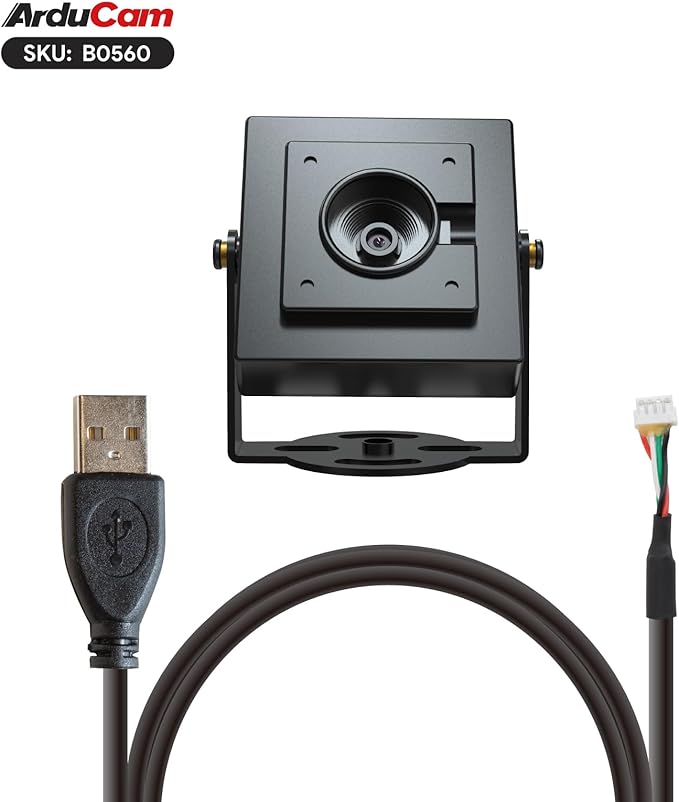

USB Interface

Interface: USB 2.0 Device

Connector: B4B-ZR JST

UVC Compliant: No additional drivers required

Electrical and Mechanical

Operating Voltage: 5V

Operating Temp.: 32°F-158°F (0°C to 70°C)

Power Consumption: 1.75W

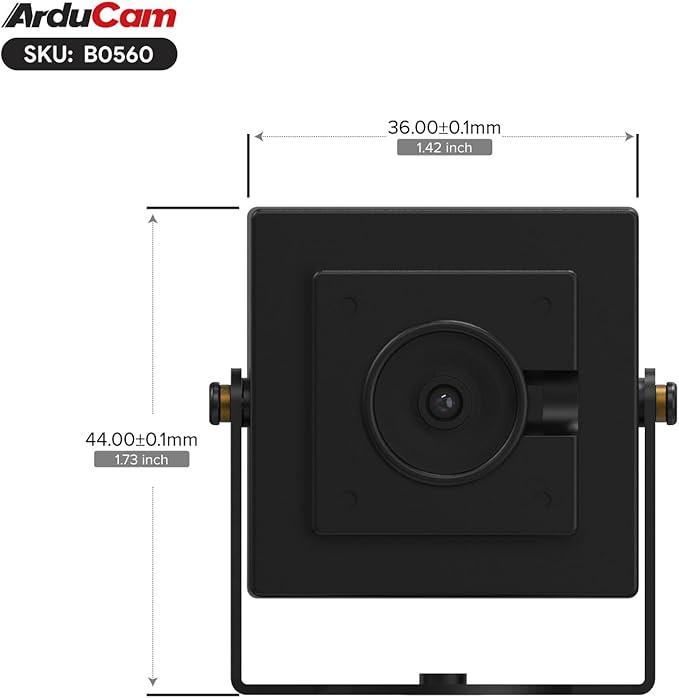

Camera Board Size: 32mmX32mmX1.6mm

Functionality and Compatibility

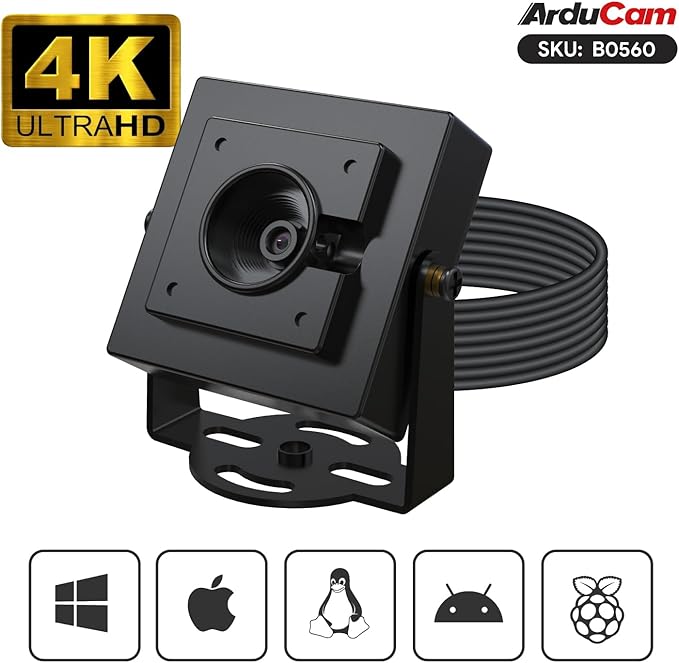

Supported OS: Windows, Linux

Recommend Sample Application: Amcap for Windows, qv4l2 for Linux

UVC Controls: HDR*, Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Focus (Auto/Manual), Exposure (Manual/Auto)

HDR*: The HDR feature is disabled by default. Activation requires enabling the Low-light Compensation option in the parameters GUI.
