Arducam 5MP Autofocus USB Camera Module for Raspberry Pi 2592(H)×1944(V)@30fps Lightburn Camera with Single Microphone Mini-Sized Webcam for Linux Windows and Android

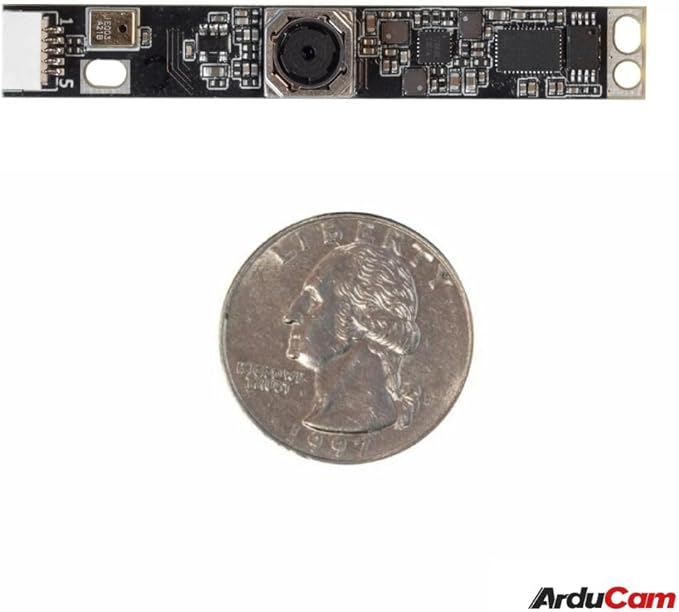

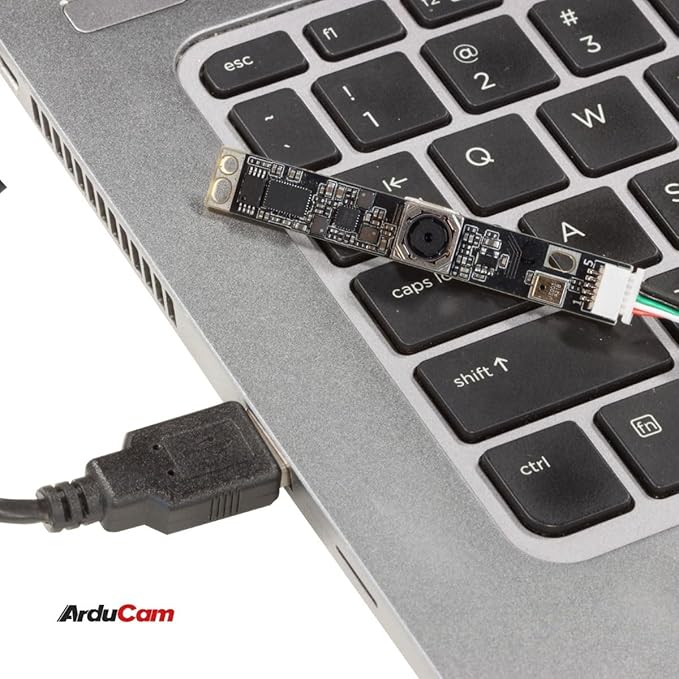

- Autofocus: 5MP(2592*1944)@30fps, full HD USB camera with Autofocus Lens; Capture most exciting details at every 30/15fps, FoV: 69°(H) - MJPEG/YUYV: Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system and applications for industrial. - Plug and Play: OTG supported plug the USB cable into your PC’s USB port, and running the software can capture high-level video and continuous recording, no driver is needed. - Compatible with All Platforms: Adopting UVC protocol, compatible with various platforms and operating systems, such as Windows, Linux, Mac, Android, etc. - Mini Sized: Lightweight and compact size is perfect for embedded applications and ideal for Video systems, 3D scanners, VR cameras, electronic microscopes, and medical machines.

Product description

Specifications

Applications

This camera is Arducam NEW Autofocus UVC camera. The max resolution&frame rate is 2592(H)×1944(V)@30fps. Besides, we have equipped the camera with Auto Focus Lens. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the image sensor, enabling the camera to realize your various projects. The camera is equipped with a 69°(H) autofocus lens, allowing you to use it for more applications. It is compatible with Windows, Linux, Android, and MAC. There are no additional drivers required.

Package Including:

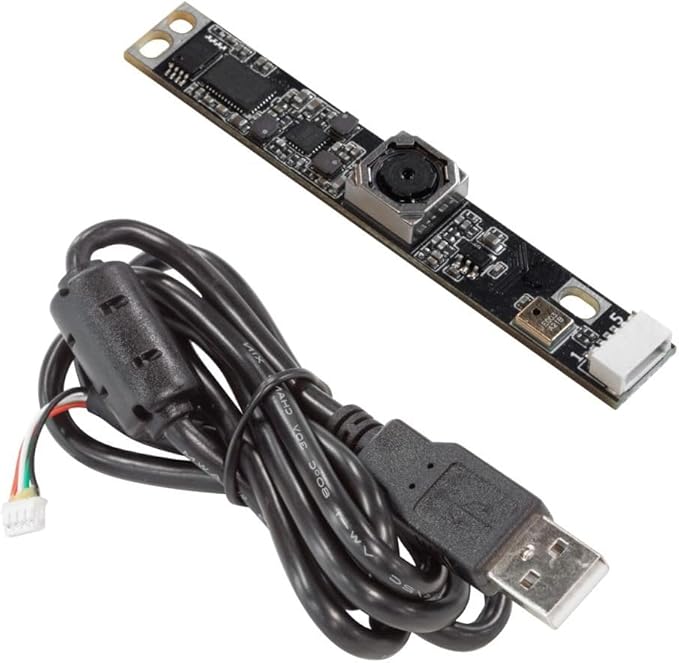

1 x Arducam 5MP AF Camera Module

1 x USB Cable (1m)

1 x Paper Quick start guide

MJPG: 30fps@2592*1944/2560*1440/2048*1536/ 1920*1080/1280*720/1600*1200/1280* 960/ 800*600/640*480/352*288/176*144 YUY2: 176*144/352*288/640*480@30fps; 800*600/1280*720/1280*960/1600*1200/ 1920*1080@5fps; 2048*1536/2560*1440/2592*1944@2fps

Resolution: 5MP

Color Filter Type: Color

Shutter Type: Rolling shutter

Optical Size: 1/4"

Output Format: YUYV/MJPG

Pixel Size: 1.4μm*1.4μm

Sensor Active Area: 2592(H)×1944(V)

UVC Controls: Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure, Focus
