Arducam High Speed USB Camera Module 1080P/100fps 720P/180fps 480P/360fps Autofocus Lightburn Camera for Windows Linux

- 640x480@360fps*: Due to the limitation of USB2.0 device descriptor, the software can only report a maximum frame rate of 240fps, but the camera can actually reach 360fps(the actual frame rate can be seen during preview). - Exceptional Frame Rates Across Resolutions: The USB camera delivers high-speed performance, offering 9 versatile FPS-Res combinations, from 1920x1080/100fps to 640x480/360fps. This flexibility ensures smooth and precise capture of fast-moving objects, making it ideal for applications like motion analysis, sports tracking, and high-speed imaging - 1080P Color Sensor with Advanced Imaging: This UVC camera is equipped with a 1080P color sensor, the Swift ensures high-quality imaging even in fast-paced scenarios. The USB 2.0 camera's advanced sensor technology minimizes noise and maximizes clarity, delivering sharp and detailed visuals for dynamic applications - Proprietary ISP for Full Control: The USB webcam features a proprietary Image Signal Processor (ISP) that provides complete control over key imaging parameters, including brightness, contrast, saturation, white balance, gain, focus, and exposure. This level of customization ensures optimal image quality tailored to specific needs, enhancing its versatility across diverse use cases - Autofocus Lens: This 1080p webcam is equipped with 78°(D) autofocus lens, which ensures sharp focus for every shot - Easy to Set Up: This camera is USB 2.0 UVC compliant. Just Plug-and-play, it supports working with Windows, Linux, Android, and Mac OS without extra driver installed. No specific software required

Product description

Overview

Specifications-Image Sensor

Specifications-Lens

Other Specifications

Applications

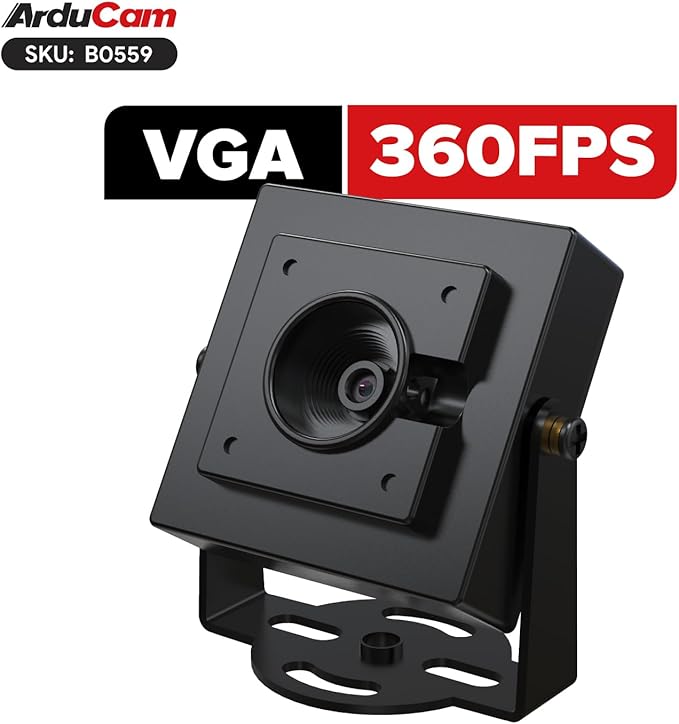

ezBOX-Swift combines speed and precision, delivering up to 360 FPS at VGA resolution for capturing fast-moving objects with exceptional clarity. Powered by a 1080P Color Sensor, it supports a wide range of FPS-Res combinations, from 1920x1080@100fps to 640x480@360fps, ensuring versatility and high-quality imaging for dynamic applications.

USB Interface

Interface: USB 2.0 Device

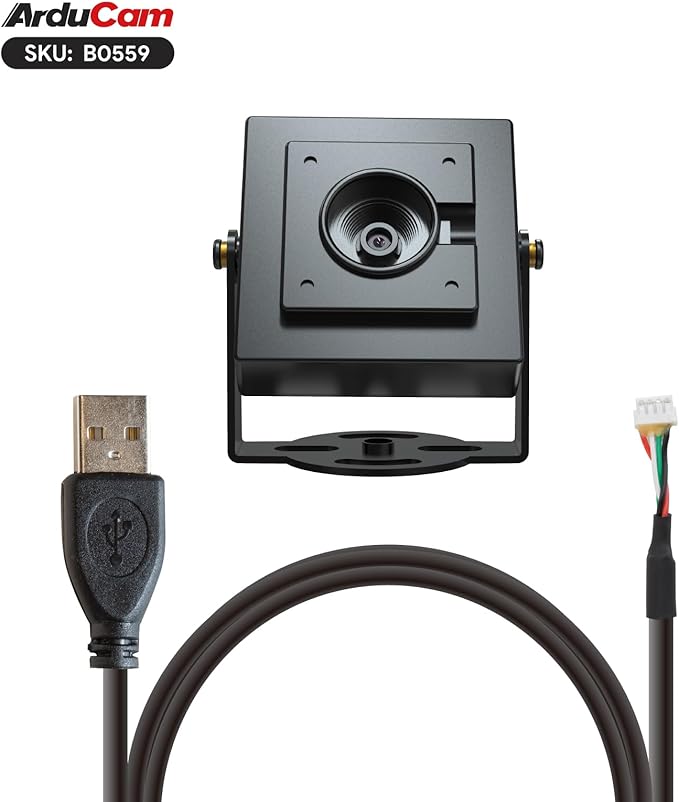

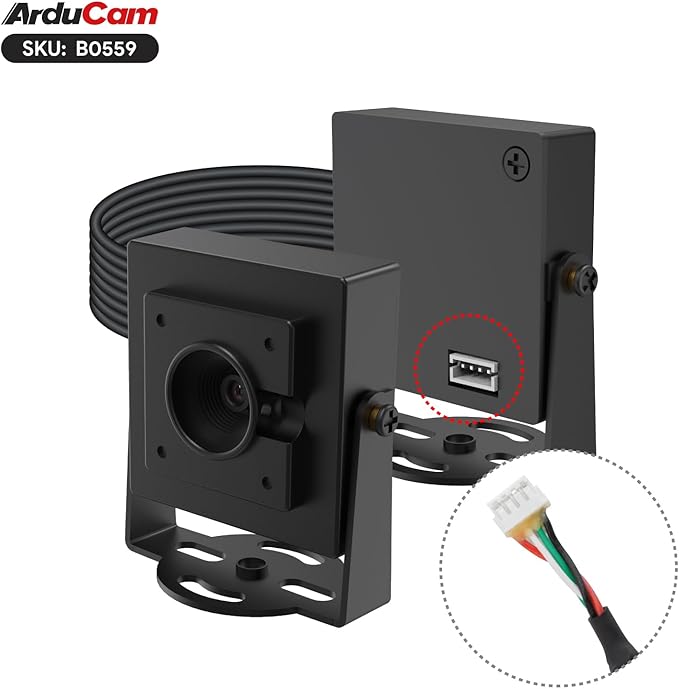

Connector: B4B-ZR JST

UVC Compliant: No additional drivers required

Electrical and Mechanical

Operating Voltage: 5V

Operating Temp.: 32°F-158°F (0°C to 70°C)

Power Consumption: 1.75W

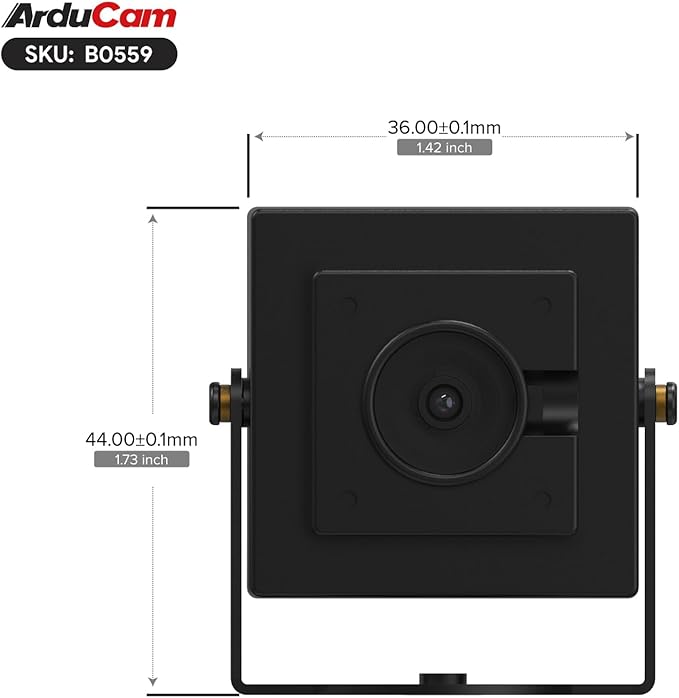

Camera Board Size: 32mmX32mmX1.6mm

Functionality and Compatibility

Supported OS: Windows, Linux

Recommend Sample Application: Amcap for Windows, qv4l2 for Linux

UVC Controls: Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Focus (Auto/Manual), Exposure (Manual/Auto)

640x480@360fps*: Due to the limitation of USB2.0 device descriptor, the software can only report a maximum frame rate of 240fps, but the camera can actually reach 360fps(the actual frame rate can be seen during preview).
