Arducam USB 3.0 Camera 120fps High-Speed Camera 20MP Webcam with 60°(D) 16mm C-Mount Lens and Metal Case Compatible with Windows and Linux OS

- Superior Imaging: This UVC webcam Utilizes a 1-inch IMX283 CMOS sensor, achieving sharpness at a max still resolution of 5472x3648 - Flexible Frame Rates: With this high-speed UVC camera module, you can program your desired frame rates, even reaching 120fps at 720p - Proprietary on-board ISP advances image enhancement: de-Bayer, gamma, BLC, AE, AWB, CCM, RGB2YUV - Telephoto Precision: This 20MP USB Webcam Captures brilliance with a 16mm C-mount lens offering a 60° DFOV - Plug and Play: This USB 3.0 camera is encased in an all-inclusive metal housing, its compact design makes it plug-and-play ready for on-the-go creativity - Notes: Tripod is not included in the package

Product description

Highlights

Image Sensor

Plug and play

Other Specifications

Applications

Arducam IMX283 USB 3.0 camera equipped with a 1-inch IMX283 CMOS. It achieves astonishing image clarity at a max resolution of 5472x3648. This camera offers programmable frame rates, providing the flexibility to reach up to 120fps at 720p resolution for dynamic video capture. The camera features an onboard ISP and center-weighted exposure. This intelligent combination ensures uncompromised output in uncompressed YUY2 format. The camera's 16mm C-mount lens, boasting a 60° FOV, guarantees telephoto excellence, capturing scenes with precision and detail. Arducam latest USB 3.0 camera stands out with its user-friendly plug-and-play functionality. Offering compatibility with Windows and Linux OSs, no additional drivers are needed, simplifying the setup process. Moreover, its backward compatibility with USB 2.0 host ports ensures flexibility and seamless connectivity.

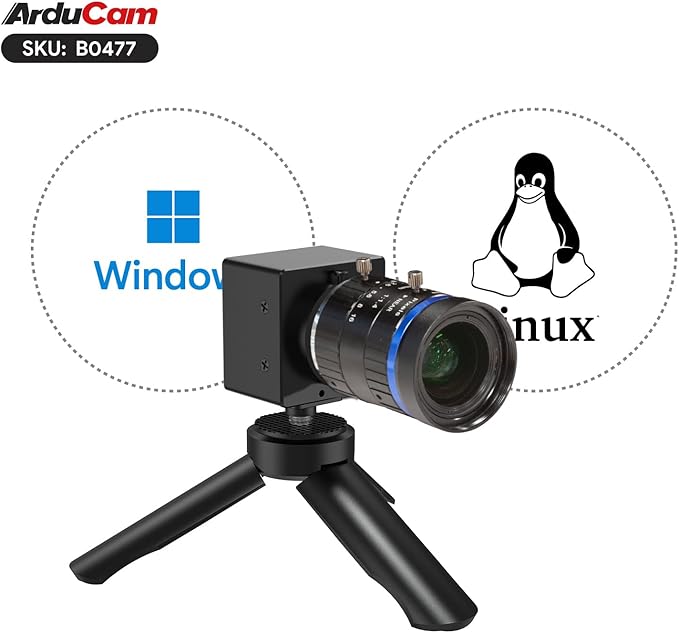

Arducam latest USB 3.0 camera stands out with its user-friendly plug-and-play functionality. Moreover, its backward compatibility with USB 2.0 host ports ensures flexibility and seamless connectivity.

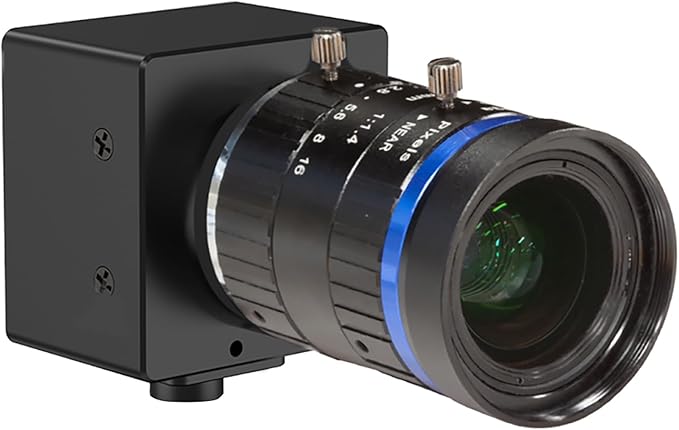

Comes with a metal case, which protect it perfectly and makes this USB camera more delicate.

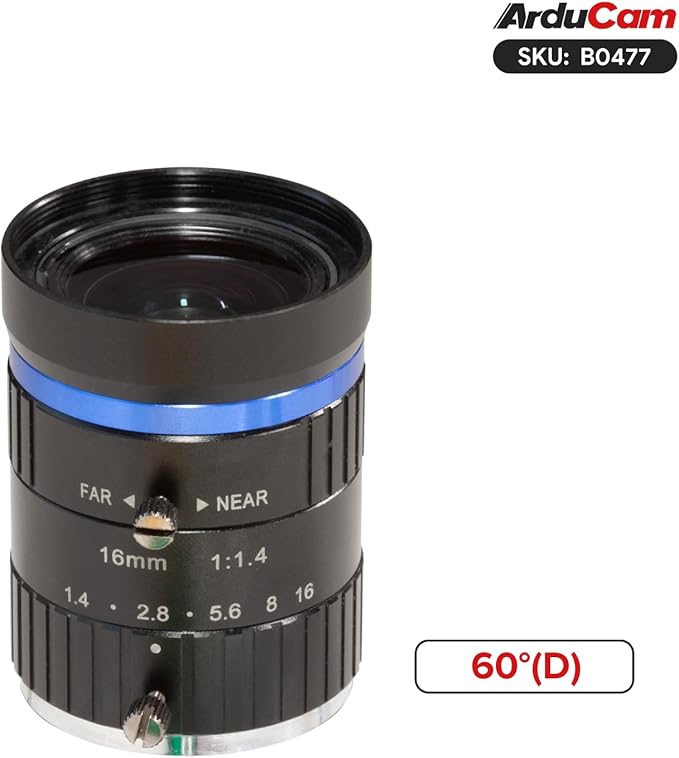

Capture brilliance with a 16mm C-mount lens offering a 60° DFOV.

USB 3.0: 1280×720@120fps, 1920×1080@60fps, 2720×1536@40fps, 3840×2160@20fps, 5472×3648@9fps

USB 2.0: 1280×720@10fps

SENSOR: IMX283

Still Resolution: 20 Megapixels

Sensor Active Area: 5496(H)×3672(V)

Focus Type: Manual Focus

FOV: 60°(D)×49°(H)×38°(V)

Lens Mount: C-Mount

F.NO: F1.4-16

E.F.L: 16mm

Default Focus Range: 5m-∞

IR Sensitivity: Integral IR-cut Filter, visible light only

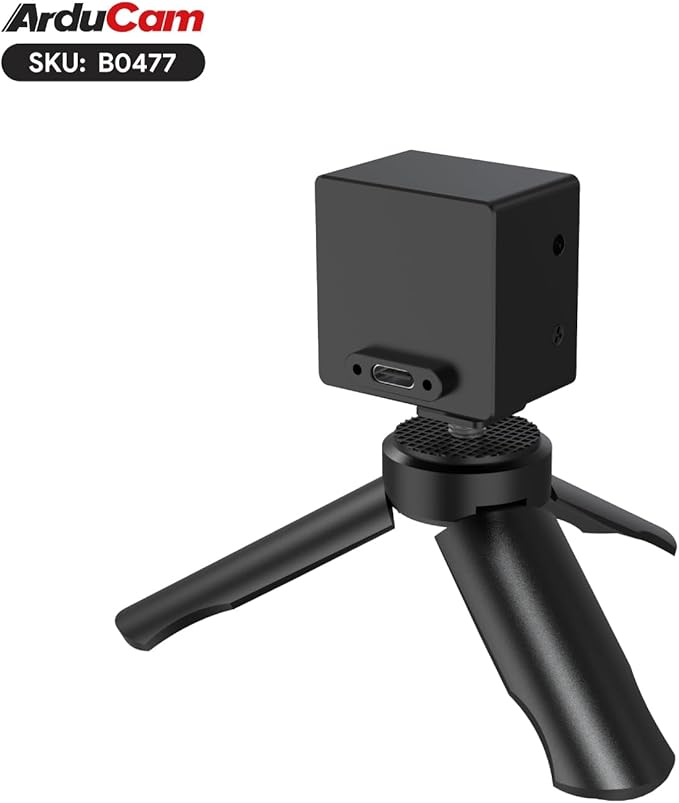

Encased in an all-inclusive metal housing, its compact design makes it plug-and-play ready for on-the-go creativity.

Notes
