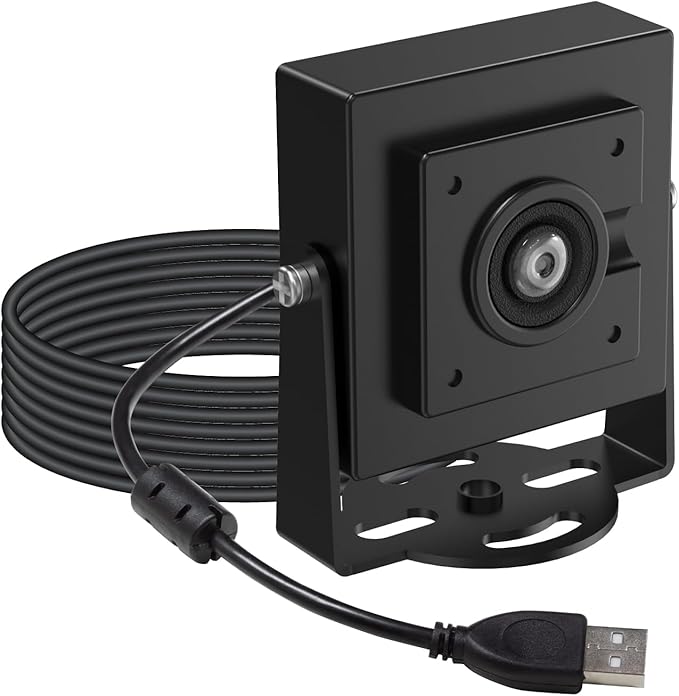

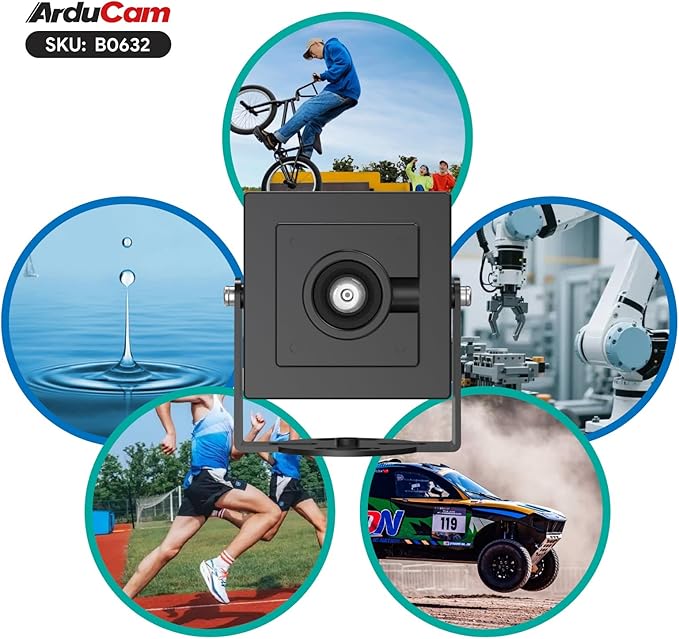

Arducam VGA Global Shutter USB Camera Module 800 FPS@QQVGA High Speed Camera Monochrome Wide Angle UVC Webcam for Windows Linux OS

- Global Shutter Mono: Uses a VGA monochrome global shutter sensor that that exposes all pixels simultaneously, making this UVC camera module ideal for precision measurement, motion analysis, and other industrial PC camera applications - Ultra High FPS: Supports frame rates of up to 800 FPS at QQVGA resolution, enabling capture of rapid events not observable with conventional USB Webcam solutions, such as high-speed inspection and motion tracking Note: Due to the limitation of USB2.0 device descriptor, the software can only report a maximum frame rate of 240fps, but the camera can actually reach 800fps(the actual frame rate can be seen during preview) - Wide Angle Optics: This tiny camera uses a standard 166°(D) lens to provide a larger field of view, well-suited for metrology, inspection, and controlled imaging setups including 3D printer monitor, conference camera, and lab environments - Onboard ISP: Incorporates an onboard ISP to process image data in real time, delivering stable output while reducing system integration complexity for raspberry pi camera projects and embedded vision systems - Plug & Play UVC: Designed around the USB2 UVC standard, allowing immediate use as a USB Security Camera or home security camera across Windows, Linux, and macOS platforms without additional drivers - Industrial Control: Built with a compact metal enclosure and supports external triggering and ROI configuration, enabling precise timing control and flexible deployment in industrial automation and professional USB Webcam / PC camera scenarios

Product description

Overview

Highlights

Specifications

Applications

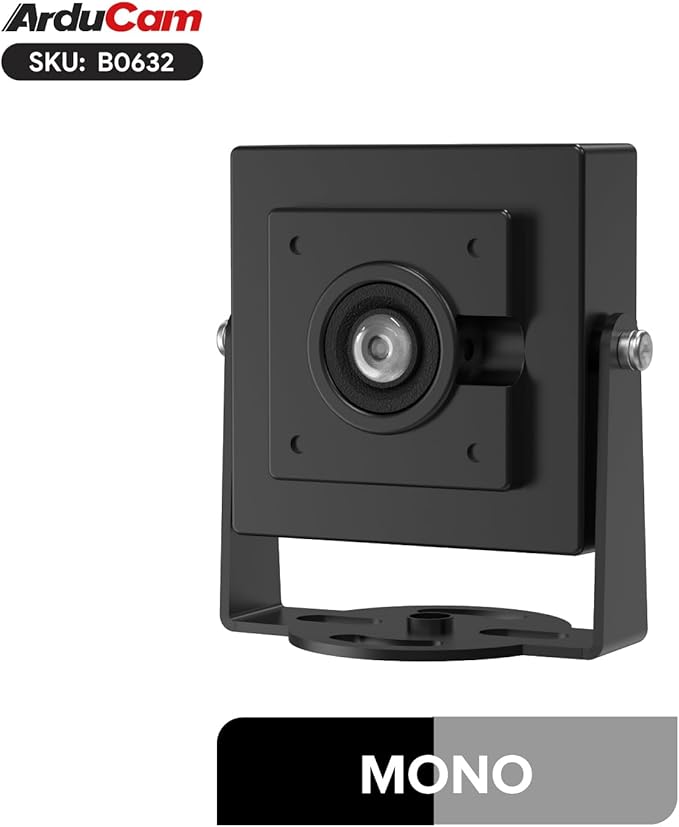

The Arducam ezBOX GS B0632 is a compact monochrome global shutter USB camera optimized for precision high-speed imaging. Supporting frame rates up to 800 FPS at QQVGA resolution, it enables detailed capture of fast motion while maintaining consistent exposure across the frame. With a standard field-of-view lens, integrated onboard ISP, UVC plug-and-play support, and external trigger capability, B0632 is ideal for measurement, inspection, and controlled machine vision applications.

Up to 800 FPS enables motion analysis beyond standard USB cameras.

Pixel-level simultaneous exposure ensures distortion-free imaging of fast-moving objects.

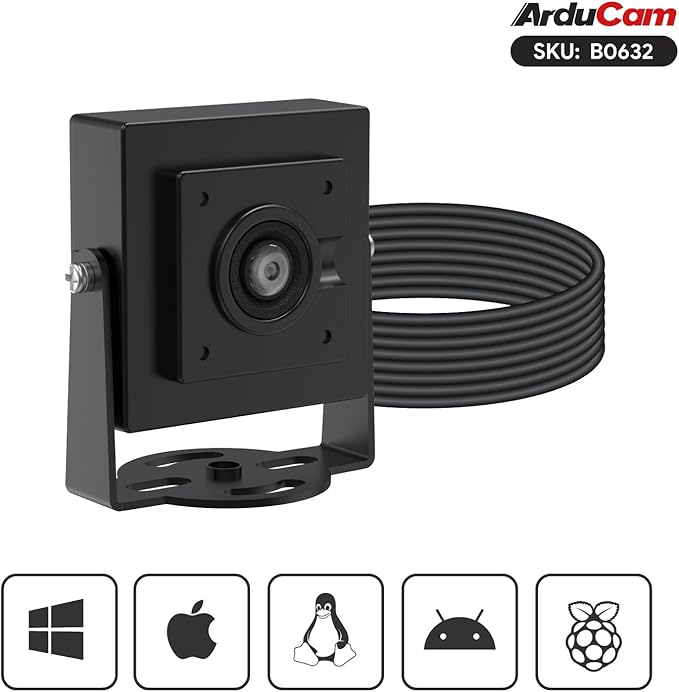

No drivers required?works instantly across major operating systems.

Capture more of the scene with fewer cameras.

Frame Rate(MJPG):

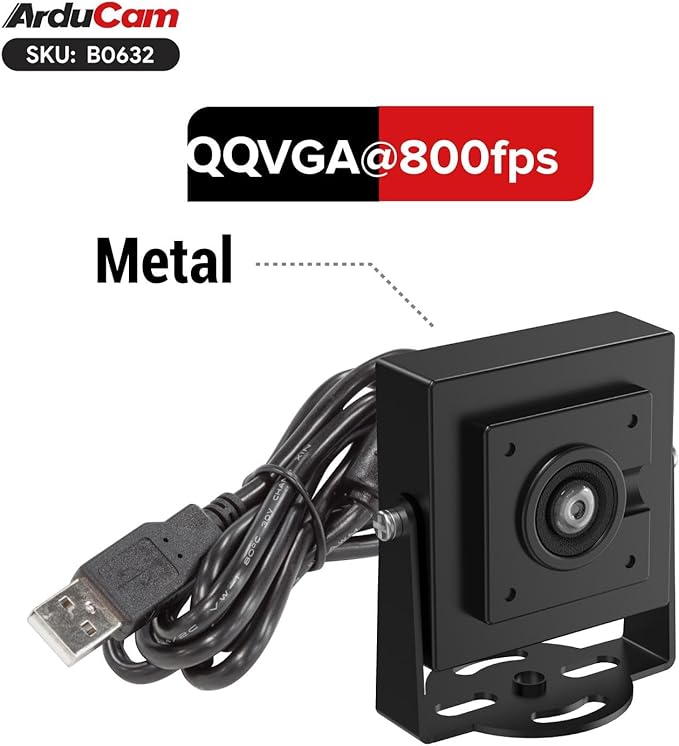

640x480@200fps, 320x240@400fps; 160x120@800fps

Frame Rate(YUV):

640x480@60fps, 320x320@160fps; 160x120@400fps

Product Series: ezBOX-VGA GS

Max Still Resolution: VGA

Color Filter Type: Monochrome

Shutter Type: Global Shutter

Optical Size: 1/7.5″

Output Format: MJPG/YUV

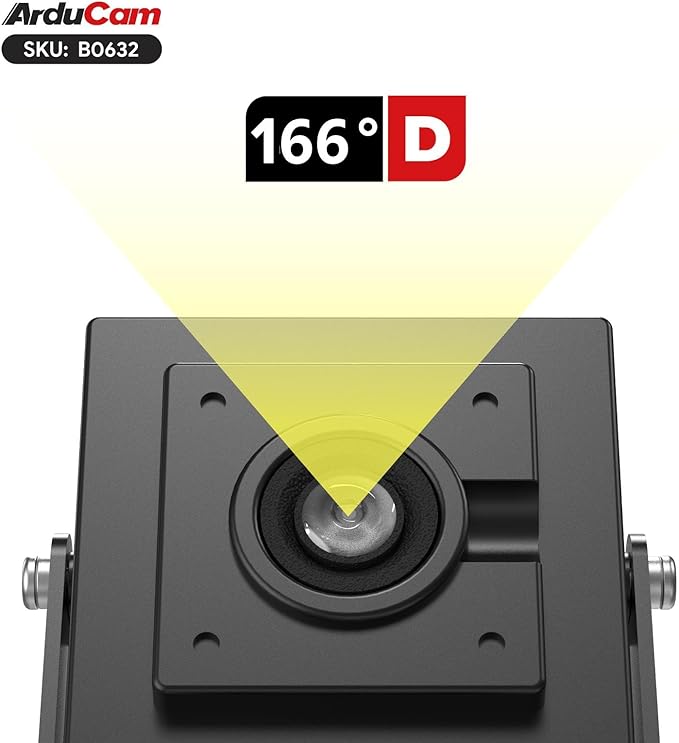

FOV: 166°(D)x130°(H)x100°(H)

Minimum Exposure Time: 100μs*

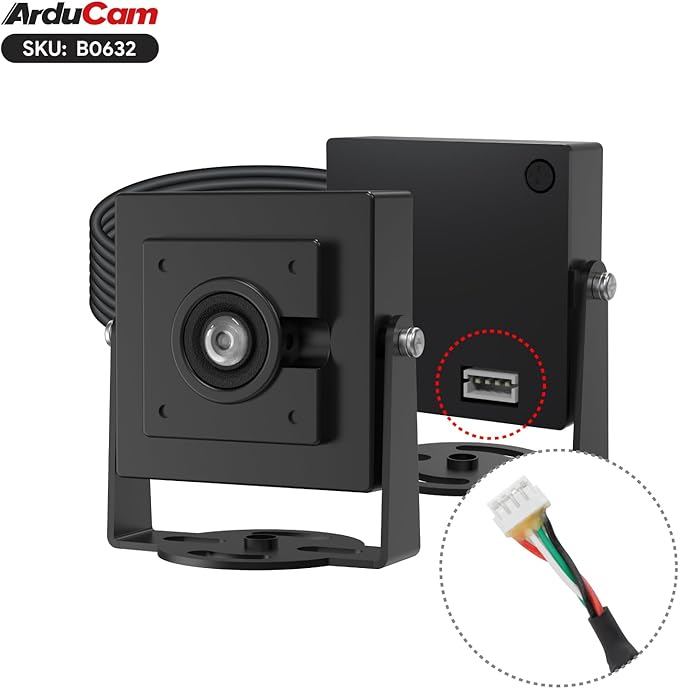

External Trigger Mode: Support
