CKLau 16 Port Rack Mount USB 3.0 KVM Switch HDMI 4K60Hz with Audio Cables and 2 pcs USB 3.0 Hub for 16 Computers Sharing Single Monitor Supports Hotkey Switching

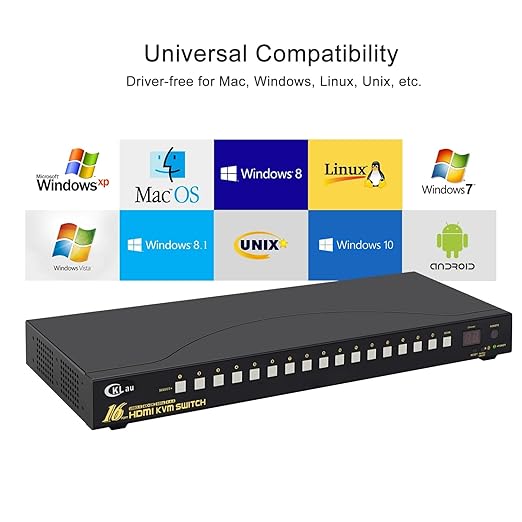

- 1. 16 Port 4K KVM Switch: 16 computers/laptops/DVRs/NVRs sharing one set of keyboard & mouse, audio, 1 monitor and 2 pcs USB 3.0 peripheral device. With all input cables and rack mount hook. Support wired/wireless/unify/gaming/mechanical/Bluetooth/Apple keyboard & mouse, touch screen, OLED screen, 16:9 widescreen, 21:9 ultra-wide monitors, etc. - 2. 16 Port HDMI KVM Switch USB 3.0: Certified HDMI Adopter: we are certified HDMI adopter over 10 years. Excellent image processing and transmission capacity, make the output signal more smoothly and steady. Drive-free for Windows 10/7/2000/XP/Vista, Linux, Mac, Debian, Ubuntu, Fedora, Raspberry Pi and Ubuntu. - 3. HDMI Monitor Switch 16 Port: Five switching way optional: keyboard hotkey switching(Num Lock + Num Lock + 1 / 2 / 3 ... + Enter, or Ctrl + Ctrl + 1 / 2 /3 ... + Enter, or Scroll Lock+ Scroll Lock+1 / 2 / 3 ... + Enter), mouse switching (click mouse wheel 2 times + left button / right button), manual button switching, IR remote switching, and wired remote push button switching. - 4. KVM Switch 16 Computers: Compatible 4096x2160@60Hz, 3840x2160@60Hz, 3840x1620@60Hz, 3440x1440@60Hz, 3840x1080@60/120Hz, 3200x1800@60Hz, 2560x1440@60/144/165Hz, 2048x1536@60Hz, 2048x1280@60Hz, 2048x1080@60Hz, 1920x1200@60Hz, 1920x1080@60Hz, etc. With a DC5V 2A power adapter, power supply more stability. - 5. KVM Switch 16 Port: Support auto detection, auto scan, waking up, with memory function in case of power-down. It can switch by mouse or keyboard independently, even it without USB signal input, such as Apple TV, Android TV box, etc. And it can enter into BIOS interface directly.

Product description

CKLau 16 In 1 Out Computer Monitor Switch

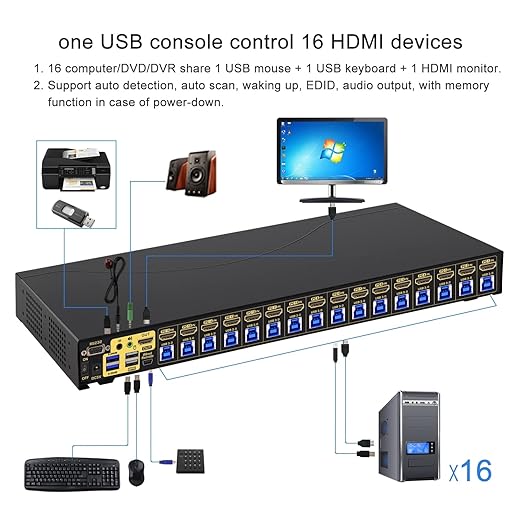

CKLau Monitor Switch for Multiple Computers Connect Diagram

This KVM Switch USB 3.0 Supports Emulation EDID

More Advantage

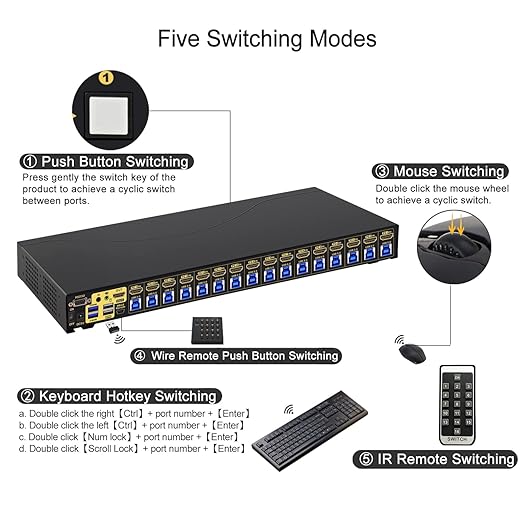

5 Switching Way Optional

Computer Switch for 16 Computers KMV Switches KVM for Mac USB 3.0 KVM Switch HDMI KVM Switch 16 Port KVM USB 3.0 Switch Monitor Switcher KVM Switch with HDMI KVM Switch 16 Port

Installation Step

1. Connect the KVM switch and computers by HDMI cables, and USB 3.0 cables that come with the KVM switch;

2. connect the KVM switch and monitor by HDMI cable;

3. plug the keyboard into the keyboard slot, plug the mouse into the mouse slot of the KVM switch, plug wired remote push-button switch/other USB devices/headset/IR remote into the KVM switch if needed;

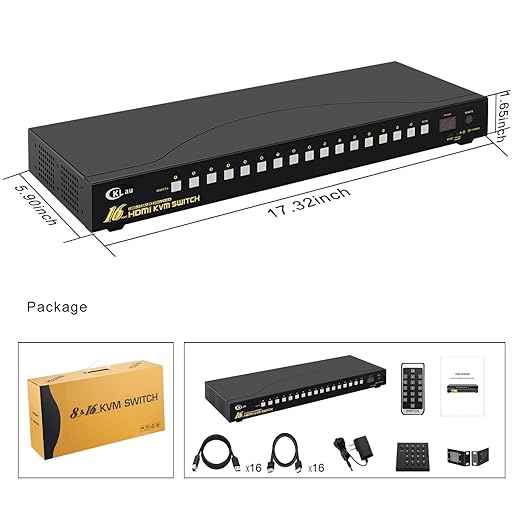

Package include:

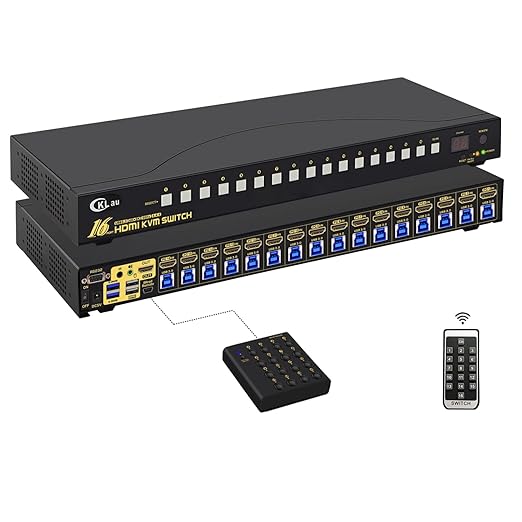

1 x 16 Port KVM switch + 16 x HDMI Cables + 16 x USB 3.0 cables + 1 x DC 5V 2A Power adapter + 1 x User manual + 1 x wire remote push button + 1 x IR remote + 2 x rack mount hook

Tips:

1. IR remote not include battery, you need buy it separately (battery specification is CR2025 3V).

2. The KVM switch comes with a DC5V 2A power adapter, we suggest you plug it into the KVM switch and AC socket, to avoid damaging your devices cause the power supply is not stable.

Questions & Answers:

1. How to reset the KVM switch? (You can reset the KVM switch when you meet USB disconnect or monitor issue)

Step 1. Turn off the KVM switch and all of your computers/laptops, then unplug all the cables;

Step 2. Plug the DC5V 2A power adapter into the KVM switch and AC socket, and turn on the KVM switch (There is an o/f button on the back);

Step 3. Plug the keyboard into the keyboard slot of the KVM switch;

Step 4. Click right [CTRL] on the keyboard 2 times, then click [ESC] 3 times, at last click [ENTER]. (The whole operation time should not be over 2s after you hear a beep sound, that shows operated successfully);

Step 5. Plug USB 3.0 cables, and HDMI cables into the KVM switch and computers, plug HDMI cable into the KVM switch and your monitor; plug the mouse into the mouse slot of the KVM switch; plug other USB devices into the USB 3.0 Hub of the KVM switch if needed;

Step 6. Turn on your computers.

2. How to turn off the Beep sound? (Beep sound default turn on, you can turn it on or turn it off by the step)

You need to keep the HOTKEY ON/OFF key turned on(when it turns on, its LED light), plug the keyboard into the keyboard slot, and make this operate: click right [CTRL] on the keyboard 2 times, then click [B], at last click [ENTER]. (Whole time should not be over 2s, that shows operated successfully when you hear a beep sound.)

3. My gaming keyboard and mouse can't work properly.

The hotkey function default turns on.

For gaming/mechanical/unified keyboard/mouse, that may be have a compatible issue, if they can't work properly, we suggest you turn off HOTKEY ON/OFF key(when it turns off, its LED light turns off). Or you can plug your keyboard/mouse into USB 3.0 Hub port, and then solve the issue.

We have been certified HDMI adopters for over 10 years.

With digital display, easily to know which computer you are using.

With audio output, can sharing headset during use between computers.

With 2 pcs extra USB 3.0 Hub, data transferring rate up to 5Gbps/s (10 times faster than USB 2.0).
