CKLau 2 Port Displayport 1.4 KVM Switch 2 Monitors with Cables and USB 3.0 Hub Supports 4096x2160@60Hz 2560x1440@144Hz for 2 Computers 2 Monitors Sharing Keyboard Mouse Peripheral Device

- 1. Dual Monitor Switch for 2 computers: 2 in, 2 out. Supports 16:9 widescreen, 21:9 ultra-wide monitors, touch screen, etc. Support wired/wireless/unify/Bluetooth keyboard/mouse, Apple keyboard, etc. (Tips: 1. This is DP 1.2 KVM switch, please set your devices to 4K@60Hz or lower resolution before using. 2. This KVM switch without simulation EDID function.) - 2. KVM Switch 2 Monitors 2 Computers: Space Saving Design with minimal footprint. Package includes: 1 pcs 2 port KVM switch + 2 pcs USB 3.0 cables + 2 pcs Displayport 1.2 cables + 1 pcs power cable + 1 pcs manual + 1 pcs wire remote push button switch. (If you want to connect 2 computers and use dual monitor, you need to buy another 2 pcs Displayport cables separately) - 3. 2 Computers 2 Monitors Switch: supports wired remote push-button switching, and manual button switching. Drive-free for Windows 10/7/2000/XP/Vista, Linux, Mac, Debian, Ubuntu, Fedora, Raspbian, Ubuntu and other operating system. - 4. KVM 2 Monitors 2 Computers: Resolution compatible 4096x2160@60Hz, 3840x2160@60Hz, 3840x1620@60Hz, 3440x1600@60Hz, 3440x1440@60Hz, 3840x1080@60Hz, 3200x1800@60Hz, 2560x1440@60/120/144/165Hz, 2048x1536@60/120/144Hz, 2048x1280@60/120/144Hz, 2048x1080@60/120/144Hz, 1920x1200@60/120/144Hz, 1920x1080@60/120/144Hz, and lower resolution. - 5. IMPORTANT: If only one computer is BIOS-based, start by turning it on, logging in, and waiting for the display. Switch to the second computer and turn it on. If both computers are BIOS-based, start the KVM, then the first BIOS computer, log in, wait for the display, switch the KVM to the second computer, and finally, turn on the second BIOS computer. In short, don't start both BIOS computers simultaneously to avoid issues like a black screen or disabling your keyboard and mouse.

Product description

CKLau 2x2 USB 3.0 DP 1.2 KVM Dual Monitor

Installation Step;

DP Dual Monitor 4K KVM Switch Advantage

Compare with other CKLau Displayport KVM switch

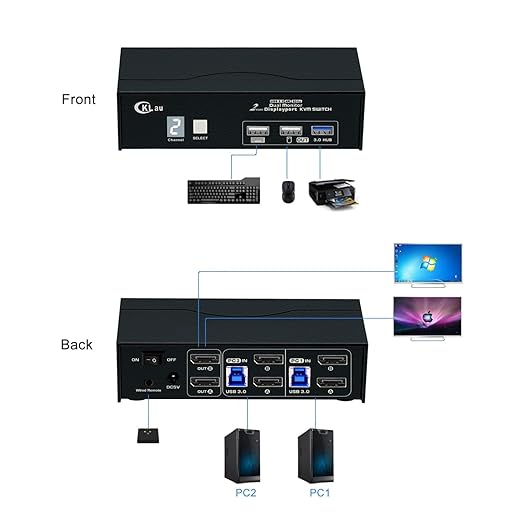

1. Connect the KVM switch and your computers by USB 3.0 cables, and Displayport cables; (if you want to connect 2 computers and 2 monitors, you need to buy another 2 pcs Displayport cables separately)

2. Connect the KVM switch and your monitors by Displayport cables;

3. Plug the mouse into the mouse slot of the KVM switch, plug the keyboard into the keyboard slot of the KVM switch, plug the wired remote push button switch into the KVM switch, plug the printer/driver/other USB devices into the USB 3.0 Hub port of the KVM switch;

Warm Tips:

1. The KVM switch comes with a power cable, we suggest you plug it into the KVM switch and wall charger during use to keep the power stable to avoid damage to your device caused power not stability.

2. This KVM switch supports DP 1.2 and is compatible DP 1.4 devices at 4K@60Hz only. Please set up your devices to 4K@60Hz or lower resolution before using them.

3. The KVM switch only comes with 2 pcs Displayport cables, you need to buy another 2 pcs Displayport cables if you want to connect 2 computers and use dual monitor.

4. IMPORTANT NOTICE: If one of your computers operates on BIOS, you should turn off all your computers at first, and start by turning on that computer, entering your password, logging into the system, and waiting for the display. Then, switch to the second computer and turn it on. If both computers are BIOS-based, follow this sequence: start by powering on the KVM, then switch on the first BIOS computer, enter your password, log into the system, switch the KVM to the second computer, and finally, turn on the second BIOS computer. In summary, avoid starting both BIOS computers simultaneously, as it may cause issues like a black screen or disable your keyboard and mouse.

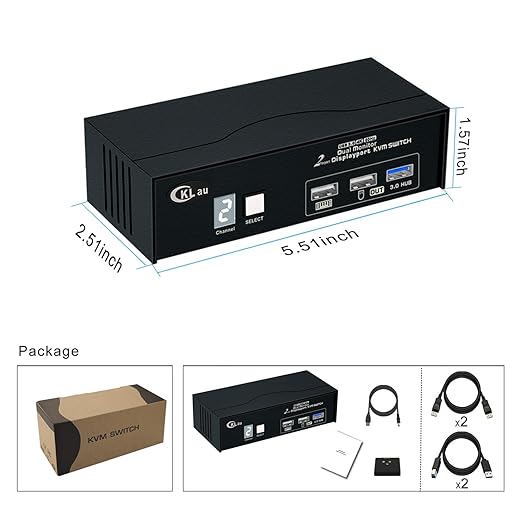

Package includes:

1 pcs 2 port KVM switch

2 pcs USB 3.0 cables

2 pcs Displayport 1.2 cables

1 pcs power cable

1 pcs manual

1 pcs wire remote push button switch

With digital display, easy to know which computer you are operating.

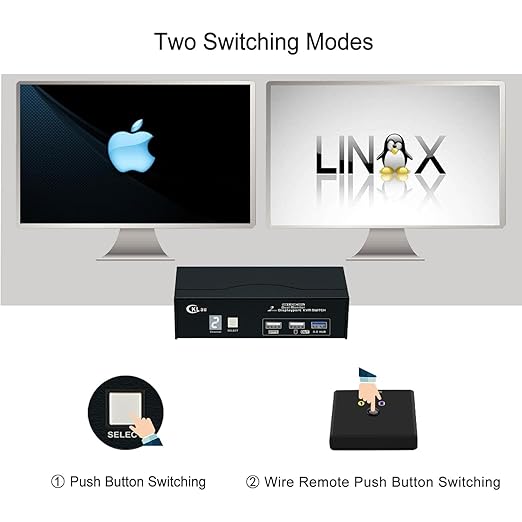

Only press the button of the wired remote or manual button one time, it will switch to another computer easily.

USB 3.0 data transferring rate up to 5Gbps/s (10 times faster than USB 2.0).

CKLau manufactures all kinds of KVM Switch.
