CKLau Triple Monitor HDMI KVM Switch 4 Port with Cables Microphone Audio USB 3.0 Hub Digital Display Supports 8K@60Hz 4K@144Hz Emulation EDID Hotkey Function

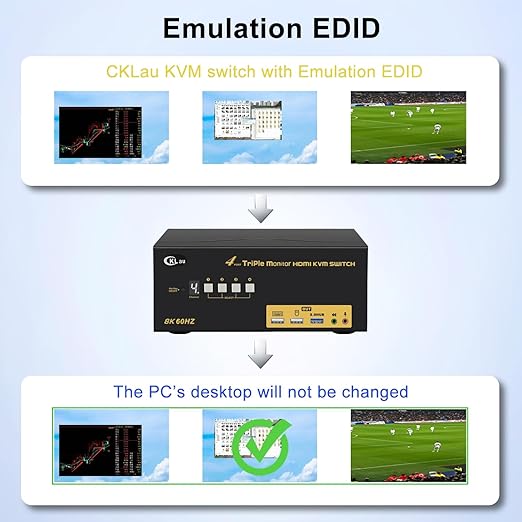

- 1. KVM Switch Triple Monitor HDMI: 4 computers in, 3 monitors output. Supports emulation EDID, windows size and local won’t change during switching between computers. (Tips: If you want to use 3 monitors, you should confirm that the computer with 3 video outputs. If one of your computers with 2 video outputs, only 2 monitors have display. ) - 2. Triple Monitor KVM Switch: We have been certified HDMI adopters for over 10 years. Excellent image processing and transmission capacity, make the output signal is more smooth and steady. Drive-free for Windows 10/7/2000/XP/Vista, Linux, Mac, Debian, Ubuntu, Fedora, Raspbian, Ubuntu, etc. - 3. 4 Computers 3 Monitors Switch: Resolution compatible 7680x4320@60Hz, 5120x2880@50/60/100/120Hz, 4096x2160@50/60/100/120Hz, 3840x2160@60/120/144Hz, 3840x1620@60/120/144Hz, 3440x1600@60/120/144Hz, 3440x1440@60/120/144Hz, 3840x1080@60/120/144/165/240Hz, 3200x1800@60/120/144/165/240Hz, 2560x1440@60/120/144/165/240Hz, 2048x1536@60/120/144/165/240Hz, 2048x1280@60/120/144/165/240Hz, 2048x1080@60/120/144/165/240Hz, 1920x1200@60/120/144/165/240Hz, etc. - 4. 3 Monitor KVM Switch USB 3.0: Four switching ways optional: keyboard hotkey switching (Num Lock + Num Lock + 1 / 2 / 3 / 4 + Enter, or Ctrl + Ctrl + 1 / 2 / 3 / 4 + Enter or Scroll Lock+ Scroll Lock+ 1 / 2 / 3 / 4 + Enter), mouse switching (click mouse wheel 2 times + left/right button), manual button switching, and wired remote push-button switching. - 5. KVM Switch 3 Monitors 4 Computers: Support wired/wireless/unified keyboard and mouse, Apple keyboard (hotkey is changeable), touch screen, OLED screen, 16:9 widescreen, 21:9 ultra-wide monitors, etc. Support auto detection, auto scan, and waking up, with memory function in case of power-down. It can be switched by mouse or keyboard independently, even without USB signal input, such as Apple TV, Android TV box, etc. And it can enter into the BIOS interface directly.

Product description

Installation Step

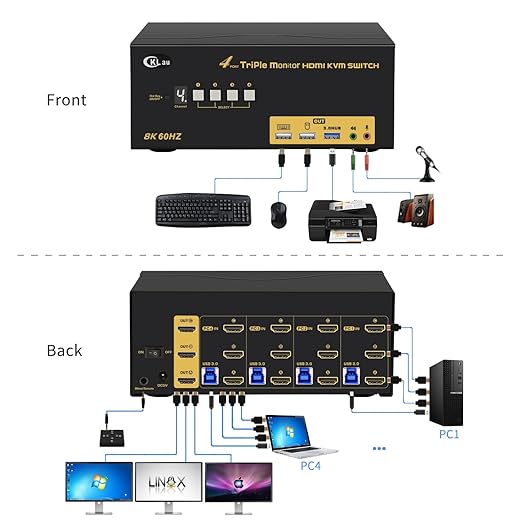

Connect Diagram

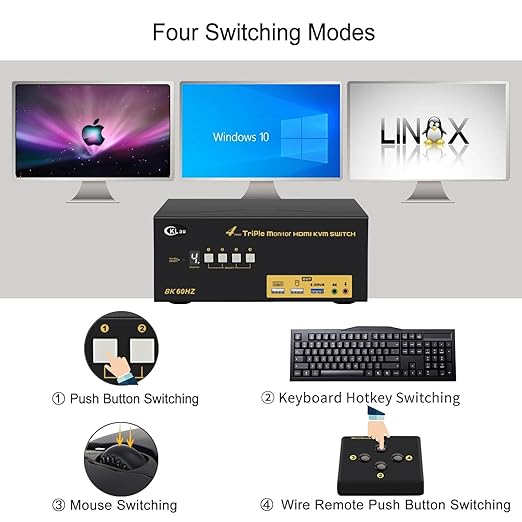

4 Switching Way Optional

More Advantage

1. Connect the KVM switch and computers by HDMI cables, and USB 3.0 cables that come with the KVM switch;

2. Connect the KVM switch and monitors by HDMI cables;

3. Plug the mouse into the mouse slot, plug the keyboard into the keyboard slot of the KVM switch;

4. Plug the wired remote push-button switch/headset/microphone/other USB device into the KVM switch if needed.

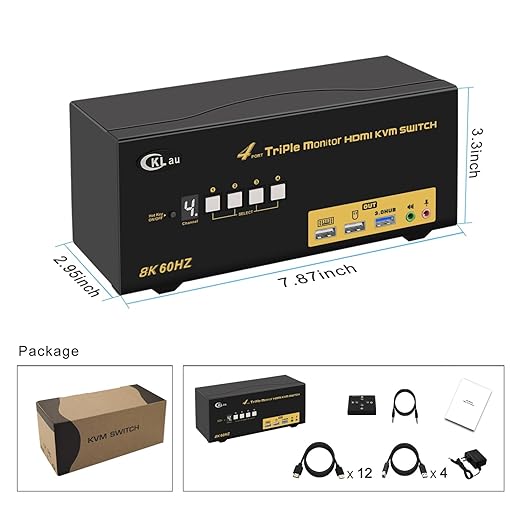

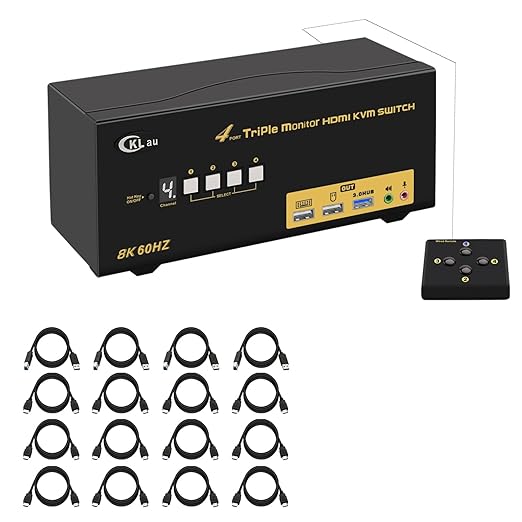

Package:

1 x 2 port HDMI KVM switch

12 x HDMI cables

4 x USB 3.0 cables

1 x DC 5V 2A Power adapter

1 x manual

1 x wire remote push button switch

Tips:

1. If your devices without 3 HDMI interface, please purchase 8K adapters with chip.

2. The KVM switch comes with a DC power adapter, we suggest you plug it into the KVM switch and AC socket, to avoid damaging your devices cause the power supply is not stable.

3. If you want to get 8K60Hz or 4K144Hz resolution, your devices(include computers, docking station, adapter) all should support that resolution. The KVM switch is like a bridge for transferring computers' signals to monitors, it can't change your devices' resolution. For example, all of your computers and the monitor all support 4K144Hz, but one of your computers needs to use an adapter, and this adapter only supports 4K60Hz, then this computer only supports 4K60Hz but not 4K144Hz.

We have been certified HDMI adopters for over 10 years.

With 1 extra USB 3.0 Hub, data transferring rate up to 5Gbps/s (10 times faster than USB 2.0).

With a HOTKEY ON/OFF key, you can turn on/turn off hotkey function by press this button.

With audio and microphone output, can sharing headset/speaker during use between two computers.
