CKLau USB 3.0 Dual Monitor KVM Displayport 1.4 8K30Hz 4K144Hz 2 Monitors 2 Computers Peripheral Sharing Switcher Box with Cables Wired Remote Digital Display

- 1. Dual Monitors Computer Switch for 2 Computers: allows 2 computers sharing one set of keyboard & mouse, 2 monitor, and 1 pcs USB 3.0 peripheral device. With a USB 3.0 Hub port, digital display. (Tips: This KVM switch without simulation EDID function, and it required each of your computers with multi graphic-card output. If your computer only with 1 video output, that only 1 monitor have display.) - 2. DP 1.4 2 Port KVM Switch: Resolution compatible 7680x4320@30Hz, 5120x2880@50/60Hz, 3840x2160@60/120/144Hz, 3840x1620@60/120/144Hz, 3440x1600@60/120/144Hz, 3440x1440@60/120/144Hz, 3840x1080@60/120/144/165/240Hz, 3200x1800@60/120/144/165/240Hz, 2560x1440@60/120/144/165/240Hz, 2048x1536@60/120/144/165/240Hz, 2048x1280@60/120/144/165/240Hz, 2048x1080@60/120/144/165/240Hz, 1920x1200@60/120/144/165/240Hz, 1920x1080@60/120/144/165/240Hz, etc. - 3. 2 Computers 2 Monitors Switch: Support wired/wireless/unify/gaming/mechanical/Bluetooth/Apple keyboard and mouse, touch screen, OLED screen, 16:9 widescreen, 21:9 ultra-wide monitors, etc. (Bluetooth should with a wireless receiver, it can’t compatible the Bluetooth keyboard/mouse with built-in receiver) - 4. 8K KVM Switch USB 3.0: Supports manual button switching, and wired remote push button switching. With digital display, easily to know which computer you are using. Suit for home, office, multimedia conference room, booking hall, etc. - 5. USB KVM Switch DP 1.4: Package include: 1 pcs 2 port Displayport KVM switch + 2 pcs USB 3.0 cables + 2 pcs Displayport 1.4 cables + 1 pcs wired remote push button + 1 pcs power cable + 1 pcs manual. (If you want to connect 2 computers and use dual monitor, you need to buy 2 pcs Displayport 1.4 cables separately) - 6. IMPORTANT: If only one computer is BIOS-based, start by turning it on, logging in, and waiting for the display. Switch to the second computer and turn it on. If both computers are BIOS-based, start the KVM, then the first BIOS computer, log in, wait for the display, switch the KVM to the second computer, and finally, turn on the second BIOS computer. In short, don't start both BIOS computers simultaneously to avoid issues like a black screen or disabling your keyboard and mouse.

Product description

CKLau 8K Displayport 1.4 KVM Switch 2 Computers 2 Monitors

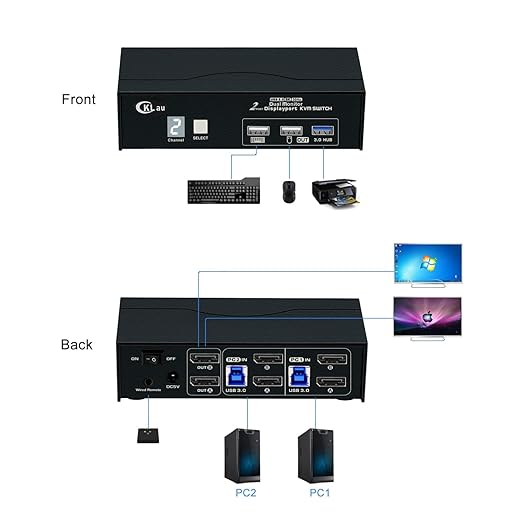

Installation Step

CKLau 4K@144Hz KVM Switch DP Application Area

Suit for home, office, play gaming, Ultra-HD TV, etc. Enjoy your time!

CKLau 8K KVM Switch 2 Monitors Advantage

Compare with other CKLau Displayport KVM switch

1. Connect the KVM switch and your computers by USB 3.0 cables, and Displayport 1.4 cables; (If you want to connect 2 computers and use dual monitors, you need to buy another 2pcs Displayport 1.4 cables separately)

2. Connect the KVM switch and monitors by Displayport 1.4 cable;

3. Plug the mouse into the mouse slot of the KVM switch, plug the keyboard into the keyboard slot of the KVM switch, plug the wired remote push button switch into the KVM switch, and plug other USB device into the USB 3.0 Hub of the KVM switch if needed.

4. If one of your computers operates on BIOS, you should turn off all of your computers, and start by turning on that computer, entering your password, logging into the system, and waiting for the display. Then, switch to the second computer and turn it on. If both computers are BIOS-based, follow this sequence: start by powering on the KVM, then switch on the first BIOS computer, enter your password, log into the system, switch the KVM to the second computer, and finally, turn on the second BIOS computer. In summary, avoid starting both BIOS computers simultaneously, as it may cause issues like a black screen or disable your keyboard and mouse.

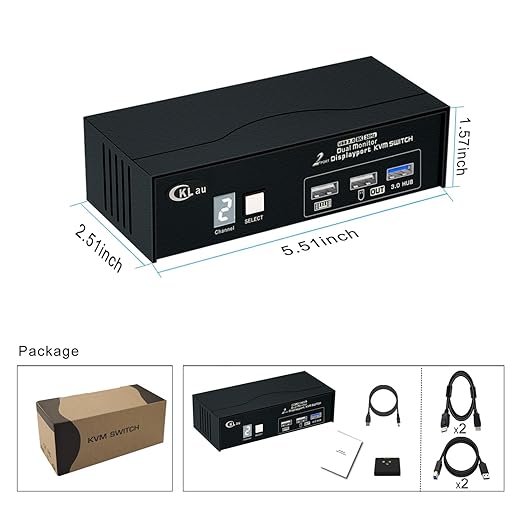

Package:

1 x 2 port Displayport KVM switch

2 x USB 3.0 cables

2 x Displayport 1.4 cables

1 x wired remote push button

1 x power cable

1 x manual

Warm Tips:

1. The KVM switch comes with a power cable, We suggest you plug it into the KVM switch and your wall charger, to keep power stable to avoid damage your devices cause the power supply is not stable.

2. This DP 1.4 Dual Monitor KVM switch is without emulation EDID function, Windows size and location may be moving after switching between computers. And it requires each of your computers with 2 or multi-video output. If your computer only with 1 video output, only 1 monitor has display.

3. If you want to get 8K30Hz or 4K144Hz resolution, your devices(include computers, docking station, adapter) all should support that resolution. The KVM switch is like a bridge for transferring computers' signals to monitors, it can't change your devices' resolution. For example, your computers and monitors all support 4K144Hz, but one of your computers needs to use an adapter, and this adapter only supports 4K60Hz, then this computer only supports 4K60Hz but not 4K144Hz.

Resolution compatible 7680x4320@30Hz,

5120x2880@50/60Hz,

3840x2160@60/120/144Hz,

3840x1620@60/120/144Hz,

3440x1600@60/120/144Hz,

3440x1440@60/120/144Hz,

3840x1080@60/120/144/165/240Hz,

3200x1800@60/120/144/165/240Hz,

2560x1440@60/120/144/165/240Hz,

2048x1536@60/120/144/165/240Hz,

2048x1280@60/120/144/165/240Hz,

2048x1080@60/120/144/165/240Hz,

1920x1200@60/120/144/165/240Hz,

1920x1080@60/120/144/165/240Hz, etc.

CKLau manufactures all kinds of KVM Switch. If you have any questions, feel free let us know by Amazon message.
