Coolgear 6 Port Managed USB 2.0 Hub with DIN-Rail Mount Individual Port Control and Surge Protection

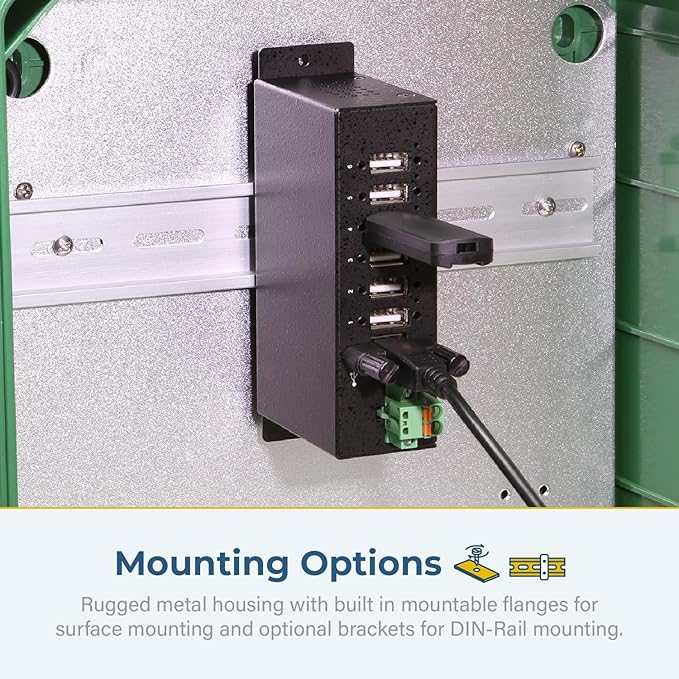

- [ Individual Port Control ] : Manage each port independently, enabling precise power cycling and device resets without disrupting the entire system. - [ 15KV ESD Surge Protection ] : Safeguard connected devices from electrical surges and static discharge, ensuring long-term reliability in demanding environments. - [ Wide Input Power Range ] : Operates on 7-48V DC, allowing integration with diverse industrial power systems and applications. - [ Cross-Platform Software Support ] : Compatible with Windows, x86-64 Linux, and ARM-based Linux, providing flexible device management across operating systems. - [ High-Speed USB 2.0 Transfer Rates ] : Achieve data speeds up to 480Mbps while maintaining compatibility with older USB 1.1 devices. - [ Rugged & Adaptable ] : Durable construction with DIN-rail and wall-mounting options ensures secure installation in industrial or production settings.

Product description

Features:

Management Software:

Why Coolgear?

Advanced Engineering

Superior Build Quality

Reliability

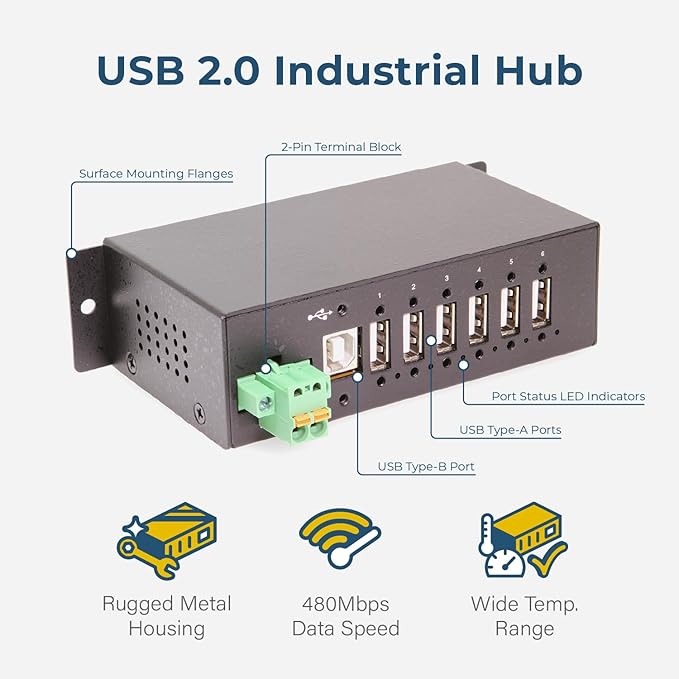

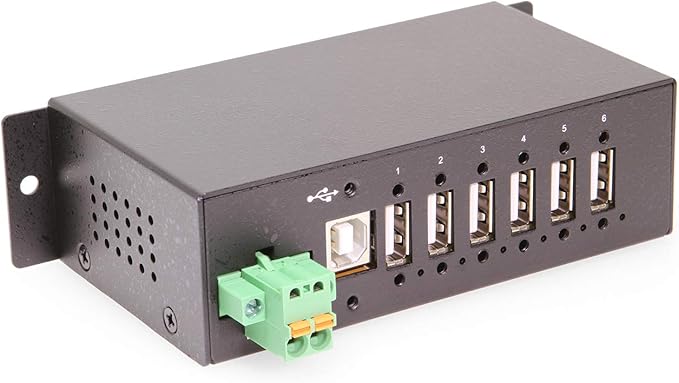

The CG-6PU2MGD is a managed USB 2.0 hub which is designed to provide unique features for industrial applications. It provides an instant expansion of 6 USB 2.0 downstream facing ports and keeps excellent reliability and compatibility with all USB3.x, USB2.0, and 1.1 existing devices.

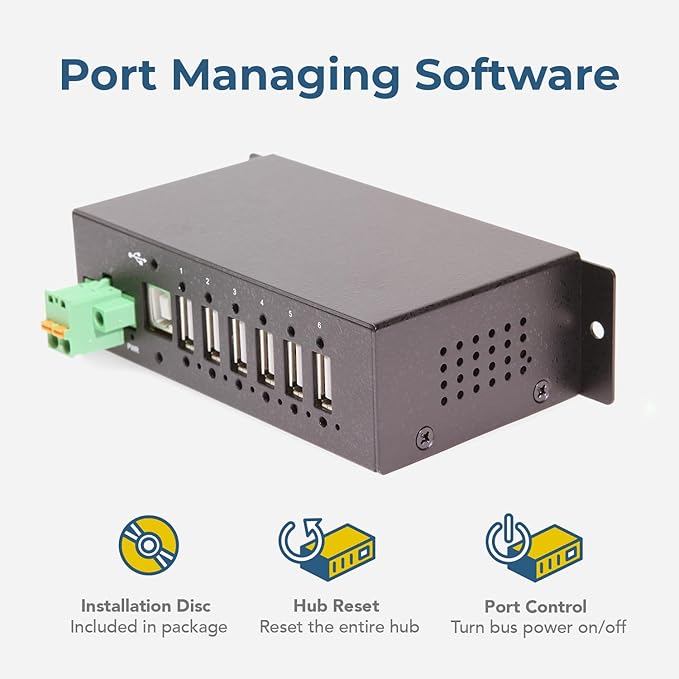

The CG-6PU2MGD is supplied with managing software utilities that can turn on/off the bus power of each downstream device or even reset the entire hub. It also can save the designated state to its flash memory and read it back as the initial state of its next power up cycle. Different utilities were supported for different operating systems such as Windows, Intel x86-64 and ARM-based Linux.

The CG-6PU2MGD software package contains several managing software utilities that support different platforms allowing better control over each individual ports’ status. A GUI (Graphical User Interface) and console command prompt utilities for all major Microsoft Windows. It also includes utilities for different Linux versions. The utilities were written to easily operate with the applications software written with different languages such as C#, C++, VB, Python or even a PHP server scripting language.

Your Trusted Partner based in the USA, Providing Advanced Engineering, Highly Reliable and Superior Built Products to handle the most demanding industries for over 20 years. Reach out to us for CAD, Mechanical Drawings and, Data Sheets.

Extensive on-site research, development, and engineering directly from our Lab in the USA allowing us to provide innovative products ready to handle the most demanding industries.

Industrial rugged steel mountable chassis for the most demanding environments. Ready to tackle your office, lab, warehouse, heavy machinery, automation equipment, industrial setting applications, and more.

High Quality component selection offering higher duty cycle and longevity. Constantly researching new avenues to get you reliable connections for your peripherals.
