ELECROW 5 Inch Touch Screen Monitor LCD Display 800×480 Mini Touchscreen HDMI-Compatible & USB Powered with Speakers for Raspberry Pi 5/4/4B/3/3B BB Black Banana Pi Windows 10/8/7 Game Consol

- 5-Inch HD Capacitive Touchscreen: Featuring an 800×480 resolution LCD panel with a 60Hz refresh rate, this display ensures sharp visuals, smooth performance, and responsive touch. Ideal for coding, gaming, and media playback - Driver-Free, Plug-and-Play: The LCD display comes with an HD cable for display and a USB cable for power. Simply connect HDMI for display and USB for power?no drivers needed. A quick 5-second setup makes it perfect for beginners, coding lessons, and project demos - Wide Compatibility: The touch screen monitor supports the entire Raspberry Pi lineup, BB Black, Banana Pi, Jetson Nano, and standard HDMI devices. It also can be used as a secondary screen for a TV box, a Switch gaming display, or an extra Windows monitor - Multi-System Support & Precise Touch: The IPS touchscreen supports five-point touch on Windows 11/10/8/7, When paired with Raspberry Pi running Raspbian or Ubuntu, it supports single-point touch, making it versatile for various applications - Compact & Tidy: Custom connectors for Raspberry Pi eliminate cable clutter, while copper pillars double as a prop stand for flexible setup. The sleek, compact design makes this mini monitor a portable and space-saving solution, perfect for on-the-go use - Audio & Display Control: Equipped with a built-in speaker, this small monitor offers clear, immersive sound without extra devices. Brightness and volume are easily adjustable, allowing for a personalized viewing and listening experience in any setting

Product description

DIY Your Pocket PC

5 Inch Touchscreen Monitor

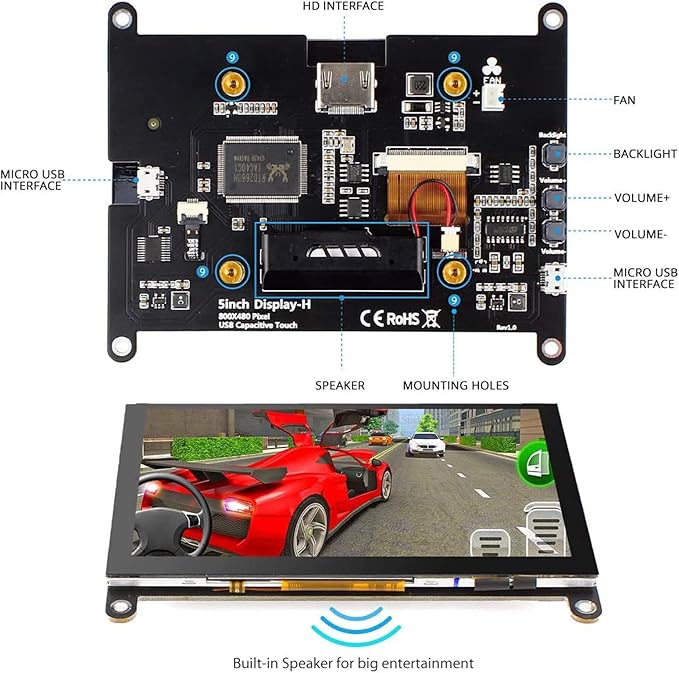

Build-in high-quality loudspeaker, offers crisp audio output when watching movies and playing games. Press the buttons on the back of the screen, backlight & volume could be adjusted according to you needs.

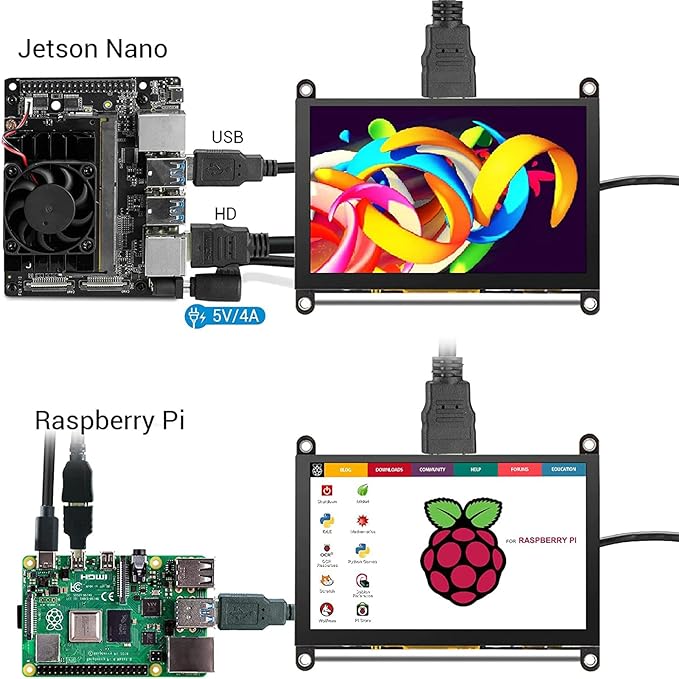

Compatible with Raspberry Pi 5/4/3/2, Windows PC, Switch, PS4, Xbox One and other devices which has HD interface.

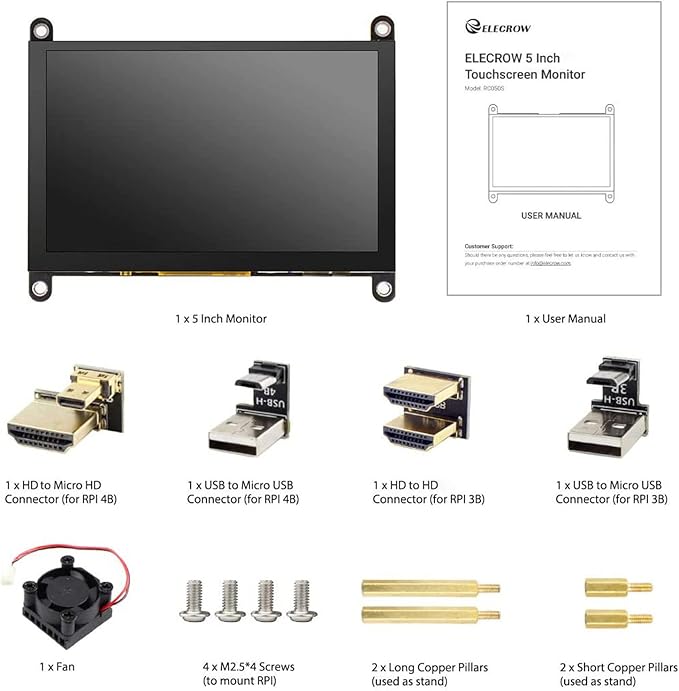

The copper pillars comes with the package can be used as prop stands, easy to install and remove, save the space when you put it into your bag.

The RPi could be mounted on the back of the screen easily. Screws are included in the package.

To keep the CPU cool, a cooling fan Kit + heatsink cooler are provided. Note: Fan makes noise if the screws loose, please retighten them.

Special made HD and USB adapters can be hidden behind the screen, makes the connection compact and neat. Say goodbye to the messy desktop.

Generally it works with most HDMI-compatible devices with standard HD interface, but please note that the touch function is just for windows and raspberry system.

When intended for Raspberry Pi, supports Raspbian, Ubuntu, Kali, single touch, and free driver.

When work as a computer monitor, in Windows 10//8/7 OS, 5 point touch, free driver.

Just plug and play by connecting touch port to the device to achieve touch function without driver and program download.

Note: Touch function is unavailable when used as a general monitor.

Note: When working with Raspberry Pi 4, for the system image of Raspberry Pi after 2021-10-30, for example on Bullseye, please modify "dtoverlay = vc4-kms-v3d" to "dtoverlay = vc4-fkms-v3d" in the config file, otherwise it may fail to start. But on Buster, please comment out "dtoverlay = vc4-fkms-V3D" by adding #.

Q1: The LCD cannot display normally when connected to PC?

A1: Adjust the output signal to HDMI. Make sure the operating system is Windows. Use the LCD as the only monitor for testing. Connect the USB power cable first and then the HDMI cable. Try to restart your computer.

Q2: Failure in writing system?

A2: Rewrite system and if problem still exists after rewriting then you SD card format might be wrong or SD card is defective.

Q3: Touch Screen Issue?

A3: Make sure the Micro USB connector is properly connected between the USB ports of the Raspberry Pi and the USB Touch interface of the LCD screen. Try another micro USB cable (supports data transfer).

Q4: No sound when work with Raspberry Pi?

A4: 1. Open the config.txt configuration file: sudo nano/boot/config.txt.

2. Modify "hdmi_driver=1" option to "hdmi_driver=2".

3. Save and exit. Press "ctrl+x" then "y", and finally press "enter".

4. Enter the following command to restart the Raspberry Pi for the configuration file to take effect: sudo reboot.

5. Then you successfully set the sound to be output from the screen via HD.
