ELP 4MP Dual Lens USB Camera - Wide Angle 1080P 60fps Lightburn Mini UVC USB2.0 Laser Engraver Camera Module for Computer & Raspberry Pi
$142.79
- 3D stereo synchronous camera module 4.0 Megapixel HD 3840X 1080P Webcam - No distortion camera M12 Mount dual lens Synchronous, HFOV 120greee, interchangeable. - High speed USB 2.0 interface to Type C in camera, High Quality image sensor JX-F35 - High frame rate 3840X1080 MJPEG@60 fps, Camera with USB , Plug and play ,no need any driver to run . - support UVC compliance for use in OS Windows, Linux, Android, Mac, Support OTG function, can connect Android mobile, pad directly . - Small outline, mini size 80*16.5mm for embedded application - Application: Robot vision, Virtual reality, Augmented Reality, biometric Retina analyze, 3D measurement, Intelligent transportation system, People Counting & Tracking, Astrophotography etc.
Product description
ELP 4megapixel wide angle dual lens usb camera synchronization with 120degree no distortion lens for computer,pc,laptop.
ELP-USB3D1080P02-H120 (120 No distion Lens, HFOV about 120degree)

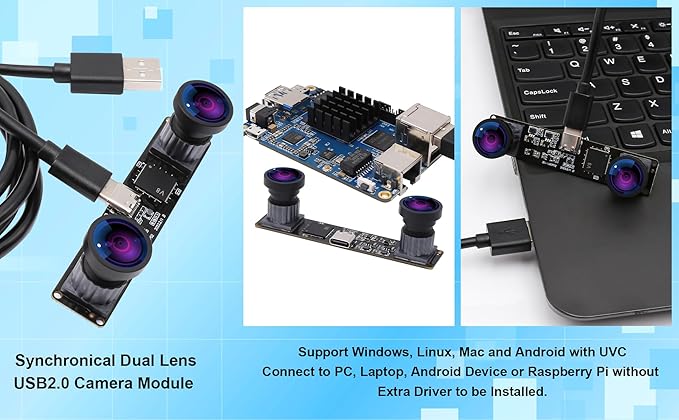

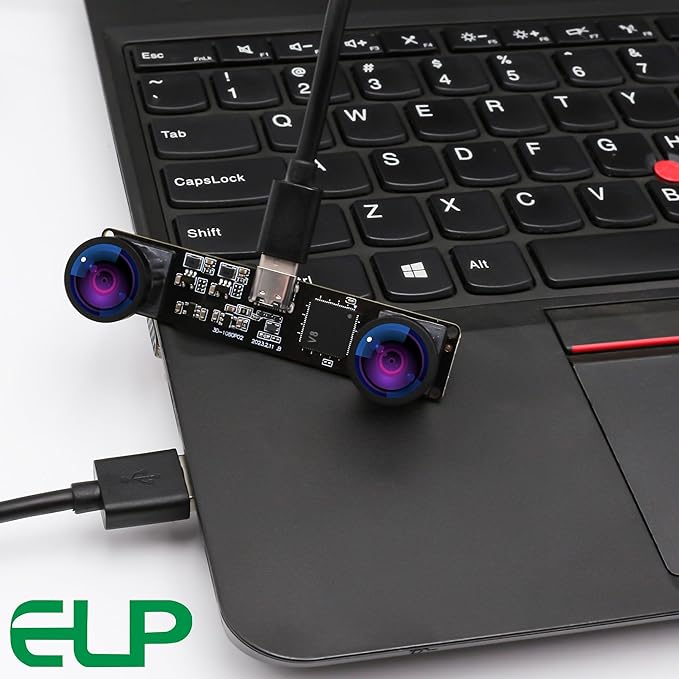

Super mini usb camera board for pc,computer,laptop,raspberry pi,android development board,Jetson Nano,etc
SPECIFICATIONS
With dual synchronized 120 degree no distortion M12 lens, HFOV about 120degree.

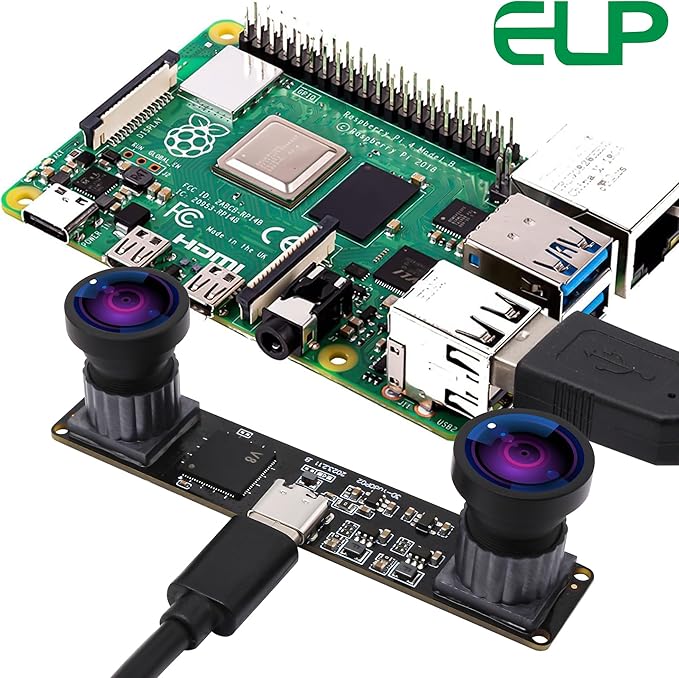

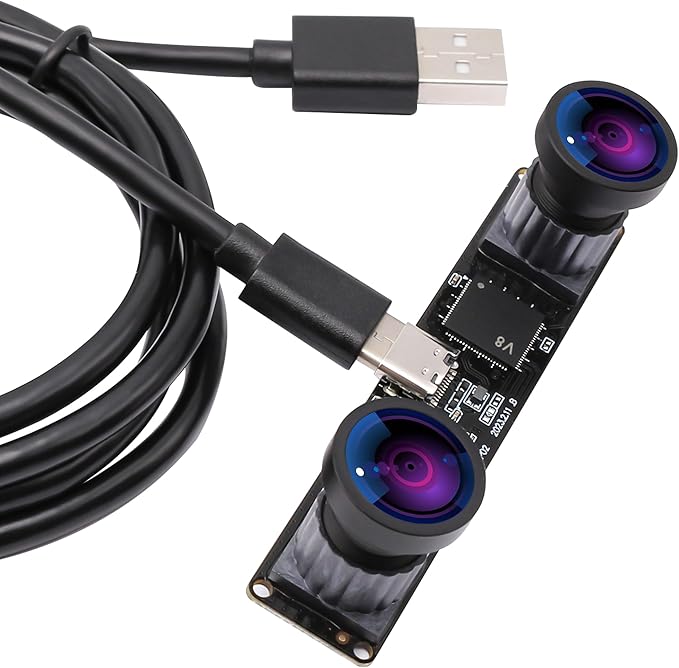

Ultra HD 4mp USB camera, with synchronization dual lens for Computer and Raspberry Pi
Plug and play,free driver,UVC compliant, just plug in and go.
Small outline and thin profile for embedded machine vision like home surveillance system, wildlife photography, dashcam, baby camera, etc.
Mini usb camera board can be installed in most hidden and narrow position:
- Sensor: 1/2.7” JX-F35
- Resolution: 4mp 3840 x 1080
- Data Format: MJPG/YUY2

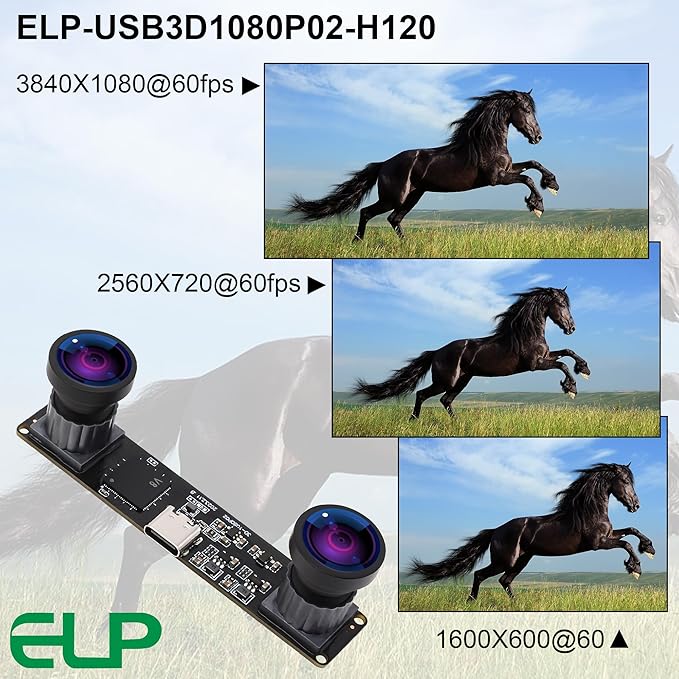

- Frame Rate: MJPG 60fps@3840x1080
- Field of View (FOV)： H= 120°
- Lens Mount: M12
- Focusing Range: 0.33ft (10CM) to infinity
- Dual synchronization 120degree no distortion lens
- Adjustable parameter: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Exposure.
- System Compatibility: Windows, Linux, Mac, and Android with UVC.
- Power Supply: USB powered 5V
- Working Current: MAX 370mA
- Operating Temp.: 14°F~158°F (-10°C~+70°C).

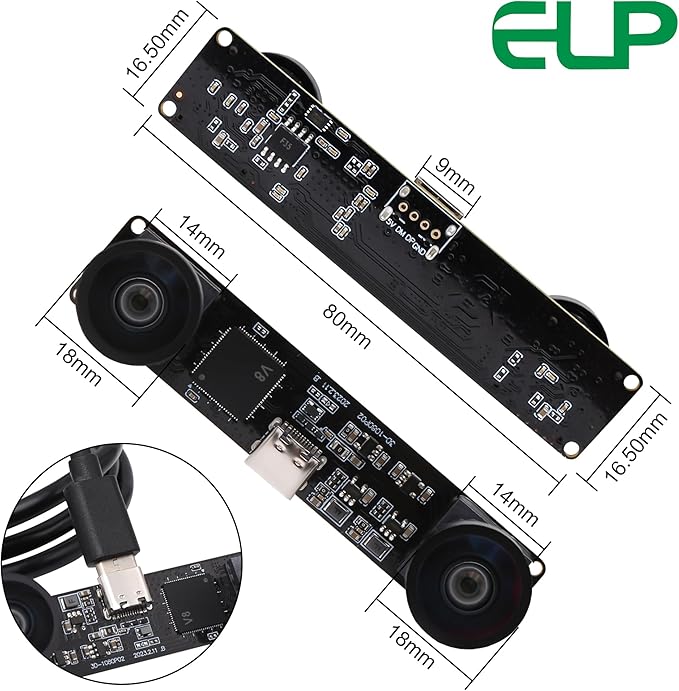

- Dimension: 80mmx17.2mm
- Cable Length: 3.9ft (1.2M)
- Video conference
- Home video surveillance system
-Object recognition and tracking
- Dashcam
- Monitoring 3D printer
- Baby Camera
- Robot and machine vision

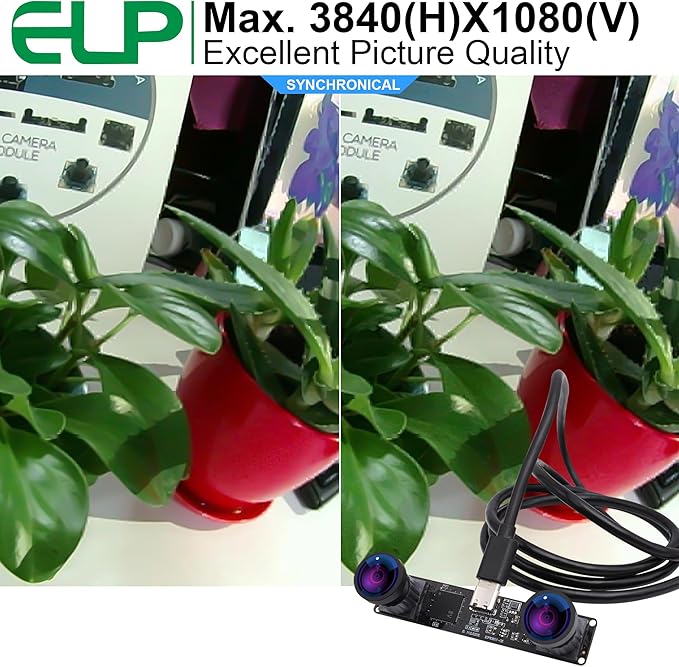

Max Resolution:
4megapixel high pixel technology for sharp image and accurate color reproduction.
Can Work With Most OS:
Applications:
