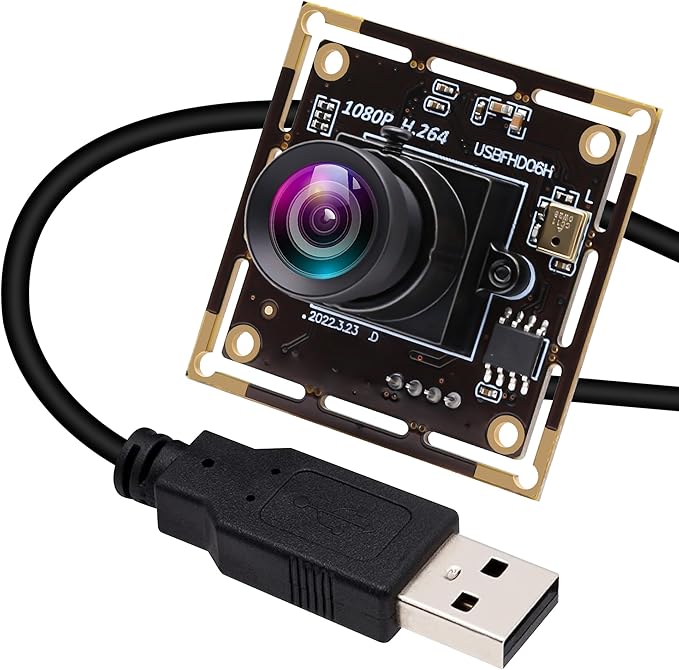

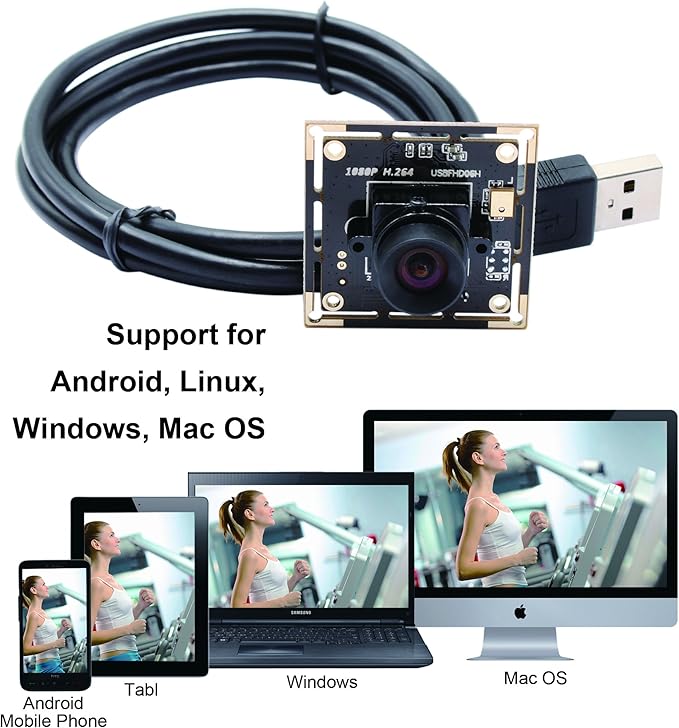

ELP Sony IMX323 Sensor Mini Low Light Wide Angle USB Camera Module with 100degree No Distortion Lens HD 1080P 0.01Lux USB2.0 Video Webcam Board UVC H.264 PC Camera for Computer Laptop

- Sony323 low illumincation image sensor for high quality image,Built-in microphone for audio recording. - New feature: H.264 compression format + low illumination,1080P HD high definition,Max Resolution:1920(H)*1080(V). - 1080P HD high resolution good for dark image vision It comes with sharp clear image in dark place. - 1280X720@30fps/1920X1080@30fps,higher coding efficiency. Support Windows, Linux,Mac,Raspberry Pi, Android system with UVC. - Mini size for robotic project,Mini size 38*38mm/32*32mm,small outline and thin profile for embedded applications,widely used for scanner, 3D printer, simple surveillance, Robot, ATM, Kiosk etc

Product description

ELP 1080P USB Camera 0.01LUX low Light Sony IMX323 Image Sensor with Audio,Wide Angle USB2.0 Camera Module for Scanner,3D printer,Robot, Kiosk etc.

Model: ELP-USBFHD06H-L100 (100degree no distortion lens, FOV about 65degree)

Can be widely used in all kinds of machine vision,ideal for low/weak light conditions capturing: road traffic/parking lot/hospital ward monitoring

ELP USB Camera can work along with the webcam software installed by default in the PC.

Support for secondary development, raspberry pi development, android development, Jetson Nano,etc.

1080P FHD Excellent Picture Quality H.264 USB Camera Module with Microphone,Provide More Fluently Video,Built-in Mic Ideal for Conference Meeting,streaming,parking lot management,security monitoring.

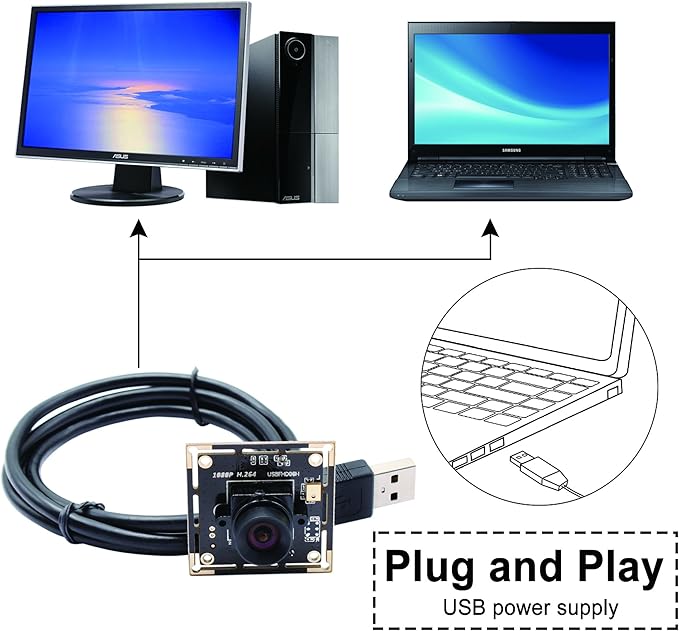

Plug and Play,Free Driver,High Compatibible with most OS,Super Mini Outline and Thin Profile for Embedded Applications,like ATM,Kiosk,Industrial/Medical Machine Vision which Needs Low Light Capturing

ELP-USBFHD06H-L21/L28/L36/FD100/L170/L180 are loved by thousands of millions business people from all over the world!

FAQ:

SPECIFICATIONS

- Sensor: 1/2.9” IMX323

- Resolution: 2MP 1920H x 1080V

- Frame Rate:

- Field of View (FOV)： H= 65°

- Lens Mount: M12

- Focusing Range: 2inch (5cm) to infinity

- IR Sensitivity: Integral IR filter, visible light only

- Adjustable Parameters: Saturation, Contrast, Acutance, White balance, Exposure.

- System Compatibility: Windows, Linux, and Mac with UVC

- Power Supply: DC 5V

- Working Current: MAX 200mA

- Operating Temp.: 32°F~140°F (0°C~+60°C)

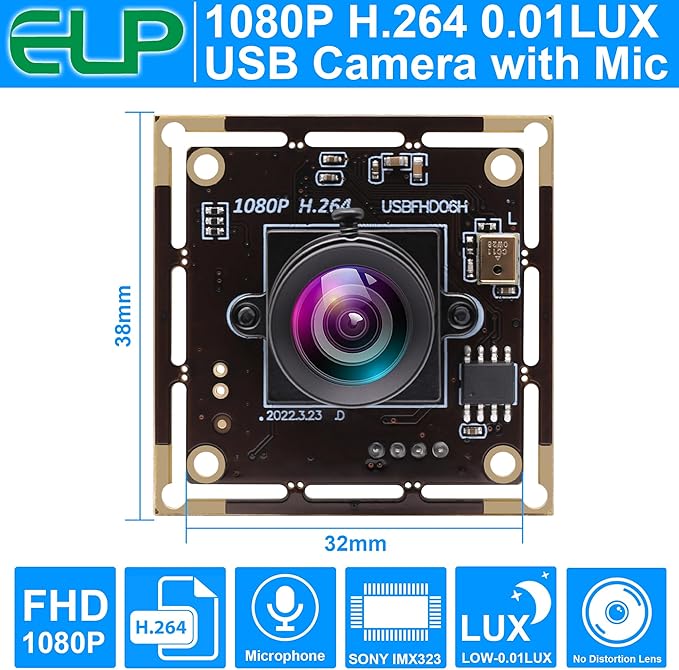

- Dimension: 38mmx38mm/32mmX32mm

- Cable Length: 3.3ft (1M)

1.Are you manufacturer?

Yes, we are designer and manufacturer for usb camera module for more than 14 years

2.Can you provide SDK for secondary development?

Yes, We can offer Linux, Windows, Android SDK.

3.What lens optional you have?

We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens

4.What operating system your cameras support?

Android, Windows and Linux System

5.What certificate your products have?

CE, FCC, partial have RoHS and UL

6.Does the camera support Raspberry Pi? If support Linux Ubuntun system? Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.

7.Does the camera support OTG? Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.

9.Which software your usb camera module support?

Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
