Global Shutter USB Camera 90fps High Speed Cam Module 120 Degree No Distortion Lens 1200P Golf Swing Industrial Embedded for Computer Jetson Nano Laptop Raspberry Pi

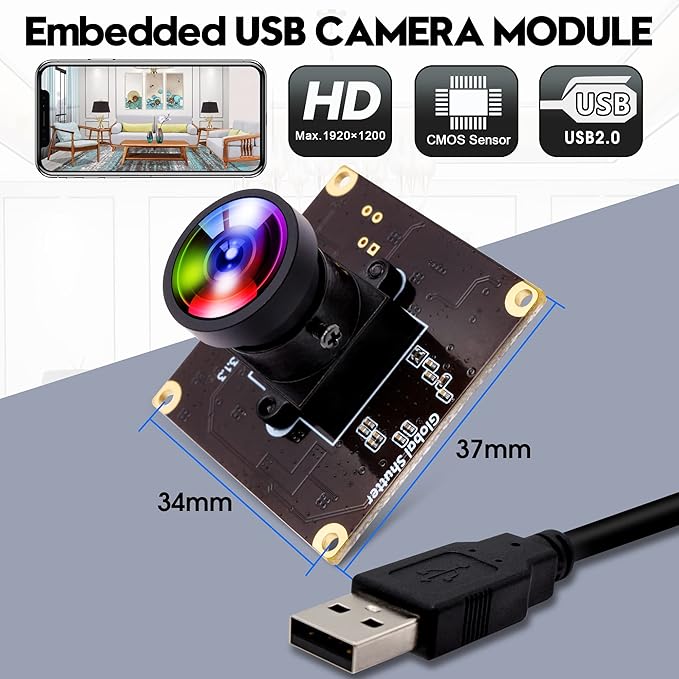

- Color Global Shutter: Based on 2MP AR0234 color global shutter sensor. Capture fast-moving objects in crisp images. Avoid rolling artifacts and get a much more accurate overall image than rolling shutter cameras. - High Frame Rate 90fps:2MP usb camera high frame rate 90fps webcam offers smoother video. Supports color images at 1920*1200@90fps, 1920*1080@90fps. Perfect for personal/industry/business project. - No Distortion-Free 126 Degree Lens:2MP usb camera with distortion-free 126° lens.Wide angle usb webcam gives you an unparalleled perspective for a variety of conditions.38*38mm mini embedded usb camera module design. - Wide Applications: 2mp global shutter usb camera module has excellent low light sensitivity enable it to perform better in any application that needs gaze and eye tracking functions, 3D image, depth sensing, etc. - Plug and Play: ELP UVC 1200P global shutter USB with compact camera support OTG, plug and play, NO additional driver required. You just need to connect the USB camera to the USB port of your device, and then you can use camera software like Facetime/Amcap/MotionEyes.

Product description

IFWATER 90fps Global Shutter USB Camera Module Full HD 1200P USB Camera Module with Wide Angle Lens without Distortion 126 Degree Webcam

High Frame Rate 90fps@1080P 1200P USB2.0 AR0234 Color CMOS Sensor Global Shutter USB Camera Module with Distortion-Free 126 Degree Lens

Global Shutter USB Camera Module Mini Embedded Camera for PC, Computer, Laptop, Raspberry Pi, Android

High Speed ??Wide Angle Global Shutter USB Camera Module for Computer 1080P Mini UVC USB2.0 Webcam Board 120 Degree No Distortion Lens

This module is a new member of the ELP USB camera family, a 2MP, based on the 1/2.6 inch Global Shutter AR0234 image sensor, UVC compliant, low distortion USB2.0 camera. Don't worry about installing the driver anymore! The native UVC drivers of Windows, Linux and Mac are compatible with this camera, so no additional drivers need to be installed. The excellent low-light sensitivity of the global shutter sensor ensures crisp and precise full-color images even with fast-moving objects.

Specifications:

Model: IF-USBGS1200P01-H120

Sensor:Aptina AR0234 (1/2.6") Global Shutter

Maximum resolution: 1920 (H) *1200 (V)

Sensor size:1/2.6 inch (4:3), Pixel size:3.0μm

Compression format:MJPEG / YUV2 (YUYV)

Resolution & frame rate:

1920x1200 @ 90fps MJPEG/ 1920x1080 @ 90fps MJPEG

1280x720 @ 90fps MJPEG/ 1024x768 @ 90fps MJPE

960x720 @ 90fps MJPEG/ 800x600@ 90fps MJPEG

USB cable: 1 meter

Storage temperature: -20°C to 80°C

Operating temperature: 0°C to 60°C

Power connector: USB BUS POWER 4P-2.0mm socket

FOR RASPBERRY PI:

It can work with pre-installed camera software instead of the built-in camera.

Support Android development board, Raspberry Pi development board, Jetson Nano, etc.

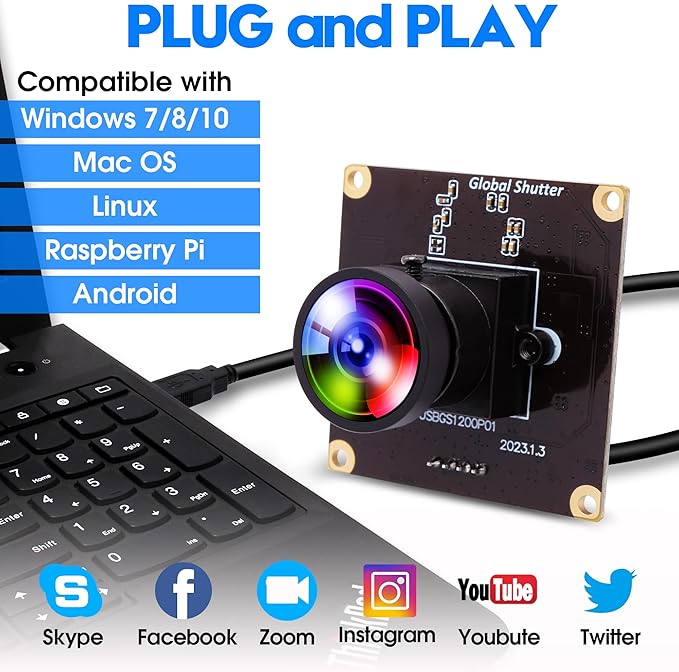

FOR PC:

Support windows,linux,mac,Android,raspberry Pi

Very easy to use, UVC compliant, free driver, just plug and play.

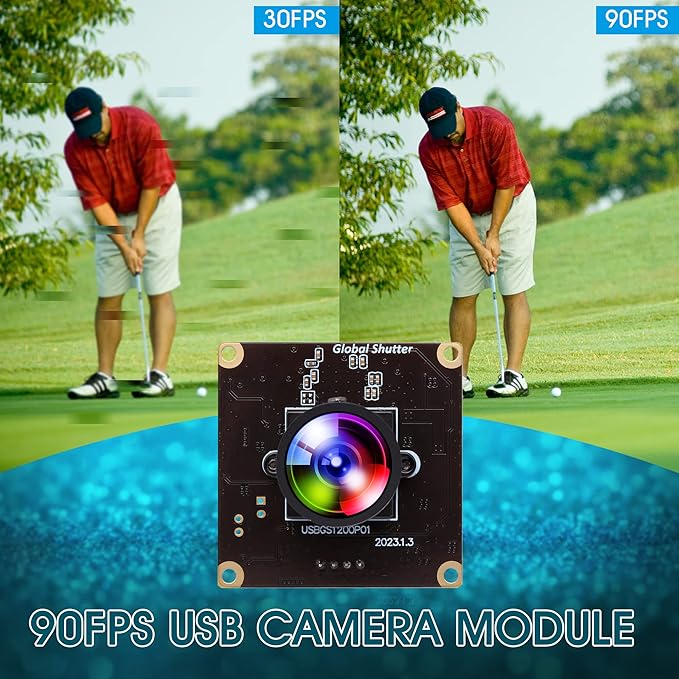

High frame rate@90fps

Fast for high-speed shooting of moving objects, more suitable for all applications that require gesture and eye tracking, iris and physiognomy recognition, depth and motion detection.

Applications

Barcode scanning

3D scanning

Virtual/Augmented reality

Positional tracking

Gesture recognition

Machine vision
