Heltec Wi-Fi HaLow Dongle 1KM Ultra-Long-Range USB Type-C Low Power Consumption Wireless Network Bridge IEEE 802.11ah 902-928MHz Supported Wi-Fi and Ethernet (AP + STA 1Pair)

- What is HaLow Dongle: It is a plug-and-play network bridge designed to significantly extend the transmission range of traditional networks, offering lower power consumption and improved penetration capabilities. Just like a type of ultra-long-range Wi-Fi. - Flexible and convenient: It seamlessly integrates with traditional Wi-Fi networks and is designed for ease of deployment. Whether for home use or IoT development, this device can drastically reduce wiring costs while enhancing networking flexibility. - Application scenarios: Simple configuration process, and versatile operating modes make it an excellent choice for a wide range of applications. Such as, Remote Locations and Outdoor Connectivity, Home Networking and Smart Home Applications etc. - Four bandwidth modes: It offers four bandwidth modes (1/2/4/8 MHz), with a maximum transmit power of 21±1 dBm and data rates of up to 32.5 Mbps@8M. - Operating frequency: 902-928MHz. Utilizing Wi-Fi HaLow technology and adhering to the IEEE 802.11ah standard, HT-HD01 operates in the unlicensed SUB-1G frequency band (902?928 MHz).

Product description

Summary

Main Features

Steps to Use

Specifications

It has two typical usage scenarios: Cooperate with HT-H7608 HaLow router to achieve star networking.

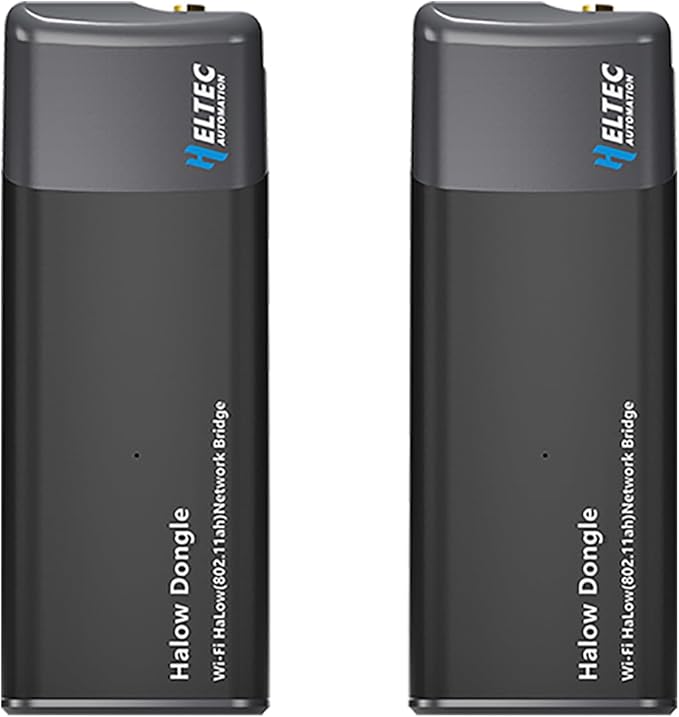

Pairing two HT-HD01 devices for point-to-point communication.

Packing list

Wi-Fi HaLow Dongle is a plug-and-play network bridge designed to significantly extend the transmission range of traditional networks, offering lower power consumption. You can think of it as a type of ultra-long-range Wi-Fi or Ethernet cable, and maintaining high transmission speeds even at extended distances.

This long-range communicator based on Wi-Fi HaLow can replace Ethernet cables in certain scenarios. IEEE 802.11ah protocol, HT-HD01 operates in the unlicensed SUB-1G frequency band (902?928 MHz). It offers four bandwidth modes (1/2/4/8 MHz), with a maximum transmit power of 21±1 dBm and data rates of up to 32.5 Mbps@8M.

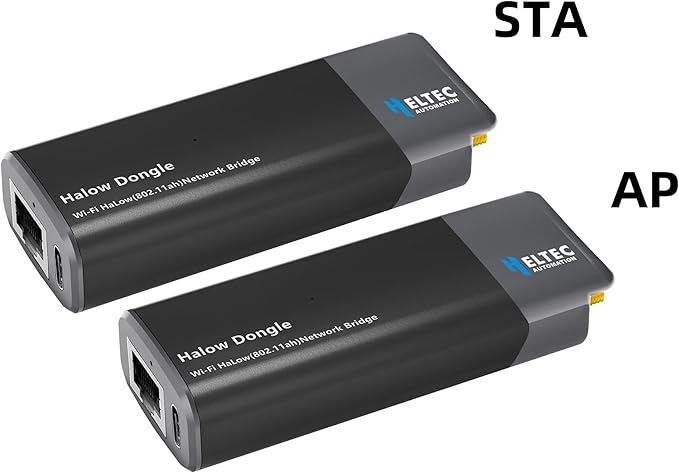

Connect the AP device to the upstream router and power it on.

Under default conditions, your device is already paired. You only need to power onthe STA device, and it will be able to

communicate with the AP device.

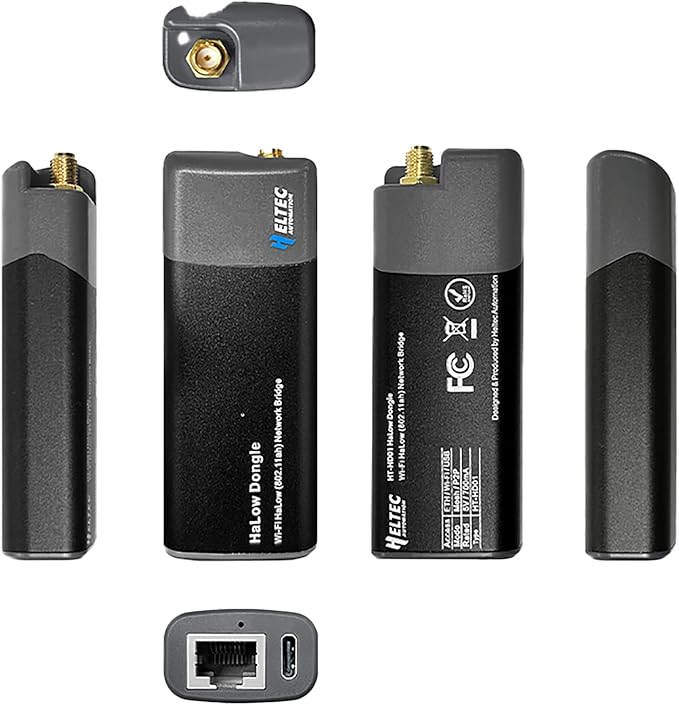

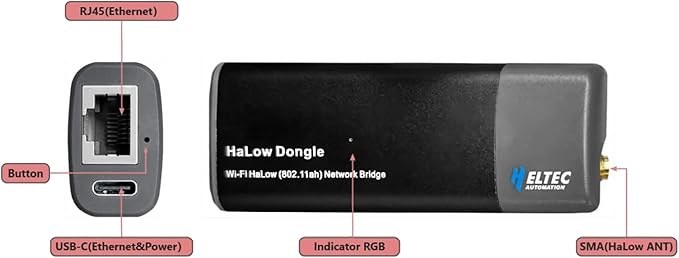

You can directly connect your device to the RJ45 or USB-C port, or you can use

the device's Wi-Fi to connect.

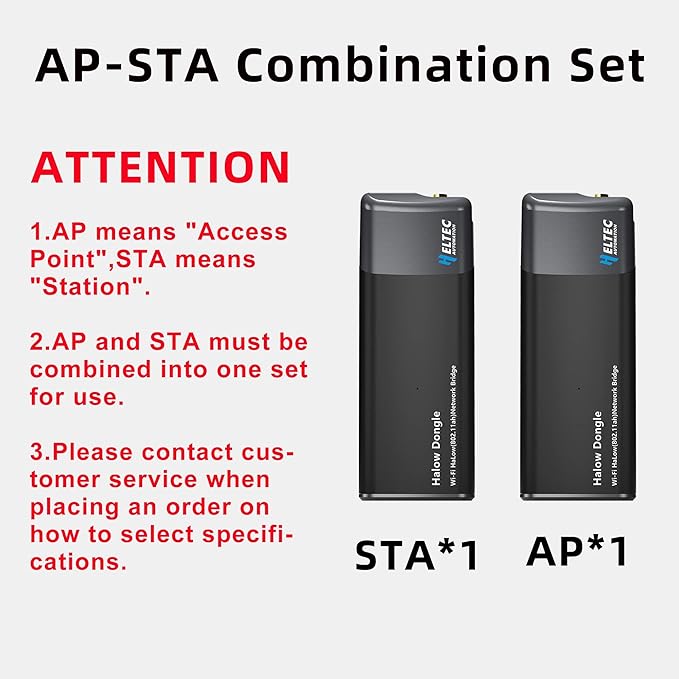

Info: At least TWO HT-HD01 can be paired for use, or cooperate with a HaLow router.

The default packing list without selecting any accessories is as follows:
