PDAF USB Camera Module 12MP 300ms Fast Autofocus 4K Webcam Module High Speed 3000P 15fps 1080P 60fpswith 65 Degree No Distortion Lens Cam Plug and Play for Raspberry Pi Windows Mac OS

- PDAF Fast Autofocus 65 Degree Lens: 4K Autofocus usb camera module features with 65 degree autofocus no distortion lens for exceptional image quality. Autofocus and get clear images automatically. AF Lens Focus: 3.3mm, DFOV: about 76 Degree, HFOV: about 65 Degree. Focus Speed About 200ms at 60fps/ 300ms at 30fps. - 60fps High Speed Camera: With this 60fps high speed UVC camera module, you can enjoy programmable frame rates, with the potential to reach up to 60fps at 1080P resolution that ensures smooth and fluid video capture. The USB network camera is specifically designed and optimized for professional video production, monitoring system manufacturing and industrial vision. - 12Megapixels High Resolution: 12megapixels usb camera module utilizes a 1/2.5" cmos IMX362 image colour sensor, achieving a maximum still resolution of 4000(H) X 3000(V) pixels which can help you capture incredibly detailed images. - USB2.0 Free Driver: 3000P usb camera UV compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed. Mini Illumination: 0.5Lux, MJPEG and YUY2 compression format optional. - Wide Applications: 4K usb camera module suitable for multi-angles placement needs for pc computer, laptop, desktop, desk and even other flat surfaces. Wide compatible with Windows, Linux, Mac and Android systems. Great for industrial embedded project, online class, live streaming, video conferencing, 3d printer.

Product description

IFWATER 12Megapixel USB Camera Module PDAF Autofocus Fast Focus IMX362 Color CMOS Sensor Camera Lightburn PC Camera for Microscope Documentation

12 Megapixel USB Camera Module PDAF Fast AutoFocus Camera Module 1080P 60fps High Speed USB 4K Webcam Plug and Play for Window Linux Raspberry Pi

12 Megapixel Autofocus USB Camera Module with Great Picture Built in CMOS IMX362 Sensor Color USB Camera with Max 4000x3000 High Resolution

3000P Autofocus USB Camera Module Feature Ensures That You Can Capture Clear and Crisp Images with Ease No Matter What You're Working On

60fps High Speed USB Camera Module Adopt DPAF Fast Auto Focus Design Focus Speed Up to About 200ms@60pfs, 300ms@30fps

Main Specifications:

Model: IF-USB12MP02AF-V65

Sensor: CMOS IMX362

Sensor Size: 1/2.55 inch, Pixel Size: 1.4um x 1.4um

Image Area： 6.8mm x 5.67mm

Max. Resolution：4000(H) X 3000(V) 12 Megapixel

Default Resolution： 4000(H) X 3000(V)

Compression Format： MJPEG / YUY2 (YUYV)

Auto Focus Mode： PDAF Mode

Focus Speed： About 200ms at 60fps/ 300ms at 30fps, Min Illumination： 0.5 Lux

Shutter Type： Electronic Rolling Shutter / Frame Exposure

Connecting Port： Type USB2.0 High Speed

Free Drive Protocol： USB Video Class (UVC)

Adjustable Parameters： Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure

Lens Parameter： AF LENS Focus: 3.3mm , DFOV: about 76 Degree , HFOV: about 65 Degree

Resolution & Frame Rate：

4000 x 3000 MJPEG@15fps 3840 x 2160 MJPEG@30fps

2592 x 1944 MJPEG@30fps YUY2@3fps 2560 x 1440MJPEG@30fps YUY2@3fps

2048 x 1536 MJPEG@30fps YUY2@3fps 1920 x 1080 MJPEG@60fps YUY2@5fps

1600 x 1200 MJPEG@45fps YUY2@5fps 1280x 1024 MJPEG@60fps YUY2@10fps

1280 x 720 MJPEG@60fps YUY2@10fps 800 x 600 MJPEG@45fps YUY2@25fps

640 x 480 MJPEG@45fps YUY2@25fps 640 x 360 MJPEG@60fps

320 x 240 MJPEG@45fps YUY2@25fps

Package includes:

1. 1PCS Autofocus USB Camera module with default 1m USB Cable

2. Item: 12 Megapixel 4K 30FPS 1080P 60FPS fast Autofocus USB Camera Module

3. Sensor: 1/2.3" CMOS IMX362 Sensor

4. Max Resolution/Default Resolution: 4000(H)X3000(V)

5. Fast Auto Focus: PDAF Fast Auto Focus , speed up to 200ms at 60fps, 300ms at 30fps

6. High Speed/High FPS: 4000x3000 Mjpeg 15FPS, 3840x2160 Mjpeg 30FPS, 1920x1080 Mjpeg 60FPS

7. No Distortion Lens: HFOV about 65 degree

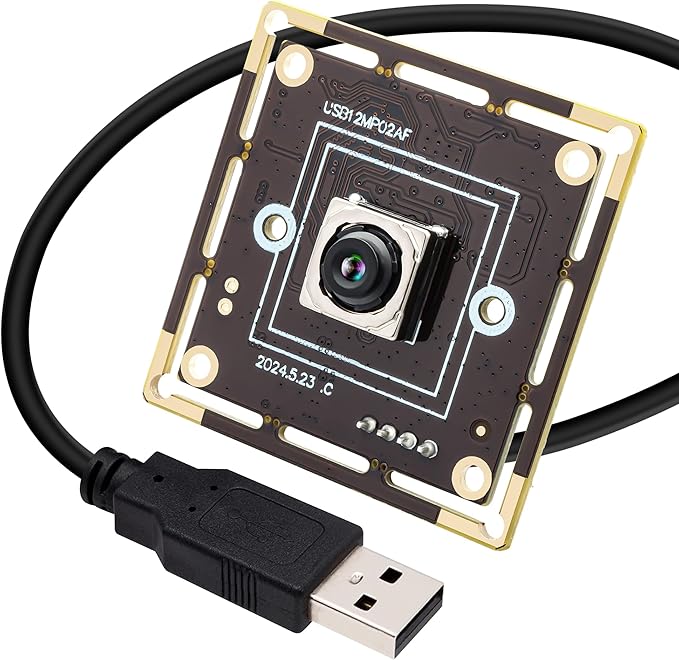

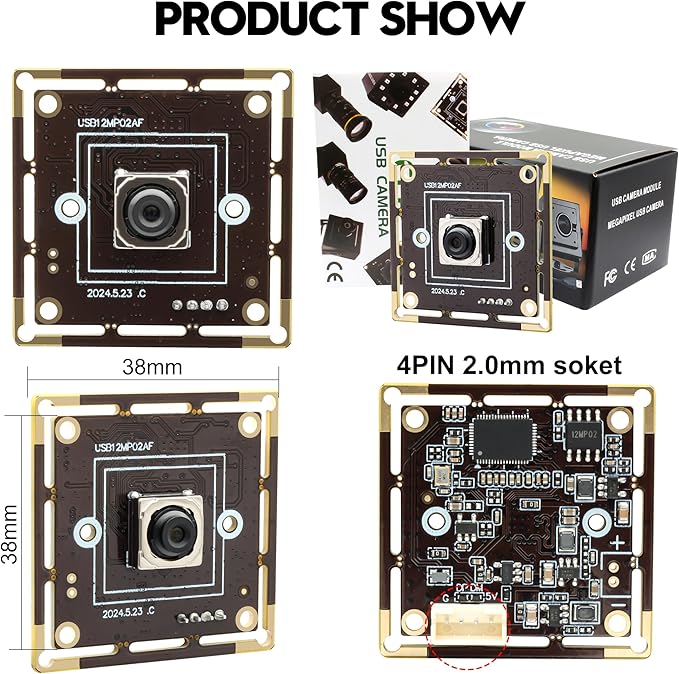

8. Small size: 38x38mm (remove the frames to get 32x32mm), small size, easy to embedded in kinds of smart machines.

9. UVC Protocal: USB2.0 Free driver, Plug & Play

10. Parameters adjustable: Exposure, Hue, White Balance, Contrast, Gamma, Brightness....

11. Operating Systems:Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI.

12. Software: Compatible with different software (Amcap, iSpy, OpenCV, VLC, V4L2, Fswebcam, CameraFI, Webcam viewer, Yawcam, Photo Booth, Face time, Quick Time...)

13. OTG Support: Easy connect to Android tablet, Android Smartphone via OTG cable.

1. Support video conferencing, living streaming software, Skype, Zoom, Facetime, Youtube...

2. Support many APP and software, OpenCV, PC default Webcam software, Amcap, VLC, V4L2...

3. Many operating systems compatible, Raspberry Pi, Mac OS, Windows, Linux, Android, Ubuntu...

PDAF fast autofocus usb camera with ultra HD 12 megapixels high resolution usb camera module suitable for multi-angles placement needs for pc computer, laptop, desktop, desk and even other flat surfaces. Wide compatible with Windows, Linux, Mac and Android systems. Great for industrial embedded project, online class, live streaming, video conferencing, 3d printer.
