SEETEC 4K156-9HSD 15.6 Inch Broadcast LCD Monitor with IPS UHD 3840x2160 SDI Input and Output 4xHDMI Inputs Quad Split Display

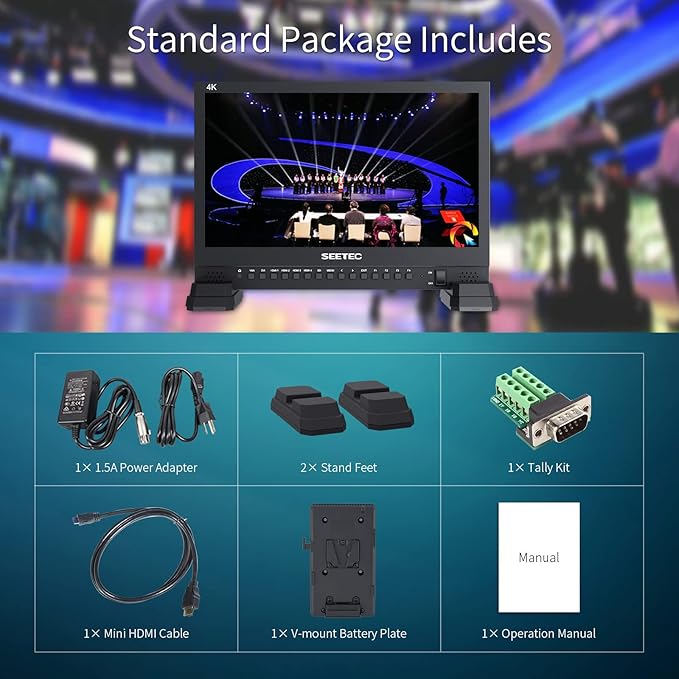

- 【Ultra HD Image】With 3840 x 2160 resolution, 300cd/m² brightness, 800:1 contrast, allows you to see every pixel in an Ultra HD image. - 【Multi View Monitoring】Has four 4K HDMI inputs, one SDI input and loop put, DVI, VGA, supports quad view, dual view, single view monitoring functions, see more video sources on a single monitor. - 【Button Control】Technical control at the touch of a button! You can quickly and easily access the controls such as auxiliary functions and input selection. - 【3-color Tally Light】Includes green, red and yellow tally signal, when live production you will always know when you are recording or on-air, or you can see which camera is cued up on your switcher's preview output. - 【Package Include】1× Mini HDMI Cable, 1× V-mount Battery Plate, 1× 1.5A Power Adapter, 1× Tally Kit, 2× Stand Feet, 1× Operation Manual

Product description

4K156-9HSD

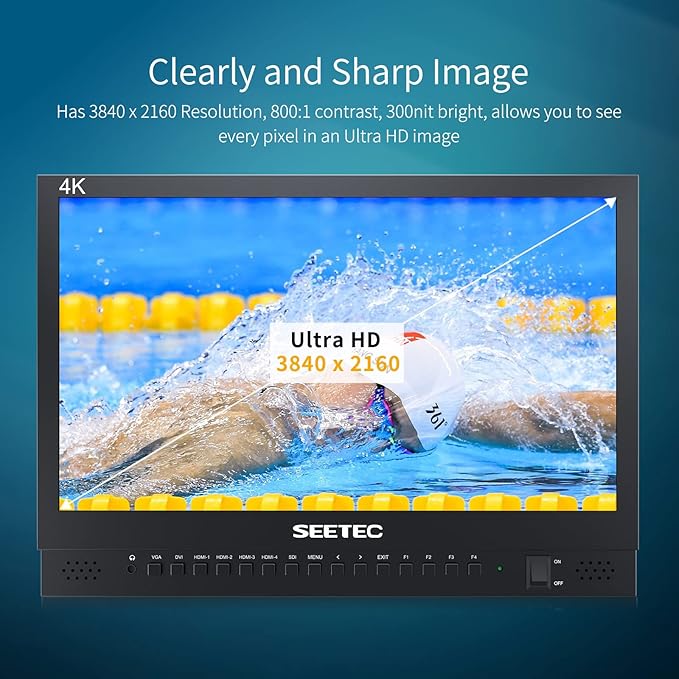

1. Wide view angle, 4K resolution (3840 x 2160), bright, colorful display

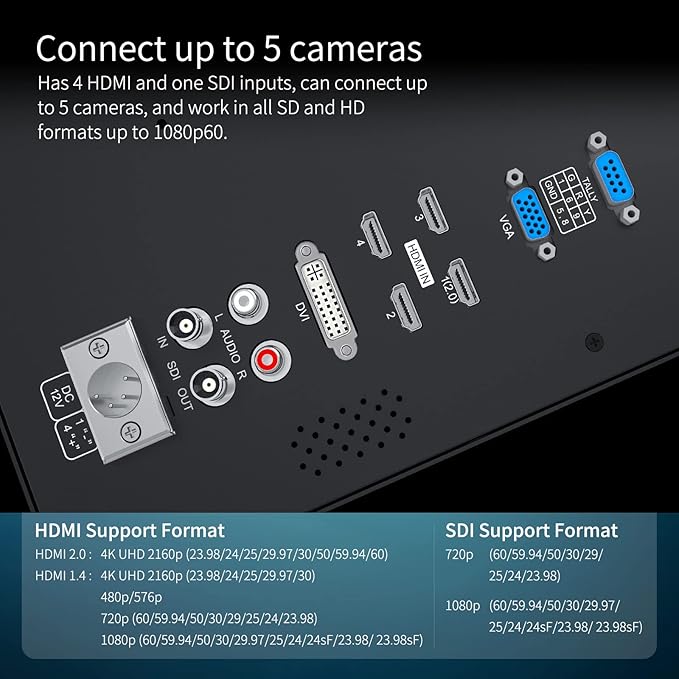

2. HDMIX4, 3G-SDI, DVI, VGA, Audio(L/R) inputs and 3G-SDI loop-through output

3. Special Features:

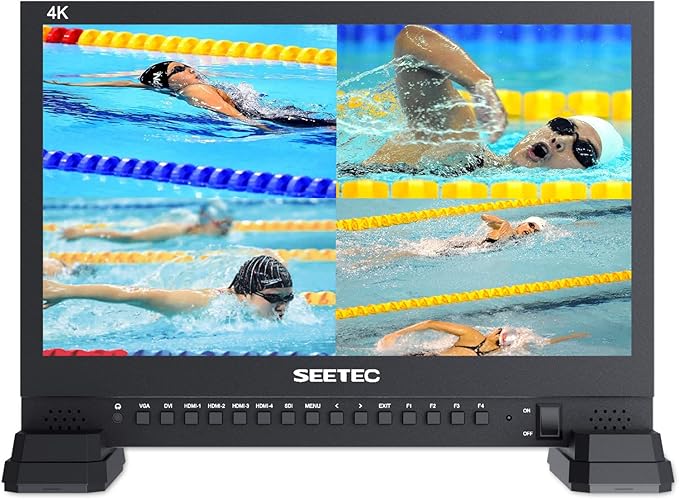

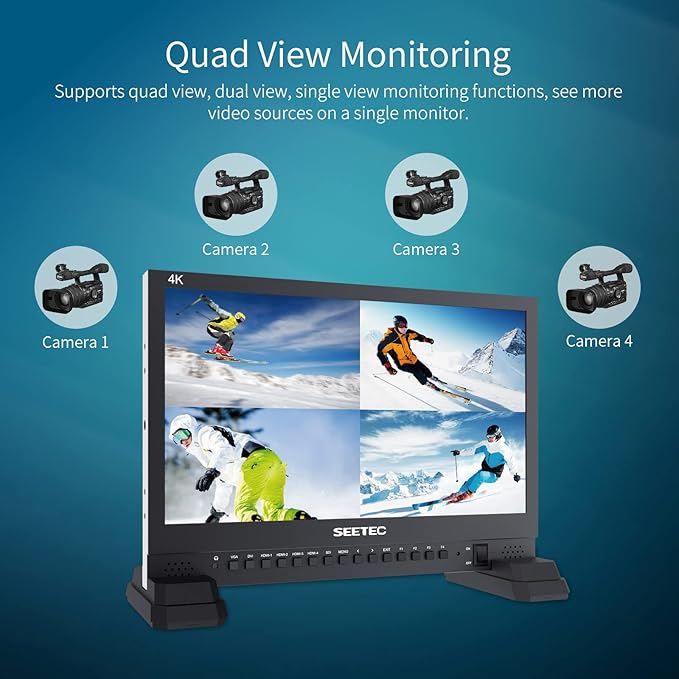

* Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P)

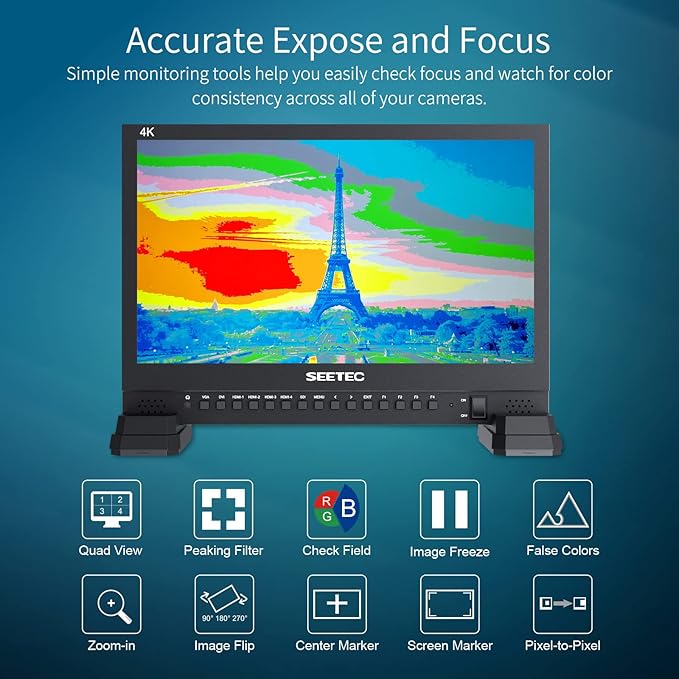

* Peaking Focus Assist

* False Color

* Image Flip (0°, 90°, 180°, 270°)

* Check Field (Red, Green, Blue, Mono)

* Image Freeze

* Zoom

* pixel to Pixel

* Center Marker, Screen Marker (80%, 85%, 90%, 93%, 96%)

* Line Color (Red, Green, Blue, White)

4. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker

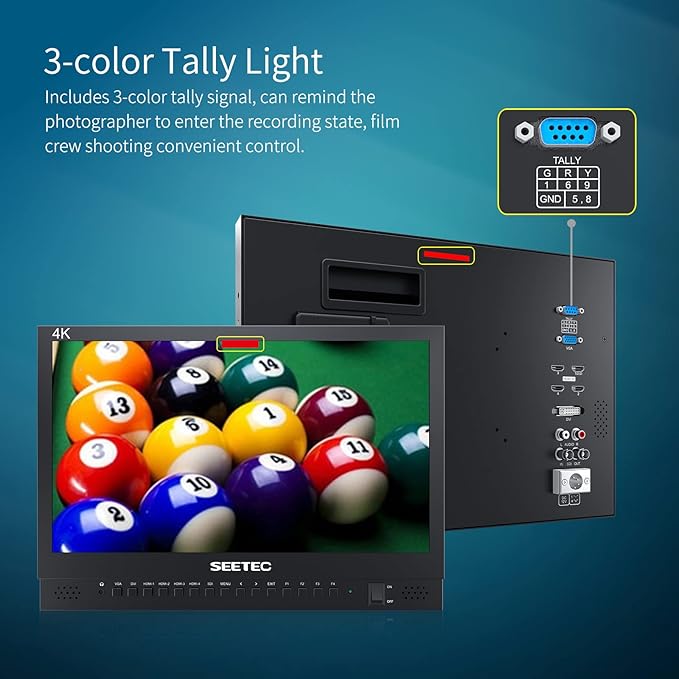

5. Built-in LED tally indicators (Red, Green, Yellow)

SDI Support Format

720p(60/59.94/50/30/29/25/24/23.98)

1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format

HDMI 2.0: 4K UHD 2160p (23.98/24/25/29.97/30/50/59.94/60)

HDMI 1.4: 4K UHD 2160p (23.98/24/25/29.97/30)

480p/576p

720p (60/59.94/50/30/29/25/24/23.98)

1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

SEETEC 4K156-9HSD has a wide 170º viewing angle, which means it's easy to see, even when several crew members are watching. 4K Ultra HD LCD panel ensure the monitor more precise color restoration exquisite picture quality more rich color levels.

The PIP function lets you position and realize live video, all in real time. That means you can create professional picture in picture effects by adjusting the brightness, contrast, hue, saturation, sharpness, backlight. Using a picture in picture effect to superimpose a commentator when covering events such as sports, training videos, interviews and even gaming competitions.

4K156-9HSD monitors are the affordable way to create incredible HD programs immediately from live events! It's perfect for broadcasters, professional sports, concerts, seminars and other scenes. They can meet you get perfect multi camera monitoring in any location!

Screen Size: 15.6" IPS

Color Depth: 16.7M colors (8-bits)

Resolution: 3840×2160 pixels

Pixel Pitch: 0.0897 x 0.0897 mm

Aspect Ratio: 16:9

Brightness: 300cd/m²

Contrast Ratio: 800:1

Backlight: LED

Viewing Angle: 85°/85°(L/R) 85°/85°(U/D)

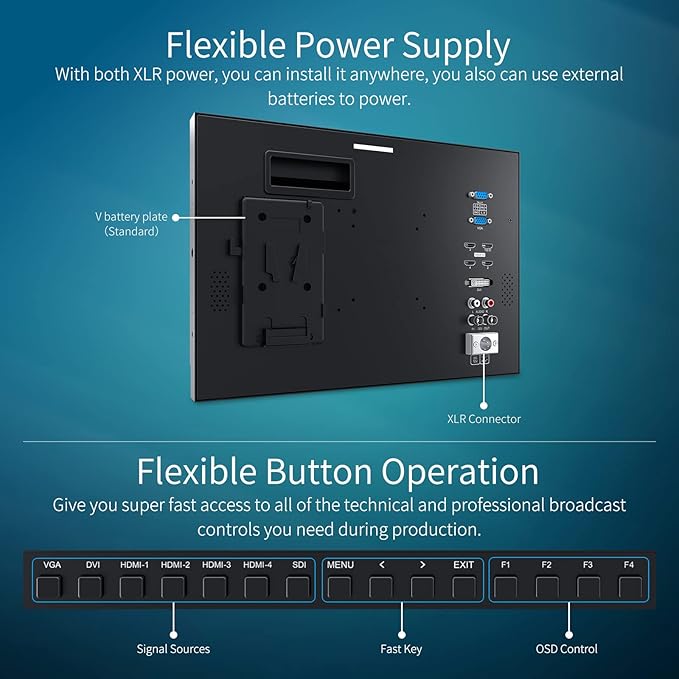

Input Voltage: DC12～24V (XLR)

Power Consumption: ≤18W

Working Temperature: -10°C~50°C

Storage Temperature: -20°C~60°C

Unit Size (mm): 372L×262H×28.5D (mm) (Without Bracket)

Unit Weight: 2.03kg (Without Bracket)
