SEETEC P215-9HSD-192 21.5 Inch Broadcast Production LCD Monitor 3G SDI 4K HDMI Input and Output IPS Full HD 1920x1080

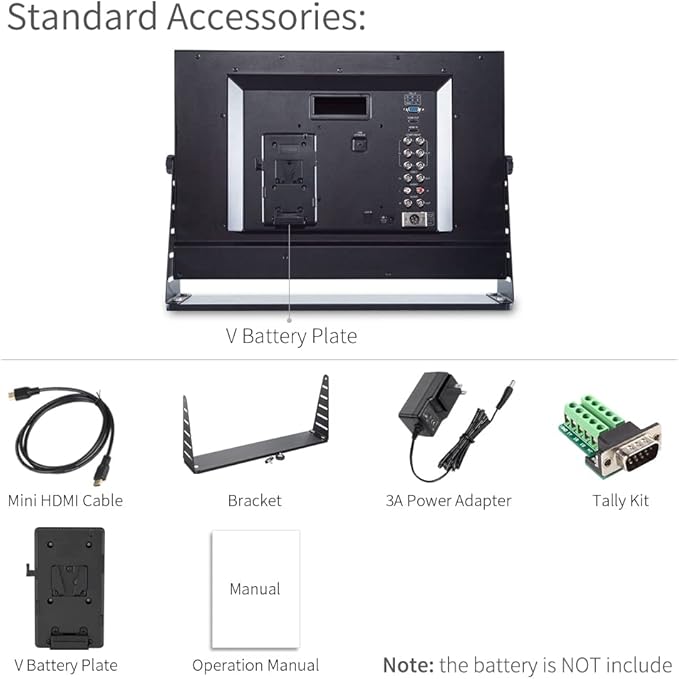

- 【Accurate Color, Cleraly Image】1920×1080 IPS Full HD, 250cd/m² brightness, Rec.709 color standard, get accurate color reproduction easily, show the real image when you shooting video. - 【3-color Tally Light】Displayed in red, green or yellow tally signal, you will always know when you are recording or on-air, or you can see which camera is cued up on your switcher's preview output. - 【Accurate Expose and Focus】Has professional auxiliary shooting functions, assist to accurately monitor when you shooting, making and playing movies/ videos. - 【Multiple Input Formats】comes with 3G/HD/SD-SDI, HDMI, YPbPr, Audio, Video, DVI inputs, meet HD, SD, analogue video signal input and display demand Professional functions set. - 【Package Include】1× Mini HDMI Cable, 1× V Battery Plate, 1× 3A Power Adapter, 1× Tally Kit, 1× Jib Crane Bracket, 1× Operation Manual

Product description

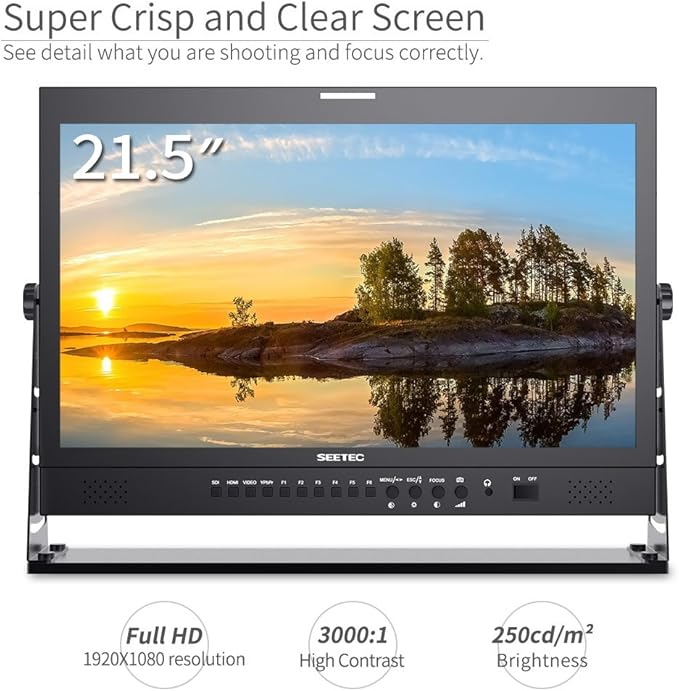

1. Wide view angle, Full HD 1920x1080, bright, colorful display

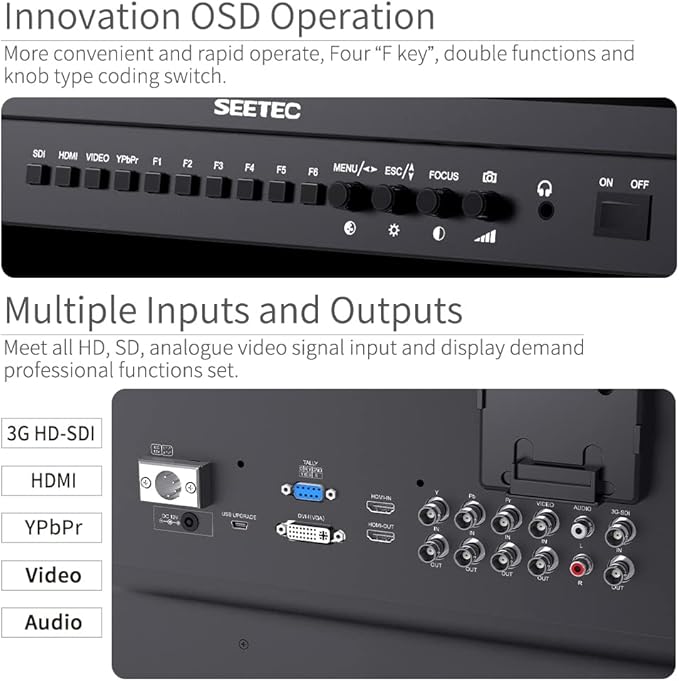

2. HDMI, 3G-SDI, Ypbpr, Video, Audio(L/R), DVI inputs and HDMI, 3G-SDI, Ypbpr, Video loop-through outputs

3. Special Features:

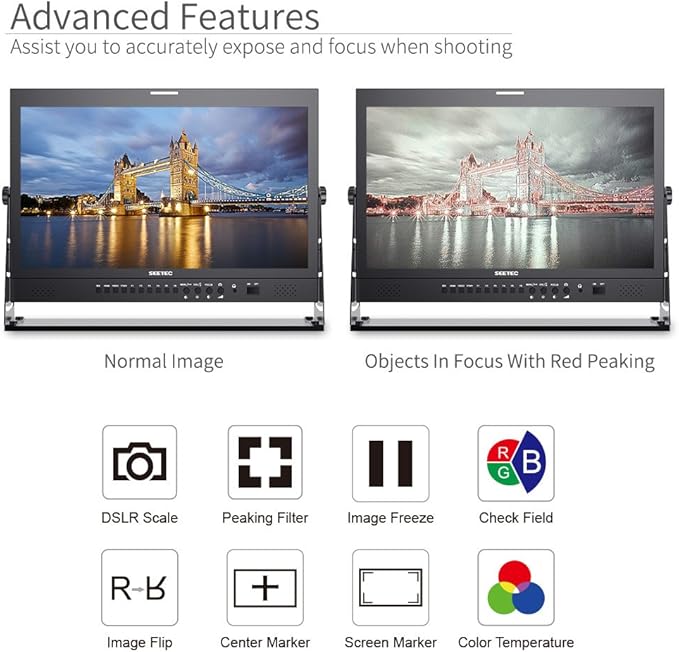

* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)

* Check Field (Red, Green, Blue, Mono)

* Camera Mode

* Pixel to Pixel

* Center Marker, Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)

* Image Flip (Horizontal, Vertical, Hor&Ver)

* Image Freeze

* Zoom All, U/D & L/R Zoom

4. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker

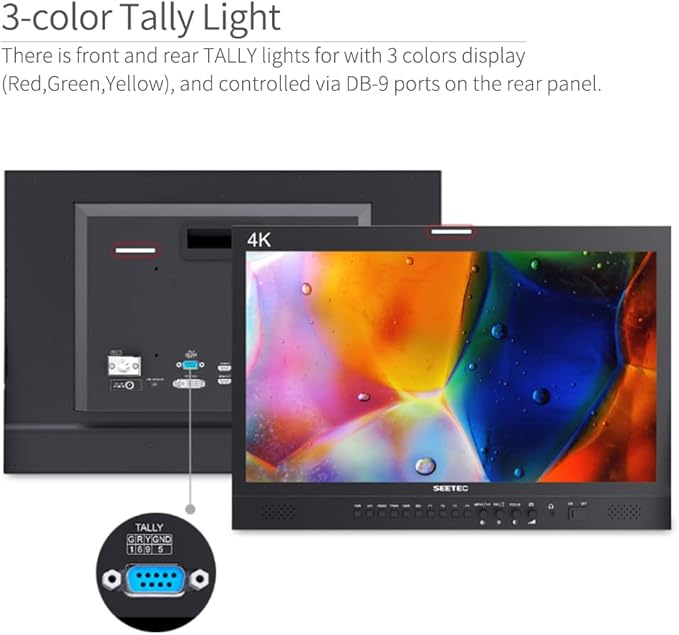

5. Built-in LED tally indicators (Red, Green, Yellow)

6. Power using included 12-volt supply or use standard 4-pin XLR

SDI Support Format

480i/576i

720p(60/59.94/50/30/29/25/24/23.98)

1080i(60/59.94/50)

1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format

480i/576i/480p/576p

1080i (60/59.94/50)

720p (60/59.94/50/30/29/25/24/23.98)

1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
