USB C Hub Dual HDMI Adapter OBERSTER 9-in-1 Triple Display Docking Station 4K HDMI with Collage Display Mode VGA 100W PD 3 USB 3.0 and TF/SD Card Compatible with MacBook and Windows

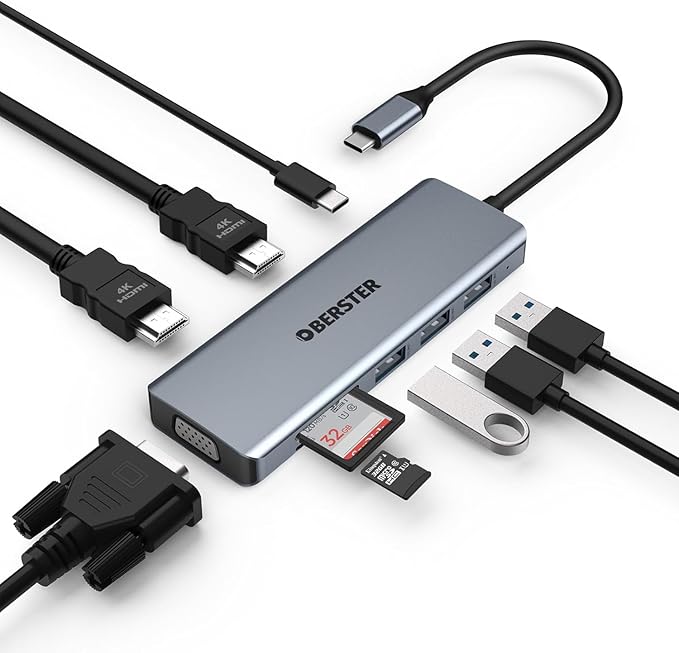

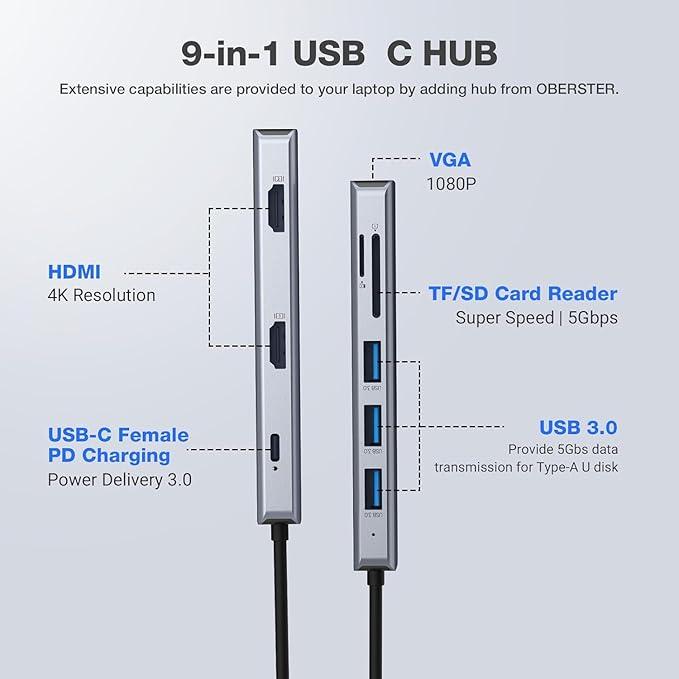

- ??【Type C Laptop Docking Station】-- 9 in 1 USB C Hub includes dual 4k HDMI, VGA, PD 100w Charging, three USB 3.0, TF, and SD card reader and offers incredibly convenient for you to connect multi-monitors, an extra memory device, or USB devices.Note: Please make sure your laptop has Thunderbolt 3 / USB-C 3.1 Gen 2 / USB-C 3.2 Gen 2 ports before purchasing. - ??【UHD 4K Output & Multi-Display】-- Mirror, extend, or collage your screen are implementable now, which giving you an unprecedented visual experience. You can directly stream your screens to HDTV, monitor, or projector easily, USB C Hub supports a Dual HDMI display up to 3840x2160@30Hz, or 1920x1080@60Hz with VGA. If you want to know more about the resolution for each connected port, please refer to the product description. - ??【Widely Compatible USB C Docking Station】-- USB-C expansion hub for MacBook/MacBook Pro 2016 or above, MacBook Air 2018 or above, Mac Pro 2019, Google Chromebook Pixel, Huawei MateBook/MateBook Pro, Dell, Surface Book2/Pro7/Go, HP, and Samsung S9, S9 Plus, S8, S8 Plus, Note 9, Note 8, Huawei New version phones and other Type C laptops who support Display Alt mode and Power delivery. - ??【100W PD Powering & Super-Speed Data Transmission】-- The PD port on the hub supports Max.100W fast charging for your laptop. The 3 USB 3.0 ports support transmission speed up to 5 Gbps, which is 10X faster than USB 2.0. For easy access to files from universal SD and Micro SD Memory Card. You can easily access your files more speedily in seconds. - ?? 【Slim & Portable Design】-- OBERSTER USB C Hub has a ready-to-go design. With an aluminum appearance case and only 2.48 Oz, you can just put it into your pocket and it is perfect for a business trip or traveling. An additional pouch is provided for scratch-resistant and easy carrying.

Product description

There is only Mirror Mode and Non-Mirror Mode on Preference. Therefore, you CANNOT make two external monitors show different displays because the OS X system only allows two different displays, one on your laptop and the other on the external monitors.

Resolution: 1 or 2 HDMI-4k@30Hz; Dual HDMI and other connections-1920x1080@60Hz

Setting: About This Mac > Display > Arrangement > Mirror Displays

Note:

1. When MAC OS needs to extend the display, you need to click on "Display" in Preferences, select the Arrangement, and then deselect "Mirror displays".

2. 2020 MacBook Air and Pro cannot support the mode like the photo on the image shown.

You can extend your laptop to three external monitors easily by plugging in the HDMI/VGA ports.

Resolution: only 1 HDMI-4k@30Hz; Dual HDMI and other connections-1920x1080@60Hz

The collage display feature saves a lot of power, enhances performance capability, and offers bezel correction in order to display a single continuous image across multiple panels. In this mode, you can let your imagination run wild and decorate your desktop with a unique view.

Resolution can reach: up to 3840x1080@60Hz (HDMI+HDMI) / 1920x1080@60Hz (HDMI+VGA)

Setup:

Intel Graphics Settings > Display > Multiple Display > Select Display Mode > Collage > On > Apply

Before you purchase you should know

Host Device -- Please check the specifications of the USB C port on your laptop with your laptop manufacturer. This product could be used on USB 3.1 Gen1 [with display port function] or higher standard (Gen2 or thunderbolt 3). Do not use USB-A to USB-C adapter to connect cause it will limit the functionality.

100W Charging -- The power adapter is not included in the package. Please use the wall charger of your laptop to connect the PD port. The Hub will deduct 5W power from the adapter. If you're using a 100W power adapter, the actual charging power should be 95W.

4K Display -- For the Windows system, the 4K screen is shown only when a single HDMI is connected, otherwise, the picture’s resolution is 1080P. But for the Mac system, a 4K screen is displayed when a single or dual HDMI is connected. (PS: 1. When you use the VGA port, the resolution will be limited to 1080p due to the VGA port limit. 2. Only when your devices support 4K resolution, the video output will be 4K.)

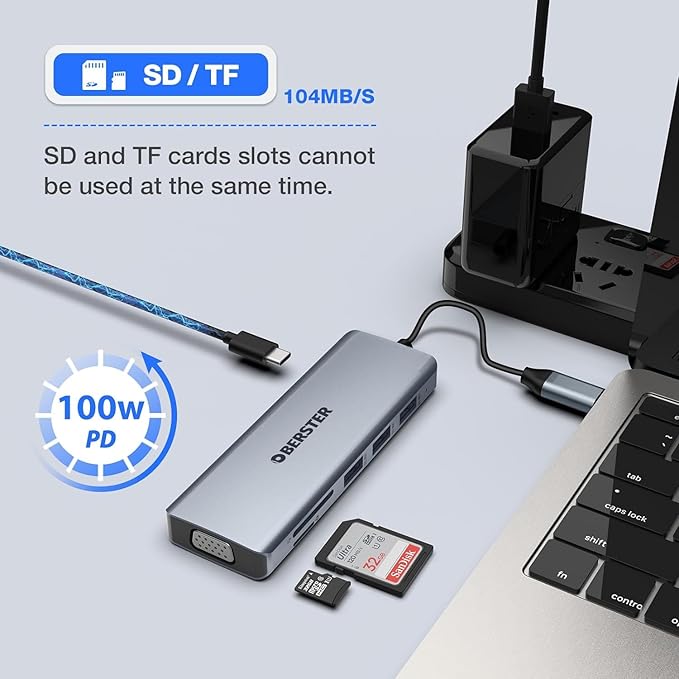

About The Card Slots -- You CANNOT use the SD and TF cards at the same time. For the Windows system, no matter which card is inserted first, only the TF card can be read; But for the Mac system, only the first inserted card can be read.

Compatibility -- If you want to know whether the Tiergrade 9 in 1 hub is compatible with your laptop, please look up the “User Guide” of the Product guides below. If your laptop is not on the list, please let us know and we are happy to help you to check if the adapter is suitable for your device.

Support Dual or Triple Display:

√ Thunderbolt 3: 40Gb/s

√ USB-C 3.1 Gen 2: 10Gb/s

√ USB-C 3.1 Gen 1: (Support Power Delivery)

DOES NOT SUPPORT USB C DISPLAY OUTPUT:

USB-C 3.1 Gen 1: 5Gb/s (data transfer only)

Please ensure the Laptop has thunderbolt 3 / USB-C 3.1 Gen 2 /USB-C 3.1 Gen 1 (Support Power Delivery) to support multiple-display before purchase.

Compatible List (Not a full list):

Apple: MacBook Pro 2016-2020; Air 2018-2020

Lenovo: Legion series; IdeaPad 500/700/900 series; Yoga 730/730S/C730/C930/S940; ThnikPad 25/P1/P53/P53s/P73/X390/X 12”/X1 Extreme Gen2/ X1 Carbon Gen 5/7th; ThinkPad-P52; Lenovo L580; Flex pro

Dell: XPS 13/15; Latitude 12/13/14 3000/5000/7000 series; Vostro 13/14 5000 series; Vostro 15 7000 series; Precision 15/17 3000 Series; Precision 15/17 5000/7000 series; Inspiron 15/17 5000/7000 series

HP: Omen 17/X 2s; Elite X2; EliteBook x360/830/840/850/1040 G5/G56 series; Spectre x360; Spectre 2017/2018 13”; PROBOOK 430/440/450 G6 series; ZBook 14u/15u/15/17/studio g3; ZBook Mobile workstation

Microsoft: Surface book2/3; Surface Pro 7; Surface Go; Surface laptop 3; Lumia 950/950XL

ASUS: Zenbook 3 Deluxe; Pro 15; Chromebook Flip series; StudioBook ProArt

Incompatible Devices (Partial list):

Lenovo: IdeaPad 3 (17") Intel; IdeaPad 1 (14”, AMD); ThinkPad 11e Yoga Gen 6 (11”) 2-in-1; IdeaPad S540 (15”) Laptop

Dell: Inspiron 15 3000 Laptop; Inspiron 11 3000 2-in-1 Laptop; Inspiron 15 3000 Laptop (10th Gen)

HP: ProBook 11 x360; Pavilion 15;

ASUS: VivoBook S15 S532; VivoBook S14 S433; VivoBook S13

Nintendo Switch; Apple USB Super Drive
