USB Camera Module 100 Degree No Diistortion Lens USB Camera 60fps High Speed Camera 10.2Inch Mini Webcam for Industrial Machine Supports Most OS with 3.3ft/1m Cable forRaspberry Pi Jetson Nano
$44.79
Skip to product information
USB Camera Module 100 Degree No Diistortion Lens USB Camera 60fps High Speed Camera 10.2Inch Mini Webcam for Industrial Machine Supports Most OS with 3.3ft/1m Cable forRaspberry Pi Jetson Nano
$44.79
- Model: IF-USB30W02M-MHV100 is a 0.3MP,based on 1/4 inch CMOS OV7725 image sensor, Fixed focus, No distortion lens, high speed 480p 60fps, UVC compliant USB 2.0 cameras. - This is a super mini webcam module, Max resolution 0.3Megapixel 640x 480 output, with 38X38mm/26X26mm mini board size. No extra drivers are needed, the native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera. - Wide Angle No distortion Lens : Mini USB camera with 100 degree none-distortion lens, wider angle of view, FOV is about 93degree - High Speed 480P 60fps UVC USB2.0 Video Webcam Board OV7725 Embedded Industrial Camera for Computer, Raspberry Pi, Jetson Nano, PC computer camera compatible with different system & different software APP - Small outline and thin profile for embedded machine visions,low power consumption ? ideal for portable equipment. Widely used in all kinds of machine visions: LED display, ATM machine, Kiosk machine, medical machine, simple security system, high speed video shooting device observing golf, eye tracking device.
Product description
IFWATER USB Camera Module with 100degree Wide Angle Lens 60fps Video Camera Embedded Industrial Camera for Computer, Raspberry Pi, Jetson Nano
IFWATER 0.3MP USB Camera Module with 1/4” CMOS OV7725 Sensor, 480P 100 Degree Lens, Mjpeg UVC 640x480 USB Camera UVC Compliant,Support Most OS
IFWATER 480p Usb Camera Module With Super Mini Wide Angle100degree Mini Lens,High Speed 60fps Usb 2.0 Interface Camera Module
0.3MP USB Camera Module, 640x480 VGA 1/4" CMOS OV7725 Senser Micro Video USB Camera Board With M7 100Degree Lens For Inside Surveillance
IFWATER 0.3MP USB Camera, Tiny VGA USB Camera Module with 100degree Lens
IFWATER USB Camera Module High Frame 60fps@480p for High Speed Moving Objects Capturing
IFWATER USB Camera Module Very Small 26*26mm 30W Megapixels OV7725 USB 2.0 Free Driver 480P 60fps Webcam 100 Degree
IFWATER 0.3MP High fps USB Camera Module with 1/4” CMOS OV7725 Image Sensor
Specification:
Brand: IFWATER
Sensor OV7725
Lens Size 1/4 inch
Pixel Size 6.0um X 6.0um
image area 3984 μm x 2952 μm
Max. Resolution 640(H)X480(V)
Compression format: MJPEG / YUV2（YUYV）
S/N Ratio 50dB, Dynamic Range 60dB
Sensitivity 3.8V/lux-sec@550nm
Mini illumination 0. 2Lux
Shutter Type Electronic rolling shutter / Frame exposure
Connecting Port type USB2.0 High Speed
Free Drive Protocol USB Video Class（UVC） AEC Support
FEATURES:
Resolution & frame:
640X480 MJPEG@ 60fps YUY2@ 30fps
480X480 MJPEG@ 30fps YUY2@ 30fps
450X450 MJPEG@30fps YUY2@ 30fps
352X288 MJPEG@ 30fps YUY2@ 30fps
320X240 MJPEG@30fps YUY2@ 30fps
240X240 MJPEG@ 30fps YUY2@ 30fps
Adjustable parameters:
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma
White balance, Backlight Contrast, Exposure
Night vision Need to equipped IR Sensor Lens and IR LED Board
Operating system request: WinXP/Vista/Win7/Win8, Linux with UVC
（above linux-2.6.26), MAC-OS X 10.4.8 or later,Wince with UVC, Android 4.0 or above with UVC
640x480 VGA resolution USB Camera
Support Android and Linux system
Suport YUY and MJPEG format
high pixel technology for sharp image and accurate color reproduction
low light performance ? ideal for any lighting condition
Super small outline and thin profile for embedded applications
High frame rate? deliver 60 fps in VGA
High quality lens, true and undistorted color image
Low power consumption ? ideal for portable equipment
UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above , Camera with UVC
Features:
*VGA USB2.0 Camera Module.640x480, 0.3 mega pixels
*Mini M7 Lens, 45/100/120degree lens optional
*YUY2 and MJPEG compression format optional *CMOS sensor 1/4" inch OV7725 for high quality image and low power consumption *High speed USB 2.0 interface for high resolution PC camera interface *high pixel technology for sharp image and accurate color reproduction *Super small outline and thin profile for embedded applications(Mini size 32*32/26*26mm) *UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above *Camera with UVC
Widely Used In All Kinds Of Machine Visions:
Led Display
Atm Machine
Kiosk Machine
Medical Machine
Simple Security System
High Speed Video Shooting Device
Observing Golf
Eye Tracking Device
Specification: Sensor: CMOS OV7725 Lens Size 1/4 inch Pixel Size 6.0um X 6.0um image area 3984 μm x 2952 μm Max. Resolution 640(H)X480(V) Compression format: MJPEG / YUV2（YUYV）

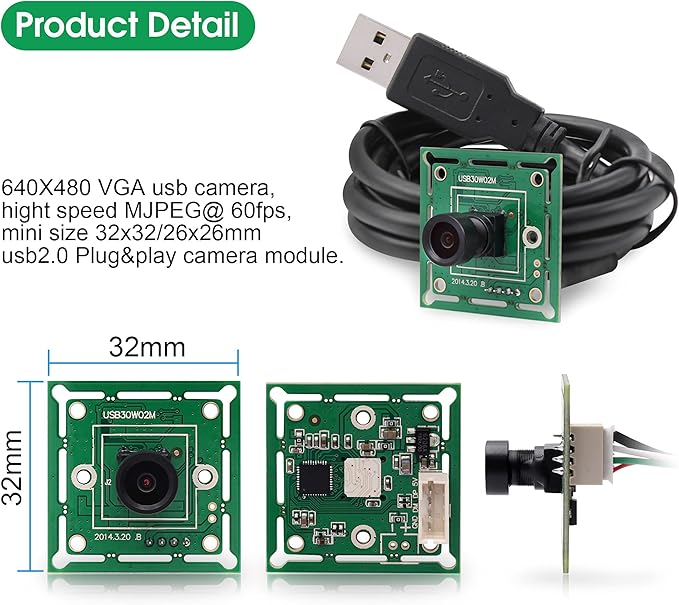

Board size /Weight 32X32mm（Compatible 26X26mm）/ about 30g
Resolution & frame: 640X480 MJPEG@ 60fps YUY2@ 30fps 480X480 MJPEG@ 30fps YUY2@ 30fps 450X450 MJPEG@30fps YUY2@ 30fps 352X288 MJPEG@ 30fps YUY2@ 30fps 320X240 MJPEG@30fps YUY2@ 30fps 240X240 MJPEG@ 30fps YUY2@ 30fps
Used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment,etc
