USB Camera Module 5Megapixels 1944P 30fps Color Camera Module with 185Degree Autofocus Fisheye Lens Lightburn Webcam for Linux Mac OS Raspberry pi Widely Used in Industrial Security Monitoring

- Autofocus 185 Degree Lens: This 1944p usb camera module is equipped with 185° degree autofocus lens, which ensures sharp focus for every shot. Automatically focus to capture moving objects from different distance, no need lens adjustment. - 5Megapixels USB Camera Module: This is a 5 megapixel mini usb camera module, max resolution is 2592 x 1944 output, High Frame Rate 30fps at 5mp resolution, high color reproduction, offers a balance between image quality and smooth real-time video performance - High Color Reproduction: 5 megapixels usb camera module with color CMOS IMX335 image sensor and delicate image rendering, contribute to a more immersive, engaging, and visually pleasing. - Easy to Set Up: This mini compact camera is USB 2.0 UVC compliant. Just plug and play, it supports working with Windows, Linux, Android, and Mac OS without extra driver installed. No specific software required. - High Compatibility: Support many software and app, including video chat software, video recording software and social media platform. It is highly recommended for applications such as live streaming, video conferences, dashcams, video surveillance systems and various other vision related projects.

Product description

IFWATER Autofocus USB Camera Module 5Megapixels Ultra HD Color Webcam with 185 Degree Fisheye Lens OpenCV Cam for Windows Linux Laptop Jetson Nano

IFWATER 5MP USB Camera Module with CMOS IMX335 Color Sensor Free Driver USB2.0 Plug and Play for Linux Mac OS Windows Industrial 1944P USB Camera

Autofocus 5Megapixels USB Camera with 185Degree Fisheye Wide Angle Lens with CMOS IMX335 Color Sensor and USB2.0 Output USB Webcam

Autofocus USB Camera Module 5Megapixels Fisheye Lens Lightburn Industrial Color Camera Plug and Play for Laptop,Raspberry PiJetson Nano

Key Specifications

Model: IF-USB500W07-AF185-A

Sensor: CMOS IMX335 (1/2.8” )

Max Resolution: 2592(H) *1944 (V), Pixel Size: 2.0μm x2.0μm

Image Area: 5800μmx4750μm, Picture Format： MJPEG / YUY2 (YUYV)

Center Definition: 1000LW/PH (Center)

S/N (Signal Noise Ratio)：30dB

Sensitivity: 0.65V/lux-sec@550nm, Min. illumination：0.2 Lux

Shutter: Electronic rolling shutter / Frame exposure

Interface: USB2.0 High Speed, AEC：Support, AWB：Support, AGC：Support

Adjustable Parameters： Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure

Lens： Autofocus 185 Degree Fisheye Lens

Power Supply & Connector： USB BUS POWER 4P-2.0mm socket, Power：DC 5V, Current：210mA

Storage Temperature|: -20°C to 75°C, Working Temperature：-10°C to 65°C

Resolution & Frame Rate|：

2592x1944 MJPEG 30fps/ YUY2 1fps

2048x1536 MJPEG 30fps/ YUY2 3fps

1920x1080 MJPEG 30fps/ YUY2 3fps

1600x1200 MJPEG 30fps/ YUY2 5fps

1280x960 MJPEG 30fps/ YUY2 5fps

1280x720 MJPEG 30fps / YUY2 5fps

1024 x 768 MJPEG 30fps/ YUY2 5fps

800 x 600 MJPEG 30fps / YUY2 20fps

640x480 MJPEG 30fps / YUY2 30fps

320x240 MJPEG 30fps / YUY2 30fps

Operating System：

Win XP/Vista/Win7/Win8 / Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC

FOR RASPBERRY PI:

* Works with already pre-installed camera software instead of built-in camera.

* Supports Android development board, Raspberry Pi development board, Jetson Nano, etc.

FOR PC:

* Supports Windows, Linux, Mac, Android, Raspberry Pi

* Very easy to use, UVC compliant, driver, just plug and play

-UVC, driver, plug and play.

-Supports OTG

-Compatible with many operating systems, including Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS, etc.

-Supports live streaming software, Skype, Zoom, Facetime, Youtube, etc.

IFWATER 5MP 30FPS Autofocus USB Camera Module with IMX335 Color CMOS Webcam Module Embedded With 185Degree Fisheye Lens for Windows Raspberry PI PC

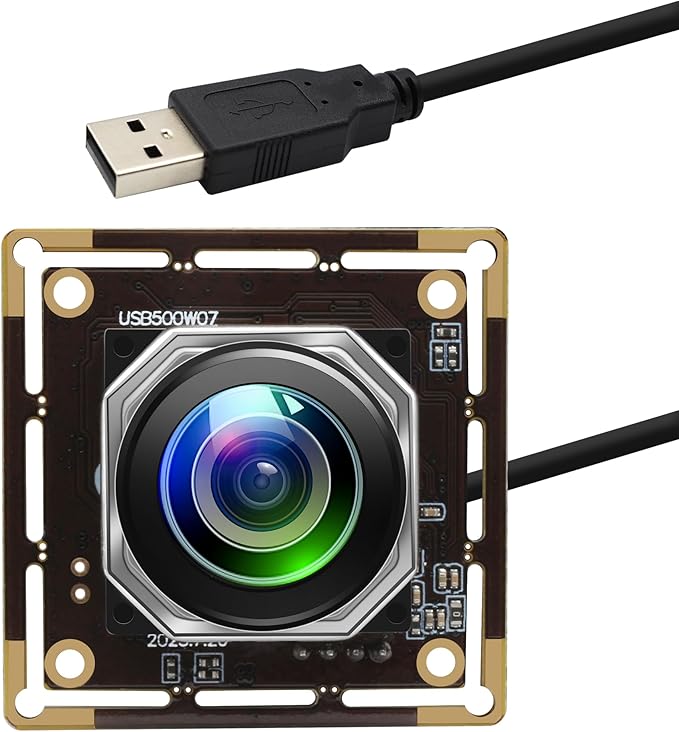

This camera based on 1/2.8" 5MP CMOS IMX335 image sensor, Auto focus, 185 degree fisheye lens, UVC compliant USB 2.0 cameras.

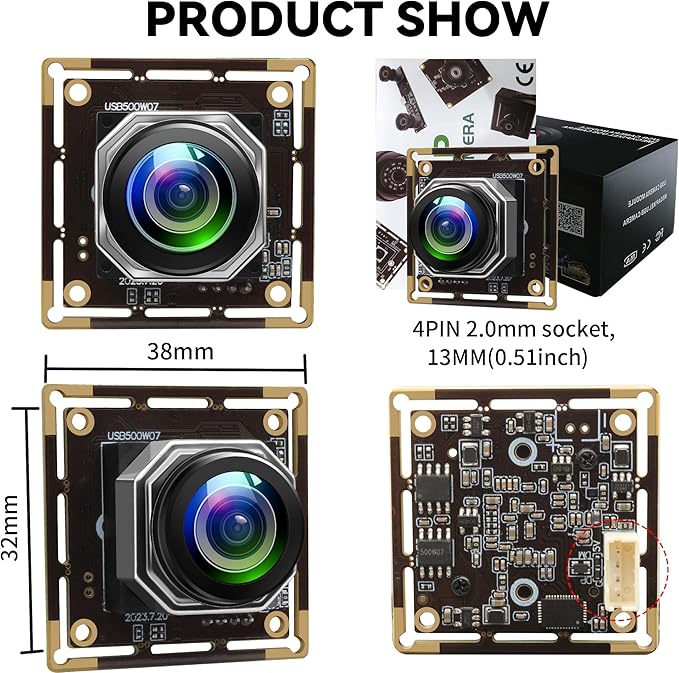

Max resolution 5 megapixel 2592 x 1944 output, High frame rate 30fps at 5mp resolution, High color reproduction, with 38x38/32x32mm mini board size.

No extra drivers are needed, usb 2.0 plug and play for Windows, Linux, and Mac OS.

Mini small outline and thin profile for embedded machines, 5mp ultra hd resolution meets your request for higher quality video still pictures resolution.
