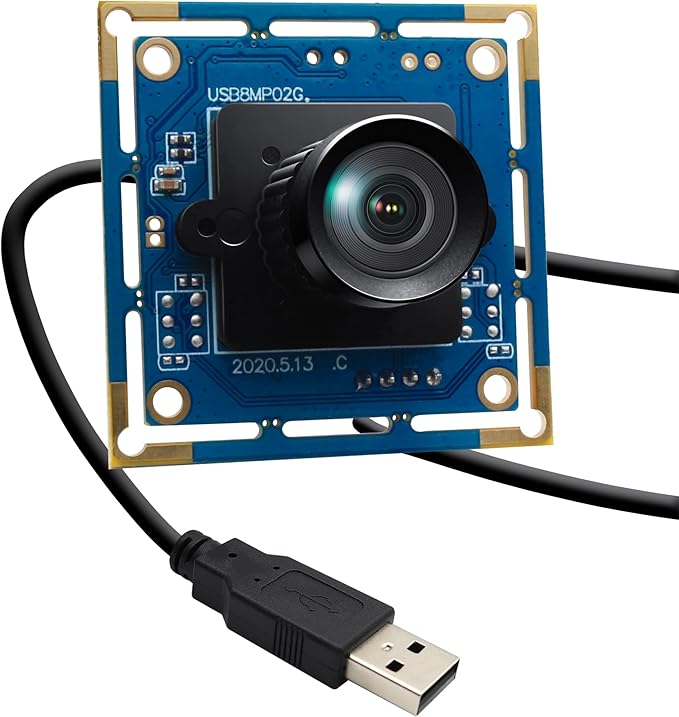

USB Camera Module 8MP No Distortion 75 Degree Lens Full HD 2448P WebcamUVC Compliant Webcam for Windows/Linux/MacEmbedded Camera for IndustrialRobot3D Printer

- 【High Definition 2448P Webcam】This 8MP USB camera module,the Max.Resolution is 3264×2448,High Definition 1024x768@30fps/ 3200x2400@20fps/3264x2448@15fps, that is, the output ratio is 4:3.HD 2448P usb webcam supply crisp image and crystal clear video.High quality, stream media and record vivid, and providing incredible capture of clear images.Enjoy high-quality 3264*2448P HD online video chat, making video calls and recordings with HD webcam. - 【IMX179 Image Sensor USB Camera】Usb webcam 8mp embedded IMX179 sensor for better performance.Webcamera USB Module with 8 megapixel high pixel technology and lower color reproduction deviation produce sharp image and accurate information. This camera can meet most of the clarity needs for different applications. - 【No Distortion 75 Degree Camera Module】8MP USB camera module with 75 degree lens.Enjoying a wide viewing angle.Mini size usb camera board only 38x38mm also can cut to 32x32mm,the open structure is good for project allow it to use in embedded computer or telescope. - 【Plug&Play Webcam】This web camera easy to set up, just USB 2.0 plug and play,no need to download or install complicated driver software.Embedded camera widely application car and ship control, automatic vending machine,Industrial&Medical Equipment,Robot project,Teaching system,automobile data recorder,Endoscope,etc. - 【Wide and Universal Compatibility】8MP usb camera works with Win XP/Vista/Win7/Win8 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC. PC webcam works with many software applications such as Zoom,GoToMeeting, Skype,Facebook LIVE, and YouTube Live streaming services.

Product description

HD 8MP USB Camera ? Precision Imaging for Industrial & Embedded Applications

8mp industrial embedded camera

8MP - 3264×2448 pixels deliver 40% higher clarity than standard 1080P

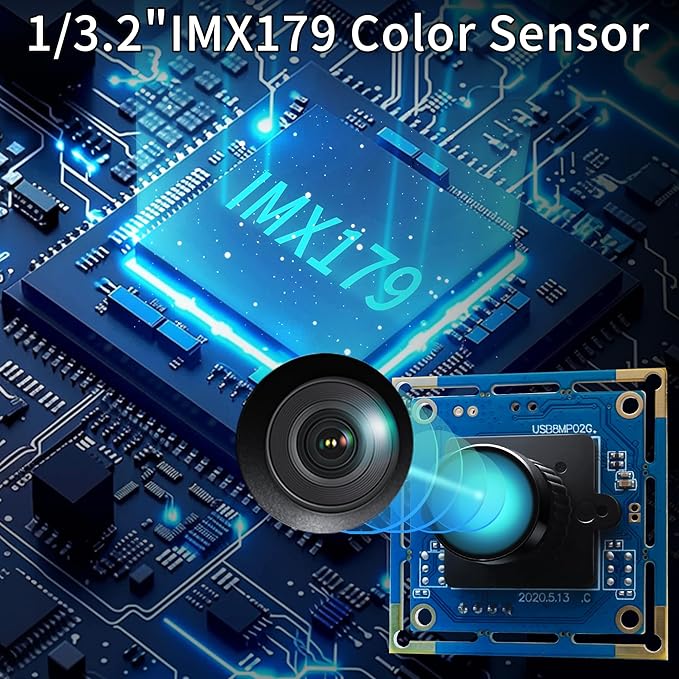

Industrial-Grade Sensor -- 1/3.2" IMX179 color sensor elevates performance

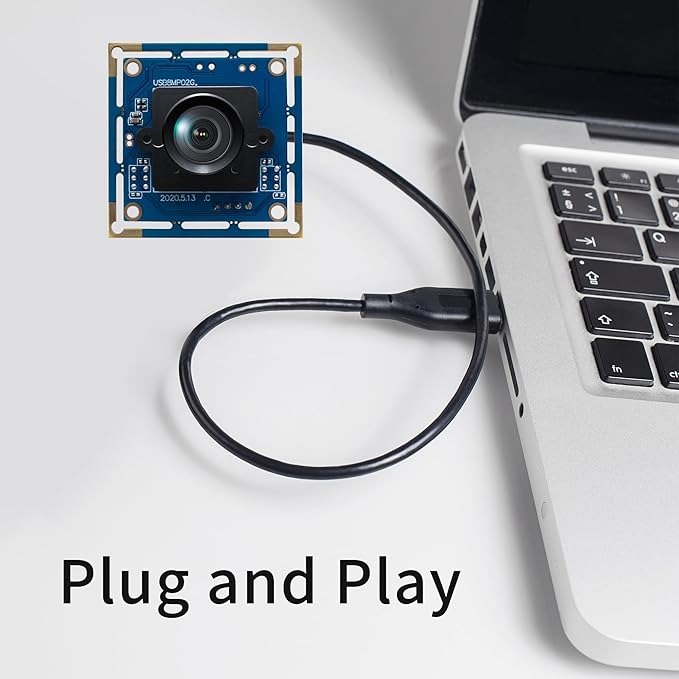

Plug and Play, Not extra drivers to be installed.

Multi-scene Application Webcam -- Support All Kinds of OS System

8MP 4K USB Camera Series

This high-tech camera delivers clarity and reliability in compact form factors. Equipped with an 8-megapixel sensor and 3264×2448 resolution, it captures intricate details higher clarity than 1080P cameras, making it ideal for medical imaging, industrial inspection, and smart device integration.

Performance: (8MP)3264X2448 MJPEG 15fps YUY2 2fps / 3200X2400 MJPEG 20fps YUY2 3fps / 1600X1200 MJPEG 20fps YUY2 10fps / 800X600 MJPEG 30fps YUY2 30fps

Tip: This camera default resolution is not 2160P in the factory settings. So please use the Amcap or other webcam software to adjust the resolution.

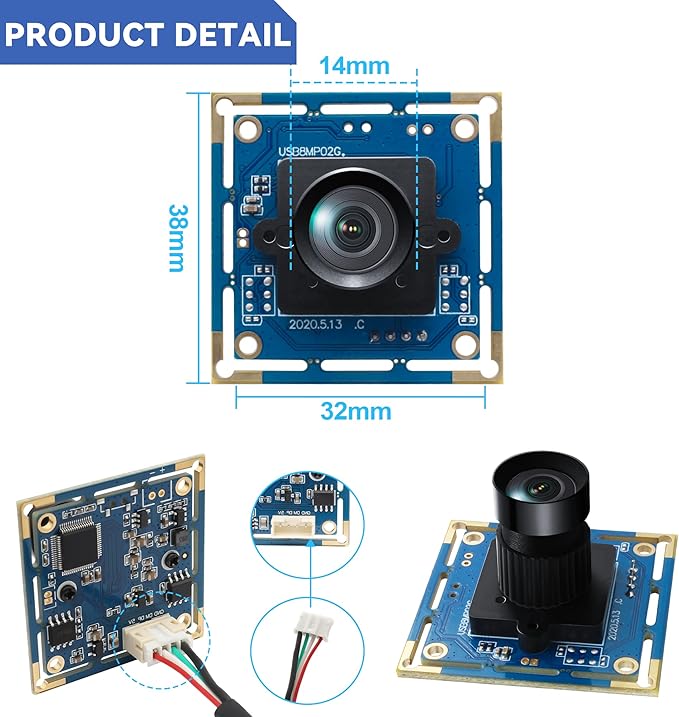

Sensor:1/3.2” Sony IMX179; Mini illumination: 0.5lux; Board size: 38X38mm（compatible 32X32mm）;

Pixel Size: 1.4um; Image area: 6.18mmx5.85mm; S/N Ratio: 34dB; Dynamic Range:72.5dB; Voltage:DC 5V;

Focus Type:Manual Focus; Working current:150mA~240mA; Sensitivity: 0.65V/lux-sec@550nm.

LED board control interface: Support 2P-1.25mm socket;

LED board power connector: Support 2P-2.0mm socket;

Power supply: USB BUS POWER 4P-2.0mm socket;

FOR RASPBERRY PI: It can work with already preinstalled camera software instead of builtin camera; Support Android development board,Raspberry Pi development board,Jetson Nano,etc.

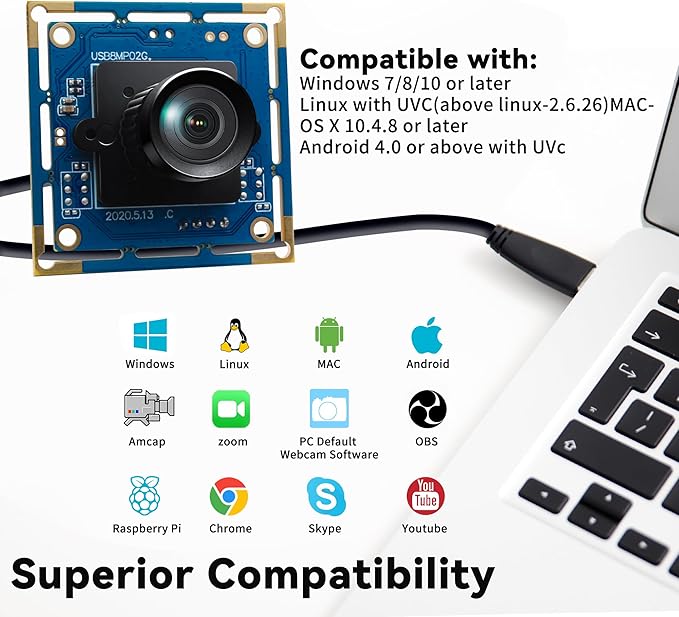

FOR PC: Support windows,linux,mac,Android,raspberry Pi; Very easy to use,UVC compliant,free driver,just plug in and go.

Adjustable parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure.

Operating system request: WinXP/Vista/Win7/Win8; Linux with UVC（above linux-2.6.26）; MAC-OS X 10.4.8 or later; Wince with UVC; Android 4.0 or above with UVC.
