VSDISPLAY VGA DVI LVDs Controller Board 40Pin for 15.6 1366x768 LP156WH2 LP156WH3 LP156WH4 TL B156XW02 N156B6-L0b LCD Screen

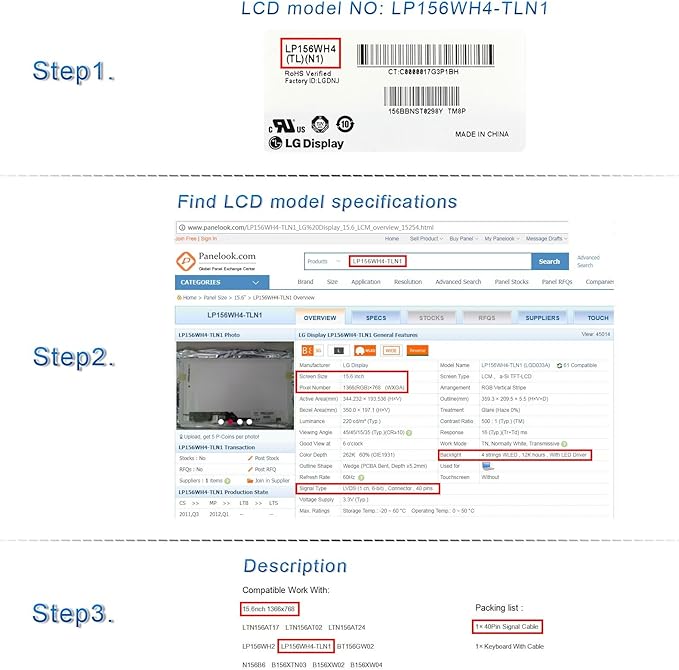

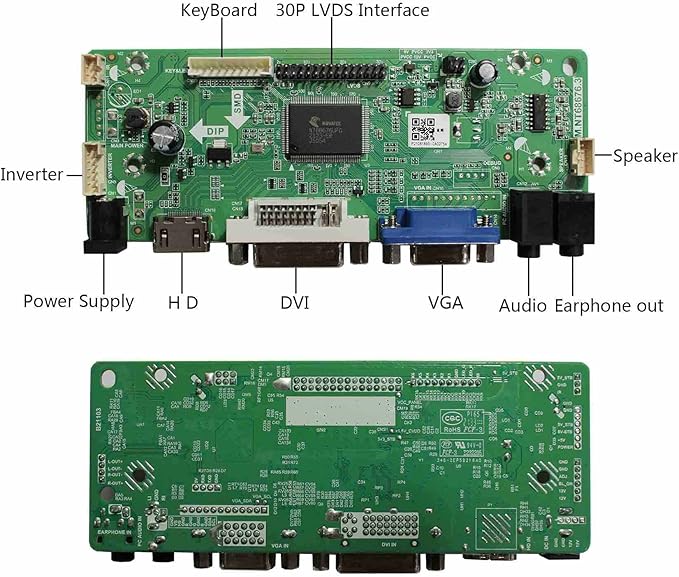

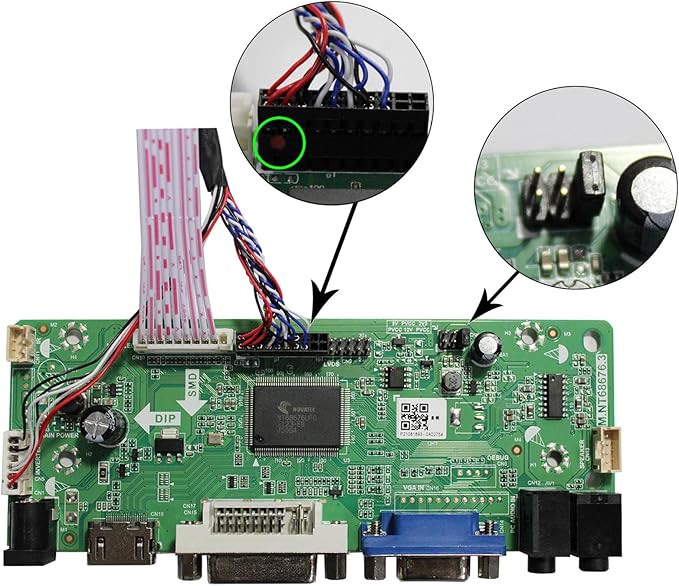

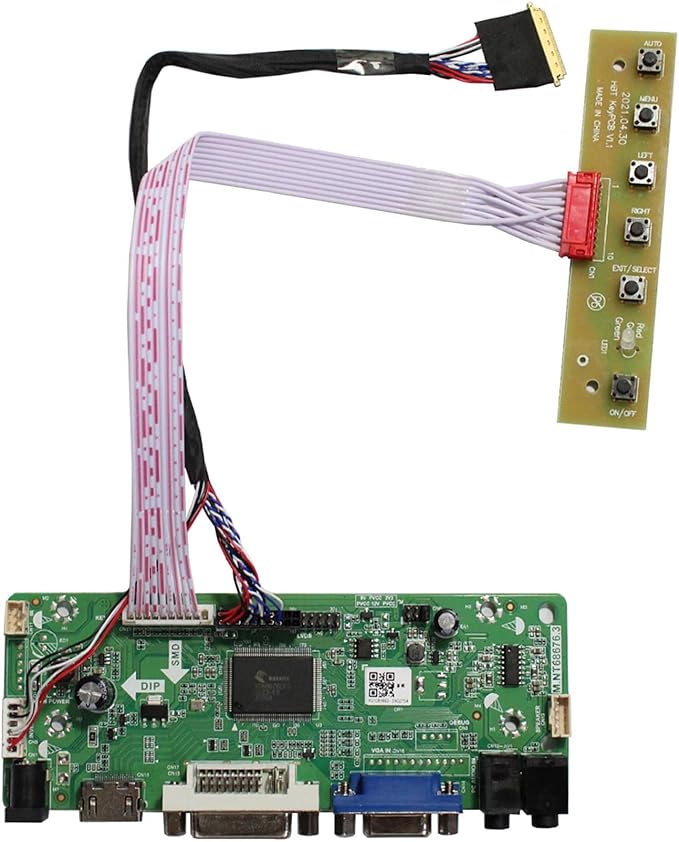

- Work for 15.6 inch 1366x768 40 pin WLED LVDs LCD display ,the screen model no. are: 15.6 inch LP156WH2 TL LP156WH3 TL LP156WH4 TL LP156WHB TL BT156GW02 N156B6 B156XTN03 B156XW02 B156XW04. - Video input: VGA DVI ,Audio Output: Speaker Connector （8ohm 2W 4Pin PH2.0 connection),Please use the board in insulated environment. - Input Power : 12V DC more than 2A ,port size :5.5x2.1mm, pls prepare power adapter by yourself.If screen restart again and again ,pls change a larger current power supply and try again. - Plug & play: with compatible screen , connect screen signal port as link pictures ,Power on ,enter into H/D/VGA/DVI signal cable ,the screen can be lit up . - Board failure self-check: Directly power on board ,The LED light green/red means board can work normally ;Then connect screen signal port, No enter signal ,the"no siganl" words showing on screen means the problem comes from signal ,Pls try with other signal cable /resource; White/Black screen ,Check screen signal port connecting/resolution/3.3V jumper pin/Signal resource.
