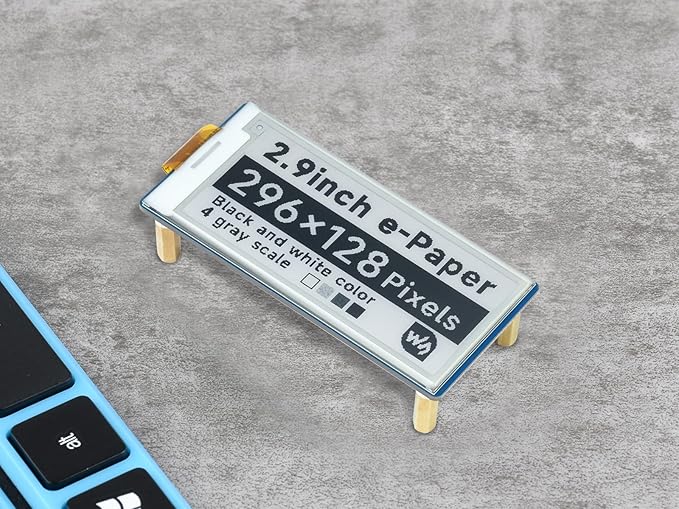

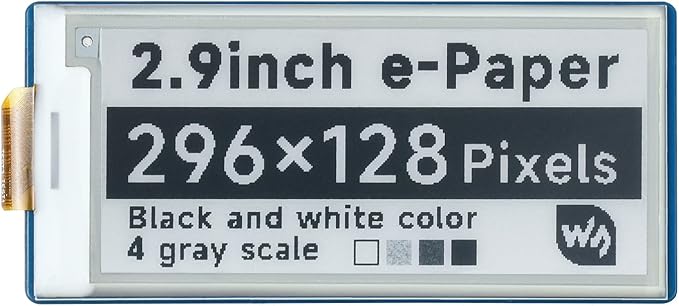

waveshare 2.9inch E-Paper E-Ink Display Module for Raspberry Pi Pico 296×128 Pixels Black/White Partial Refresh Support with SPI Interface

- No backlight, keeps displaying last content for a long time even when power down - Ultra low power consumption, basically power is only required for refreshing - SPI interface, requires minimal IO pins - Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples) - Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

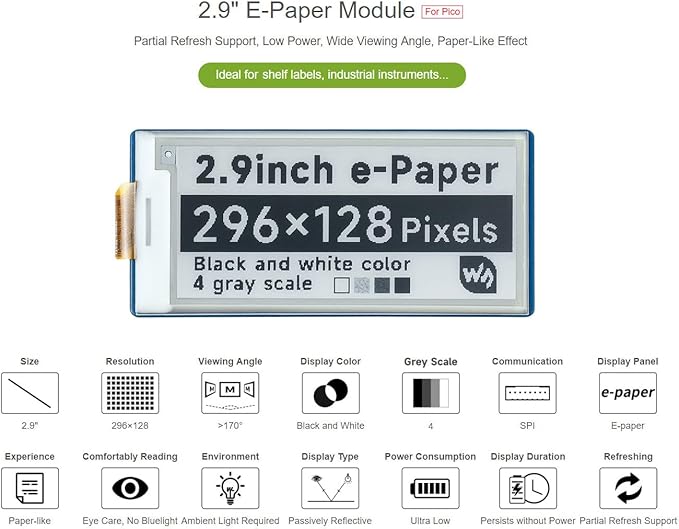

Product description

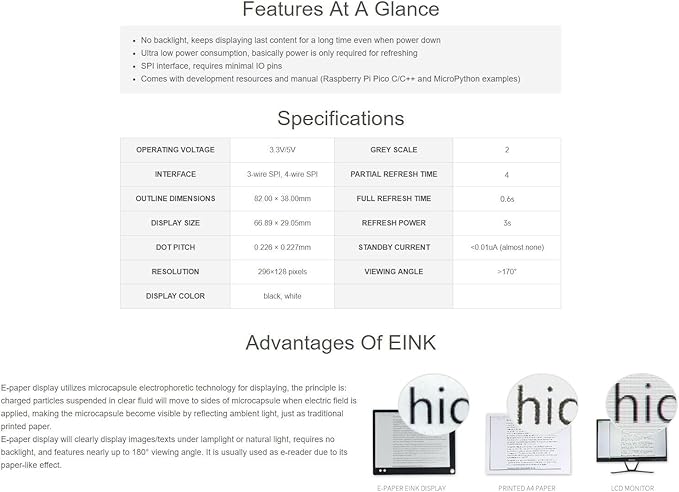

Features At A Glance

Specifications

Advantages Of EINK

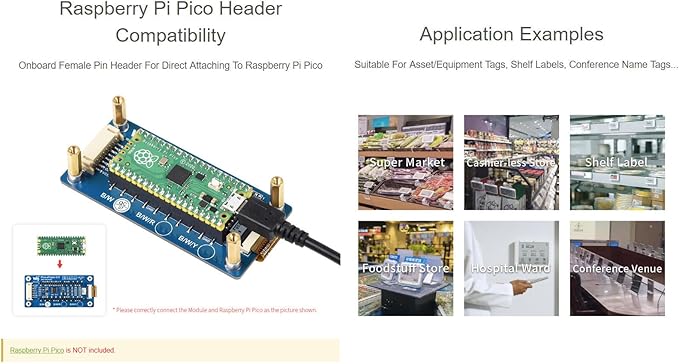

Raspberry Pi Pico Header Compatibility

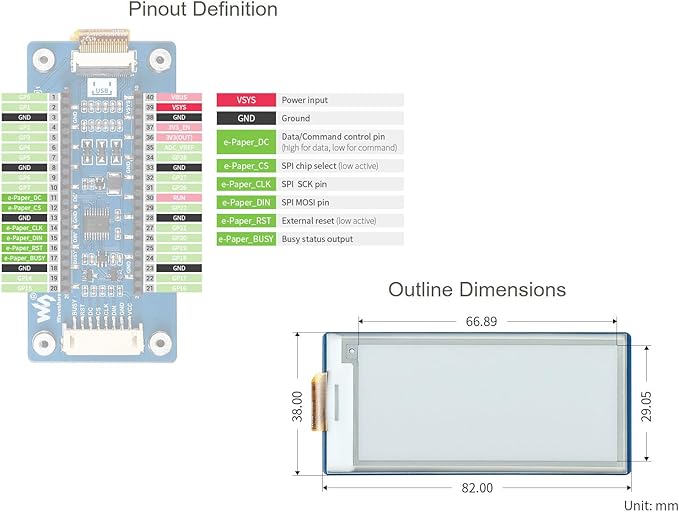

Pinout Definition & Outline Dimensions

WIKI:waveshare.com/wiki/Pico-ePaper-2.9?amazon

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

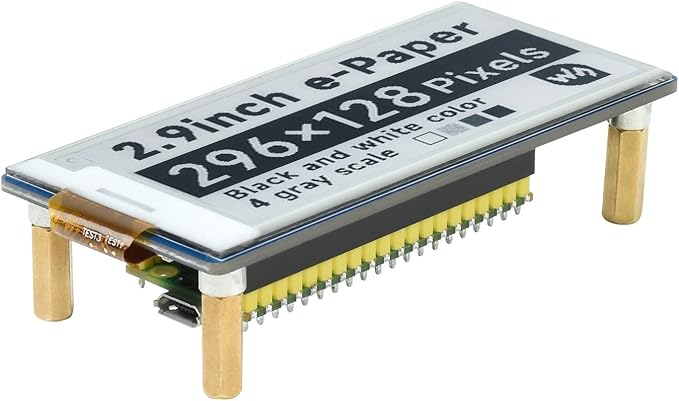

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
