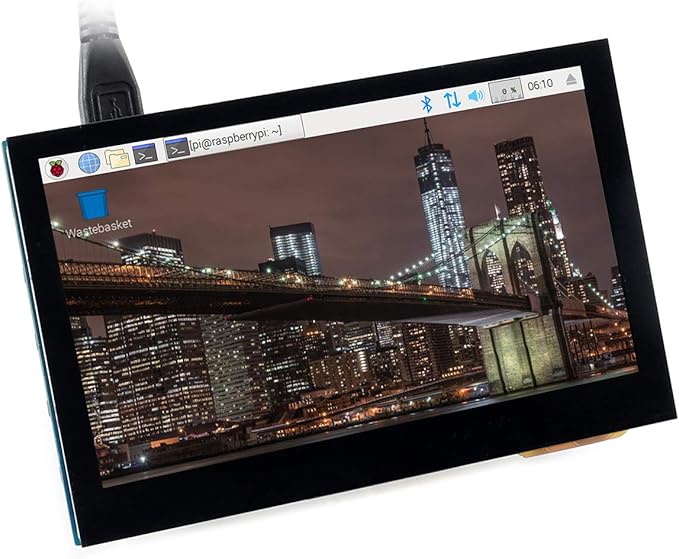

waveshare 4.3inch Capacitive Touch Screen LCD Compatible with Raspberry Pi 5/4B/3B+/3A+/2B/B+/A+/Zero/Zero W/WH/Zero 2W CM3+/4 800×480 Resolution HDMI IPS Supports Jetson Nano/Windows

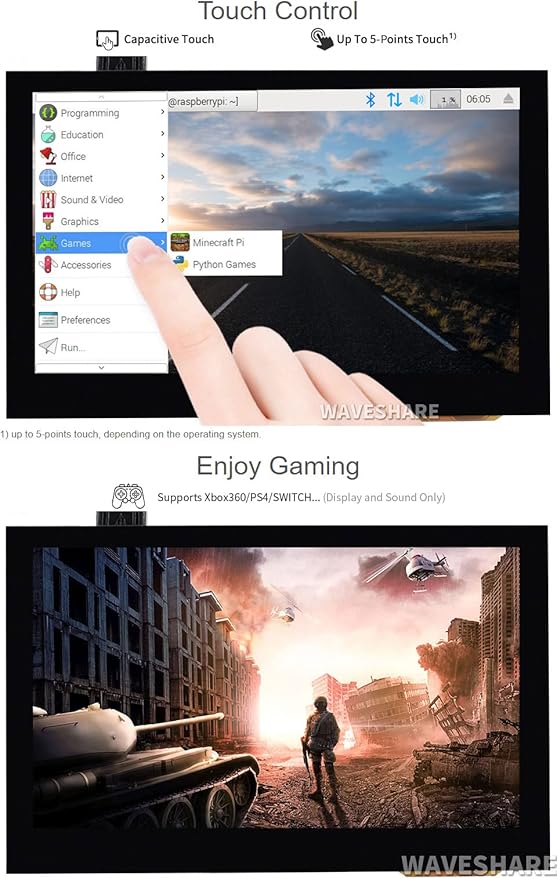

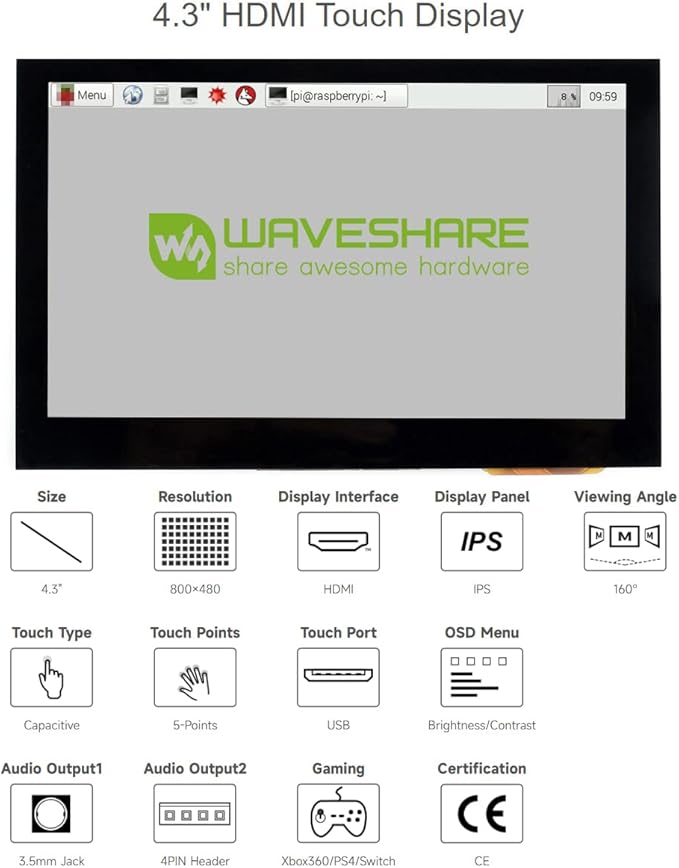

- Provide online user manual, please check the manual carefully before using! - When works with Raspberry Pi, supports Raspberry Pi OS / Ubuntu / Kali and Retropie systems. - When work as a computer monitor, supports Windows 11/10/8.1/8/7, five-points touch. - Multi languages OSD menu, for power management, brightness/contrast adjustment, etc. - 4.3inch IPS screen, 800x480 hardware resolution. 3.5mm audio jack, speaker connector, supports HDMI audio output.

Product description

WIKI: waveshare.com/wiki/4.3inch_HDMI_LCD_(B)?amazon

Introduction

Features

Working with Windows PC

Working with Raspberry Pi

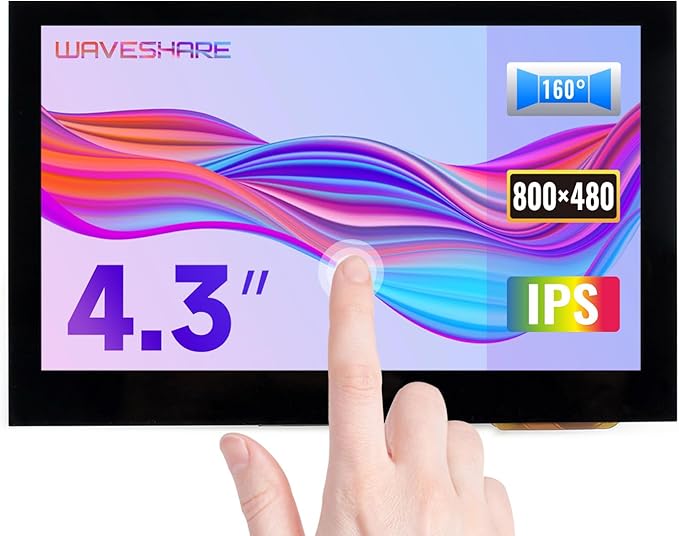

4.3inch Capacitive Touch Screen LCD, HDMI interface, with a resolution of 800×480 and a capacitive touch panel, which supports Raspberry Pi and can also be used as a computer monitor.

This LCD can support Windows 11 / 10 / 8.1 / 8 / 7 system.

1)Connect the TOUCH interface of LCD to the USB interface of PC. Wait for a while, the windows will automatically recognize the touch function.

2)Connect the HDMI interface of LCD to the HDMI port of PC. About 10s later, you can see the LCD display properly. If you need the audio, you can insert a 3.5mm earphones to HP ports, or connect to the related speaker module through the speaker interface (such as 8 ohms 5-watt speaker).

Note: When the computer is connected to several different displays at the same time, only this LCD can be used to control the cursor on the main display, so we recommended setting this LCD as the main display.

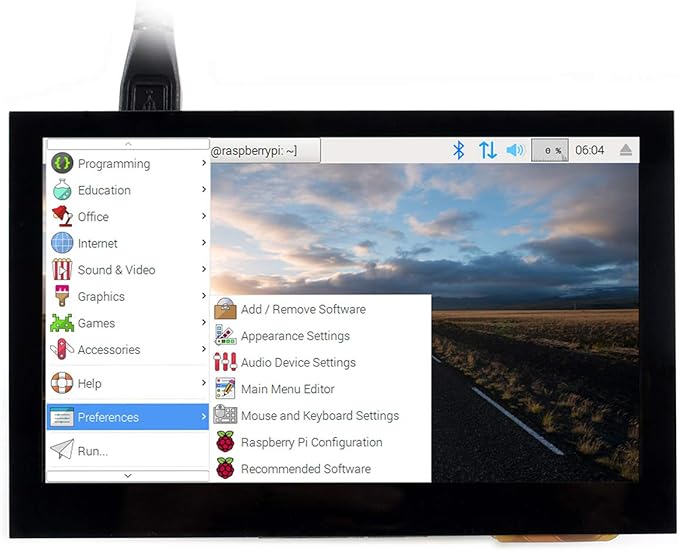

This LCD can support Raspberry Pi OS / Ubuntu / Kali / Retropie systems.

Please download the latest version of the image on the Raspberry Pi official website.

1) Download the compressed file to the PC, and unzip it to get the .img file.

2) Connect the TF card to the PC, use SDFormatter software to format the TF card.

3) Open the Win32DiskImager software, select the system image downloaded in step 1, and click‘Write’ to write the system image.

4) After the image has finished writing, open the config.txt file in the root directory of the TF card, add the following code at the end of config.txt, then save and quit the TF card safely.

5) Insert the TF card into the Raspberry Pi

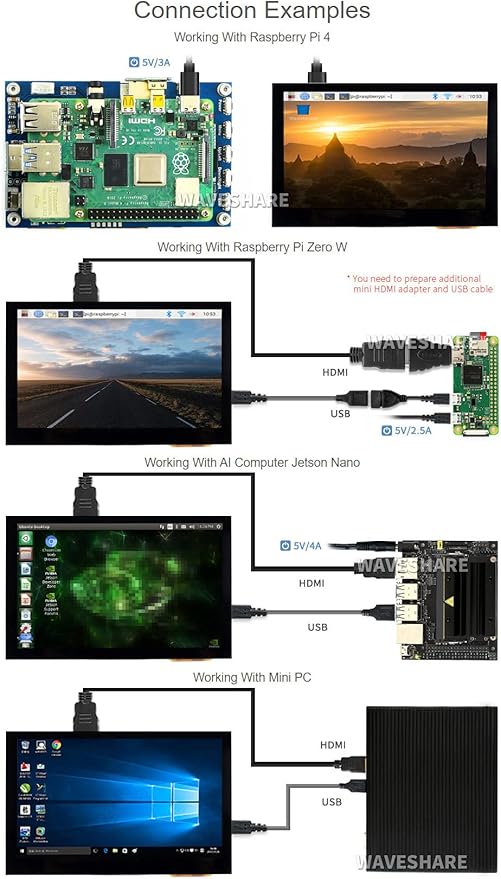

6) Connect the Touch interface of the LCD to the USB interface of the Raspberry Pi.

7) Connect the HDMI interface of the LCD to the HDMI interface of the Raspberry Pi, power on the Raspberry Pi, and wait for a few seconds until the LCD displays normally.
