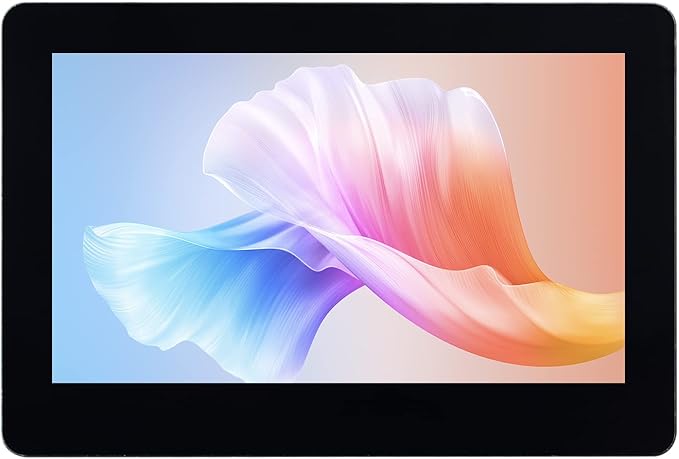

waveshare 4.3inch DSI Display 800 × 480 Resolution IPS Panel Compatible with Raspberry Pi 4B/3B+/3A+/3B/2B/B+/A+/CM3/3+/4-IPS Wide-Bezel Touch Display

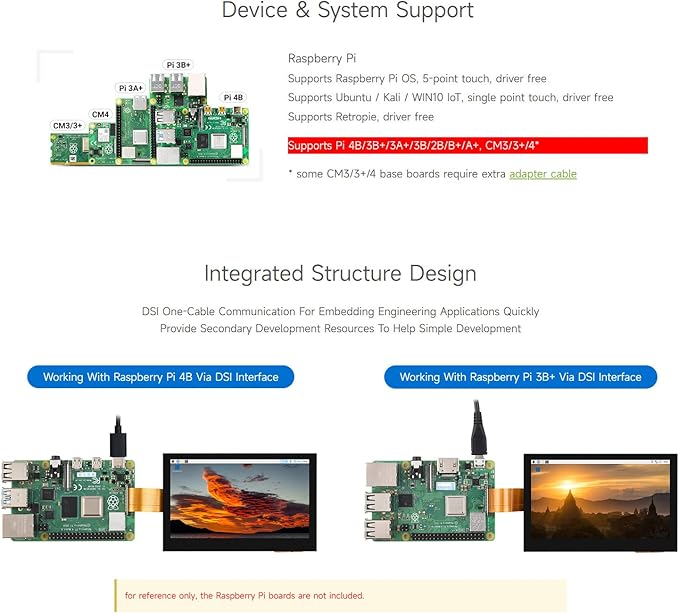

- This is a IPS Wide-bezel Touch Display - Supports Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4. Some CM3/3+/4 base boards require extra adapter cable - DSI One-Cable Communication For Embedding Engineering Applications Quickly. Provide Secondary Development Resources To Help Simple Development. - Integrate the driver circuit into an FPC, only needs 5mm thickness space. Excellent Display Performance With 160° Wide Viewing Angle - Gently Touch, And See What You Get, Enjoy Multi-Point UI Interaction Via Flexible Operation. Adapting Touch Function With I2C Signal, Support 5-Point Touch

Product description

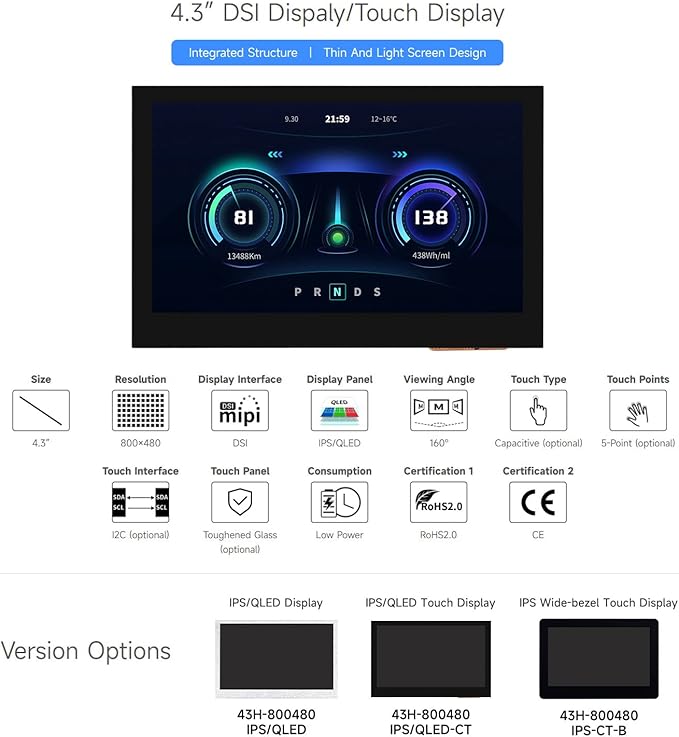

Version Options

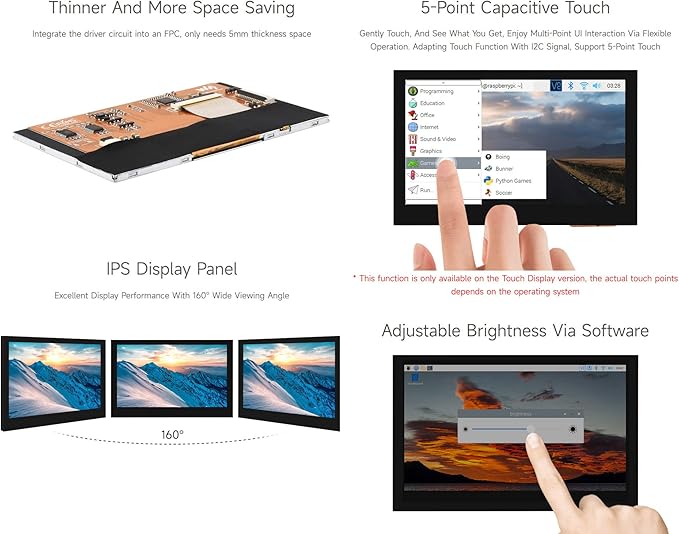

Thinner And More Space Saving

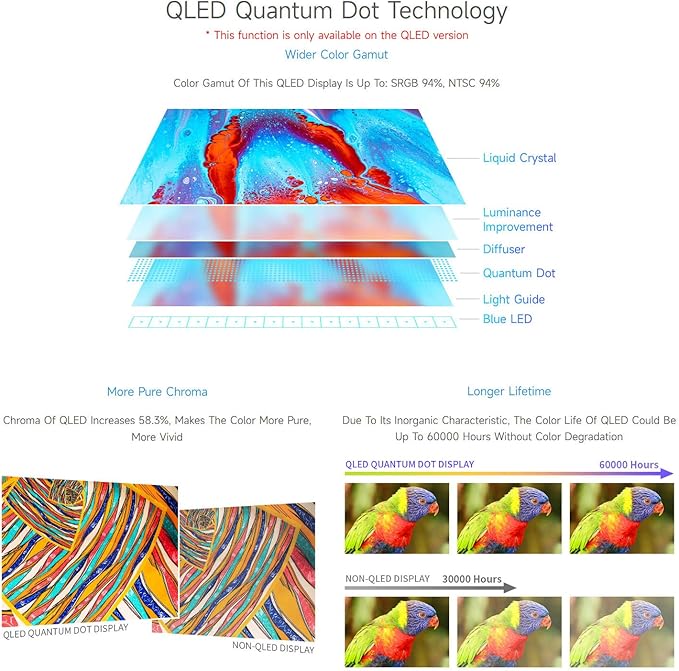

IPS Display Panel

5-Point Capacitive Touch

Adjustable Brightness Via Software

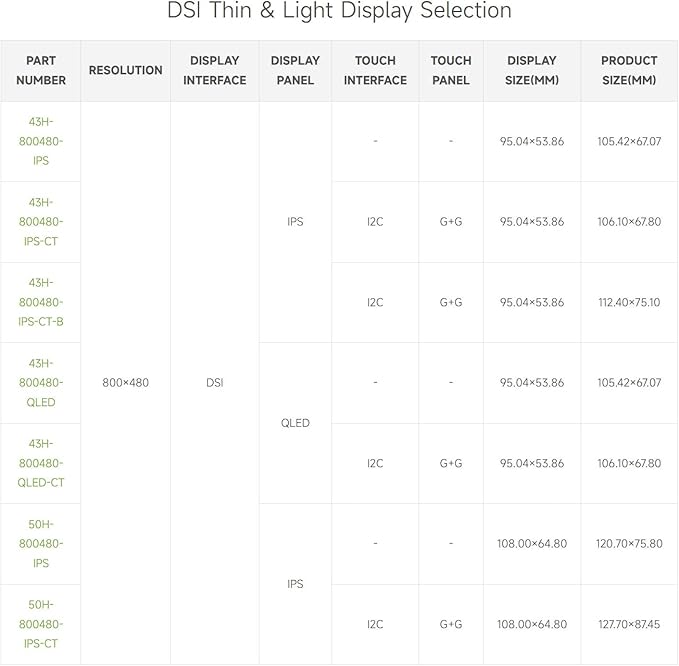

43H-800480 IPS/QLED

43H-800480 IPS/QLED-CT

43H-800480 IPS-CT-B

Integrate the driver circuit into an FPC, only needs 5mm thickness space

Excellent Display Performance With 160° Wide Viewing Angle

Gently Touch, And See What You Get, Enjoy Multi-Point UI Interaction Via Flexible Operation. Adapting Touch Function With I2C Signal, Support 5-Point Touch
