waveshare 4inch HDMI Capacitive Touch IPS LCD Display Compatible with Raspberry Pi 4B/3B+/3A+/2B/B+/A+/Zero/Zero W/WH/Zero 2W CM3+/4 720×720 Resolution Supports Jetson Nano/Windows

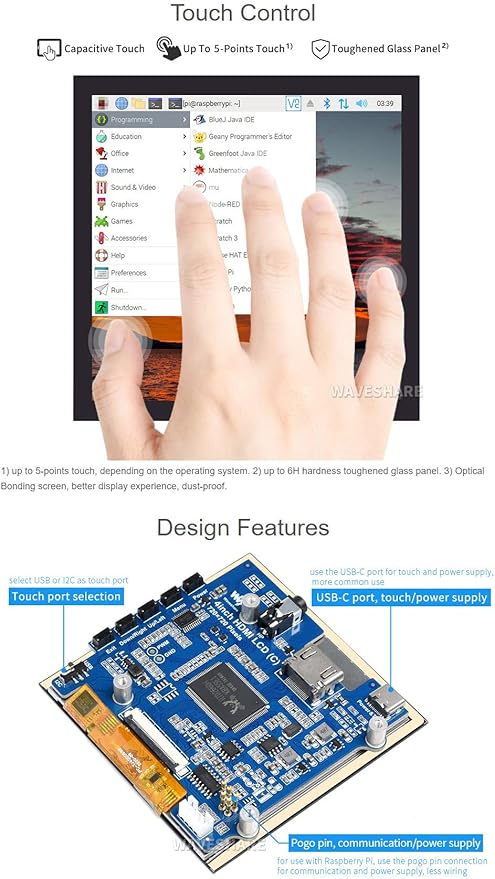

- Provide online user manual, please check the manual carefully before using! - Supports all versions of Raspberry Pi. For Jetson Nano and PC, only USB-C touch is available - 4-inch IPS screen, hardware resolution is 720×720. 5-point capacitive touch, tempered glass panel, hardness up to 6H. - When used with Raspberry Pi, it supports Raspberry Pi OS / Ubuntu / Kali and Retropie. Ubuntu is supported when used with Jetson Nano. - When used as a computer monitor, it supports Windows 11/10/8.1/8/7. Onboard dual touch circuit, optional USB Type-C or I2C touch, it has more application scenarios. With 3.5mm audio and speaker interface, it support HDMI audio output.

Product description

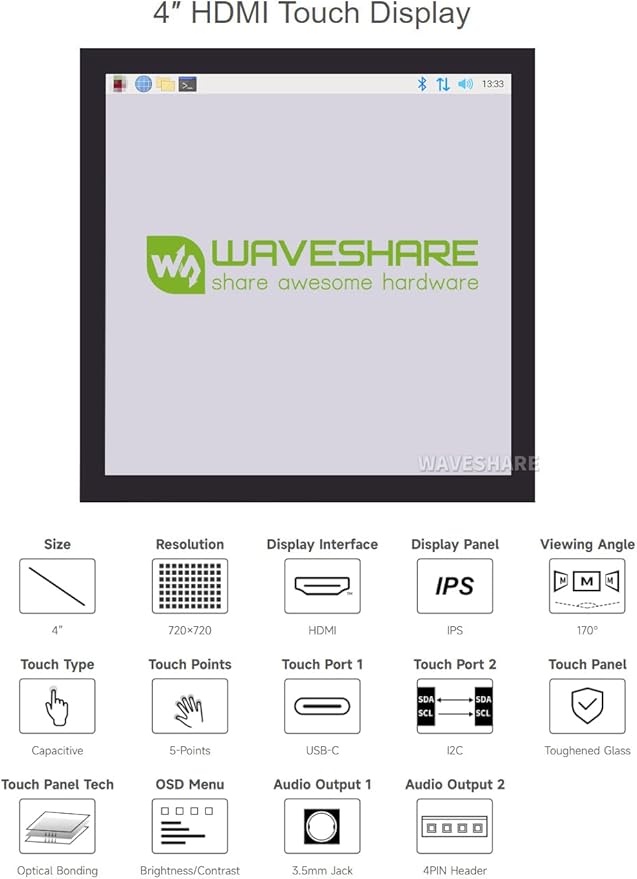

Features

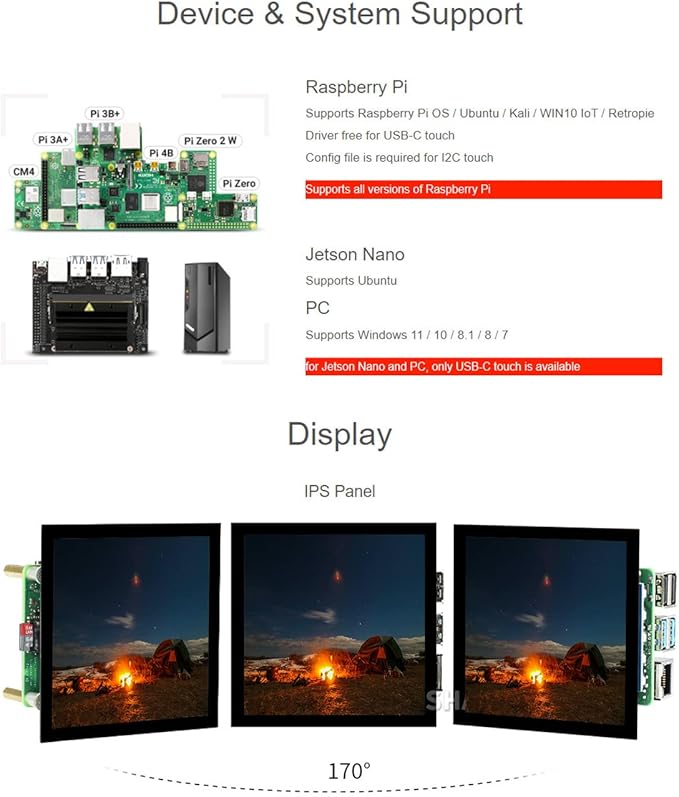

Hardware Connection

Raspberry Pi

Supports Raspberry Pi OS / Ubuntu / Kali / WIN10 IoT / Retropie Driver free for USB-C touch Config file is required for I2C touch

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7

for Jetson Nano and PC, only USB-C touch is available

1. Connect the GPIO interface

Raspberry Pi leads out 40 GPIO pins, while the screen leads out 26 pins. When connecting, pay attention to the corresponding pins and Raspberry Pi pins.

2. Connect the HDMI connector to the HDMI port of the screen and the Pi.

3. Turn the Backlight on the back of the LCD to "ON".

Note: Raspberry Pi Zero / Zero 2 W needs an additional HDMI cable for connection.
