waveshare 5.5inch Capacitive Touch AMOLED Display Compatoble with Raspberry Pi 4B Comes with Protection Case 1080×1920 Resolution HDMI Toughened Glass Panel

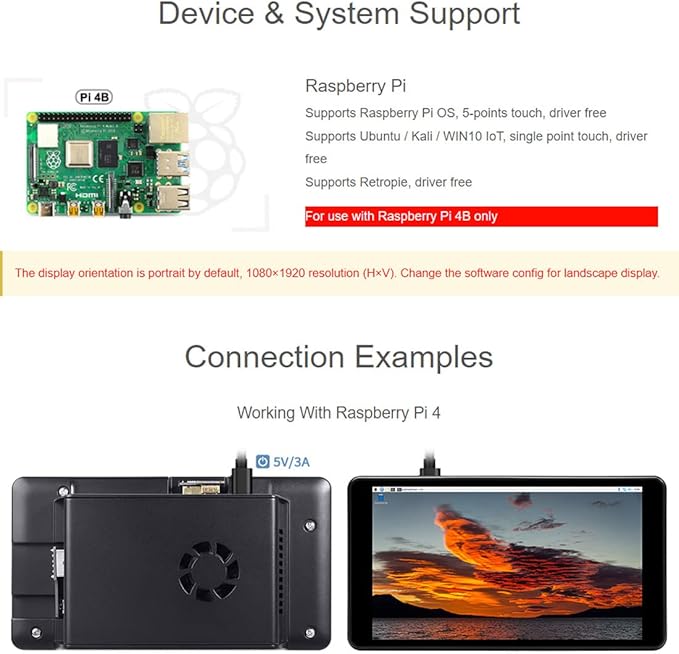

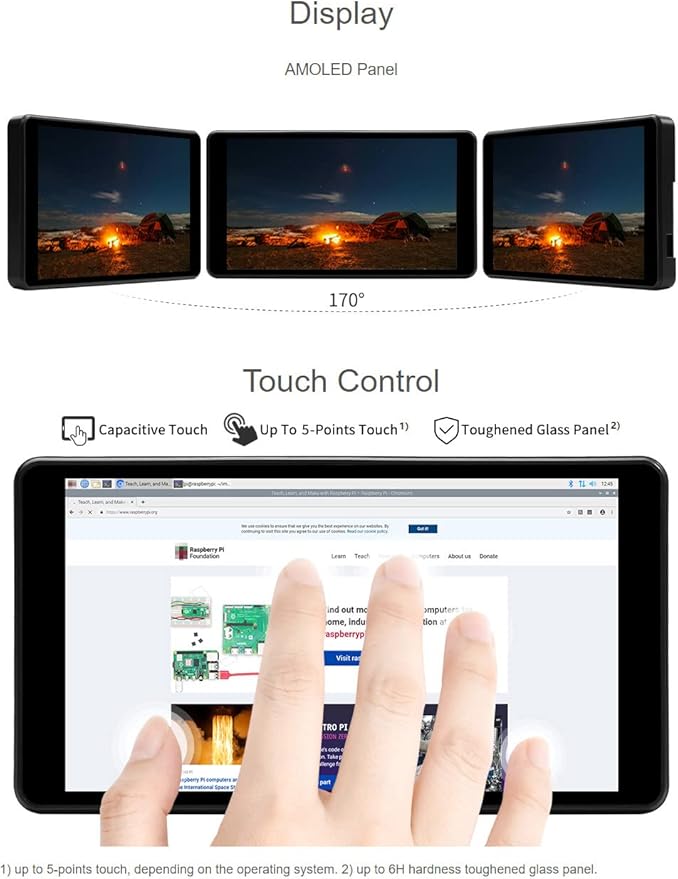

- Provide online user manual, please check the manual carefully before using! - The display orientation is portrait by default, 1080×1920 resolution (H×V). Change the software config for landscape display. - The glass panel of AMOLED is fragile without enclosure, please take care of it when using. You need to hold the PCBA when plugging the HDMI cable and USB cable to protect the glass panel from hard pressure. - 5.5inch AMOLED, 1080x1920 resolution. 5-point capacitive touch control with tempered glass panel, hardware up to 6H. - When works with Raspberry Pi, supports Raspberry Pi OS/Ubuntu/Kali/Retropie. When works as a computer monitor, supports Windows 11/10/8.1/8/7. 3.5mm audio jack, supports HDMI audio output.

Product description

WIKI: waveshare.com/wiki/5.5inch_HDMI_AMOLED?amazon

Notices

Introduction

Features

Working with Windows PC

The glass panel of AMOLED is fragile without enclosure, please take care of it when using. You need to hold the PCBA when plugging the HDMI cable and USB cable to protect the glass panel from hard pressure.

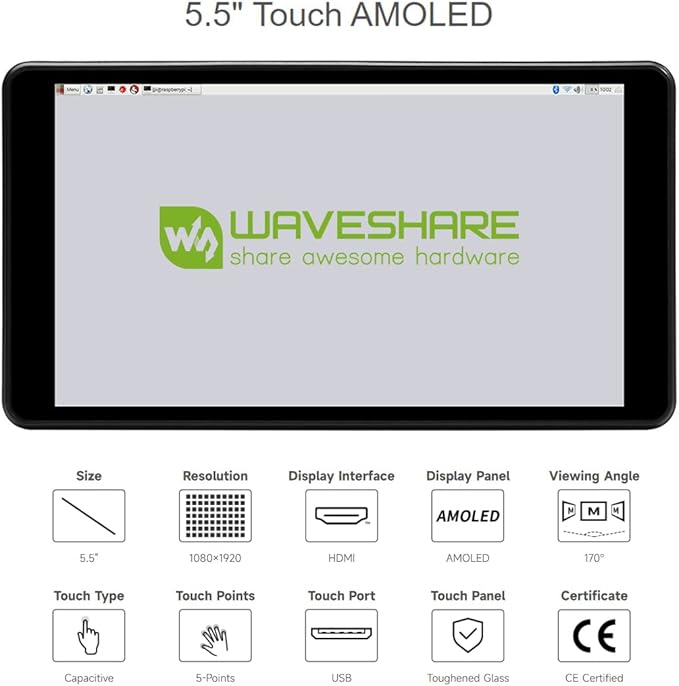

5.5inch AMOLED display, with a resolution of 1080×1920 and a capacitive touch panel, which supports Raspberry Pi and can also be used as a computer monitor.

When working with PC, 5.5inch HDMI AMOLED can support Windows 7/ 8/ 8.1 /10 /11.

1. Connect the TOUCH interface of LCD to the USB interface of PC. Wait for a while, the windows will automatically recognize the touch function.

2. If you use HDMI, you need to connect the HDMI interface of LCD to the HDMI port of PC. About 10s later, you can see the LCD display properly. If you need to output sound, you can insert a 3.5mm earphones to HP ports.

Note:

1) When the computer is connected to multiple monitors at the same time, the touch effect of the 5.5inch AMOLED will be applied to the main screen by default. If you need to specify the touch to the secondary screen, see #Calibration touch on Win 10 PC

2) Sometimes, USB ports of PC have not enough power to power 5.5inch HDMI AMOLED, in this case, you can connect external 5V/2A power adapter to DC interface of 5.5inch HDMI AMOLED.

3)This product is portrait mode by defaults, and the resolution (H×V) is 1080×1920. You can enter the display settings of the windows system and rotate it to landscape display.
