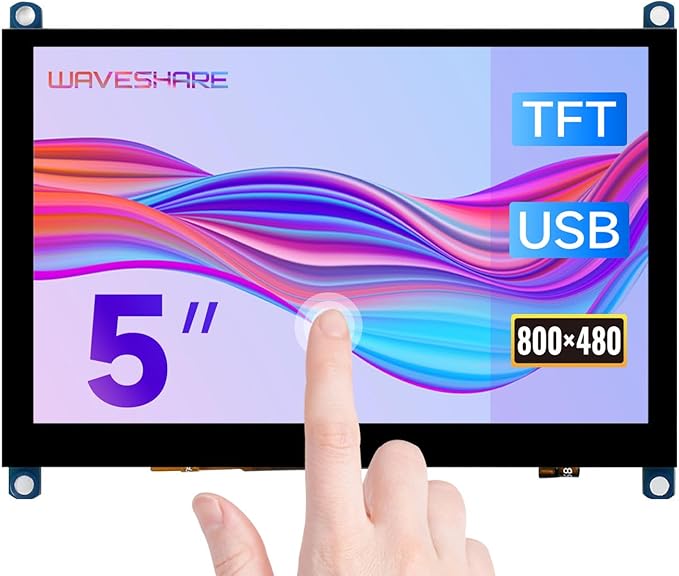

Waveshare 5inch Capacitive Touch Screen LCD Slimmed-Down Compatible with Raspberry Pi 5/4B/3B+/3A+/2B/B+/A+/Zero/Zero W/WH/Zero 2W CM3+/4 800×480 Resolution HDMI Toughened Glass Panel Supports Windows

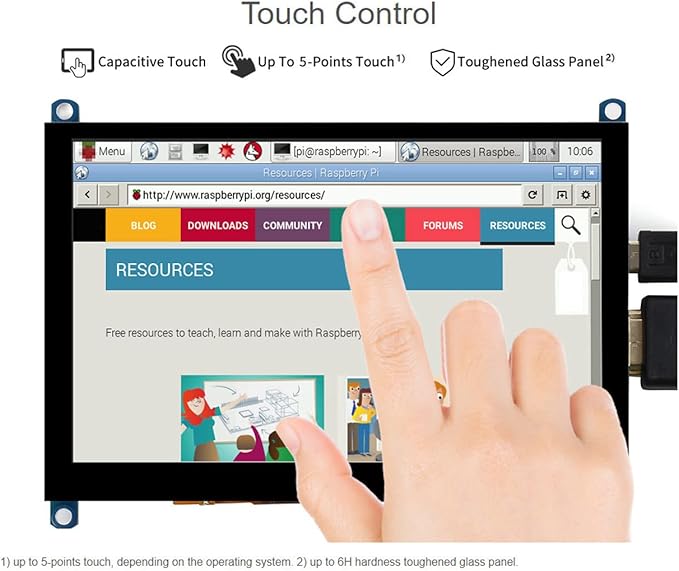

- Provide online user manual, please check the manual carefully before using! - 5-inch capacitive touch screen with hardware resolution of 800×480. 5-point capacitive touch control, tempered glass panel, hardness up to 6H. - When works with Raspberry Pi, supports Raspberry Pi OS / Ubuntu / Kali and Retropie systems. - When working as a computer monitor, supports Windows 11/10/8.1/8/7, ten-points touch. - Support backlight control, more power saving.

Product description

WIKI: waveshare.com/wiki/5inch_HDMI_LCD_(H)_V4?amazon

Features

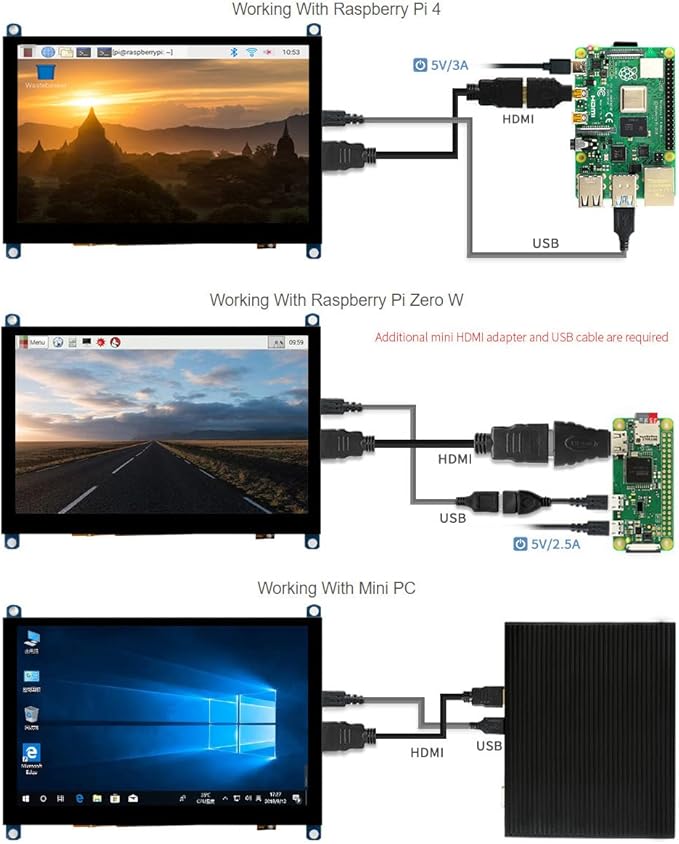

Working with PC

Working with Raspberry Pi

This product supports Windows 11/10/8.1/8/7 OS.

1. Turn on the backlight switch on the back of the LCD.2. Connect the TOUCH interface of the LCD to the USB interface of the PC. Wait for a while, the windows will automatically recognize the touch function.3. Connect the HDMI interface of LCD to the HDMI port of the PC. About 10s later, you can see the LCD display properly.

Note:

This LCD can support Raspberry Pi OS / Ubuntu / Kali / Retropie systems.

Please download the latest version of the image on the Raspberry Pi official website.

1) Download the compressed file to the PC, and unzip it to get the .img file.

2) Connect the TF card to the PC, use SDFormatter software to format the TF card.

3) Open the Win32DiskImager software, select the system image downloaded in step 1, and click‘Write’ to write the system image.

4) After the image has finished writing, open the config.txt file in the root directory of the TF card, add the following code at the end of config.txt, then save and quit the TF card safely.

You must make sure that there are no spaces on either side of the equal sign.

5) Insert the TF card into the Raspberry Pi

6) Connect the Touch interface of the LCD to the USB interface of the Raspberry Pi.

7) Connect the HDMI interface of the LCD to the HDMI interface of the Raspberry Pi, power on the Raspberry Pi, and wait for a few seconds until the LCD displays normally.
