Webcamera_usb 16mp Autofocus USB Camera Module with Microphone for Computer Mini Lightburn Camera Micro USB Security PC Camera CCTV Video Laser Engraver Webcam Board (68degree no distortion lens)

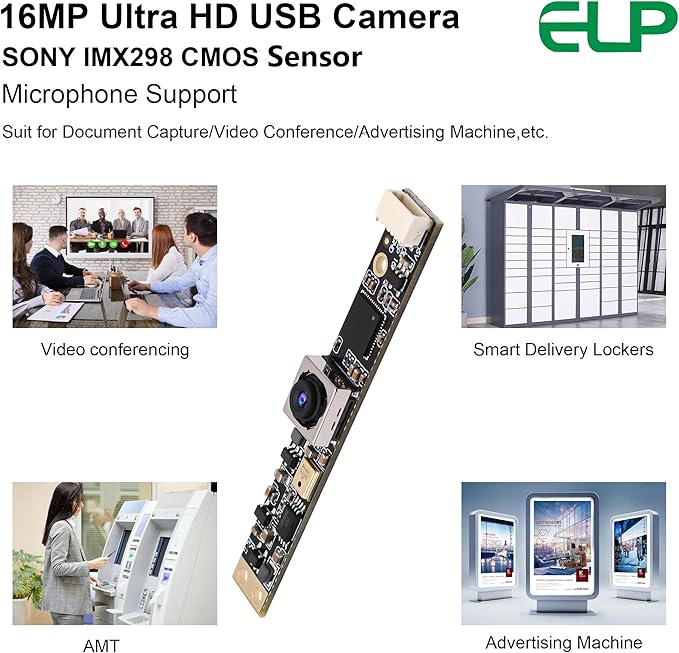

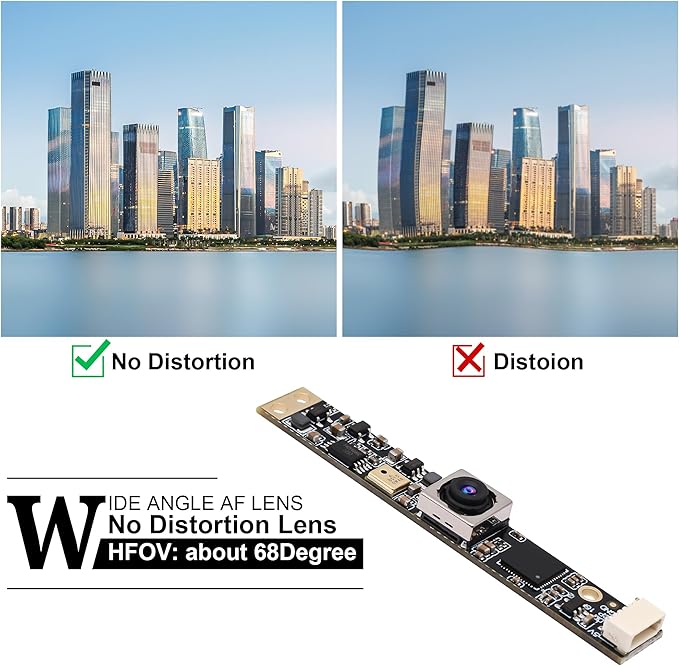

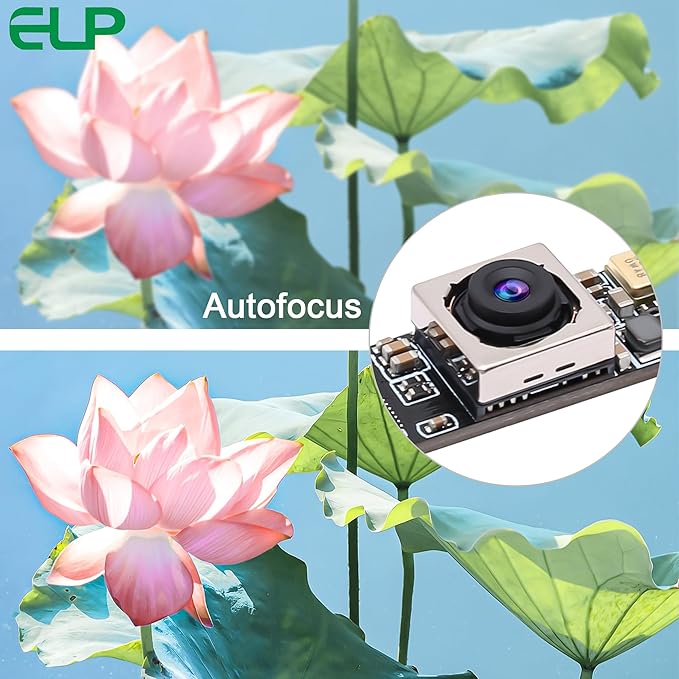

- Ultra HD:This small camera module adopts 16MP IMX298 sensor for sharp image and accurate color reproduction, still picture resolution: 4656 x 3496 Max. - Autofocus: Mounted a High quality Autofocus lens, which can get about HOV 68degree - Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed. - High Frame Rates:MJPEG 10fps@4656x3496/4160X3120/ 3840X2160/2592X1944, MJPEG 30fps@2048X1536/1600X1200/1280X720; - Applications:This micro mini size 62.3*9*7mm camera board can be installed in most narrow position, highly recommended for a home video surveillance system, dashcam and other vision applications demand high resolution.Great for document scan or computer vision, machine vision, High Resolution Video Capture. - Camera with UVC for computer, laptop, pc, etc.

Product description

Webcamera_usb 16mp USB camera module with microphone wide angle pc camera for computer laptop pc

WB-USB16MP02-AF100 (100 No distion Lens, HFOV about 97degree)

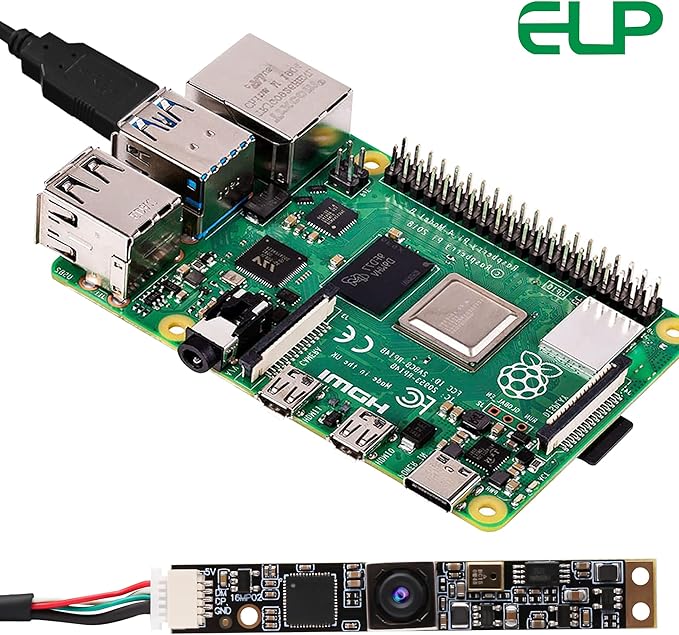

Super mini usb camera board for pc,computer,laptop,raspberry pi,android development board,Jetson Nano,etc

SPECIFICATIONS

Mini size, light weight, small outline and thin profile for embedded machine visions.

Super small and mini size for your lightburn laser engraver, compact lightburn laser camera for all kinds of machine vision.

Can work with most development board, support for secondary development:

Ultra HD 16mp USB camera, with 100degree no distortion lens for Computer and Raspberry Pi

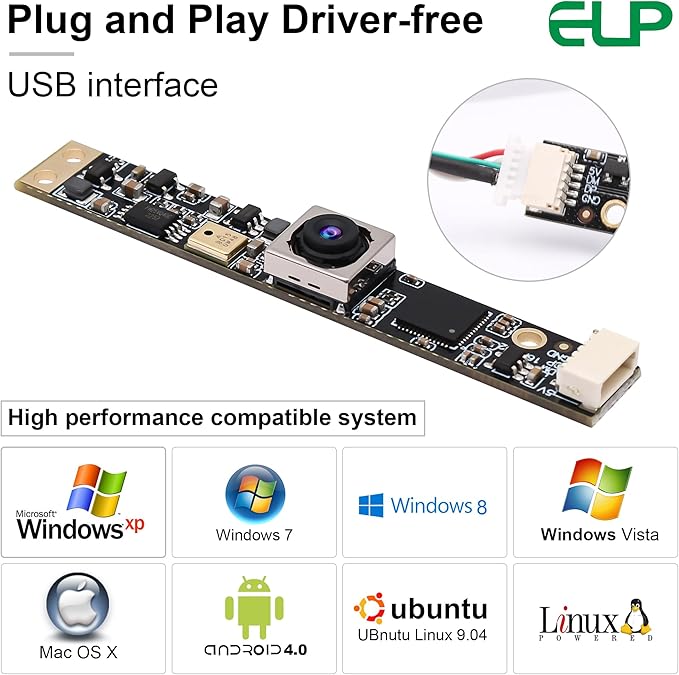

Plug and play,free driver,UVC compliant, just plug in and go.

- Sensor: 1/2.8” IMX298

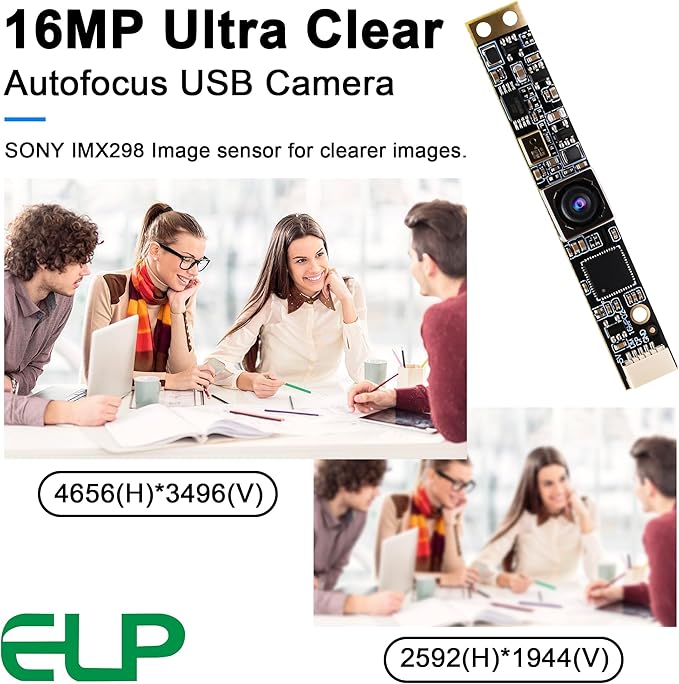

- Resolution: 16mp 4656 x 3496

- Data Format: MJPG/YUY2

- Frame Rate: MJPG 4656 x 3496 MJPEG@10fps, 1920 x 1080 MJPEG@30fps Y

- Field of View (FOV)： H= 97°

- Lens Mount: M12

- Focusing Range: 0.33ft (10CM) to infinity

- Adjustable parameter: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Exposure.

- System Compatibility: Windows, Linux, Mac, and Android with UVC.

- Power Supply: USB BUS POWER 4P-1.0mm Socket

- Working Current: MAX 370mA

- Operating Temp.: 14°F~158°F (-10~70℃)

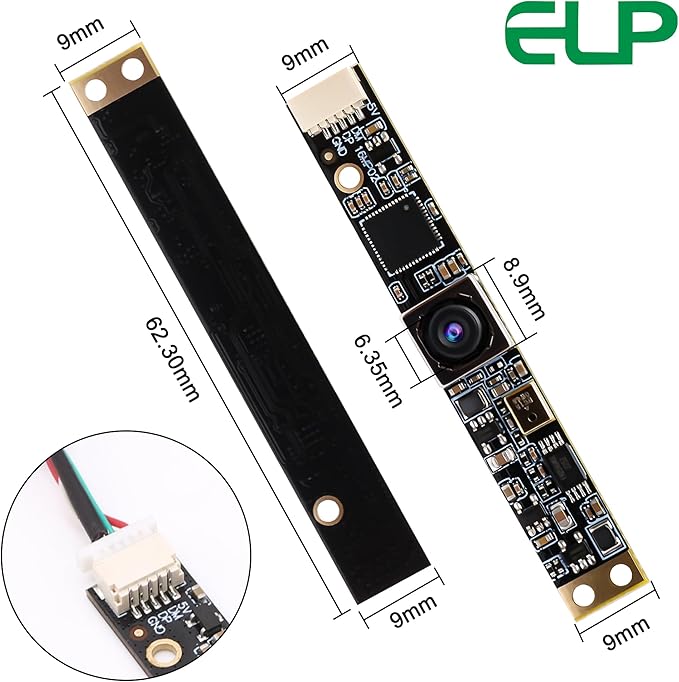

- Dimension: 62.3 x 9 x 5.5mm / about 20g

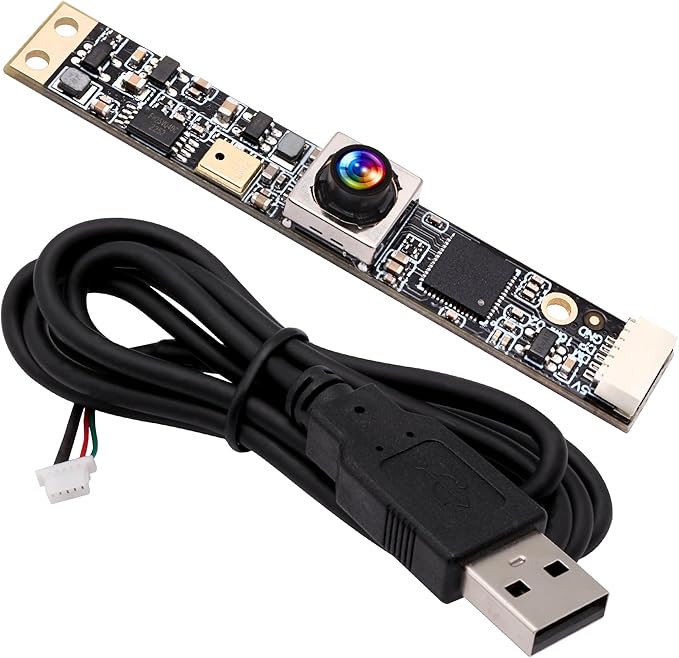

- Cable Length: 3.3ft (1M)

- Video conference

- Home video surveillance system

-Object recognition and tracking

- Dashcam

- Monitoring 3D printer

- Baby Camera

- Robot and machine vision
