16MP USB Fisheye Camera Wide Angle PC Camera for Computer Raspberry Pi Mini UVC USB2.0 Webcam Board IMX298 USB Security Camera Module 3496p Lightburn Camera for Laptop(170degree Fisheye Lens)

- High Quality Imaging: Model:IE-USB16MP01-L170 IEights 16mp usb camera module adopts 16MP IMX298 sensor for sharp image and accurate color reproduction,still picture resolution: 4656x3496 Max. - Wide Viewing Angle: Mounted a High quality 1.95mm lens, provides a wilder Field of View. Horizontal Angle:139° - Super small and Mini Size, compact lightburn camera for all kinds of machine vision. - Plug&Play: UVC compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the included USB cable without extra drivers to be installed. - Applications: 16mp usb camera is highly recommended for a home surveillance system, monitoring 3D Printer, object recognition and tracking, Bar code QR code identification scan, or other machine vision applications which demand high resolution. - Support OS"WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above" - Picture format MJPEG or YUY2 optional, USB powered Low power consumption, small outline for embedded application - Frame Rates: MJPG 10fps@4656x3496/4160x3120/3264x2448/2592x1944; 30fps@2320x1744/1080P/720; YUY2 10fps@960P/720P/800x600

Product description

IEights 16mp USB camera module wide angle fisheye pc camera for computer laptop pc

Model: IE-USB16MP01-L170 (HFOV about 139degree)

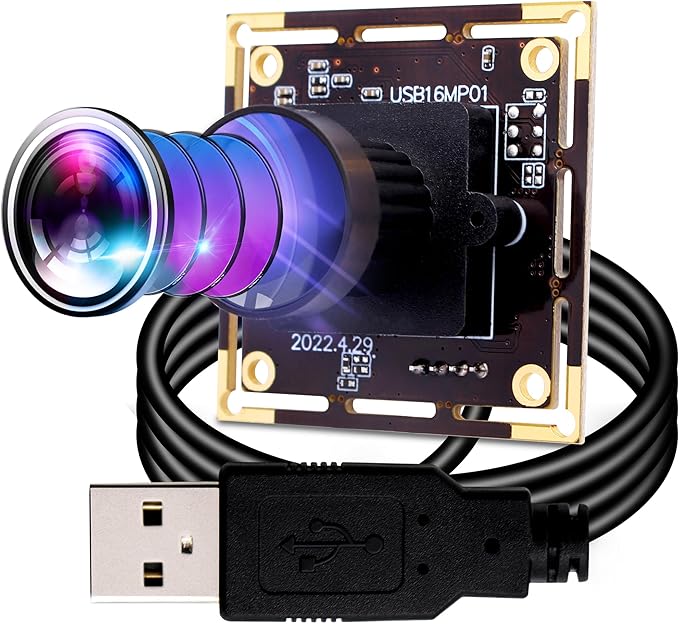

This small camera module adopts a 16MP IMX298 sensor for sharp image and accurate color reproduction, still picture resolution: 4656 x 3496 Max.

SPECIFICATIONS

Mounted a High quality 139degree wide view angle (horizontal) 1.95mm lens with IR filter, provides a wilder Field of View.

Ultra Clear

Wide Angle

Plug and Play

Wide Compatibility

Super small and mini size for your lightburn laser engraver, compact lightburn laser camera for all kinds of machine vision.

Can work with most development board, support for secondary development:

This tiny camera can be installed in the most narrow position, ideal for a home video surveillance system, dashcam, and any other vision applications.

Applications:

Camera:

- Sensor: 1/2.8” IMX298

- Resolution: 16MP 4656H x 3496V

- Frame Rate:

- Field of View (FOV)： H= 139°

- Lens Mount: M12

- Focusing Range: 2inch (5cm) to infinity

- IR Sensitivity: Integral IR filter, visible light only

- Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.

- System Compatibility: Windows, Linux, Android and Mac with UVC

- Power Supply: DC 5V

- Working Current: MAX 200mA

- Operating Temp.: 32°F~140°F (0°C~+60°C)

- Dimension: 38mmx38mm/32mmX32mm

- Cable Length: 3.3ft (1M)

Max Resolution:

4656(H)X3496(V)

Multi-Platform Support
