Arducam 12MP USB Camera Module 4K@15fps Lightburn Camera with M12 Manual Focus Lens for Raspberry Pi Windows and Mac OS
$90.99

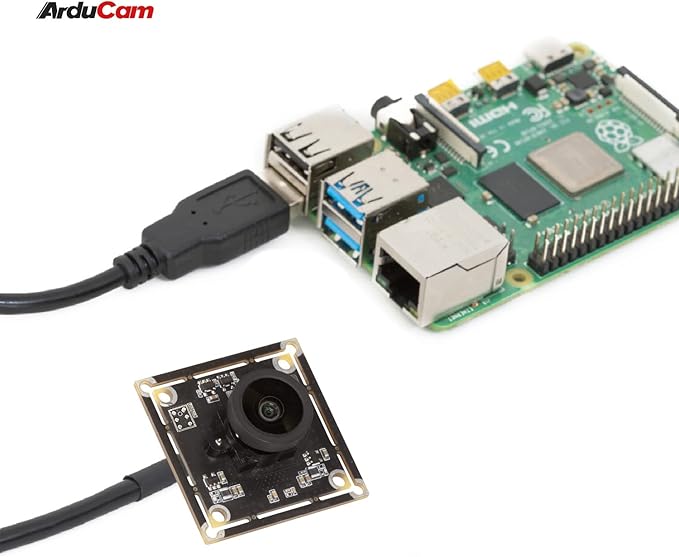

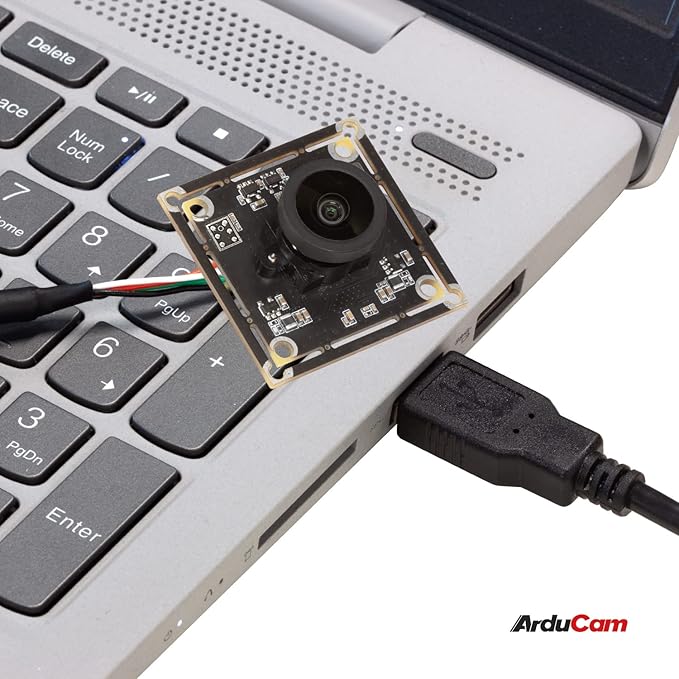

- 12MP 477M: Based on a 12MP CMOS image sensor with M12 lens; Max Resolution: 3840(H)×3032(V). FoV: 110°(H); Compression format: MJPG / YUY2 - 4k Ultra HD: Capable of Capturing the most exciting detail at 4k@15fps. - UVC Compliant: OTG supported just plug the USB cable into your PC’s USB port, and running the software can capture the high-level video and continuous recording, no driver needed. - Support OS: USB cameras are widely available for Raspberry Pi, Windows, Android, Linux, and Mac OS with UVC protocol. - Application: Perfect for embedded applications, Video systems, 3D scanners, VR cameras, electronic microscopes, and medical machines.
Product description
Specifications
Applications
MJPG:15fps@3840×3032/3840×2880, 30fps@3840×2160/1920×1080/1280×720/800×600/640×480/ 416×312
YUY2:1fps@3840×3032/3840×2880/3840×2160, 5fps@1920×1080, 10fps@1280×720, 20fps@800×600, 30fps@640×480/416×312
Color Filter Type: Color
Optical Size: 1/2.3"
Pixel Size: 1.55um x 1.55um
FOV: 110°(H)
F.NO: 2.8±5%
Interface: USB 2.0 device
Working Current: Max 300mA

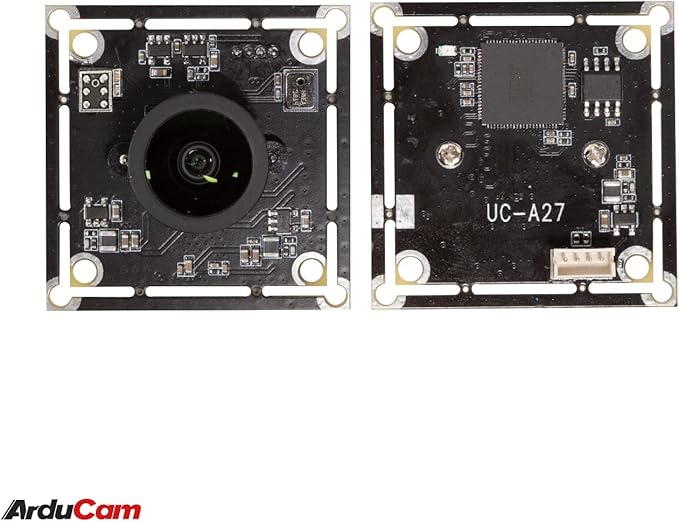

Camera Board Size: 38mm x 38mm x 16mm(Hole Pitch: 34mmx34mm, 28mmx28mm)
