Arducam 16MP Wide Angle USB Camera for Laptop 1/2.8 CMOS IMX298 Mini UVC USB2.0 4K Video Webcam with Microphone with 3.3ft/1m Cable

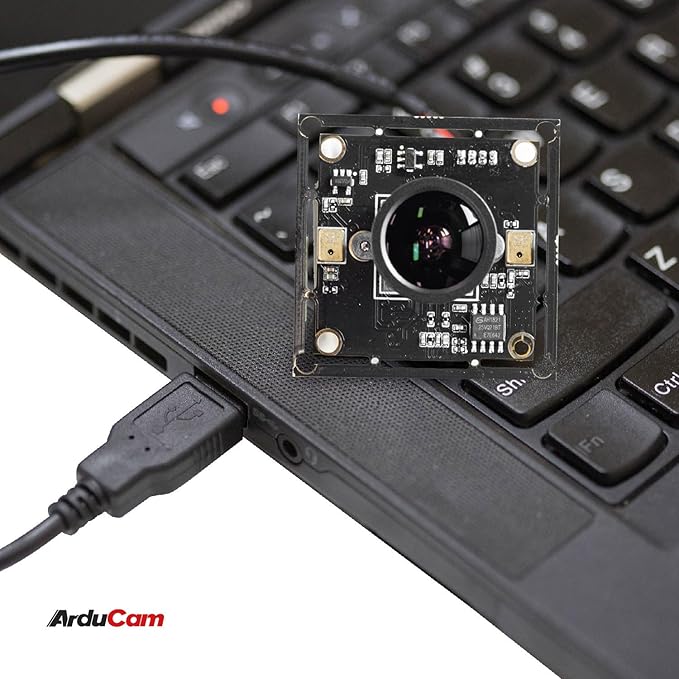

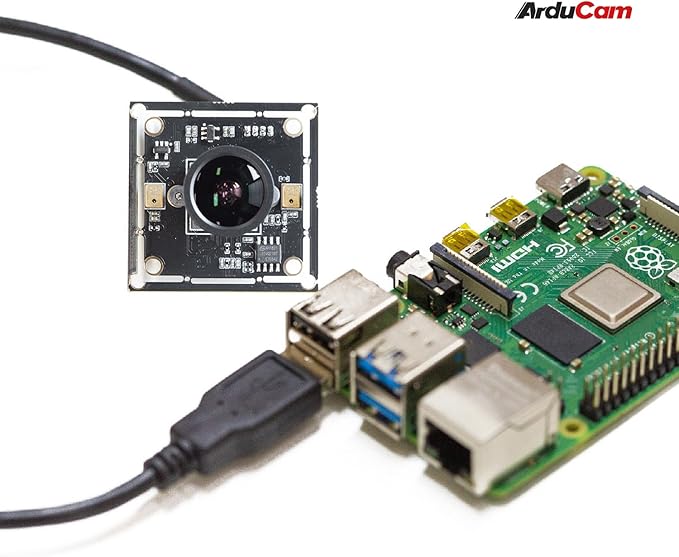

- Ultra HD: This small camera module adopts 16MP IMX298 sensor for sharp image and accurate color reproduction, still picture resolution: 4656 x 3496 Max. - Wide Angle: Mounted a High quality 105 degree wide view angle (horizontal) M12 lens with IR filter, provides a wilder Field of View. - Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed. For Mac OS, please please open the native software facetime and select the video camera “Arducam IMX298 Camera”. - High Frame Rates: MJPG 10fps@4656x3496/3264x2448/ 2592x1944, 30fps@1080P/720P/1024x768;YUY2 10fps@1024x768/640x768 - Applications: This tiny 38mmx38mm camera board can be installed in most narrow position, highly recommended for a home video surveillance system, dashcam and other vision applications demand high resolution.

Product description

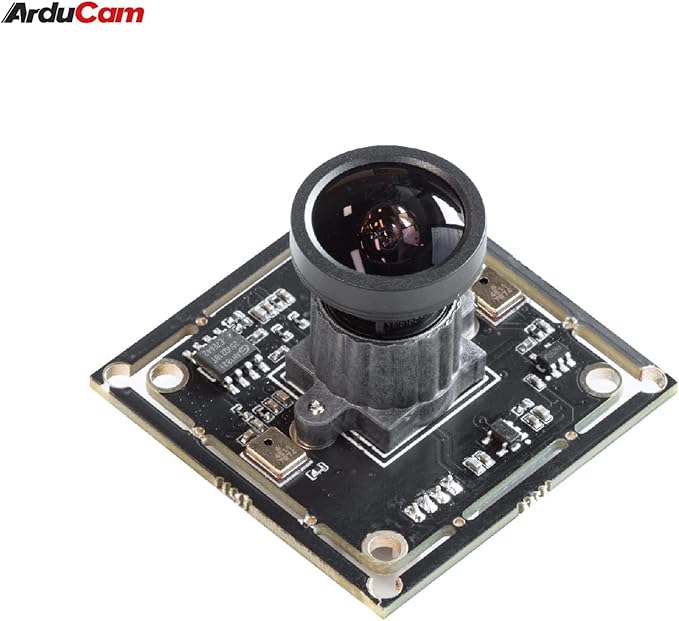

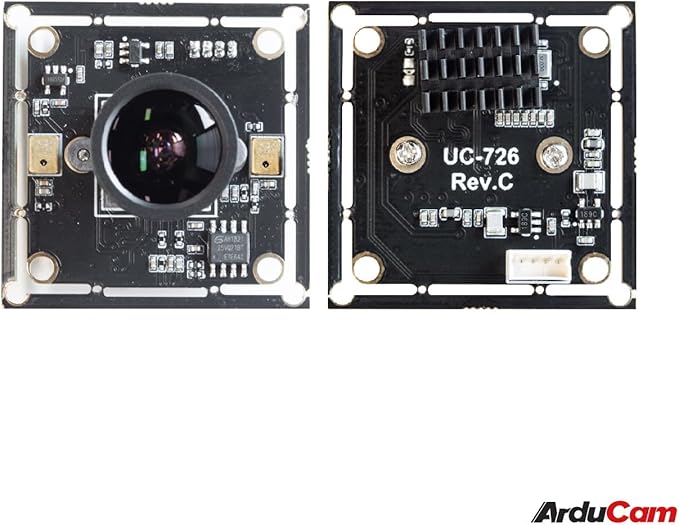

Arducam High-Resolution Camera Module B0268 is based on1/2.8” 16MP IMX298 image sensor, mounted a high quality 105 degree (H) M12 Lens, UVC compliant USB 2.0 cameras.

No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.

SPECIFICATIONS

- Sensor: 1/2.8” IMX298

- Resolution: 16MP 4656H x 3496V

- Frame Rate:

MJPG: 10fps@4656x3490/3840x2160/2592x1944/2320x1744; 30fps@1920x1080/1600x1200/1280x720/800x600/640x480/320x240

YUV: 5fps@1600x1200; 10fps@1280x720; 15fps@800x600; 20fps@640x480/320x240

- Field of View (FOV)： H= 105°

- Lens Mount: M12

- Focusing Range: 3.3ft (1M) to infinity

- IR Sensitivity: Integral IR filter, visible light only

- Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.

- System Compatibility: Windows, Linux, and Mac with UVC

- Power Supply: DC 5V

- Working Current: MAX 200mA

- Operating Temp.: -4°F~167°F (-20°C~+75°C)

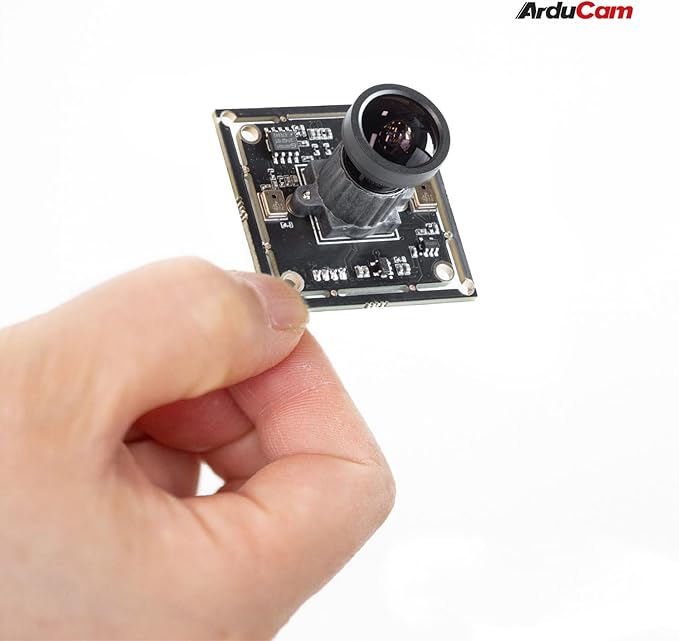

- Dimension: 38mmx38mm

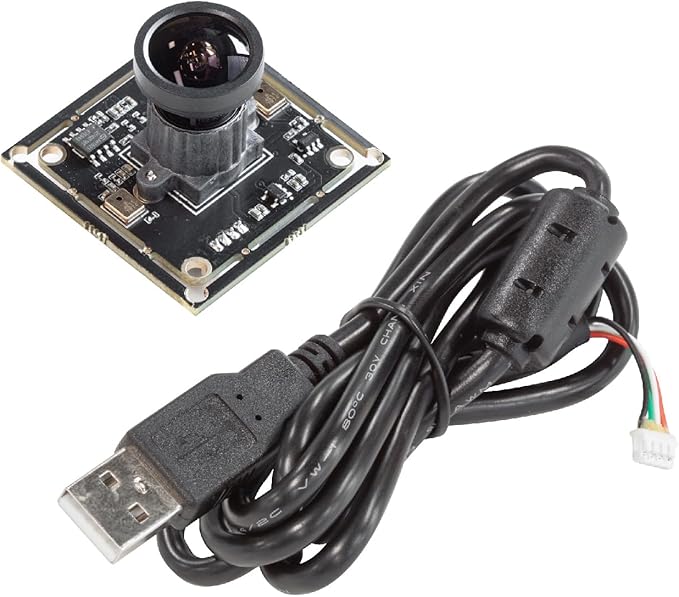

- Cable Length: 3.3ft (1M)
