CKLau 4Kx2K 8 Port HDMI KVM Switch with Cables and USB 2.0 Hub Rack Mount KVM Switch Supports Keyboard Mouse Switching for Windows Linux Mac Debian Ubuntu Fedora Raspberry Pi and Ubuntu

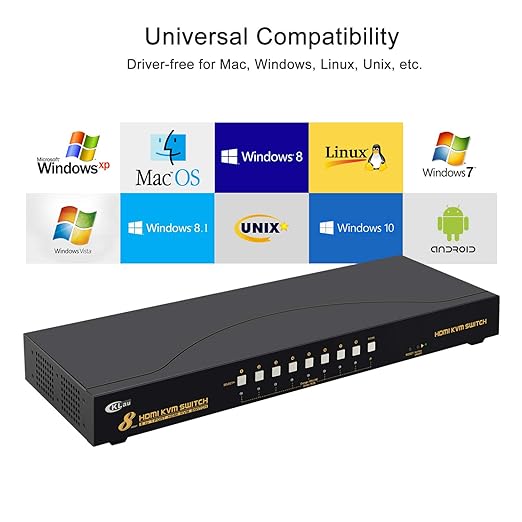

- 1. 8 In 1 Out HMI Monitor Switch: 8 computers/laptops/DVRs/NVRs sharing one set of keyboard & mouse, 1 monitor and 1 USB 2.0 peripheral. With all input cables. Support Apple keyboard(Hot Key is changeable), wireless/wired keyboard&mouse, unify keyboard. Support touch screen, OLED screen, widescreen, etc. - 2. KVM USB HDMI Switch: Certified HDMI Adopter: we are certified HDMI adopter over 10 years. Excellent image processing and transmission capacity, make the output signal more smoothly and steady. - 3. 8 Port USB KVM Switch: Four switching way optional: Hotkey switching(Num Lock + Num Lock + 1 / 2 / 3 ... + Enter, or Ctrl + Ctrl + 1 / 2 /3 ... + Enter, or Scroll Lock+ Scroll Lock+1 / 2 / 3 ... + Enter), mouse switching (click mouse wheel 2 times + left button/right button), manual button switching, wired remote push button switching. - 4. KVM Switch USB HDMI Switch with USB: Resolution Compatible 3840x2160@30Hz, 3840x1620@30Hz, 3440x1440@30Hz, 3840x1080@30Hz, 3200x1800@30Hz, 2560x1440@30Hz, 2048x1536@30Hz, 2048x1280@30Hz, 2048x1080@30Hz, 1920x1200@30Hz, 1920x1080@30Hz, etc. Drive-free for Windows 10/7/2000/XP/Vista, Linux, Mac, Debian, Ubuntu, Fedora, Raspberry Pi, Ubuntu, etc. - 5. Rack Mount KVM USB HDMI Switch: It can switch by mouse or keyboard independently, even it without USB signal input, such as Apple TV, Android TV box, etc. And it can enter into BIOS interface directly.

Product description

CKLau 8 In 1 Out HDMI KVM Switch

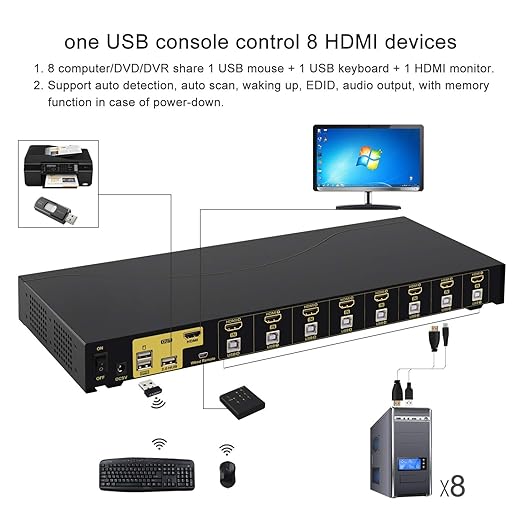

CKLau 8 Port USB HDMI KVM Switch Diagram

CKLau 8 Port KVM USB Switch Supports Emulation EDID

This 8x1 HDMI KVM Switch More Advantage

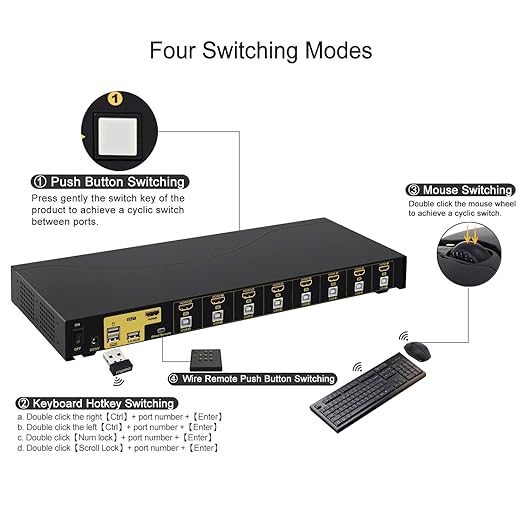

4 Switching Way Optional

USB KVM Switch 4K Computer Monitor Switch Keyboard Mouse Monitor Switch

Installation Step

1. Connect the KVM switch and computers by HDMI cables and USB 2.0 cables that come with the KVM switch;

2. Connect the KVM switch and monitor by HDMI cable;

3. Plug the keyboard into the keyboard slot, plug the mouse into the mouse slot of the KVM switch, plug the wired remote push button switch/other USB device into the KVM switch if needed.

Datasheet

USB connection: 8

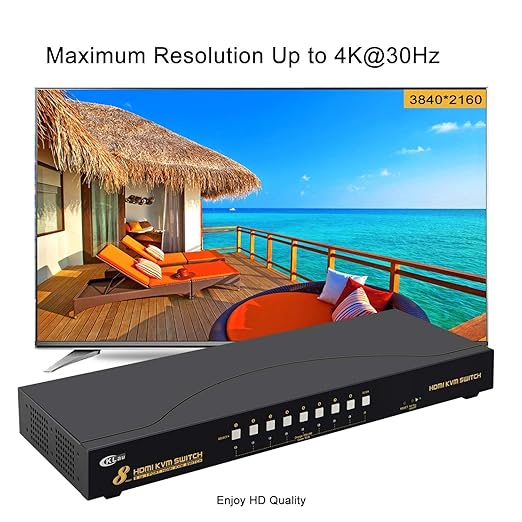

Monitor max resolution: 4K x 2K @30Hz

Scan interval: 8-999 seconds

Power consumption: DC5V 3.2W

Properties: housing metal

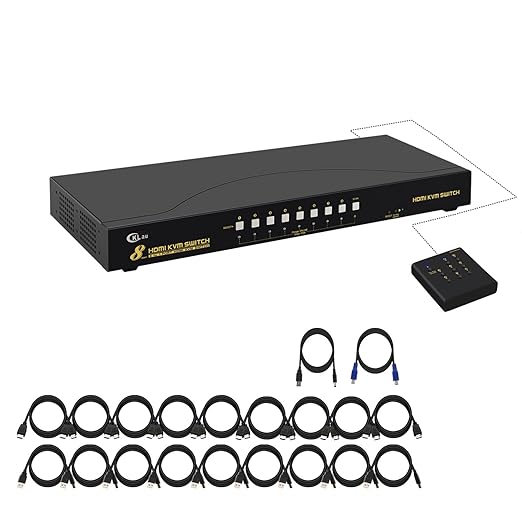

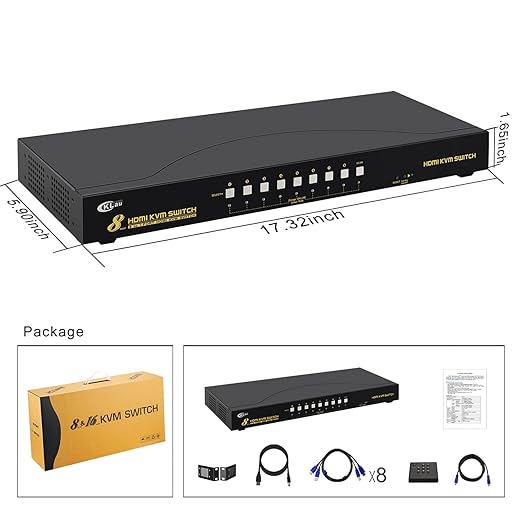

Package: 1 x 8 Port KVM switch + 1 x DC 5V 2A Power adapter + 8 x HDMI Cable + 8 x USB 2.0 cable + 1 x User manual + 1 x wired remote push button

Tips: The KVM switch comes with a DC5V 2A power adapter, we suggest you plug it into the KVM switch and AC socket, to avoid damaging your devices cause the power supply is not stable.

Questions & Answers:

1. How to reset the KVM switch? (You can reset the KVM switch when you meet USB disconnect or monitor issue)

Step 1. Turn off the KVM switch and all of your computers/laptops, then unplug all the cables;

Step 2. Plug the DC5V 2A power adapter into the KVM switch and AC socket, and turn on the KVM switch (There is an o/f button on the back);

Step 3. Plug the keyboard into the keyboard slot of the KVM switch;

Step 4. Click right [CTRL] on the keyboard 2 times, then click [ESC] 3 times, at last click [ENTER]. (The whole operation time should not be over 2s after you hear a beep sound, that shows operated successfully);

Step 5. Plug USB 2.0 cables, and HDMI cables into the KVM switch and computers, plug HDMI cable into the KVM switch and your monitor; plug the mouse into the mouse slot of the KVM switch; plug other USB devices into the USB 2.0 Hub of the KVM switch if needed;

Step 6. Turn on your computers.

2. How to turn off the Beep sound? (Beep sound default turn on, you can turn it on or turn it off by the step)

You need to keep the HOTKEY ON/OFF key turned on(when it turns on, its LED light), plug the keyboard into the keyboard slot, and make this operate: click right [CTRL] on the keyboard 2 times, then click [B], at last click [ENTER]. (Whole time should not be over 2s, that shows operated successfully when you hear a beep sound.)

3. My gaming keyboard and mouse can't work properly.

The hotkey function default turns on.

For gaming/mechanical/unified keyboard/mouse, that may have a compatible issue, if they can't work properly, we suggest you turn off the HOTKEY ON/OFF key(when it turns off, its LED light turns off). Or you can plug your keyboard/mouse into USB 2.0 Hub port, and then solve the issue.

We have been certified HDMI adopters for over 10 years.

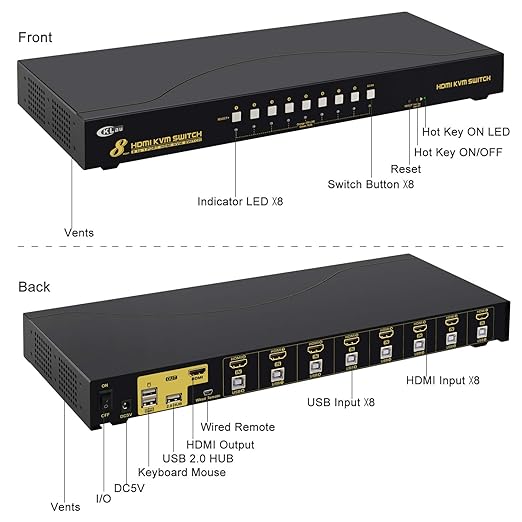

With Hotkey On/off key, you can turn on/turn off hotkey function by this key.

With a USB 2.0 Hub port, can share printer/other USB device between computers.
