Docking Station Dual Monitor USB C to Dual HDMI Adapter 10 in 1 Laptop Docking Station 3 Monitors with HDMI/VGA/PD/Ethernet/USB/SD/TF/3.5mm Audio

- 【USB C Docking Station 10 IN 1】With this laptop docking station, you can easily fulfill your daily use by extending one USB C port to Dual Monitor 4K HDMI, VGA, 2 * USB 3.0 ports (5Gbps), USB C Power Charging Port (max 100W), Gigabit Ethernet up to 1000Mbps, USB C Data,SD/Micro SD card readers and 3.5mm audio(Microphone voice function not supported). (Please Notice: If you use it connected to a MacBook, it only supports mirroring mode, not multiple monitors.) - 【USB C Docking Station Triple Display】 The docking station dual display expands to dual HDMI + VGA through 1 USB C port. When only one port works, the HDMI port supports 4K@30Hz resolution, and VGA supports 1080P@60Hz. When two or more work: 1) HDMI 1 + HDMI 2: 4K@30Hz; 2) HDMI 1 + VGA: 1080P@60Hz; 3) HDMI 2 + VGA: 1080P@60Hz; 4) HDMI 1 + HDMI 2 + VGA: 1080P@60Hz; (Note: When dual HDMI and VGA work simultaneously, the monitor connected to VGA follows HDMI 1). - 【Gigabit Ethernet】USB C To Gigabit Ethernet Adapter, provide stable wire Ethernet condition, making your work more effective. Speed up to 1000Mbs. Plug-and-play, no need to install any driver or software. - 【USB C Docking Station Triple/triple Display】The dual monitor docking station for Dell laptops will help you achieve dual and triple monitor display easily. Windows supports MST (Extended Mode) and SST (Mirror Mode). Display three different screens at the same time. Due to the limitation of MacOS, MacOS only supports SST (Mirror Mode: Display the same image). All the above modes are based on DP1.4 laptops and monitors. - 【100W PD Powerful Charging and 3.5mm Audio】The Type-C PD port supports the PD 3.0 protocol to quickly charge your device or laptop, supporting 100W power input; for safety reasons, the power output (charging) is limited to 85W. In addition, the Docking station for HP has a 3.5mm audio port to help you connect wired headphones so that you can enjoy music without disturbing others. (Note: The PD Type-C port does not support data transmission and Charger and power cord not included, The 3.5mm Audio Port not supported with mic.) - 【Widely Compatibility】The USB-C dock dongle hub multiport adapter compatible with all laptops with Mac air, Mac pro, iMac, iPad Air, Lenovo Yoga 720/910/920/930; Dell XPS 13 Laptop 9315 9340 9315 9350 9360 9370 9380; Dell Alienware m16/x16/m18; HP EliteBook 830 G8/G9 Pro; HP Envy x360 13-bd0080ng; etc. The Docking Station comes with 12 months after-sales service and 24 hour online technical support. If the Docking Station does not work properly for you, please feel free to contact us.

Product description

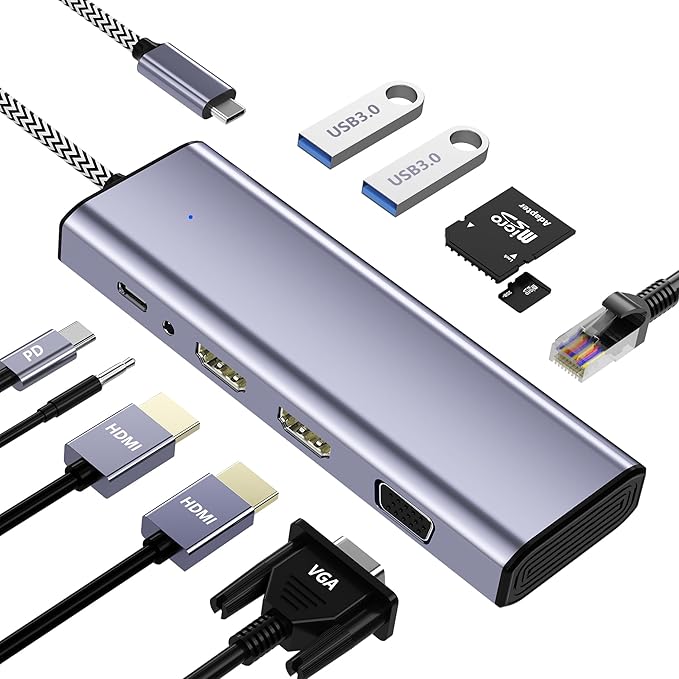

10 IN 1 Laptop Docking Station

100W Power Delivery

USB C HDMI Multiport HUB

Important note:

Note: NOT for all USB-C port laptops, Make sure your laptop or PC supports ” Thunderbolt 3” ” Thunderbolt 4”or “displayport output mode（DP ALT mode）

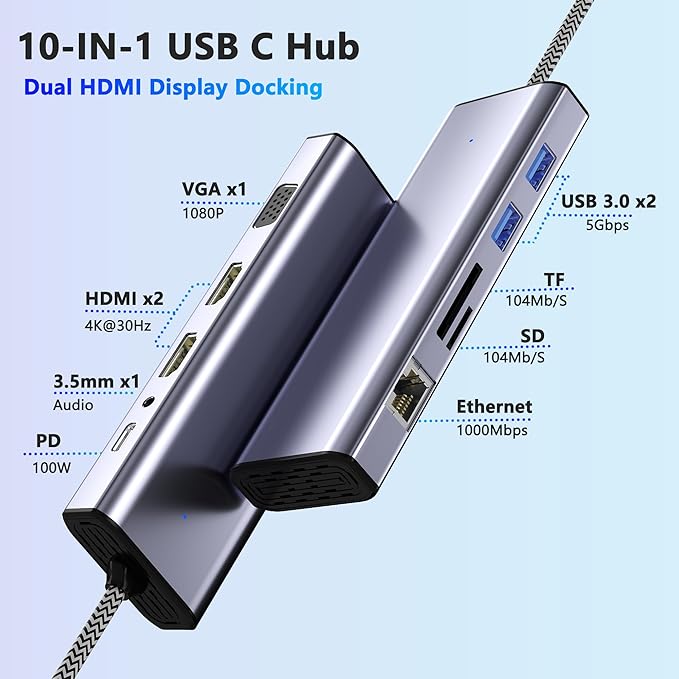

10 in 1 USB C Dual HDMI Adapter USB C Docking Station Dual HDMI Monitors for Windows/iOS/Linux/Android System

1*PD3.0 Charging Port: Up to 100W input and 87W output

HDMI 1 Max resolution: 4K@30Hz

HDMI 2 Max resolution: 4K@30Hz

1*VGA: 1080P@60Hz (When VGA is connected, each monitor Max resolution: 1080P@60Hz)

2* USB A 3.0 port: Data transfer up to 5Gbps

1*RJ45 Ethernet port: 1000Mbps

1* 3.5mm port: Audio function (Microphone voice function not supported)

1*SD/TF Card reader: Up to 104MB/S(SD/TF Card reader can only be alone work writing /reading speed 20MB/S)

Note:

Please provide power for USB C Docking Station first when connecting monitors or multiple devices or high power devices.

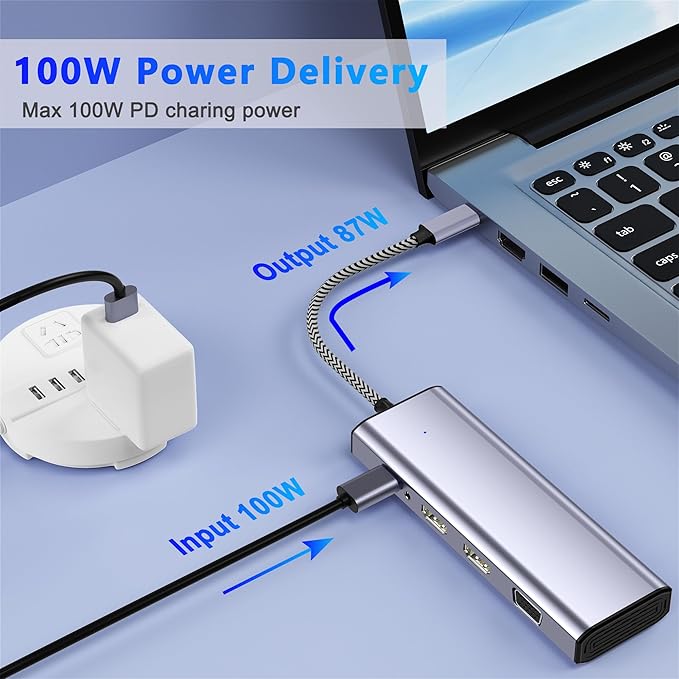

Provide 100 W Power Delivery for your USB C laptops. Use your laptop while charging without worrying about your laptop running out of power.

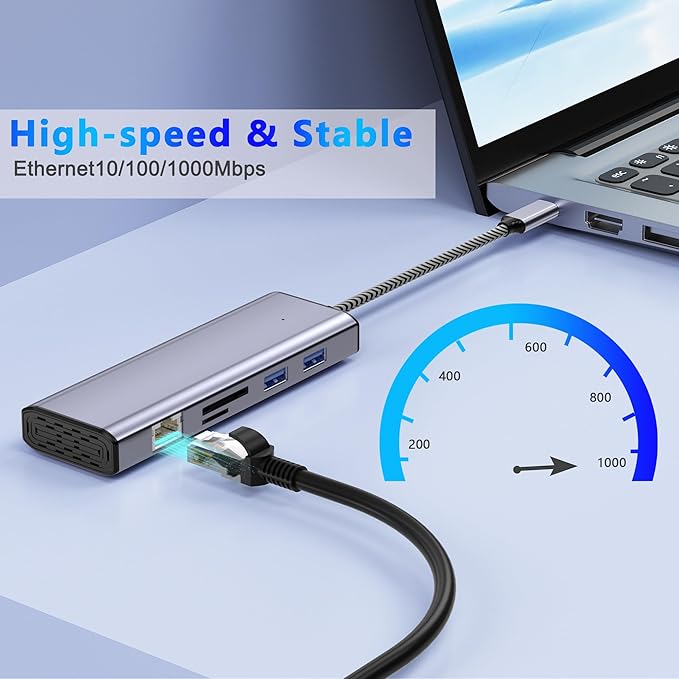

Auto-Adjusting Ethernet Port

This USB C Docking Station is for 10/100/1000 Mbps LAN networks. Simply plug in an Ethernet cable to enjoy ultra-fast gigabit Ethernet speeds and the reliability of a direct wired connection, eliminating concerns about Wi-Fi instability.

SD/TF Card Reader

SD/TF Card reader support writing /reading spend 20 MB/S, which can access files for Type-C devices, quickly view your photos or videos, good for Photographer or Designer or Video editor,etc.

Note: SD/TF cannot be read at the same time.

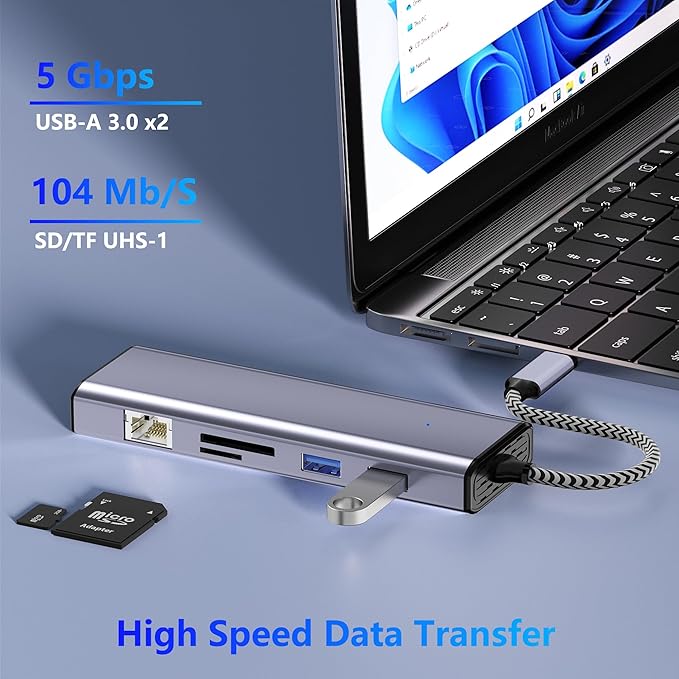

Super Fast Data Transfer

1 USB A 3.0 port ensure instant sync and file transfer at 5Gbps transfer speed accordingly, and easily connect smartphones, tablet, hard drives for effortless data transfer with USB C port. 2 extra USB A 2.0 allows you to connect keyboard or mouse without any lag.

1. Triple Display for Windows: only support the Triple display for Windows. In extend mode, allows you to display the content of your laptop to 2 monitors with maximum output up to 3840*2160@30hz resolution.

2. MST FUNCTION: Mac OS DOES NOT support triple display. only supported by Windows.

3. Mac OS System: Apple laptops, its not support extending 2 different screens, and displays are in Mirror mode only which is limited by the Mac itself. means that the two external monitors are the same. but laptop screens can display different content from them.

4. Not support some USB-C devices: To use this product the host USB-C port from your device must support DisplayPort Alt Mode For using the display function, please confirm the USB-C port on your laptop supports video output. so please let us know if your devices are not in the compatibility list of user guide.

5. 4K HDMI Display: The final resolution of HDMI output depends on your host devices. (Only when your devices support 4K resolution, the video output will be 4K). Use HDMI2.0/DP1.4 or above cables for optimum performance.

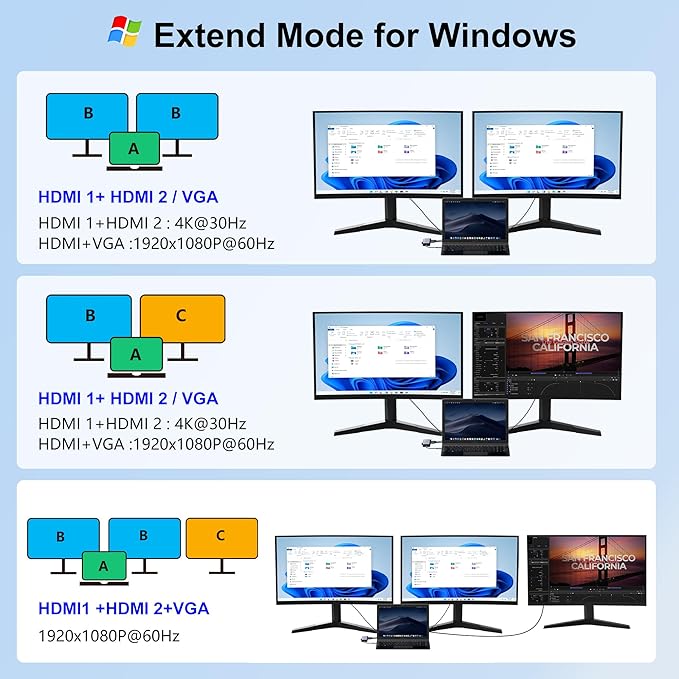

Windows System-Multiple Display Mode-Mirror Mode & Extend Mode:

Mirror Mode (AAAA Mode): The laptop shows the same images with external triple displays.

Extend Mode (ABBB and ABBC Mode): The Laptop shows different images with external triple displays, and VGA follows HDM1 (near VGA port).

How to extend monitor on Windows: When the HUB is connected to the laptop and connected to the display with an HDMI cable, you can use the shortcut key combination Win+P to select other modes such as expansion and copy, and support multiple expansion combinations such as ABC. In Windows Settings-System-Screen Settings, you can select the display order and resolution of the secondary screen through the settings, and you can change the refresh rate of the secondary screen in advanced display settings.

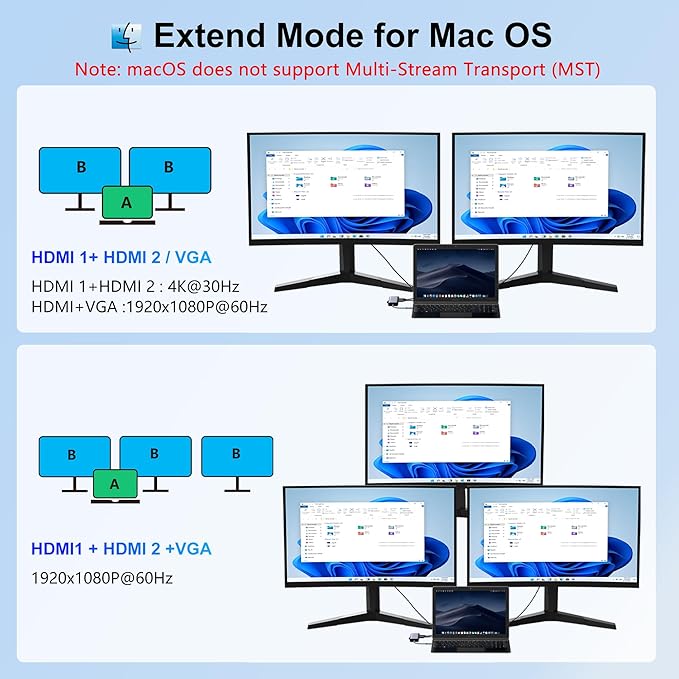

MacOS System -Mirror Mode & Extend Mode -Only SST Supported:

Mirror Mode (AAAA Mode): The Laptop shows the same images with displays.

Extend Mode (ABBB Mode): 3 external screens display the same images but are different from the laptop.

Note: ON MacOS only SST mode (AAAA and ABBB mode) is supported due to MacOS limitation.

How to extend monitor on Mac: When the HUB is connected to the laptop and connected to the display with an HDMI cable, you can change the resolution, refresh rate, mirroring and extension mode of the secondary screen in System Preferences-Display Settings, and support ABB’s extension mode and AAA’s copy mode.

What is USB-C DP ALT Mode?

DP Alt Mode allows USB-C ports to transfer dataideo via multiple interfaces, including the increasingly popular DisplayPort video interface. USB-C ports capable of transferring DisplayPort signals are either called USB-C DisplayPort or DP Alt Mode. They allow you to connect video sources (e.g. PCs, Blu-Ray players, etc.) and display devices (e.g. TVs, projectors, etc.) that support DisplayPort to each other via their USB-C ports to broadcast high-definition video.

But now not all USB-C ports feature DisplayPort Alt Mode functionality.

How do I know if my device supports DisplayPort over USB-C?

The best method to decipher whether your device supports DisplayPort over USB-C is to check either the product specs on the manufacturer’s official website or to check websites with in-depth product reviews and/or information. Within those sites you’ll be able to find detailed breakdowns of each port on the device.

Basically, Thunderbolt 3, Thunderbolt 4, and USB C 3.1 Gen 2 (or above) support video output. If you are not sure, you are welcome to ask us for a device compatibility check before purchase.
