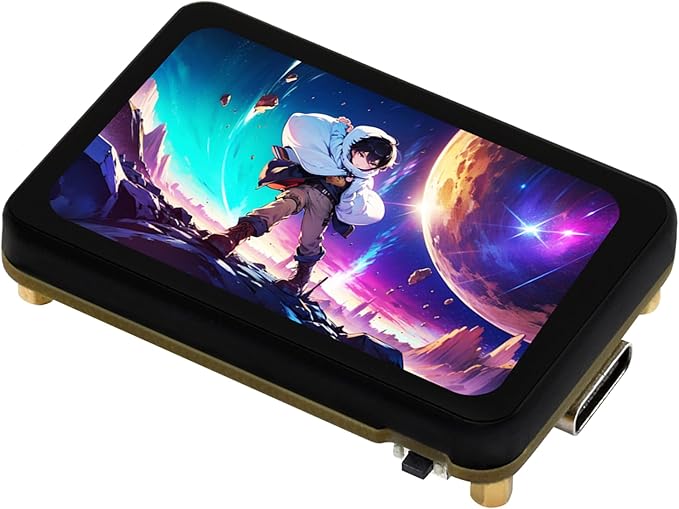

ESP32-S3 1.64inch AMOLED Touch Display Development Board 280x456 QSPI Interface Onboard Accelerometer and Gyroscope Sensor and Other Interfaces ESP32 with Display

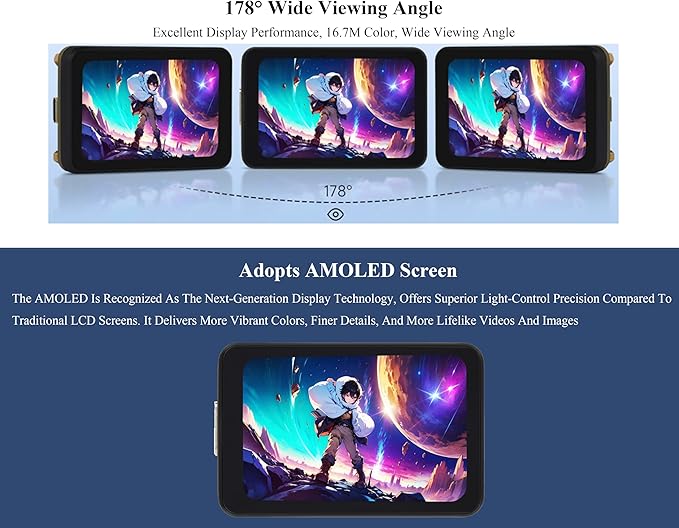

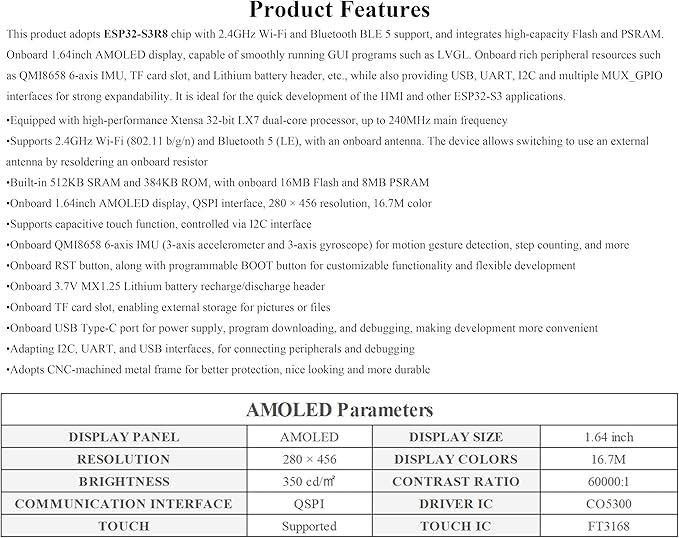

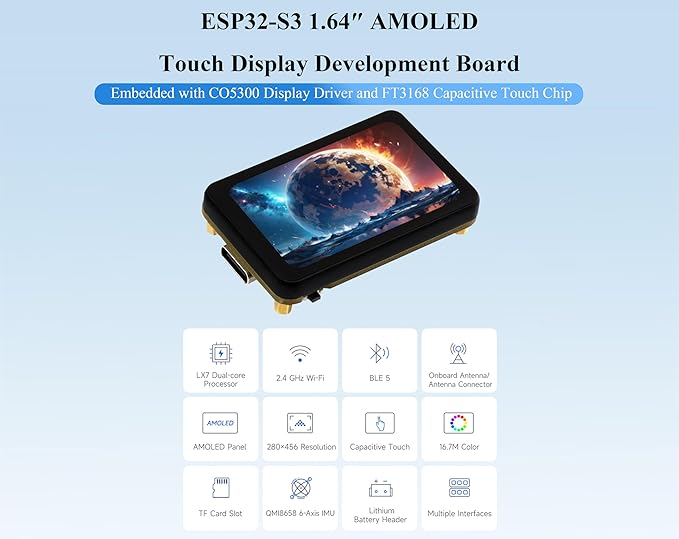

- ESP32-S3 Development Board with1.64inch AMOLED Touch Display. Embedded with CO5300 Display Driver and FT3168 Capacitive Touch Chip. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. - Supports 2.4GHz W--i-Fi (802.11 b/g/n) and Blue-tooth 5 (LE), with an onboard antenna. The device allows switching to use an external antenna by resoldering an onboard resistor. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM. - Onboard 1.64inch AMOLED display, QSPI interface, 280 x 456 resolution, 16.7M color. 178° wide viewing angle. The AMOLED is recognized as the next-generation display technology, offers superior light-control precision compared to traditional LCD screens. It delivers more vibrant colors, finer details, and more lifelike videos and images. - Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for motion gesture detection, step counting, and more. Onboard RST button, along with programmable BOOT button for customizable functionality and flexible development. - Onboard 3.7V MX1.25 Lithium batt-ry recharge/discharge header. Onboard TF card slot, enabling external storage for pictures or files. Onboard USB Type-C port for power supply, program downloading, and debugging, making development more convenient. - Supports capacitive touch function, controlled via I2C interface. Adapting I2C, UART, and USB interfaces, for connecting peripherals and debugging. Adopts CNC-machined metal frame for better protection, nice looking. - Comes with Online Tutorial Usage Guide and Online Development Resource, Please check: n9.cl/twm4t

Product description
