External SSD Enclosure USB-C 3.2 for 12+16 Pin MacBook SSD Hard Drive Reader for A1466 A1465 A1502 A1398 SSDs Mac Air/Pro mid 2013-2017 Portable Aluminum SSDs Case with Indicator

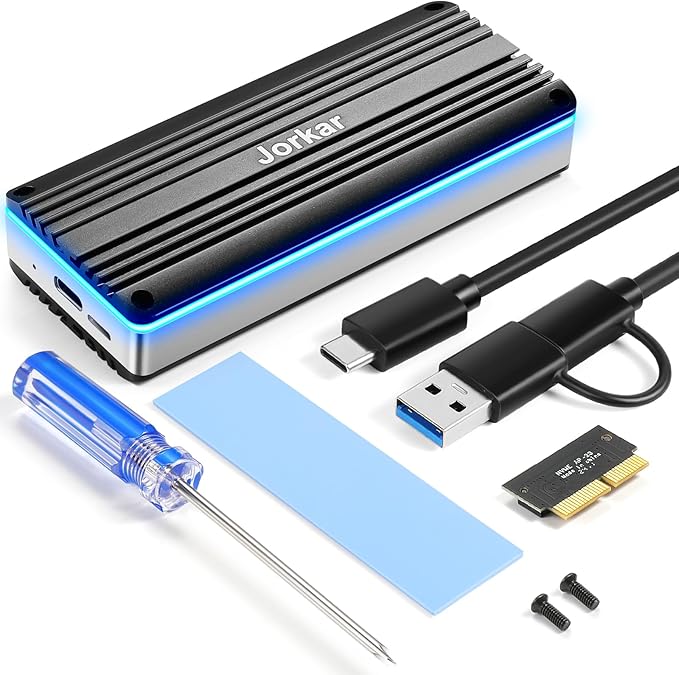

- Jorkar USB C 3.2 SSD enclosure works for Mac SSDs with 12+16 Pins mid 2013-2017 MacBook Air/pro A1466 A1465 A1502 A1398 as list in description. Please check if your ssd is the one supported before order (important). - SSD not included, just enclosure. NOT compatible with all SATA SSDs, or third-party SSDs. The SSD should be formatted first if you want to use it on Windows OS.On Windows OS, hard disk will not available on "This PC"/ "My computer", please find your drive from "Disk Management". - Jorkar USB C 3.2 SSD enclosure Support up to 20Gbps transmission speed with USB 3.2 Gen2 interface if your SSD & the computer Both supports 20Gbps. Or just 10Gbps, 5Gbps according to your ssd and your computer. - Jorkar 12+16 Pin SSD enclosure is sturdy and portable, with aluminum alloy case for quicker heat dissipation. To prevent it from being disconnected from your Mac or PC, we advise you to deselect “Put hard disks to sleep when possible” both in Battery and Power Adapter. - Note that the screwdriver in the package is a little small and not very easy to use. It's Philips 2.0. When using it, you need to align the interface, press it tightly with a little force and then rotate it. If it really doesn't work, you can find out if there is a screwdriver with Philips 3.0 at home, which will work better. We will also change bigger screwdriver with Philips 3.0 later. - If you meet "Disk Not Ejected Properly" problem, Please try to Right-click "pop-up" for the disk ssd, then unplug the USB cable, and then plug it in again to copy the files.

Product description

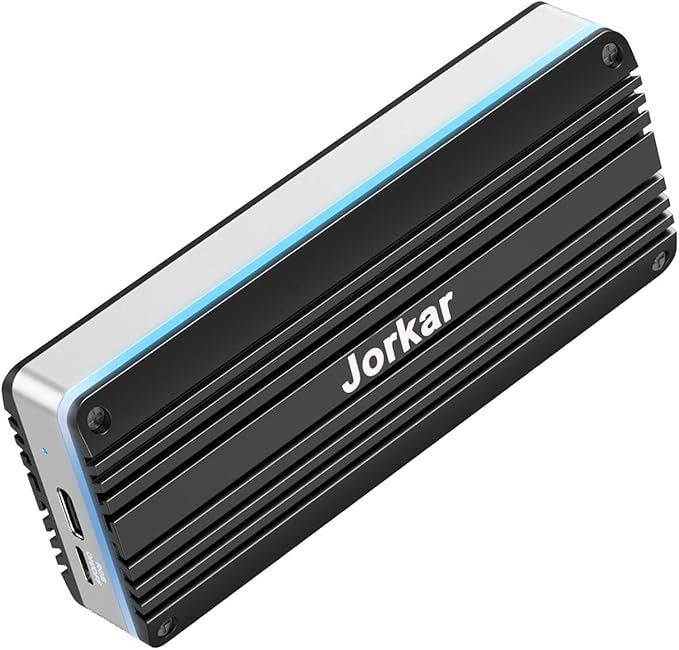

Jorkar External SSD Enclosure for 12+16 Pin MacBook SSD USB C 3.2 with Indicator

Why can't the hard disk (SSD) be displayed on the computer?

Why can't I identify/copy files on my mobile phone/computer?

Jorkar Portable SSD Enclosure, Easy Installation

QA:

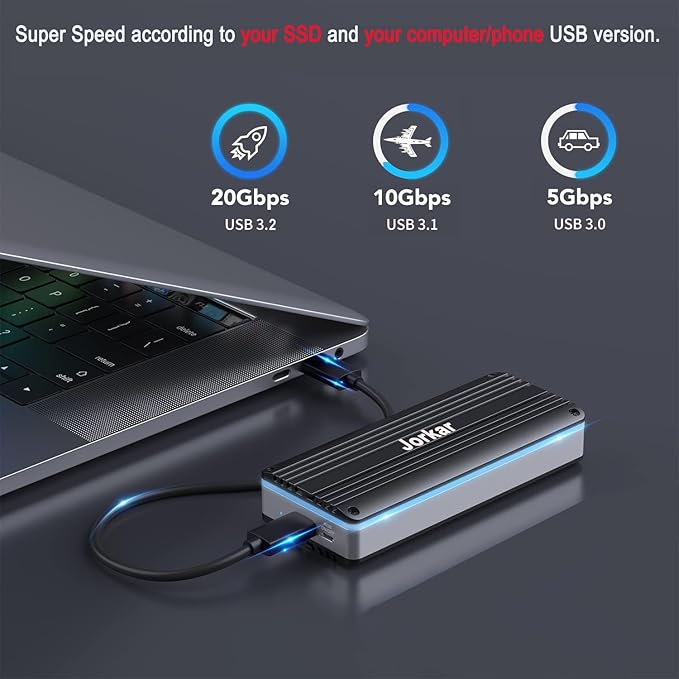

*Faster Data Transmission, Jorkar USB C 3.2 SSD enclosure Support up to 20Gbps transmission speed with USB 3.2 Gen2 interface if your SSD & the computer Both supports 20Gbps, Or just 10Gbps, 5Gbps according to your ssd and your computer.

*When macbook ssd connected to a Thunder bolt 3 or USB 3.1 Gen 2 port, both the read and write speeds can reach up to 900 MB/s.

*Compatible with a variety of operating systems, support for Windows 7/8/10 and for MacOS 10, 10.5 above operating systems.

*DO NOT Support NVMe Protocol; DO NOT Support Mac SSD with Built-in Heat System; DO NOT Suport latest macOS Sonoma.

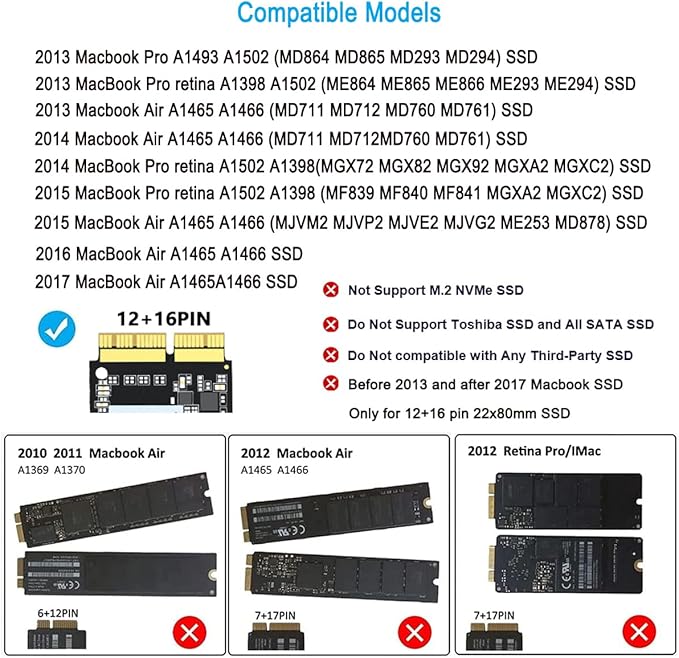

Jorkar USB C 3.2 SSD enclosure works well for Mac SSDs with 12+16 Pins mid 2013-2017 as list in description.

Please check if your ssd is the one supported before order (important).

SSD not included, just enclosure. NOT compatible with all SATA SSDs, or third-party SSDs.

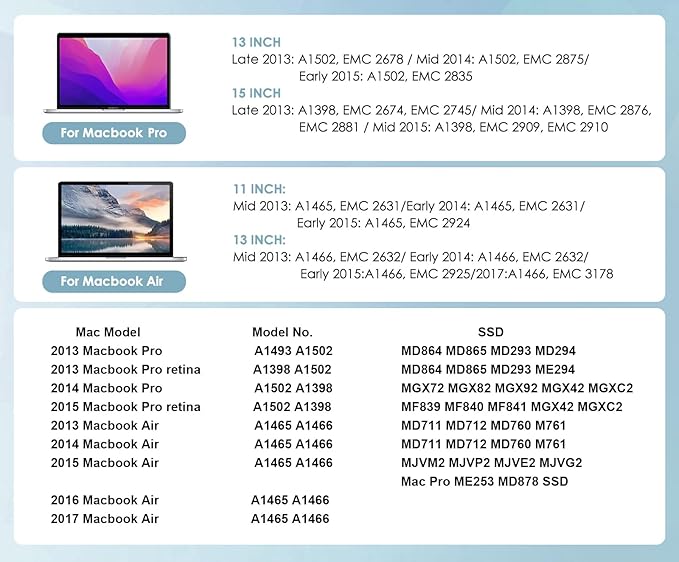

For 2013 2014 2015 2016 2017 MacBook Air, for 2013 2014 2015 2017 MacBook Pro Retina.

Be sure to check the EMC , the model and the year of your Macbook SSD.

Be sure it is your SSD's length and Width matchs our SSD enclosure.

1. Please confirm that the interface specification of the hard disk is 12+16 pin interface and insert it into the slot correctly.

2. Please confirm whether the hard disk is displayed in Disk Management/Disk Utility.

a. Windows operating system: Right-click "This PC" and select "Manage" to enter "Disk Management".

b. Mac operating system: enter "Disk Utility" in the desktop search bar and press enter.

3. If SSD is brand new, you need to format and initialize it.

For Windows operating systems, perform the following steps:

a. Right-click this pc and go to Administration > Disk Management > Initialize Disk.

b. Right-click the unallocated space and click "New Simple Volume". Click "Next" several times according to the prompt,and then click Finish.

For Mac operating systems, perform the following steps:

a. After connecting it to the external box, a prompt will appear. Right-click Initialize to start.

b. Right-click "Erase" and a window will pop up.

c. Right-click "Erase" in the pop-up window to complete SSD initialization.

4. Please insert the SSD and ensure that the SSD is not faulty.

1. Please check whether the file format of SSD is compatible with the system.

a. Windows/Android: compatible file formats are NTFS and EXFAT.

MAC OS /IOS: compatible file formats are APFS and EXFAT.

b. If an incompatible format is used, please connect to the computer to back up the data, reinitialize and select a compatible file format.

2. When using a mobile phone, it is recommended to use a hard disk with power consumption less than 4.5W.

Hard disks with power consumption greater than 4.5W may need to be connected to PD power supply for normal use.

Overheating Protection: If your ssd overheating when transfer large of data, enclosure will run the overheating protection auto and change to read-only mode, otherwise stop transfering or down the speed to avoid your ssd damaged.

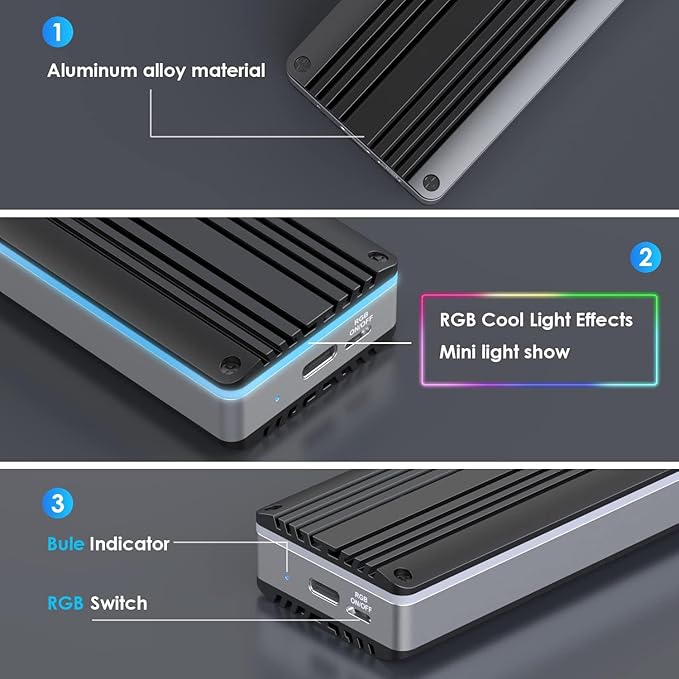

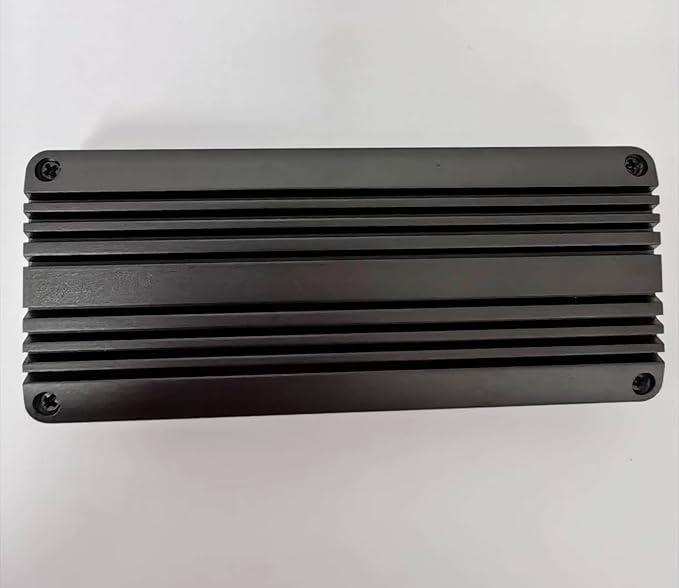

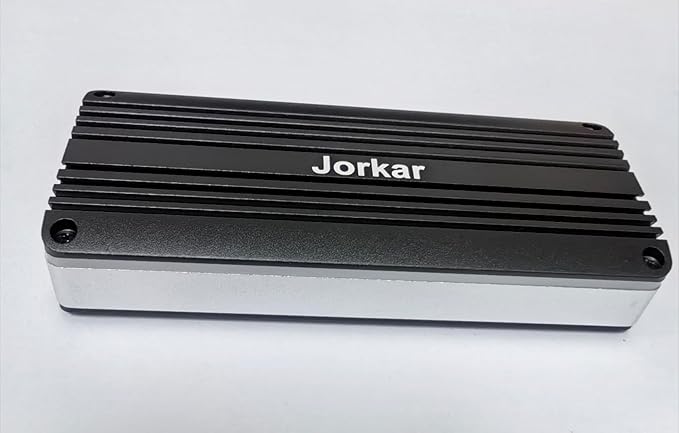

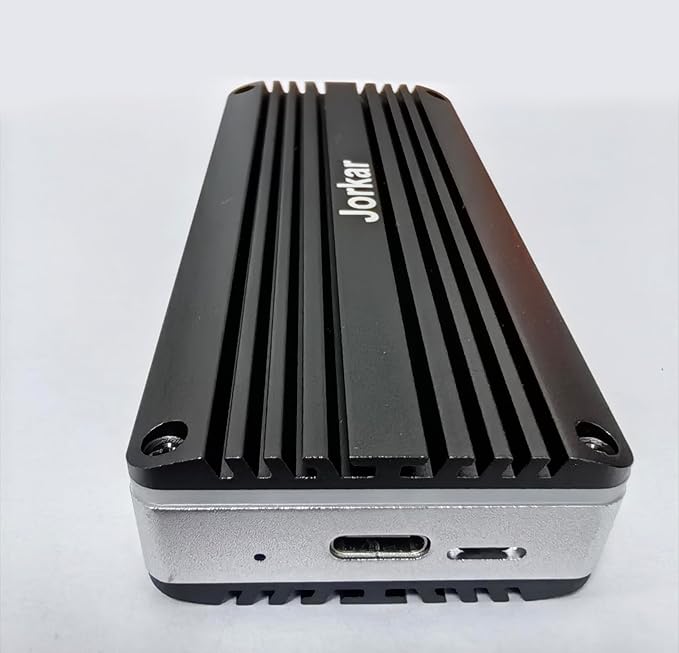

Aluminum alloy shell: full of texture, excellent heat dissipation.

Play&plug: Supports Windows, Mac system, strong compatibility, no need to drive. Support UASP with ultra fast transmission speed.

Attention:

1. Please make sure your SSD is from the following models: for MacBook Air 2013-2017 / Pro Retina 2013 2014 2015 2017 built-in SSD (NOT for MacBook 2010 2011 2012 SSDs, and NVMe protocol SSDs are not applicable.)

2. The front USB interface of some Appl desktops and Appl notebooks have insufficient power supply (weak current), so some customers said that their PC can't recognize the SSD, or are unstable, easy to disconnect, or prompt an error. In this case, please buy a docking station or a USB Hub to solve the problem.

3. Do not move the hard drive case during use, and prevent collision with the hard drive. Do not squeeze the product with external force.

4. Non-professionals should not disassemble the product or repair it.

5. When disconnecting this external hard drive, you should exit safely. If the hard drive data is accidentally lost, we are not responsible to restore any data.

6. For Mac OS PC, the hard drive should be formatted with exFAT.

7. Your internal SSD needs to be re-partitioned for normal storage and copying, otherwise it may appear unrecognizable.

8. If high transmission speed is required, please plug it into a computer equipped with USB3.0 interface.

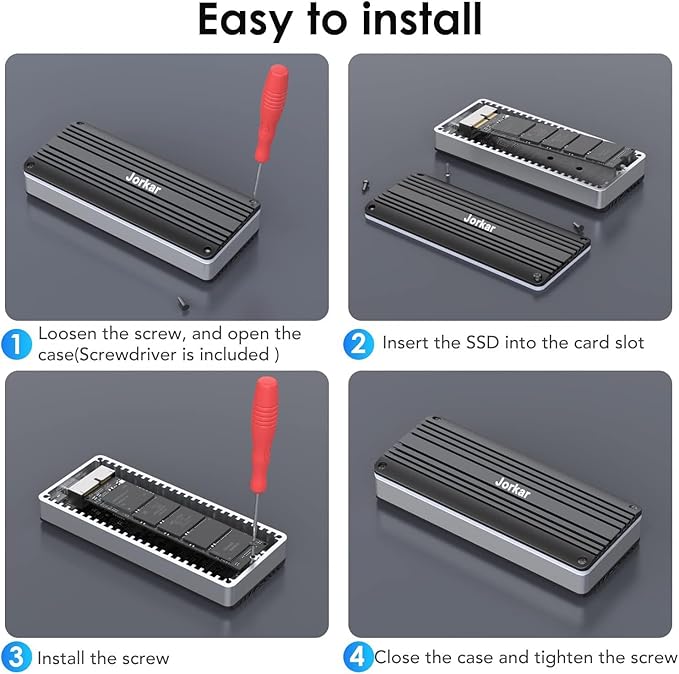

Just take out the PCB board from the enclosure, then fully insert SSD to card slot of the PCB board, then put PCB back into the enclosure and tighten the screws.

Small size, easy installation, fast transmission and convenient to use.

Q: Why doesn't the drive work after I installed it and followed the instructions?

A: Please check as follows.

1, If the indicator light is off, please check if the enclosure and device is firmly connected or if the data cable is damaged.

2, If the indicator light is on, please check if it is recognized in the system information, if not, the SSD may be damaged.

Q: Why is the MacBook SSD Enclosure very hot when it is running?

A: This is a normal phenomenon, SSD will generate a lot of heat when transferring data at high speed, the aluminum housing will conduct heat more efficiently, please install the rear housing during use, this will improve the efficiency of heat dissipation.

Q: Why does connecting other hard drives not work?

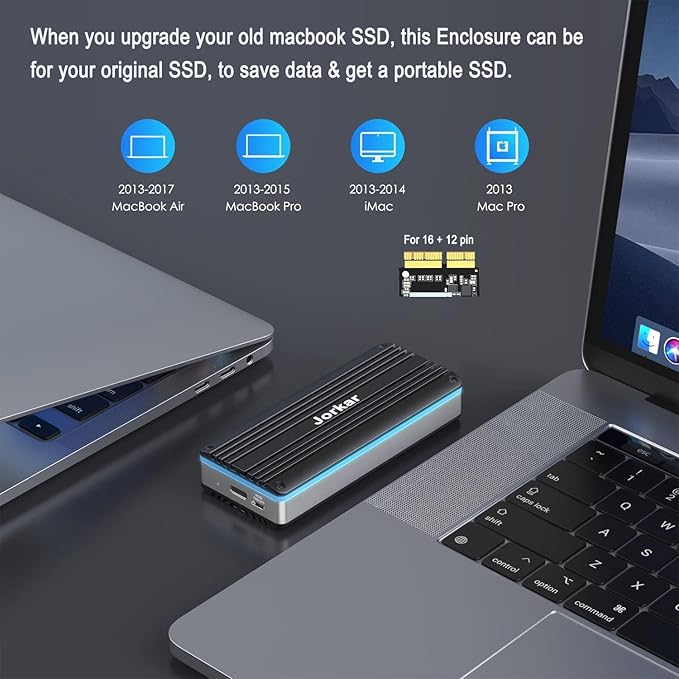

A: This MacBook SSD Enclosure is only compatible with MacBook Pro,MacBook Air, Mac Pro, iMac from 2013 to 2017. other models of SSD are not readable, please make sure the hard drive model before use.

If you are using SSD with M.2 interface, we provide M.2 adapter, please follow the adapter in advance and then install the hard drive.

Q: Why does the connect suddenly break during the use of macbook ssd enclosure?

A: 1, First make sure macbook ssd is installed properly, better tighten the screws to make sure it won't be disconnected suddenly.

2, deselect “Put hard disks to sleep when possible” in both Battery and and Power Adapter.
