Global Shutter USB Camera – 800P Monochrome Ultra High Speed 640fps Camera [120/210/420fps Modes] – Manual Focus 5-50mm CS Lens – Compatible with Raspberry Pi Linux Mac & Windows

- 【Adjustable High Speed 120-640fps Recording】Supports 160×120@640fps/MJPEG format, can clearly record extreme motion such as ballistic trajectories and fluid splashes (10 times faster than conventional cameras), and completely eliminate trailing; It offers multiple frame rate options of 120/210/420/640fps and is suitable for slow-motion analysis of rapid processes such as fluid mechanics, mechanical vibration, and ballistic tracking. - 【Global Shutter USB Camera】This USB Camera features global shutter technology to capture crisp, distortion-free images of high-speed moving objects. Eliminates rolling shutter artifacts completely for accurate, smear-free monochrome imaging, ensuring true reproduction of image details. - 【Monochrome】Equipped with a monochrome CMOS sensor, which effectively enhances sensitivity and image contrast in low-light environments. Comes with a 5-50mm CS-mount varifocal lens that supports 10x optical zoom for farther and clearer observation, and can flexibly adjust Focal Length, Focus, and Aperture to meet the needs of different machine vision scenarios. - 【Plug & Play Multi-System Compatibility】Complies with UVC standards, no additional drivers required, and is widely compatible with Windows, Linux, macOS, Android operating systems and Raspberry Pi. Connected via USB interface, it can be used instantly in PCs, laptops or embedded systems, simplifying the device deployment process. - 【Full Parameter Control & Wide Applications】Supports manual adjustment of full parameters such as Exposure, Brightness, Contrast, Gamma, and White Balance (WB) for precise image quality tuning. It has a wide range of applications, including Barcode scanning, Motion/gesture tracking, Iris/face recognition, High-speed surveillance, Industrial inspection, and Robotics.?

Product description

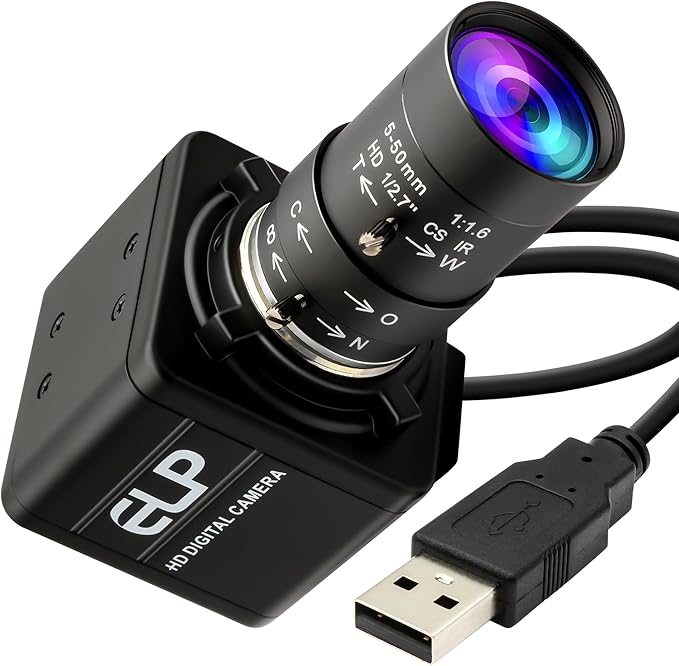

High Speed 640FPS Monochrome Global Shutter USB Camera with Manual Focus Lens

800P High Speed USB Camera with Global Shutter

B/W Infrared Webcam for Accurate Detection of Surface Defects

5-50mm 10X Optical Zoom easy to adjust

10X zoom to see further and clearer

Plug & Play, UVC compliant, Support USB2.0 OTG Protocol

Can Compaible with 1/4" Tripod

Camera Specification

More Cameras

800P 1280(H)x 800(V)

Max. Resolution

48MP 8000(H)x6000(V)

CS 5-50mm Zoom Lens

Lens

70 Degree Lens

MJPEG

Compression Format

MJPEG / YUY2 (YUYV)

0.3Lux

Mini Illumination

0.3 lux

Autofocus

3 M

Cable

1 M

800P 1280(H)x 800(V)

Max. Resolution

2MP 1920(H)X1080(V)

CS 5-50mm Zoom Lens

Lens

No Distortion Lens

MJPEG

Compression Format

H.264/MJPEG/YUV2

0.3Lux

Mini Illumination

0.01Lux

Autofocus

3 M

Cable

1 M

800P 1280(H)x 800(V)

Max. Resolution

2MP 1920(H)X1080(V)

CS 5-50mm Zoom Lens

Lens

2.8-12mm Lens

MJPEG

Compression Format

H.264/MJPEG/YUV2

0.3Lux

Mini Illumination

0.01Lux

Autofocus

3 M

Cable

3 M

800P 1280(H)x 800(V)

Max. Resolution

2MP 1920(H)X1080(V)

CS 5-50mm Zoom Lens

Lens

170 Degree Fisheye

MJPEG

Compression Format

H.264/MJPEG/YUV2

0.3Lux

Mini Illumination

0.01Lux

Autofocus

3 M

Cable

3 M

The housing is all metal and very sturdy, It has a 3 meters long cable.

Resolution: HD 1MP 1280H x 800P

High Speed: 1280x800 @ 120fps MJPEG/ 640x480 @ 210fps MJPEG/ 320x240 @ 420fps MJPEG/ 160x120 @ 640fps MJPEG

Global shutter cameras expose the entire sensor simultaneously, avoiding the motion distortion or blurring caused by rolling shutters' line-by-line scanning. They're ideal for dynamic scenes, while rolling shutters suit static or low-speed subjects.

Adjustable parameters: Brightness Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure.

Ultra-portable design with 4-pin USB connector for versatile use across devices.

The zoom and clarity dials can be locked in place with the thumb screws.

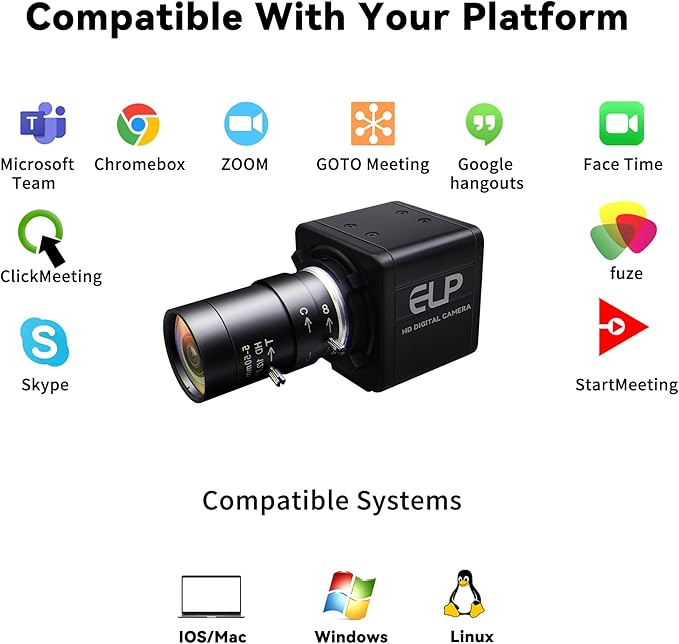

No driver installation required. It is plug-and-play and compatible with systems such as Android, iOS, Windows, macOS, and Linux. It also supports software/platforms like OBS, Amcap, Twitch, and YouTube.

Tripod do not included ! ! !

With a global shutter and distortion-free lens, it delivers clear B/W images without smear, excelling in gesture/eye tracking, iris/face recognition, and motion/depth detection. Ideal for interactive systems, high-speed barcode scanning, and surveillance.
