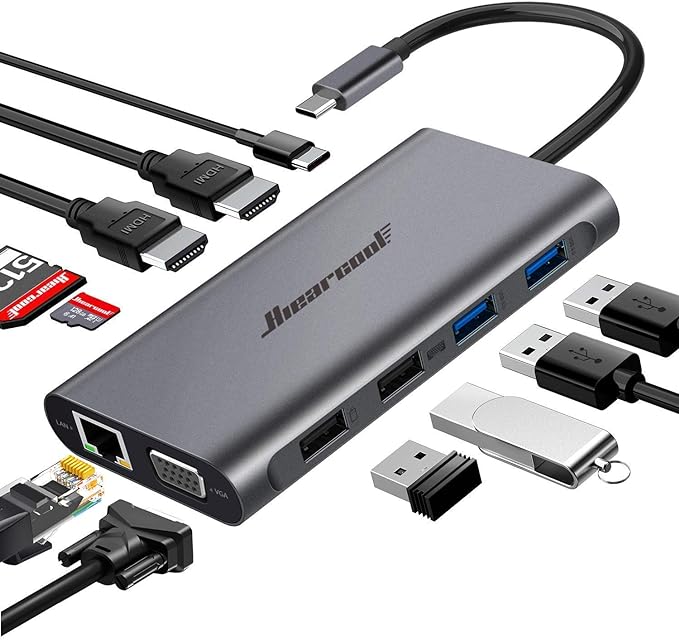

Hiearcool USB-C Docking Station for Laptop Triple Display Dock with 4K HDMI & 1080p VGA 11-in-1 USB-C Dock with Ethernet 100W Charging for Home Office

- Industry-Leading Triple Display Dock: Supports triple display setup with HDMI, VGA, and laptop screen working together. Enables mirror, extend, or video wall modes for efficient multitasking and productivity. - 4K HDMI + 1080p VGA Output: HDMI supports up to 3840×2160 @30Hz, while VGA supports up to 1920×1080 @60Hz. External displays run at their supported resolutions for stable dual-monitor use. - 11-in-1 USB-C Docking Station: Equipped with HDMI and VGA video outputs, PD charging, Gigabit Ethernet, USB 3.0 (5Gbps), USB 2.0, plus SD/TF card reader for full desk setup. - Smart Chip with 100W Power Delivery: Built with advanced smart chipset supporting up to 100W PD 3.0 (backward compatible with PD 2.0). Helps prevent overload, short circuit, overheating, and voltage instability. - Fast Data & Wide Compatibility: Supports 10/100/1000Mbps Ethernet and high-speed USB data transfer. Compatible with USB-C laptops supporting DisplayPort Alt Mode, including Thunderbolt 3 and USB-C 3.1 Gen 1/2. - Compatibility Note: macOS may mirror external displays due to system limitations. Windows systems support extended triple display. Please confirm your device supports DisplayPort Alt Mode.

Product description

Triple Display USB C DOCKING STATION

Reliable Connection & Speedy Data Transfer

High-Speed Gigabit Ethernet

Safety System Control

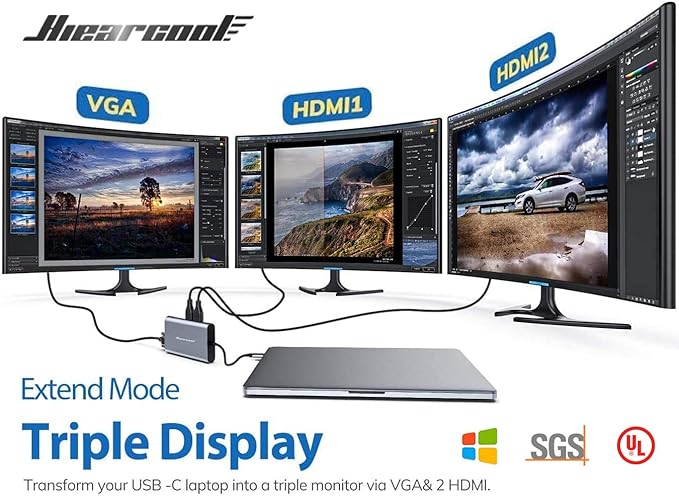

Supports a Dual HDMI display up to 3840 x 2160@30Hz, or triple 1920 x 1080 displays @60Hz with VGA. (For Apple computer user (MAC OSmac os), displays are mirror mode only.)

DP Alt mode required: Display Port Alt Mode (DP Alt Mode) allows a USB-C equipped computer to connect directly to a display or monitor.

Ensure your Laptop has a type C Power delivery port (USB 3.1 Type-C (Gen2)) or Thunderbolt 3 port (supports PD charging) before purchase.

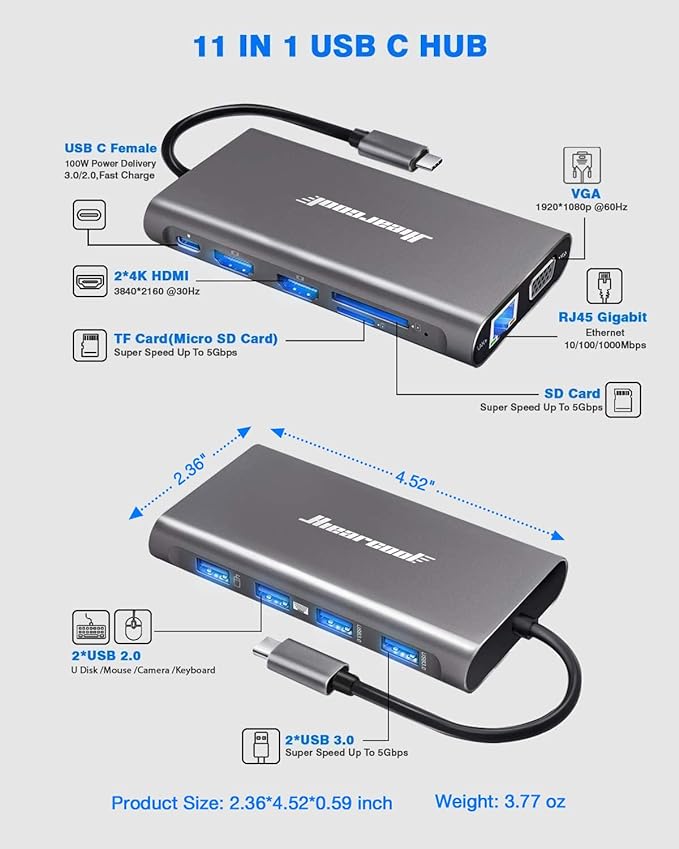

2 x USB 3.0 ports for accessories (an external hard drive or USB peripherals etc.,)

2 x USB 2.0 ports (great for wireless devices: keyboard and printers etc.,)

A laptop's wall adapter to the USB-C Power Delivery port is needed before connecting to any external hard drive or various devices' purpose.

The Type C PD Charging port for power passing-thru only. SD and the TF card cannot use at the same time.

An RJ-45 Gigabit Ethernet network port (supports 10/100/1000 Ethernet)

Set up for Macbook:

System Preferences →Network → Click Add(+) to set up a service → selecting USB 10 / 100 / 1000 LAN to create an application → Click the application to connect.

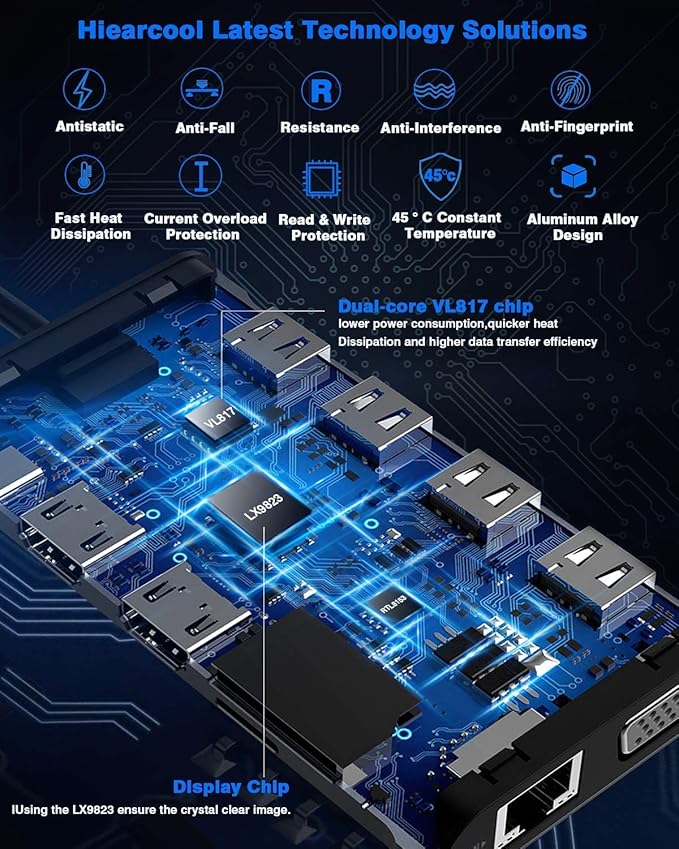

Equipped with VL817 Chip preventing overload, over-voltage, over-current, short circuit, overcharge, voltage regulation, and temperature control under 45℃.

Power will be shared between all dock-connected USB C devices. For a fast charge result, please choose over 72W Adapter to charge it.

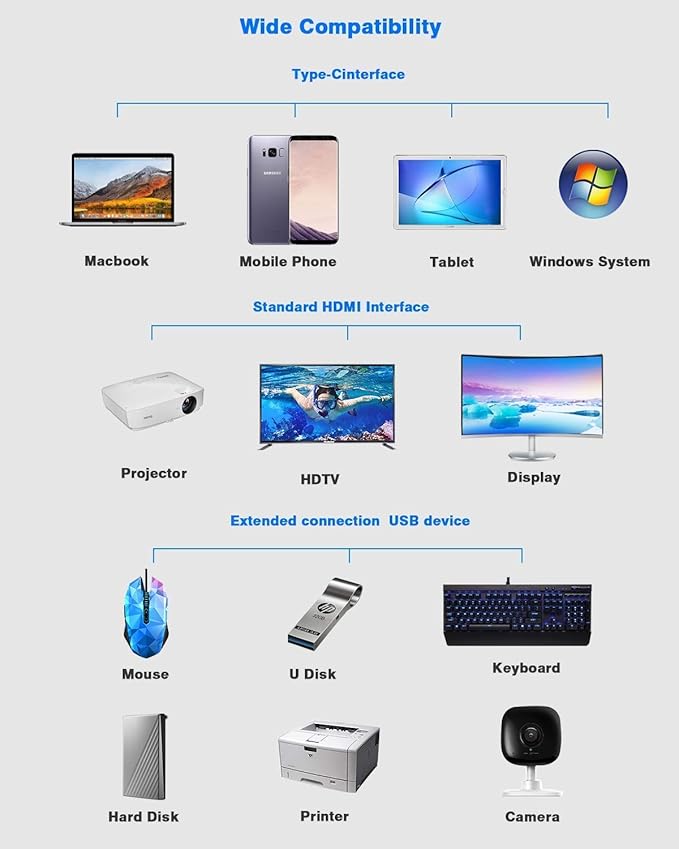

Hiearcool Laptop Docking station is compatible for specific Thunderbolt 3, Type C Gen2 or USB-C Windows systems.

The USB C ports on the Laptop are looking the same, but it has several critical differences between Thunderbolt 3, USB-C 3.1 Gen 2, and USB-C 3.1 Gen 1.

The difference between the three technologies is bandwidth.

Support Dual or Triple Display:

√ Thunderbolt 3: 40Gb/s

√ USB-C 3.1 Gen 2: 10Gb/s

√ USB-C 3.1 Gen 1： (Support Power Delivery)

DOES NOT SUPPORT USB C DISPLAY OUTPUT:

× USB-C 3.1 Gen 1: 5Gb/s (data transfer only)

Please ensure the Laptop has thunderbolt 3 / USB-C 3.1 Gen 2 /USB-C 3.1 Gen 1 (Support Power Delivery) to support various display before purchase.

Hiearcool USB C Docking Station Compatibility List(Partial):

Such as the Microsoft Surface Book 2, Surface Go, Dell XPS 9350 / 9360 / 9370 / 9380 /9550 / 9560, Lenovo Yoga 720 13" & Carbon X1 5th/6th Gen, most 13" HP Spectre x360 models, MSI GS65 /GS75 etc.,(Type C Wall adapter required for the Power Delivery)

Incompatible for Acer all series, iPad Pro 2018, Apple USB SuperDrive, Surface Book 3, and Nintendo Switch.

REMINDER：

1. For Apple computer users (MAC OS), displays are Mirror mode only.

2. Please plug in the Laptop's power adapter to the USB-C Power Delivery port before connecting an external hard drive or various display purpose.

3. The type C PD charging port is for power passing-thru only.

4. SD and the TF card cannot use at the same time.

5. Each monitor will be limited to a maximum resolution of 1920 x 1080@60Hz when connecting a dual or triple monitor.

6. Power will be a community between all dock-connected USB C devices. For a fast charge result, please choose Adapter that is over 72W to charge.

7.EDID(Extended Display Identification Data) may blackout for a few seconds(1 minute at max, depends on Laptop and monitor) when data transfer; Please be patient wait for the data completed.
