OpenMV SingTown Cam H7 Plus Genuine SingTown 5MP High Definition Image Processing Machine Learning Smart Camera Robotics OpenMV4 Cam H7 Plus

- Powerful Vision Processor: Features a 480 MHz ARM Cortex-M7 processor with 32MB SDRAM and 32MB flash, perfect for high-speed machine vision tasks. - Versatile Camera: Comes with a 5MP OV5640 sensor supporting resolutions up to 2592x1944 with an M12 lens mount for customization. - Easy Python Programming: Program with MicroPython for simple integration of complex machine vision algorithms. - Rich I/O Interfaces: Includes USB, SPI, I2C, CAN, UART, ADC, DAC, PWM, and servo control pins for versatile connectivity. - Compact and Efficient: Lightweight design (17g) with low power consumption, ideal for robotics and IoT.

Product description

The OpenMV Cam features

Interface Library

Applications

Specifications

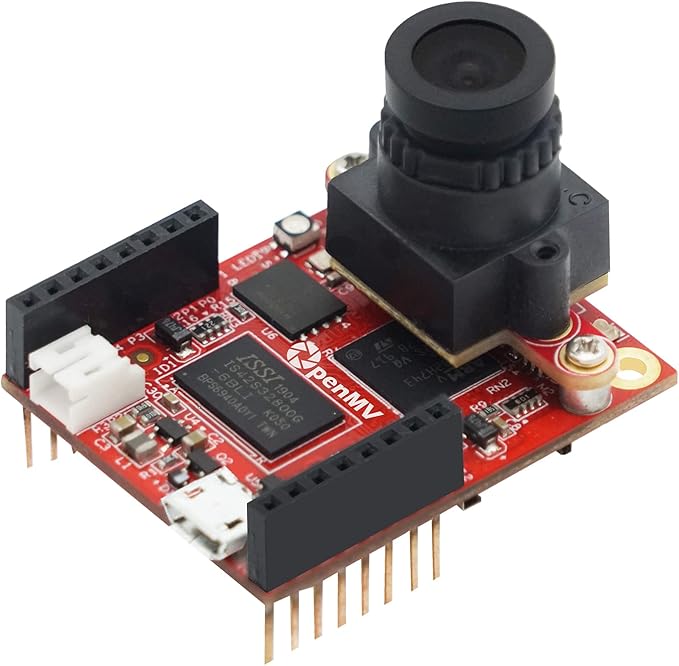

The OpenMV Cam is a small, low power, microcontroller board which allows you to easily implement applications using machine vision in the real-world. You program the OpenMV Cam in high level Python scripts (courtesy of the MicroPython Operating System) instead of C/C++. This makes it easier to deal with the complex outputs of machine vision algorithms and working with high level data structures. But, you still have total control over your OpenMV Cam and its I/O pins in Python. You can easily trigger taking pictures and video on external events or execute machine vision algorithms to figure out how to control your I/O pins.

The STM32H743II ARM Cortex M7 processor running at 480 MHz with 32MBs SDRAM + 1MB of SRAM and 32 MB of external flash + 2 MB of internal flash. All I/O pins output 3.3V and are 5V tolerant. The processor has the following I/O interfaces:

A removable camera module system allowing the OpenMV Cam H7 to interface with different sensors:

A LiPo battery connector compatible with 3.7V LiPo batteries commonly sold online for hobbyist robotic applications.

The OpenMV Cam comes built-in with an RPC (Remote Python/Procedure Call) library which makes it easy to connect the OpenMV Cam to your computer, a SBC (single board computer) like the RaspberryPi or Beaglebone, or a microcontroller like the Arduino or ESP8266/32. The RPC Interface Library works over:

With the RPC Library you can easily get image processing results, stream RAW or JPG image data, or have the OpenMV Cam control another Microcontroller for lower-level hardware control like driving motors.

OpenMV provides the following libraries for interfacing your OpenMV Cam to other systems below:

The OpenMV Cam can be used for the following things currently (more in the future):

Finally, all the above features can be mixed and matched in your own custom application along with I/O pin control to talk to the real world.

OpenMV SingTown Official Store

Genuine

5MP High Definition Image Processing Machine Learning Smart Camera

UNITS: Inches

1.40 * 1.75

==================

Length * Width * Height

45mm * 36mm * 29mm

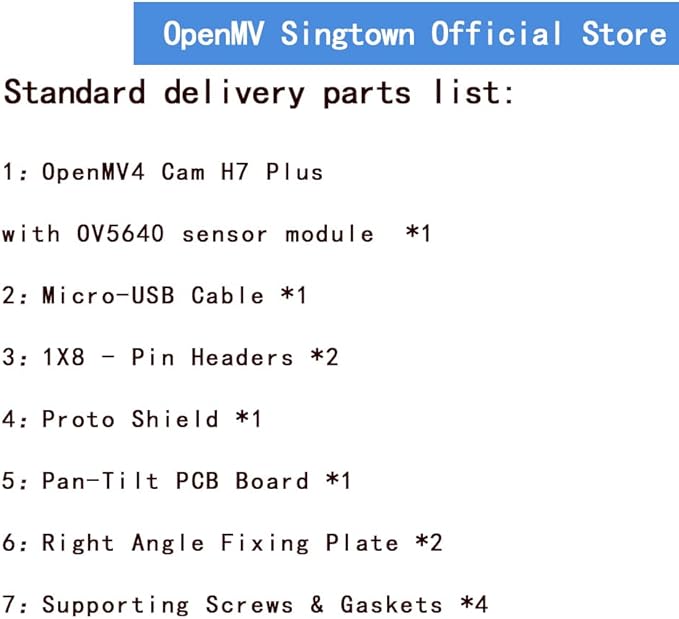

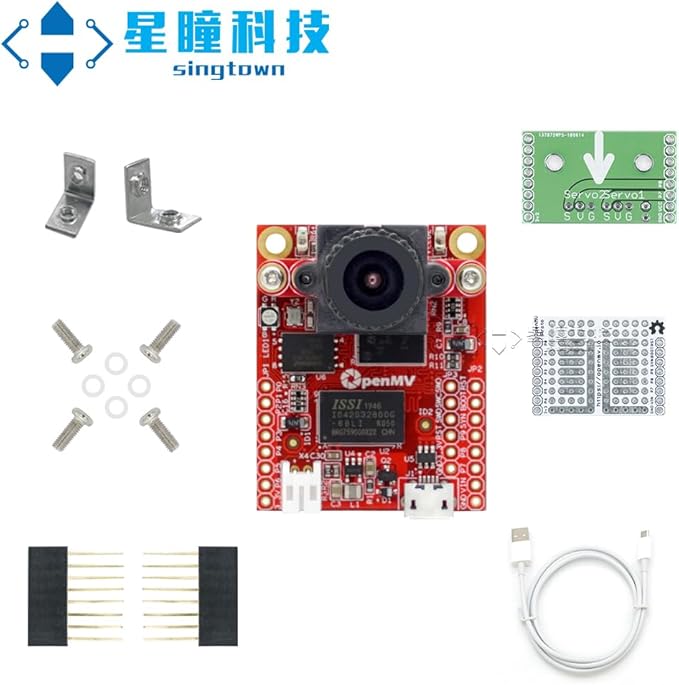

(1) OpenMV4 Cam H7 Plus

with OV5640 sensor module (5MP) *1

(2) Micro-USB Cable *1

(3) 1 x 8-Pin Headers *2

(4) Proto Shield *1

(5) Pan-Tilt PCB Board *1

(6) Right Angle Fixing Plate *2

(7) Supporting Screws & Gaskets *4
