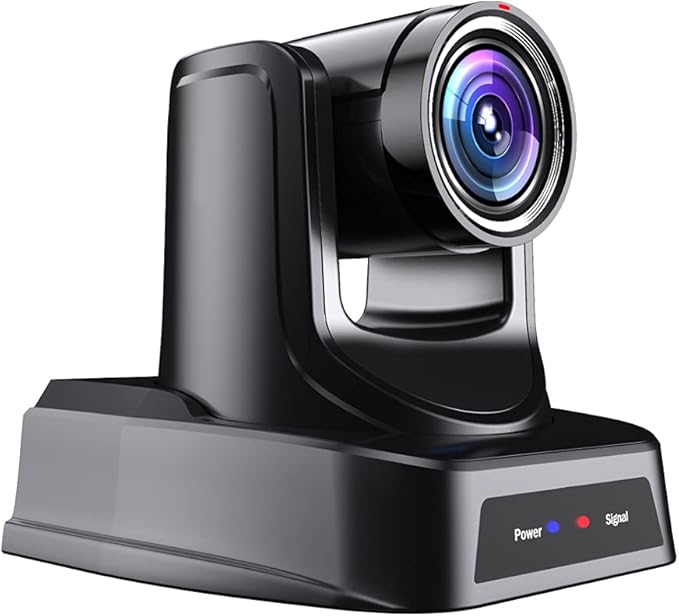

SMTAV PTZ Camera with 3G-SDI HDMI and IP Streaming Outputs 20X + 16X Zoom Video Conference Live Streaming Camera for Broadcast Conference Events Church and School

- Apply 1/2.7 inch high quality HD CMOS sensor and TAMRON Lens offers a wide 60.7 degree FOV and support 20x + 16x Zoom.The High SNR of CMOS sensor and 2D&3D Digital noise reduction supports working in 0.5 Lux Low Light well. - As a PTZ camera,supports horizontal rotation(-170° to 170°) and vertical rotation(-30° to 90°).It has multiple ways of control, such as the included IR remote controller,CGI/HTTP/Visca/Pelco-D/Pelco-P control via RS485 or RS232 or IP. - Is a Full HD professional live streaming camera and video conference camera,it can simultaneously output max 1080p@60fps video from 3G-SDI,HDMI and IP streaming(MJPEG & H.264 & H.265).Support PoE(802.3af) and RTSP, RTMP, SRT and other technologies,ability to support advanced features for live streaming. - It has a variety of installation modes, which can be used with tripod brackets, wall brackets, and ceiling brackets.For simplicity,we also offer free app to help you setting the camera.★ If you need wall or ceiling mount bracket pls serach B08SC4N9J2.★ - What can you get.20X Full HD PTZ Camera,Power adapter,IR remote control,user manual,Serial control cable.Any question, please feel free to contact us, Our support team will reply you within 24 hours.

Product description

About SMTAV

Camera Interface

Picture Quality First

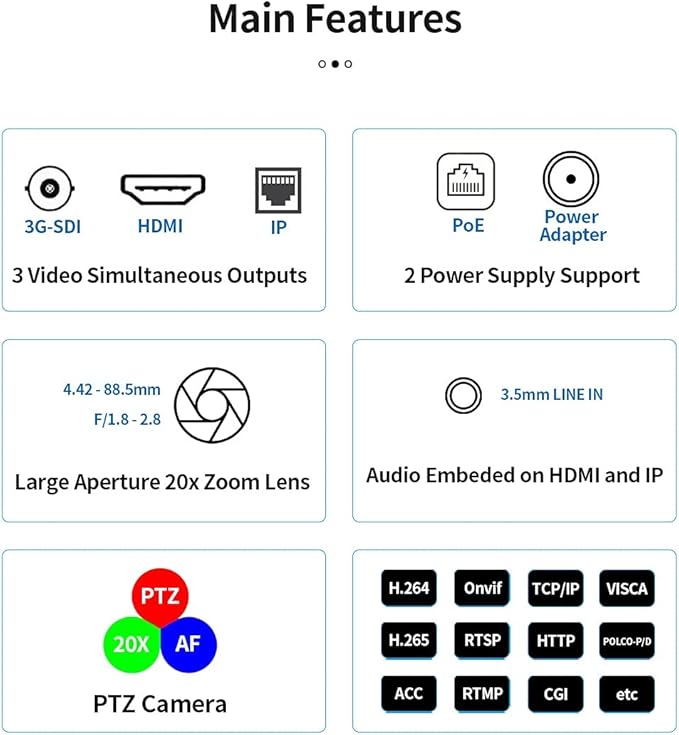

Features

Application

Main SPECIFICATIONS

SMTAV Corporation is a professional AV integration and conference solution supplier. It has been providing the high-quality video and audio products for more than 20 countries worldwide. Committed to provide and support you with the good and cost-effective products.

At present, while supplying high-quality audio and video products to many Fortune 500 companies, it has also helped many brands manufacture PTZ cameras and microphones belonging to their brands.

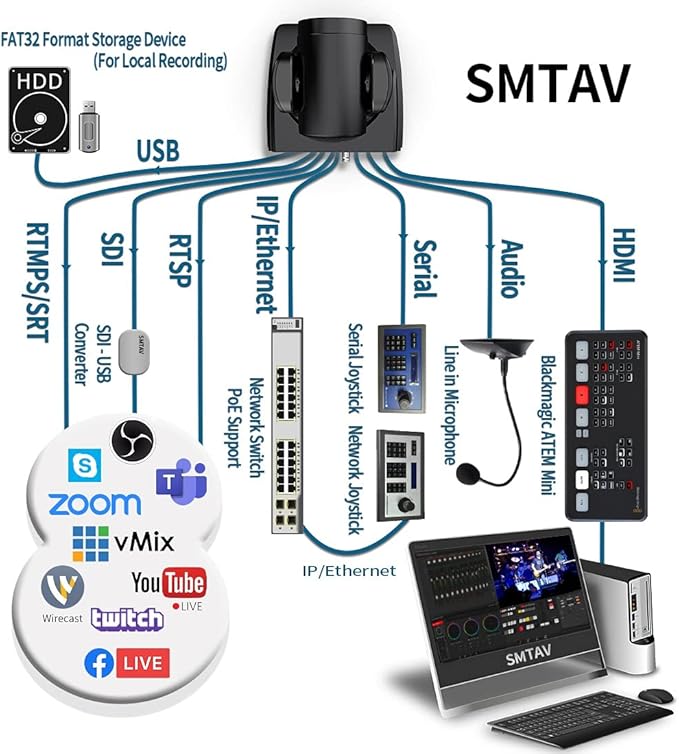

BA20S is a PTZ camera for professional live broadcasting. It basically has features you can imagine, including but not limited to multiple resolutions, multiple frame numbers and multiple output methods (SDI&HDMI&IP), H.265&H.264&MJPEG video encoding, RTSP&RTMP, and multiple control methods (Onvif/VISCA/ Pelco-D/Pelco-P/CGI/HTTP, etc.), PoE, local recording and so on. It can make video creation fun and simple.

Supports 3G-SDI,HDMI and IP Streaming to output frame rate up to 60fps in 1080P.Support TCP/IP,HTTP,RTSP,RTMP,Onvif,DHCP,Multicast,VISCA/Pelco-D/Pelco-P protocols etc.Features of broadcast frame rates, create more artistic possibilities.So,it is a ideal use for Live Streaming,Conference,Church,Teaching,Esports,Fitness Classes and Cooking demonstrations and more.

We have always believed that the soul of a camera is the most basic image quality, so we have been committed to optimizing image quality.

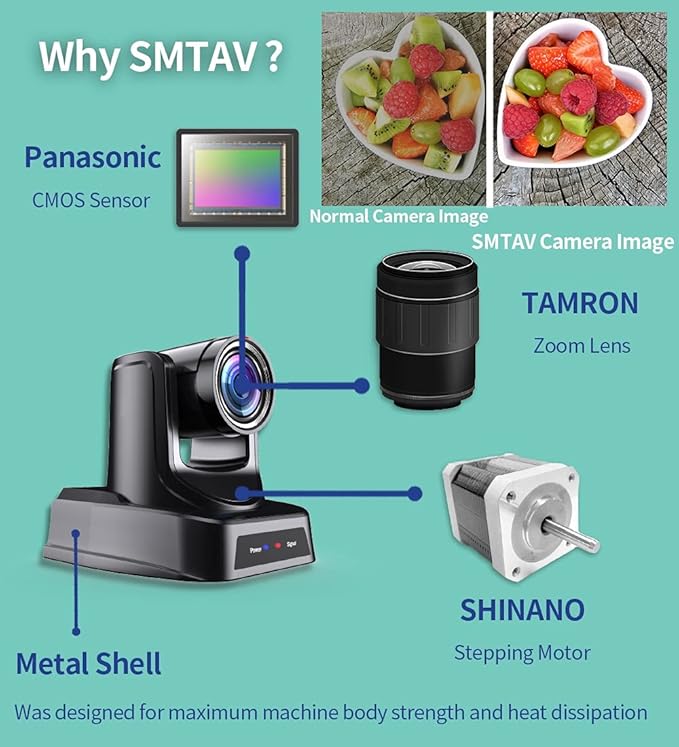

It is equipped with a Panasonic 1/2.7" CMOS and a Tamron zoom lens with a maximum aperture of F1.8, combined with our unique image processing algorithm and focus processing algorithm, so that it can easily cope with a variety of scenes. Whether it is a football competitions under night lights, press conferences under the spotlight or a party under the sun.

Simultaneously output max 1080p@60fps video from 3G-SDI,HDMI and IP streaming(MJPEG/H.264/H.265)

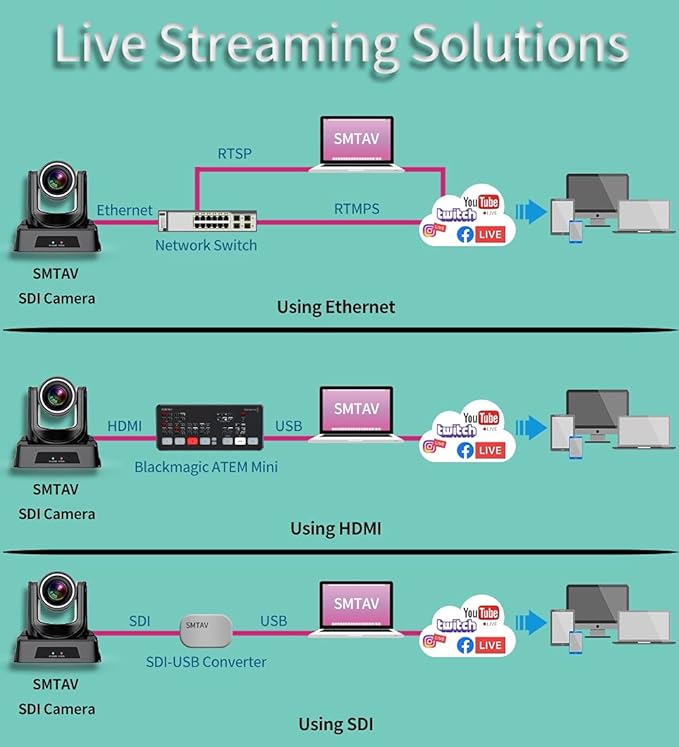

It supports H.264/H.265 video encoding and RTSP/RTMP protocols, can easily cope with various live steaming challenges

Standard PoE/Onvif/VISCA/Pelco-D/Pelco-P/CGI/HTTP and etc protocols Support.

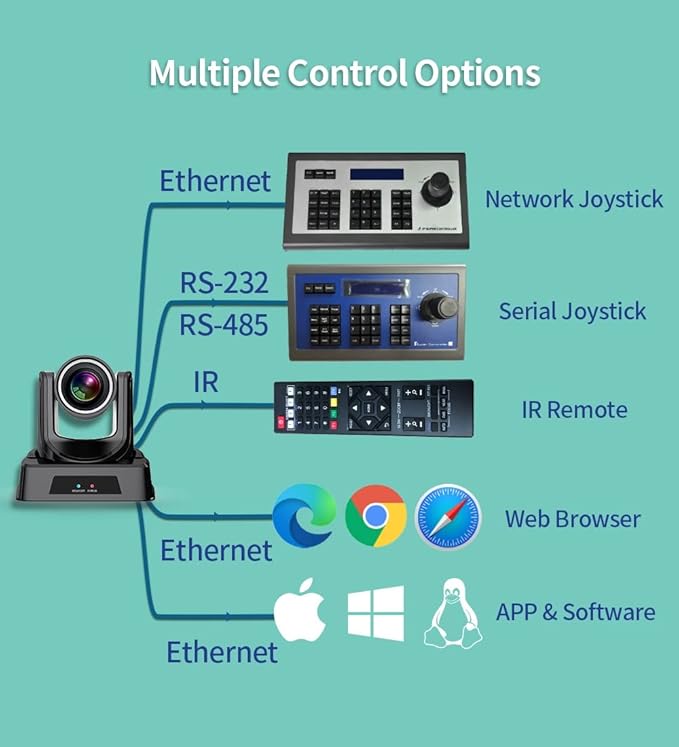

Easily controlled by IR controller, Network or serial port
