USB C Docking Station Dual Monitor for Dell/HP/Lenovo/Surface Laptop 14 in 1 Triple Display Hub Multiple Adapter Dongle with 2 HDMI 4K+VGA+5 Port+100W PD Charger+Ethernet+SD/TF+Audio

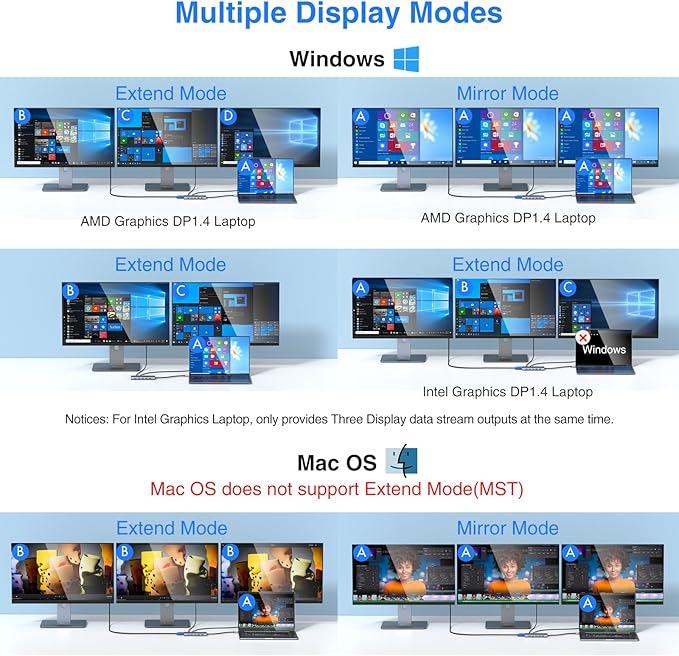

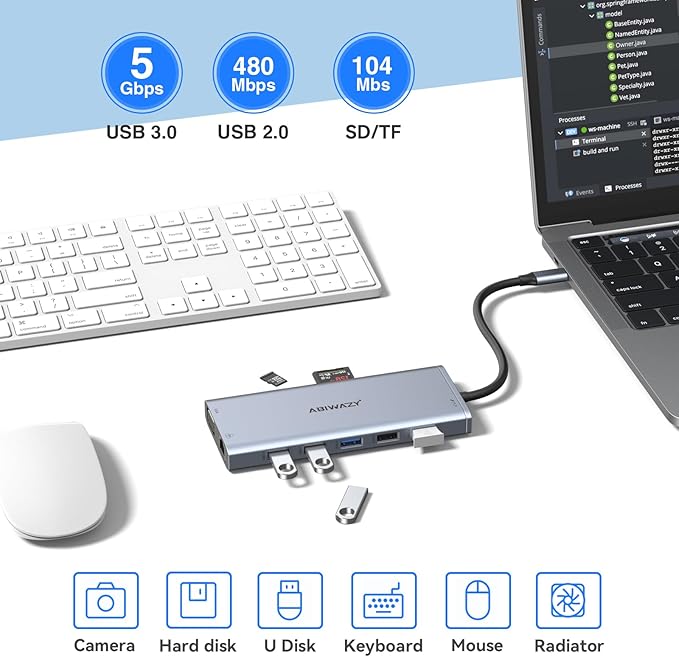

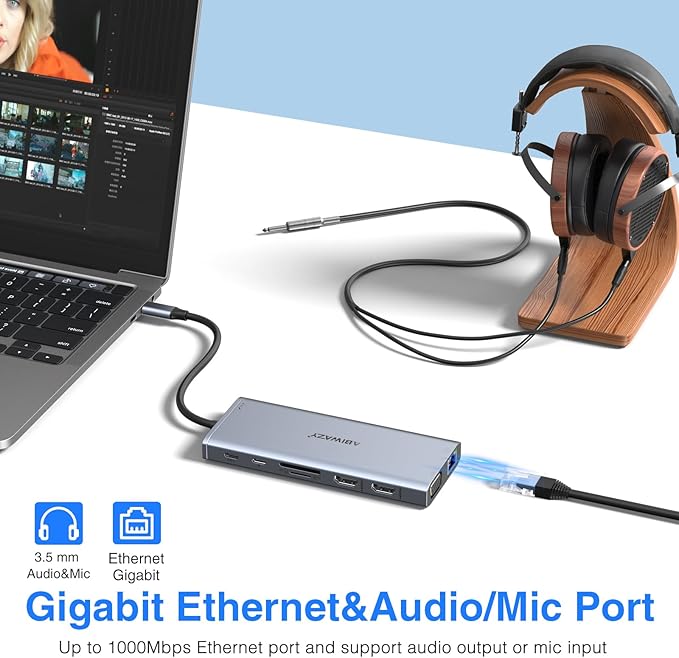

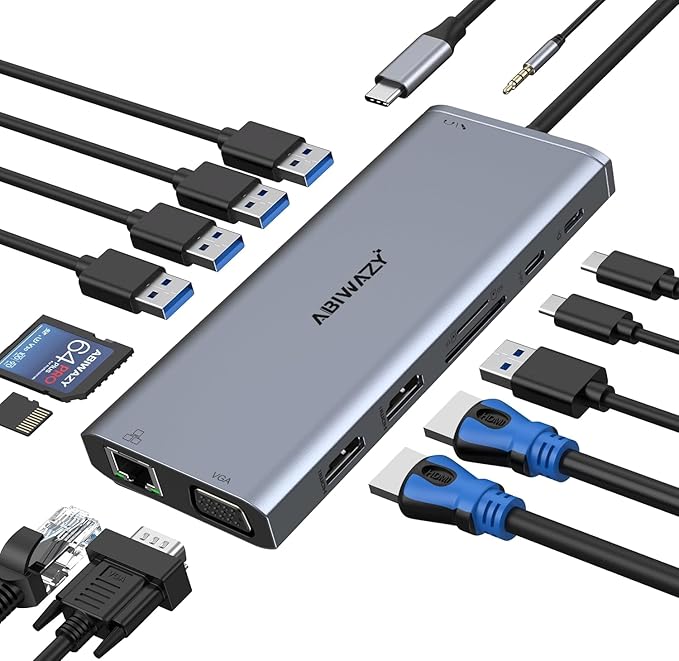

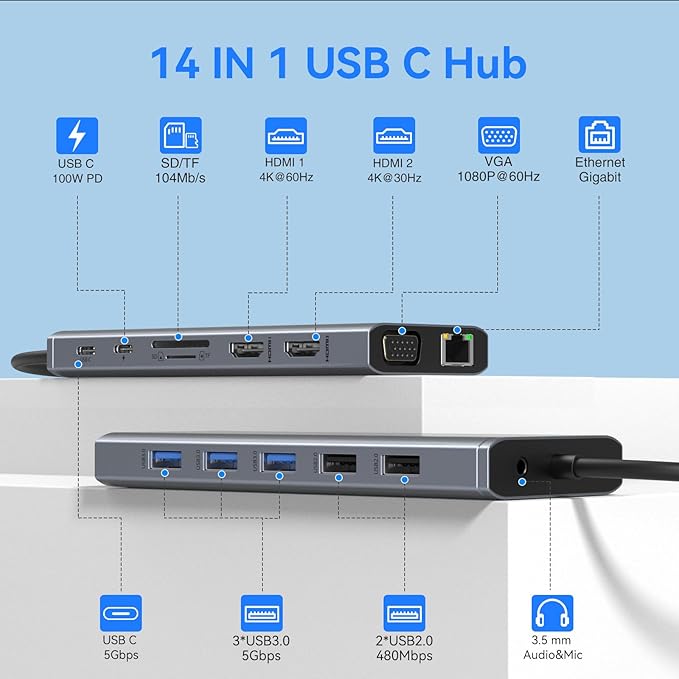

- USB C Docking Station 14 IN 1: With this USB C hub multiple adapter you can easily extend your laptop from one type c/thunderbolt 3 port into 14 ports, you get 2*4K HDMI, VGA, 3*USB 3.0 ports, USB C Data Transfer port(Speed up to 5Gbps), 2*USB 2.0 ports, USB C Power Delivery Port(Up to 100W), Gigabit Ethernet(1Gbps), SD/Micro SD card readers and 3.5mm Mic/audio. USB C to dual HDMI Adapter widely applicable for Dell XPS13/15, Dell Latitude 13 7000/ E7370, Surface/Lenovo/HP etc. laptops - 4K Dual Monitor&Triple Display: The Docking Station Dual Monitor can easily to achieve dual-monitor and triple-monitor displays for Windows OS, using different monitors to do different projects will make your work/life more efficient. Single use HDMI 1max up to 4K@60Hz, HDMI 2 up to 4K@30Hz(DP1.4 source). When connect 2 displays, 2 HDMI resolution will be 4K@30Hz and 1080P@60Hz(DP1.4). Display output will be 1080P when dual or triple display with VGA. Please Note: Mac OS ONLY support mirror mode - USB C to Gigabit Ethernet Adapter and Mic/Audio Port: The Dell Docking station supports 10/100/1000BASE-T Lan networks, just plug in an ethernet cable, you can enjoy the ultra-fast gigabyte ethernet speed and the reliability of a wired connection directly. Worry-free about WIFI's instability and interference from USB 3.0; Also, this usb c dock have a 3.5mm Mic/Audio(2 in 1) port for you to put in your wired headset, so that you can enjoy music without disturbing others - 100W Power Delivery Port & USB C Card Reader: Dual Monitor Docking Station supports charging your laptop at power up to 87W(Safty) while connecting multiple peripherals, offers significantly faster charging time, worry-free about power storage; Also with this usb c to sd card reader, you can conveniently browse photos instantly on your USB-C smartphones/laptops and transfer lots of photos in seconds(up to 104Mb/s) to your laptop. Also this sd card adapter support SD & TF work simultaneously - USB 3.0 Hub with Super Speed Data Transfer: This HP Docking Station comes with 3 usb 3.0 ports and one usb c port, speed up to 5Gbps, allows you transfer files in seconds from your usb flash driver, usb/usb c hard disks. In addition, you can connect the keyboard or mouse without any lag via 2 USB 2.0 ports. Note: The USB C dongle only 1 HDD/SSD can be connected at the same time. ABIWAZY can provide these products and service. Please let us know about your concerns

Product description

14-IN-1 USB C Docking Station Dual Monitor Hub for Dell HP Lenovo Surface Laptop

14-IN-1 USB C Docking Station Dual Monitor Hub

ABIWAZY USB C Docking Station Compatible & Incompatible list (Not a full list)

Does this usb c hub compatible with my laptop?

Why there is no pictures of the external monitors when I connect the monitors via the HDMI/VGA port of this usb c dock?

Why can't I use this dock station's second USB C port to charge my laptop?

Does this usb c hub support dual 4k monitors at the same time?

Why does the laptop get hot when it is connected to the hub to work?

Does this usb c hub compatible with my laptop?

Only if your laptop's built-in USB C port is fully funcitonal port which support Data transfer&Video Display&PD charging,you can use the full functions of this hub. Such as Thunderbolt 3/4, USB4,Type C 3.1/3.2 Gen 2 with Power Delivery & DisplayPort.

Why there is no pictures of the external monitors when I connect the monitors via the HDMI/VGA port of this usb c dock?

1.please check which function supports by your laptop's built-in USB C Port.

2.Check your HDMI cable(HDMI to HDMI).

3. Plugin the Laptop's power adapter to the USB-C PD port before connecting external hard drives or multiple devices to the hub.

Why can't I use this dock station's second USB C port to charge my laptop?

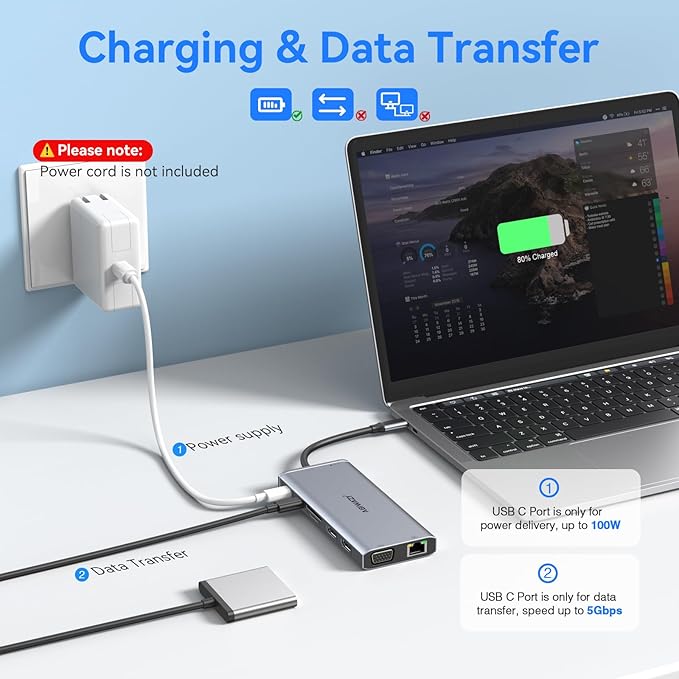

There have 2 usb c ports of our hub, the first usb c is a PD fast charging port, but the second usb c port only support data transfer function, it can't used to charging or HDMI output. If you still can't charge, please tell us your laptop model.

Does this usb c hub support dual 4k monitors at the same time?

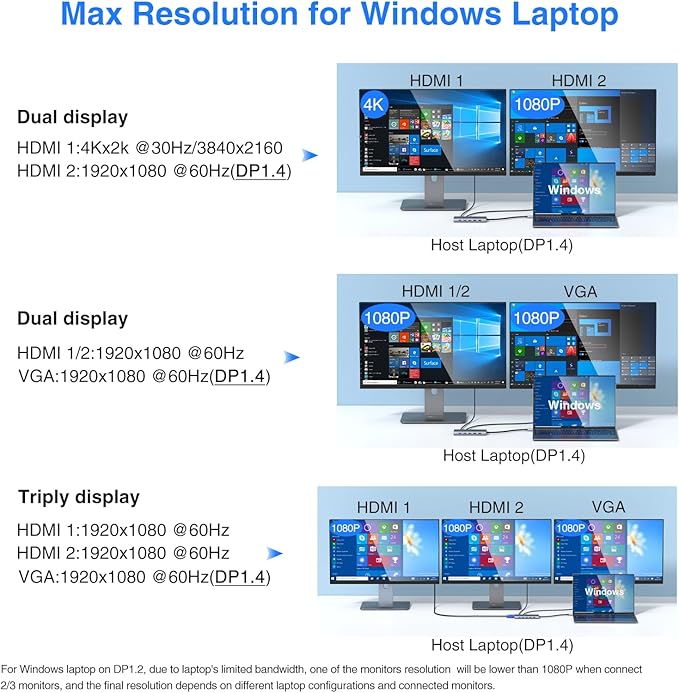

Dual HDMI display simultaneously(Final resolution depends on bandwidth of the laptop graphics card,monitor specification,video cable):

For DP1.4,HDMI 1 max up to 4K@30Hz,HDMI 2 up to 2K@60Hz;

For DP1.2,HDMI 1 max to 4K@30Hz, HDMI 2 up to 1080P 60Hz.

Why does the laptop get hot when it is connected to the hub to work?

The hub temperature will heat up when it works. 0℃ - 50 ℃ is the normal and reasonable range. It's a normal situation for all hubs, not a quality problem, please feel relieved about usage.
