USB Camera Module 8MP 3264x2448 HD USB Webcam Board with 2.1mm Lens IMX179 Sensor Embedded Camera UVC Plug & Play for 3D Printer/Industrial Machine/Robot Compatible with Windows/Linux/Mac/Androi

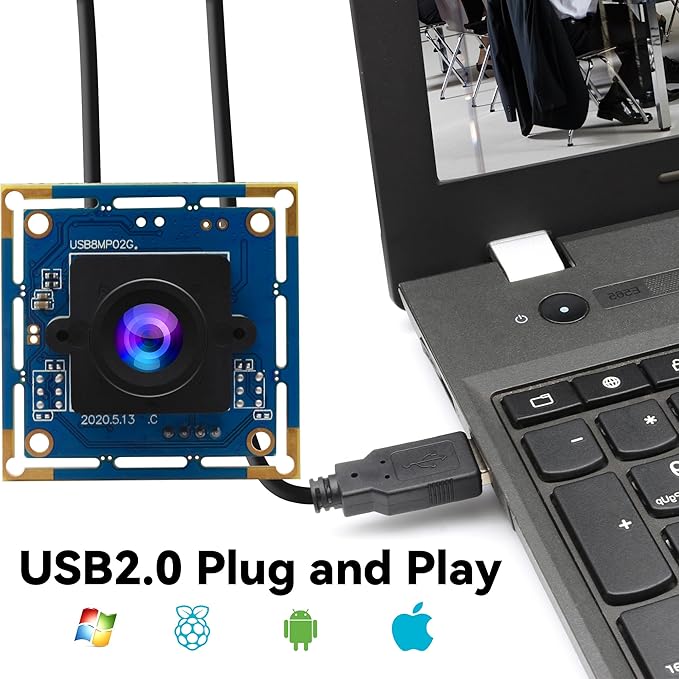

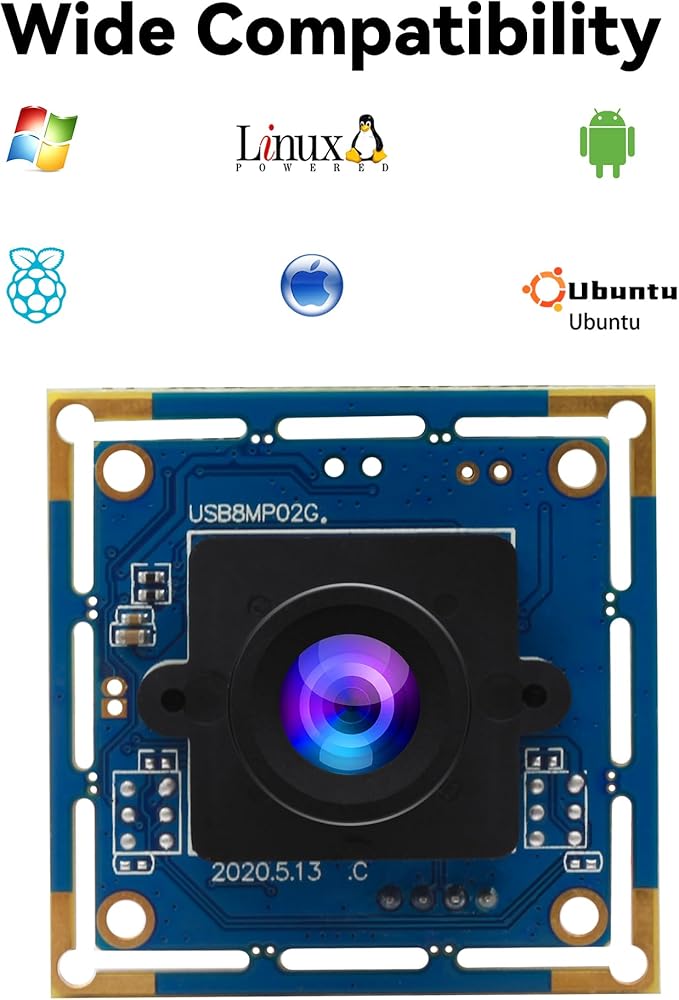

- 8MP HD USB Camera Module: This 8MP usb camera module delivers high definition 3264×2448 resolution at 15fps, with multiple resolution options (2592×1944@20fps, 1024×768@30fps, etc.). The 1/3.2" IMX179 sensor ensures sharp, low-noise images with accurate color reproduction, perfect for 3D printing, robotics, and industrial applications. - Ultra-Compact: The mini usb webcam board measures only 38×38mm (optional cut to 32×32mm), making it ideal for embedded systems, drones, and tight spaces. Its open-frame design allows easy integration into custom projects, medical devices, and automation machines. - 2.1mm Fixed Lens: Equipped with a 2.1mm lens (90° HFOV), this UVC-compliant webcam provides a distortion-free view for monitoring, machine vision, and live streaming. You can fine-tune brightness, contrast, saturation, exposure, and white balance for optimal image quality. - Plug & Play: Just connect the camera to PC, laptop, Android device with the included usb cable, and it works instantly?no extra drivers required! Supports UVC protocol, compatibility with Windows, Linux, Mac, Android, Raspbeyy Pi and Ubuntu. - Universal Compatibility for Multiple Uses: Works flawlessly with Zoom, Skype, OBS, and live streaming platforms, as well as embedded systems, robotics, and medical devices. Ideal for 3D printer monitoring, monitoring laser engraver, security systems, and DIY electronics projects. - Notes: 1. This camera has an IR filter installed. 2. For best results, we recommend using this camera module in conditions with adequate lighting. 3. The lens was sealed with glue.

Product description

Magnolia 8MP USB Camera Module IMX179 Lightburn Camera with 2.1mm Lens

Magnolia 8MP USB Camera Module with 2.1mm Fixed Focus Lens

Mini Size USB Camera Module for Embedded Applications

8MP USB Camera Module Specification

Magnolia USB Camera

1/3.2'' IMX179

Sensor

1/2.6'' AR0234

8Megapixel

Pixel

2.3Megapixel

MJPEG/YUY2

Compression Format

MJPEG/YUY2

34dB

S/N Ratio

37dB

0.65V/lux-sec@550nm

Sensitivity

1.4V/lux-sec@550nm

Rolling Shutter

Shutter Type

Global Shutter

2.1mm lens

Lens

200degree fisheye

1/3.2'' IMX179

Sensor

1/3'' AR0130

8Megapixel

Pixel

1.3Megapixel

MJPEG/YUY2

Compression Format

MJPEG/YUY2

34dB

S/N Ratio

44dB

0.65V/lux-sec@550nm

Sensitivity

5.5V/lux-sec@550nm

Rolling Shutter

Shutter Type

Rolling Shutter

2.1mm lens

Lens

180degree fisheye

1/3.2'' IMX179

Sensor

1/2.7'' OV2710

8Megapixel

Pixel

2Megapixel

MJPEG/YUY2

Compression Format

MJPEG/YUY2

S/N Ratio

0.65V/lux-sec@550nm

Sensitivity

3.7V/lux-sec@550nm

Rolling Shutter

Shutter Type

Rolling Shutter

2.1mm lens

Lens

3.6mm lens

1/3.2'' IMX179

Sensor

1/4'' OV5640

8Megapixel

Pixel

5Megapixel

MJPEG/YUY2

Compression Format

MJPEG/YUY2

34dB

S/N Ratio

36dB

0.65V/lux-sec@550nm

Sensitivity

600mV/Lux-sec

Rolling Shutter

Shutter Type

Rolling Shutter

2.1mm lens

Lens

autofocus 60 degree

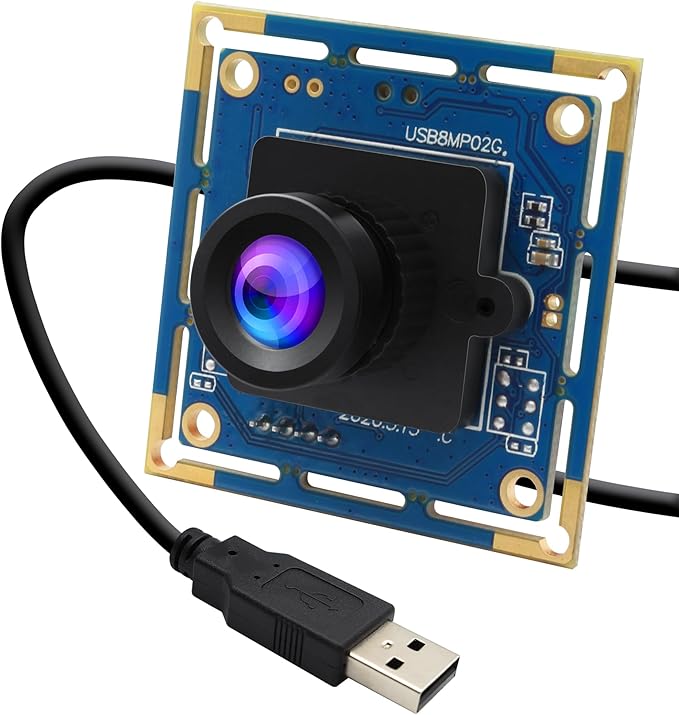

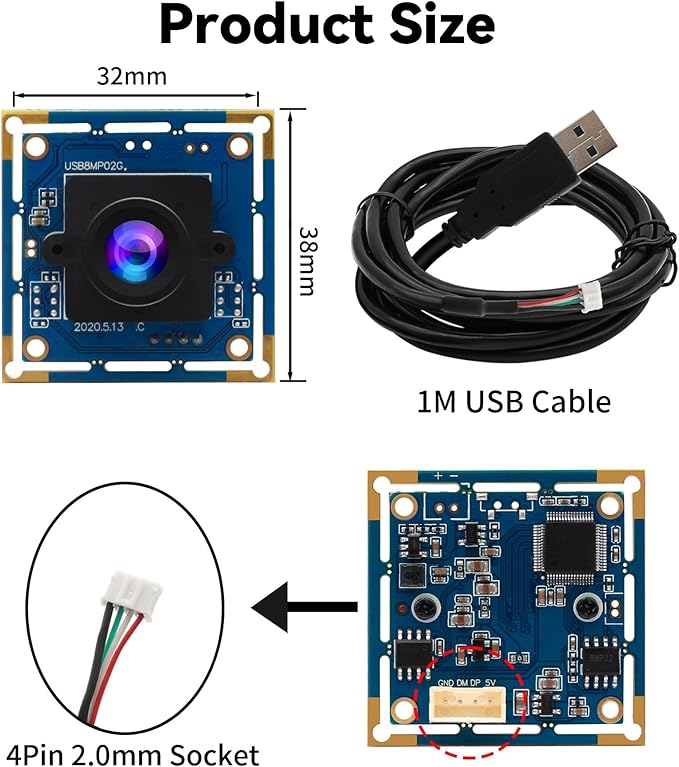

High definition 8MP USB camera module, adopt a 1/3.2'' CMOS IMX179 color image sensor, max resolution 3264(H)x2448(V)@ 15FPS. 38x38( compatible 32x32mm) mini micro USB camera board.

Resolution & Frame: 3264x2448@ 15fps/ 2592x1944@ 20fps/ 2048x1536@ 20fps/ 1600x1200@ 20fps/ 1280x960@ 20fps/ 1024x768@ 30fps/ 800x600@ 30fps/ 640x480@ 30fps.

The USB camera equipped with a 2.1mm fixed focus lens, HFOV about 90°.

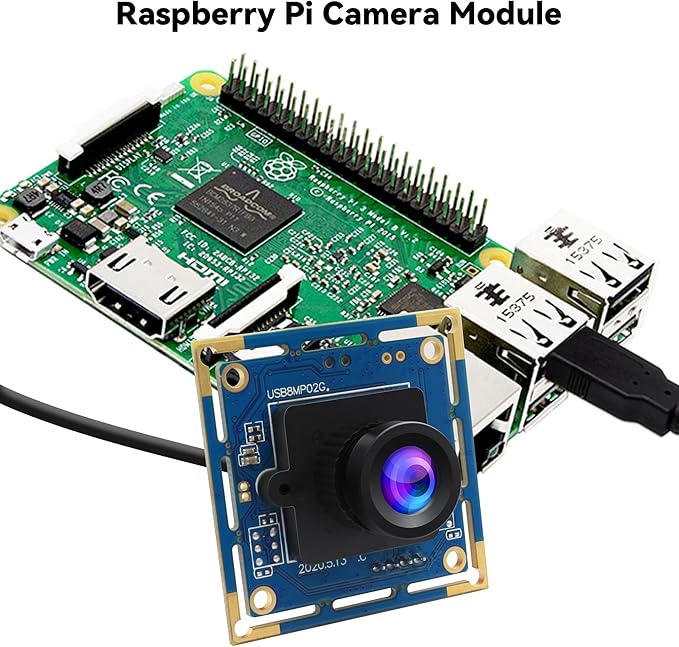

The camera module for kinds of machine vision, video conference, CNC monitoring, baby nancy camera, monitoring laser engraver, 3D printer, industrial inspection, raspberry pi projects, etc.
