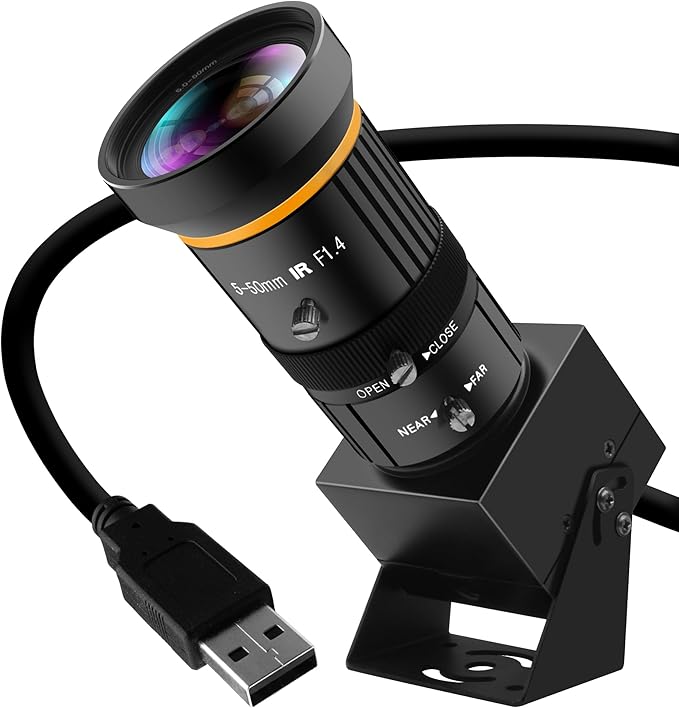

USB Webcam 5MP Color Industrial USB Camera with CS-Mount 5-50mm 10X Manual Zoom Lens – 1944P@30fps Plug-and-Play for PC Live Streaming Video Conferencing & Projects

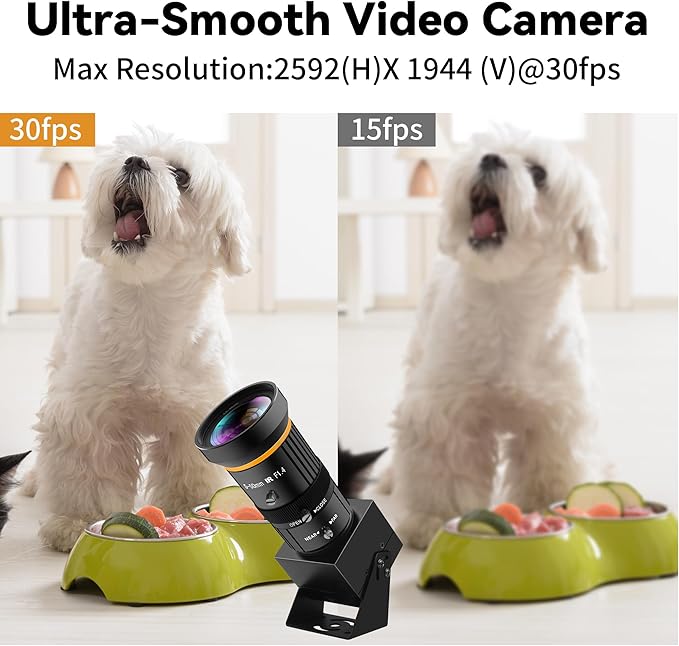

- 5MP USB Camera: Adopts a 1/2.8" CMOS color image sensor for clearer, lower-noise images and accurate object color reproduction.? - 1944P@30FPS High-Speed Camera: Delivers 2592x1944 (1944P)@30fps MJPEG video with smooth playback, low latency, and true, color-accurate images. Offers multiple resolution options: 2592x1944@30fps MJPEG, 2048x1536@30fps MJPEG, 1600x1200@30fps MJPEG, 1920x1080@30fps MJPEG. - 10X Telephoto Manual Zoom Lens: Features a 5-50mm telephoto manual variable-focus lens for precise focus adjustment. Supports 10X zoom (in/out) and lets you tweak brightness/clarity via the lens, ideal for distance shooting in research, technical, or hobby projects. Mini metal shell with dual 1/4-inch screw threads. - Versatile Applications: Suitable for time-lapse recording, robotic systems, 3D printers, video surveillance, live streaming, video conferences, dashcams, and other vision-related projects.? - How to Use: Lock manual settings by tightening/loosening screws (looser screws enable easier ring rotation). Supports close-up zoom without pixel detail loss; zoom and clarity dials can be secured with thumb screws. Note: Manual focusing required.?

Product description

IFWATER USB Camera 5Megapixels Ultra HD Color Webcam, CS Mount 5-50mm Manual Varifocus Lens Close UP OpenCV Cam for Jetson Nano Windows Linux Laptop

5MP USB Webcam with CMOS IMX335 Color Sensor Free Driver USB2.0 Plug and Play for Linux Mac OS Windows Industrial 1944P USB Camera

30FPS 5MP USB Webcam with High Speed USB Camera with 10X Optical Zoom Color Lens for Industrial Machine VR Robotic Vision Close-up Web Cameras

5Megapixels USB Camera with 10X 5-50mm Manual Zoom Lens with CMOS IMX335 Color Sensor and USB2.0 Output USB Webcam

5MP USB Camera High Resolution 2592x1944 Mjpeg 30fps High Speed USB Streaming Webcam Produce Super Sharp Image for Conferencing Industrial Security

5Megapixels USB Camera Manual Zoom Lens Close-up Camera Lightburn Industrial Camera Plug and Play for Laptop,Raspberry PiJetson Nano

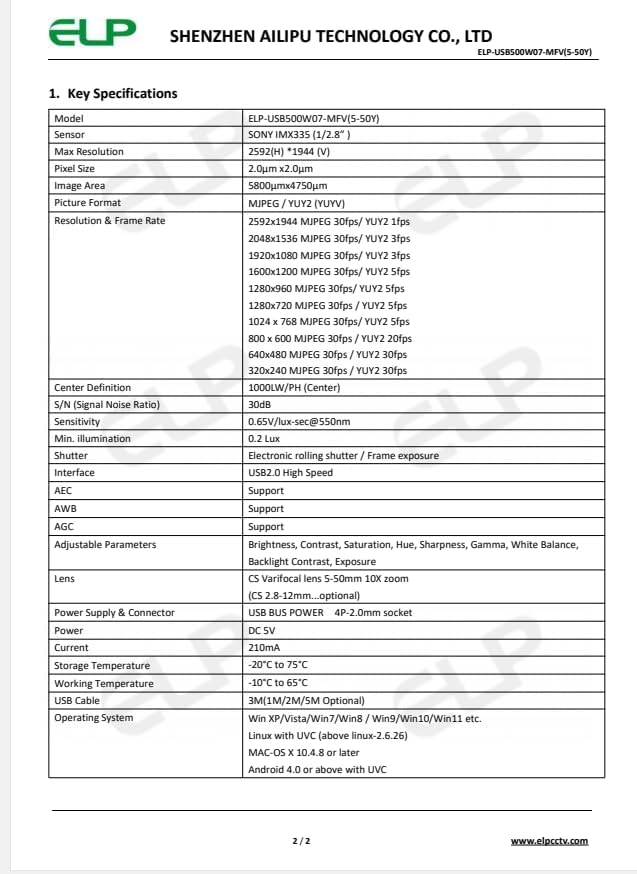

Product Specifications

Model: IF-USB500W07-UFV(5-50Y)-A

Sensor: CMOS IMX335 (1/2.8” )

Max Resolution: 2592(H) *1944 (V), Pixel Size: 2.0μm x2.0μm

Image Area: 5800μmx4750μm, Picture Format： MJPEG / YUY2 (YUYV)

Center Definition: 1000LW/PH (Center)

S/N (Signal Noise Ratio): 30dB

Sensitivity: 0.65V/lux-sec@550nm, Min. illumination：0.2 Lux

Shutter: Electronic rolling shutter / Frame exposure

Interface: USB2.0 High Speed, AEC：Support, AWB：Support, AGC：Support

Adjustable Parameters： Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure

Lens： CS Varifocal lens 5-50mm 10X zoom

Power Supply & Connector： USB BUS POWER 4P-2.0mm socket, Power：DC 5V, Current：210mA

Storage Temperature|: -20°C to 75°C, Working Temperature：-10°C to 65°C

Resolution & Frame Rate|：

2592x1944 MJPEG 30fps/ YUY2 1fps

2048x1536 MJPEG 30fps/ YUY2 3fps

1920x1080 MJPEG 30fps/ YUY2 3fps

1600x1200 MJPEG 30fps/ YUY2 5fps

1280x960 MJPEG 30fps/ YUY2 5fps

1280x720 MJPEG 30fps / YUY2 5fps

1024 x 768 MJPEG 30fps/ YUY2 5fps

800 x 600 MJPEG 30fps / YUY2 20fps

640x480 MJPEG 30fps / YUY2 30fps

320x240 MJPEG 30fps / YUY2 30fps

Operating System：

Win XP/Vista/Win7/Win8 / Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC

Product Features

1. 5MP High Resolution: Max Resolution 2592x1944

2. High Speed 5MP 30FPS: 2592x1944 Mjpeg 30FPS

3. 5-50mm 10X manual zoom lens

4. High Quality Sensor: 1/2.8" CMOS IMX335 Sensor

5. USB Cable: With 3m usb cable

6. Rich Color: Real color vision.

7. UVC: free driver, usb2.0 plug and play

8. Adjustable Parameters: set up Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure as request.

9. Support different system: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI..

10. Compatible with multi-software: OpenCV, VLC, Quick Time, Photo Booth, CameraFi, Amcap, iSpy.

FOR RASPBERRY PI:

* Works with already pre-installed camera software instead of built-in camera.

* Supports Android development board, Raspberry Pi development board, Jetson Nano, etc.

FOR PC:

* Supports Windows, Linux, Mac, Android, Raspberry Pi

* Very easy to use, UVC compliant, driver, just plug and play

-UVC, driver, plug and play.

-Supports OTG

-Compatible with many operating systems, including Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS, etc.

-Supports live streaming software, Skype, Zoom, Facetime, Youtube, etc.

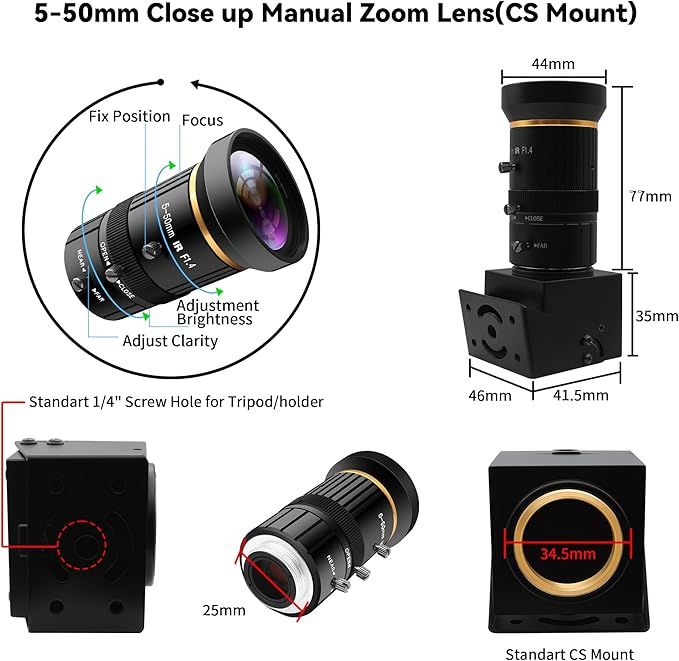

Mount Type:

This camera has a solid aluminum housing with 1/4 inch screw hole at the bottom for tripod mount/webcam mounts

Can be connected to the bracket(but it is not equipped with a bracket)

How to Use the Manual Lens:

1: Need to manual loosen the set screws on the Lens

2: Turning the Rings to adjust the focal length,aperturre and focus to your needs

3: Set back the screws to keep your adjustment.

WARM TIPS:

If you have any problems during use, please contact the seller through the order number. We will definitely reply to your questions in a timely manner.

This camera widely used in applications where high resolution images and videos with autofocus are required, such as industrial camera, video conferencing, live streaming, security, medical equipment, industrial inspection, scientific research and development, education and training, high resolution document scanning, high speed photography equipment, photo scanner ANPR camera, 3D printer, industrial machine vision, etc.
